Model
B650M AORUS ELITE
Socket
AM5
Memory
4x DDR5
M.2 Slots
(2) Slots

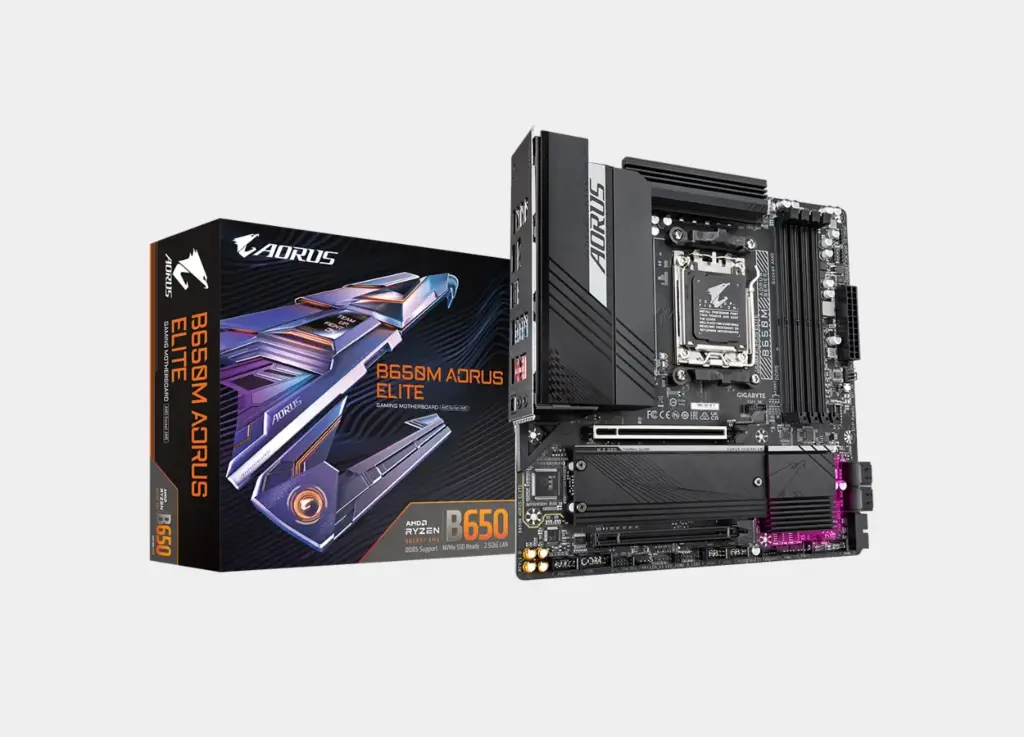

GIGABYTE B650M AORUS ELITE (rev. 1.0)
قوة AORUS بحجم Micro-ATX، بدون أي تنازلات!
جاهز لاقتحام عالم الجيل الجديد من معالجات Ryzen؟ B650M AORUS ELITE تقدم لك منصة مثالية تجمع بين القوة والكفاءة، بدعم DDR5 و PCIe 5.0، وتبريد محسن، وتصميم صغير يناسب كل التجميعات.
مميزات الماذربورد GIGABYTE B650M AORUS ELITE (rev. 1.0)
أداء معتمد من AORUS:
- تدعم معالجات AMD Ryzen 7000 Series بمقبس AM5
- شريحة AMD B650 تقدم توازنًا مثاليًا بين السعر والميزات
- دعم DDR5 حتى 192GB بسرعة تصل إلى 8000MT/s (OC)
جاهزة للمستقبل:
- منفذ PCIe 5.0 x16 لبطاقات الرسوميات عالية الأداء
- دعم PCIe 4.0 M.2 NVMe مع مشتت حراري فائق الكفاءة
- واجهات تخزين متعددة: 4x SATA 6Gb/s + 2x M.2
تبريد ذكي لأداء مستقر:
- مشتتات تبريد على مراحل الطاقة وفتحات M.2
- تقنية Smart Fan 6 بواجهة تحكم ذكية
- مستشعرات حرارية متعددة ومنافذ مراوح هجينة
اتصال شامل يواكبك دائمًا:
- منفذ 2.5GbE LAN من Realtek لأداء شبكي احترافي
- منافذ USB 3.2 Gen2 Type-C و USB 3.2 Gen1
- HDMI 2.1 و DP 1.4 لدعم شاشات 4K/60Hz بسهولة
تصميم احترافي من الداخل والخارج:
- تصميم 8+2+1 مراحل DrMOS مع تبريد ممتاز
- طبقات نحاسية 2X و PCB من 6 طبقات لتحمل الحرارة
- حماية ضد تفريغ الشحنات الكهربية والارتفاع الحراري
جاهزة لويندوز 11 وأكثر:
- دعم TPM 2.0 للأمان والتوافق
- تقنية Q-Flash Plus لتحديث BIOS دون الحاجة للمعالج أو الذاكرة
- تصميم Micro-ATX يناسب أغلب صناديق الحاسوب الحديثة
لماذا B650M AORUS ELITE؟
- أداء ثابت مع دعم DDR5 و PCIe 5.0
- تبريد متطور وهيكل متين
- اتصال شامل وتجربة مستقبلية مذهلة
اخترها لأداء موثوق، قابلية توسعة ذكية، وتجربة استخدام متكاملة تناسب اللاعبين والمبدعين على حد سواء.
مواصفات الماذربورد GIGABYTE B650M AORUS ELITE (rev. 1.0)
CPU
- AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
- AMD B650
Memory
- Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
- Integrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back pane
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x THB_U4 add-in card connector
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x Q-Flash Plus button
- 1 x DisplayPort
- 1 x HDMI port
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 5 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
المواصفات
| MotherBoard | |
|---|---|
| Socket | AM5 |
| Memory Type | DDR5 |
| Internal I/O Connectors | Micro ATX |
| LAN | Realtek® 2.5GbE |
| LAN Speed | 2.5GbE |
| M.2 Slot1 | PCLe 5.0 |
| M.2 Slot2 | PCLe 4.0 |
| M.2 Slot3 | N/A |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| العلامة التجارية | Gigabyte |
| ضمان | Three Years |
