Lenovo Legion 5 16IRX9
i7 14650HX 16GB DDR5 1TB NVMe RTX 4060 WQXGA IPS 240Hz WIN 11
Get ready to dominate the battlefield with the Lenovo Legion 5 16IRX9! Unmatched power, a stunning 16-inch high-definition display, and a sleek design that matches your ambitions. Propel yourself to the peak of performance!
Model
83DF00FRED
Processor
i7 14650HX
Memory
16GB DDR5 5600MHz
Storage
1TB M.2
VGA
RTX™ 4060
Display
16.0Inch, WQXGA, 240Hz
LENOVO LEGION 5 16IRX9
Lenovo Legion 5 16IRX9 – Performance Power in a Professional Design
Elevate your gaming and creative work experience to a new level with the Lenovo Legion 5 16IRX9, equipped with a powerful HX-class processor and a strong RTX 40 series graphics card. This device is perfect for gamers, developers, and creators who demand nothing less than exceptional performance.
Features of the LENOVO LEGION 5 16IRX9 Laptop
Superior performance with Intel Core i7-14650HX
- The device comes with a 14th generation Intel Core i7-14650HX processor, featuring high processing power designed for heavy performance and multitasking. Whether you're playing the latest games, streaming content, or working on professional projects, this processor provides you with the smoothness and speed you need.
Realistic graphics with NVIDIA GeForce RTX 4060 8GB
- Enjoy a powerful graphical experience with the RTX 4060, supported by DLSS 3 technology and ray tracing. It provides you with smooth performance in high-resolution gaming and excellent support for 3D design, engineering, and imaging applications.
WQXGA 16-inch 240Hz Display – Unmatched Clarity and Precision
- The screen comes in a 16-inch size with a resolution of 2560×1600, a refresh rate of 240Hz, brightness of up to 500 nits, and a 100% sRGB color gamut, providing an immersive visual experience, accurate colors, and ultra-smooth motion in gaming and dynamic content.

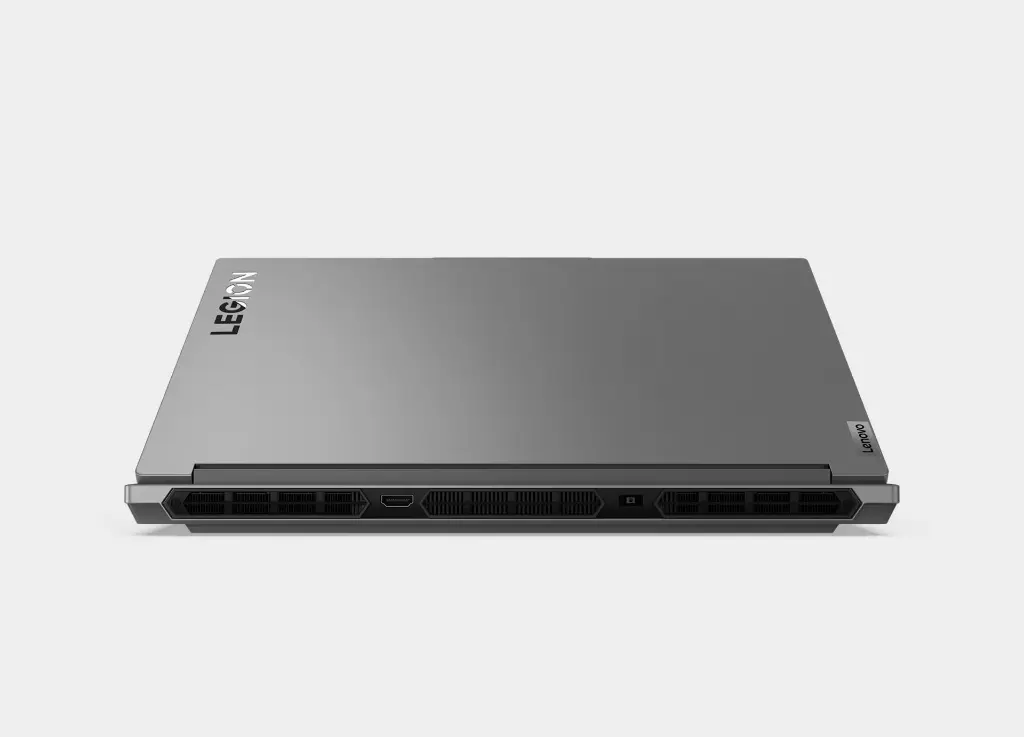

Legion ColdFront 5.0 Cooling System
- The advanced thermal system keeps the device's temperature within ideal limits, even under the most extreme pressure conditions, thanks to the dual cooling design and wide air vents.
Fast memory and storage
- The device comes with DDR5 memory of up to 32GB, along with a super-fast 1TB NVMe PCIe Gen4 SSD, to reduce loading times and provide instant responsiveness during work or gaming.

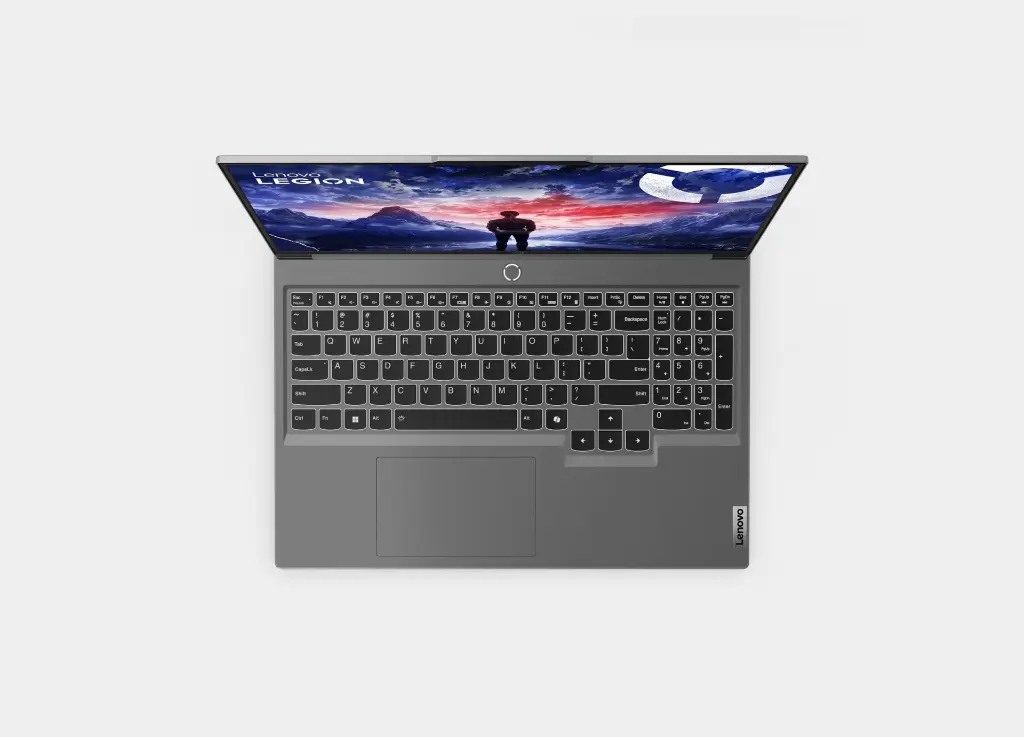

Legion TrueStrike Keyboard with RGB Lighting
- Precise typing experience and perfect control in games, with soft keys and improved responsiveness, and customizable backlighting to match your style.
Surround sound and advanced communication technologies
- Powered by Nahimic Audio technology for a rich and immersive sound experience. The device also supports the latest connectivity technologies such as Wi-Fi 6E and Bluetooth 5.3, along with a full range of ports including USB-C, Thunderbolt 4, HDMI 2.1, RJ-45, and USB-A.
Durable and elegant design
- A sleek design with a metallic touch, combining durability and lightweight, adds a professional flair to your experience whether you're at the office, home, or on the go.
Lenovo Legion 5 16IRX9 with an i7-14650HX processor and RTX 4060 graphics card is the perfect choice for those looking for powerful performance in a portable device with a luxurious design.
Designed to meet the needs of the new generation of professionals and gamers. Get ready to take full control of every challenge ahead of you.
Specifications of the laptop LENOVO LEGION 5 16IRX9
PERFORMANCE
- Processor
Intel Core i7-14650HX, 16C (8P + 8E) / 24T, P-core 2.2 / 5.2GHz, E-core 1.6 / 3.7GHz, 30MB
- AI PC Category
AI-Powered Gaming PC
- Graphics
NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W, 233 AI TOPS
- Chipset
Intel HM770 Chipset
- Memory
1x 16GB SO-DIMM DDR5-5600
Memory Slots
- Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
- Up to 32GB DDR5-5600 offering
- Storage
- 1TB SSD M.2 2280 PCIe 4.0×4 NVMe
Storage Support
- Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB
Storage Slot
- Two M.2 2280 PCIe 4.0 x4 slots
Card Reader
- None
- Optical
- None
Audio Chip
- High Definition (HD) Audio, Realtek ALC3287 codec
- Speakers
- Stereo speakers, 2W x2, optimized with Nahimic Audio
- Camera
- FHD 1080p with Privacy Shutter
Microphone
- 2x, Array
- Battery
- 80Wh
Power Adapter
- 230W Slim Tip (3-pin)
Special Features
- AI Chip: LA1
DESIGN
- Display
- 16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR™ 400, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance
Touchscreen
- None
Color Calibration
- Factory Color Calibration
- Keyboard
- 4-Zone RGB Backlit, Arabic
- Touchpad
- Buttonless Mylar surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)
Case Color
- Onyx Grey
Surface Treatment
- Anodizing
Case Material
- Aluminium (Top), PC-ABS (Bottom)
- Pen
- Pen Not Supported
Dimensions (WxDxH)
- 363.4 x 261.75 x 21.99-26.95 mm (14.31 x 10.31 x 0.87-1.06 inches)
- Weight
- Around 2.5 kg (5.5 lbs)
SOFTWARE
Operating System
- None
Bundled Software
- None
CONNECTIVITY
WLAN + Bluetooth
- Wi-Fi® 6E, 802.11ax 2x2 + BT5.2
- WWAN
- Non-WWAN
- Ethernet
- 100/1000M (RJ-45)

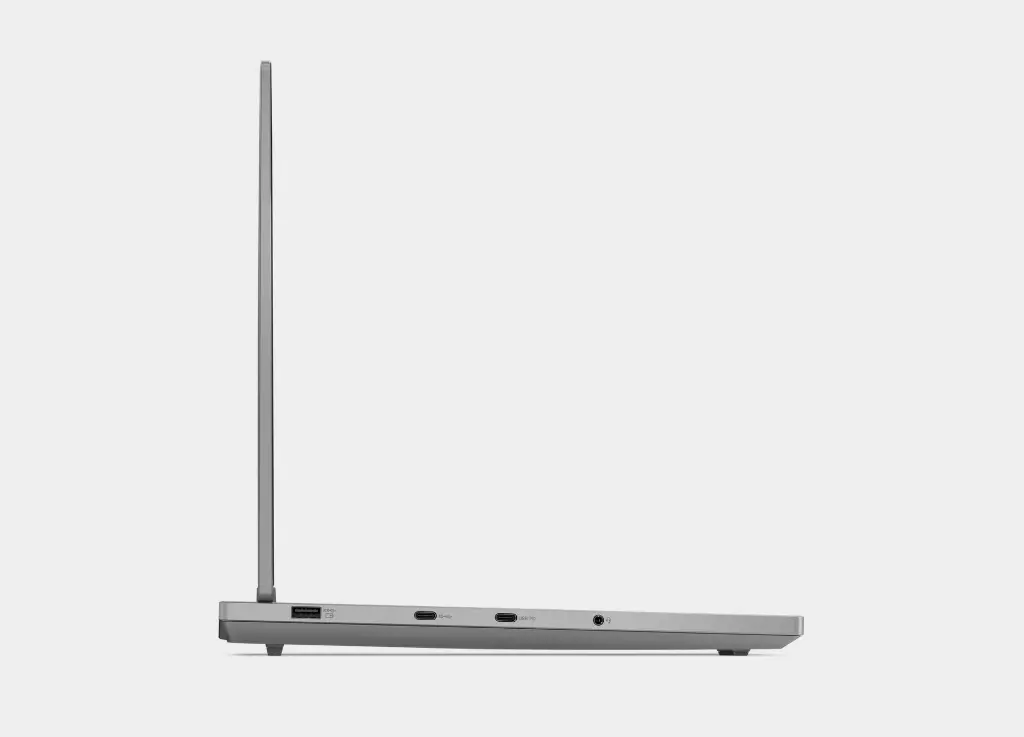

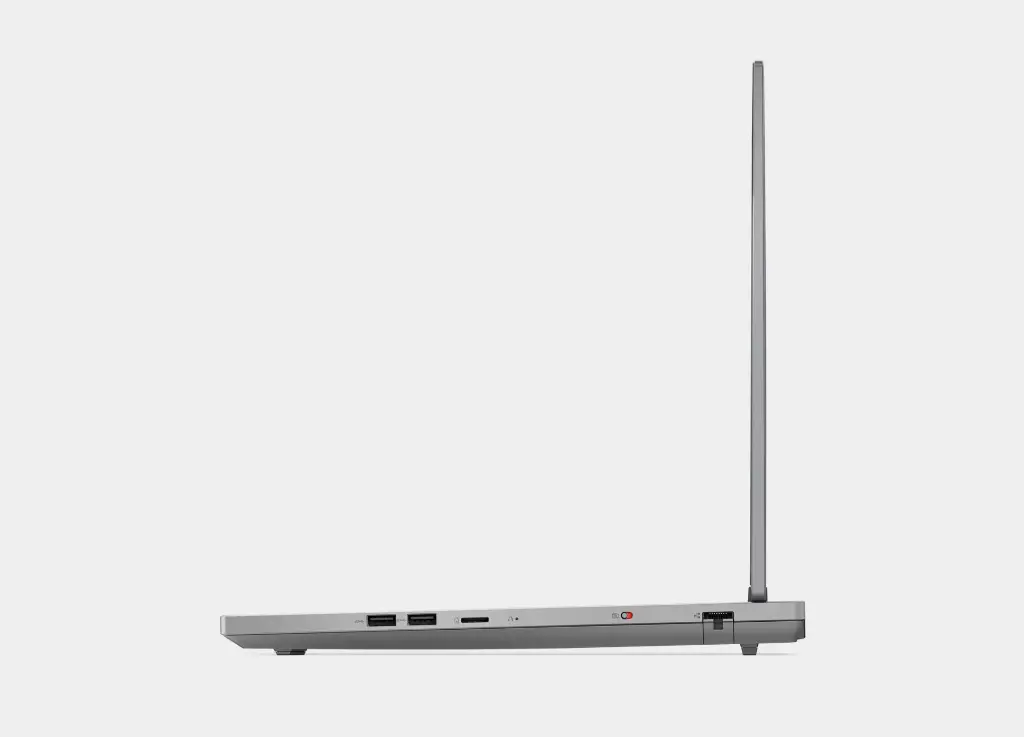

Standard Ports
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with PD 140W and DisplayPort 1.4
- 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort 1.4
- 1x HDMI 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Power connector
- Docking
- Various docking solutions supported via Thunderbolt™ / USB-C®.
- For more compatible docking solutions, please visit Docking for Legion Pro 5 16IRX9
SECURITY & PRIVACY
Security Chip
- Firmware TPM 2.0 Enabled
Fingerprint Reader
- None
Other Security
- E-shutter
SERVICE
Included Upgrade
- 2Y Courier/Carry-in upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories
- Lenovo® Legion™ M300s RGB Gaming Mouse + Lenovo Legion Gaming Speed Mouse Pad M
CERTIFICATIONS
Green Certifications
- ErP Lot 3
- RoHS compliant
Other Certifications
- TÜV Rheinland® High Gaming Performance
- TÜV Rheinland Low Blue Light (Hardware Solution)
MODEL INFORMATION
- Model
- 83DF00FRED
Specifications
| Laptop | |
|---|---|
| Processor | Intel® Core™ i7 14650HX |
| Memory | 16GB DDR5 5600MHz |
| Storage Units | NVMe™ 1TB PCIe® 4.0 |
| Monitor | |
|---|---|
| Monitor Size | 16 Inch |
| Refresh Rate | 240Hz |
| Panel Type | IPS |
| Screen Resolution | 2K WQXGA (2560x1600) |
| VGA | |
|---|---|
| Graphics Card | Nvidia® GeForce® RTX™ 4060 8GB GDDR6 |
| Information | |
|---|---|
| Brand | Lenovo |
| Warranty | Two Years |
