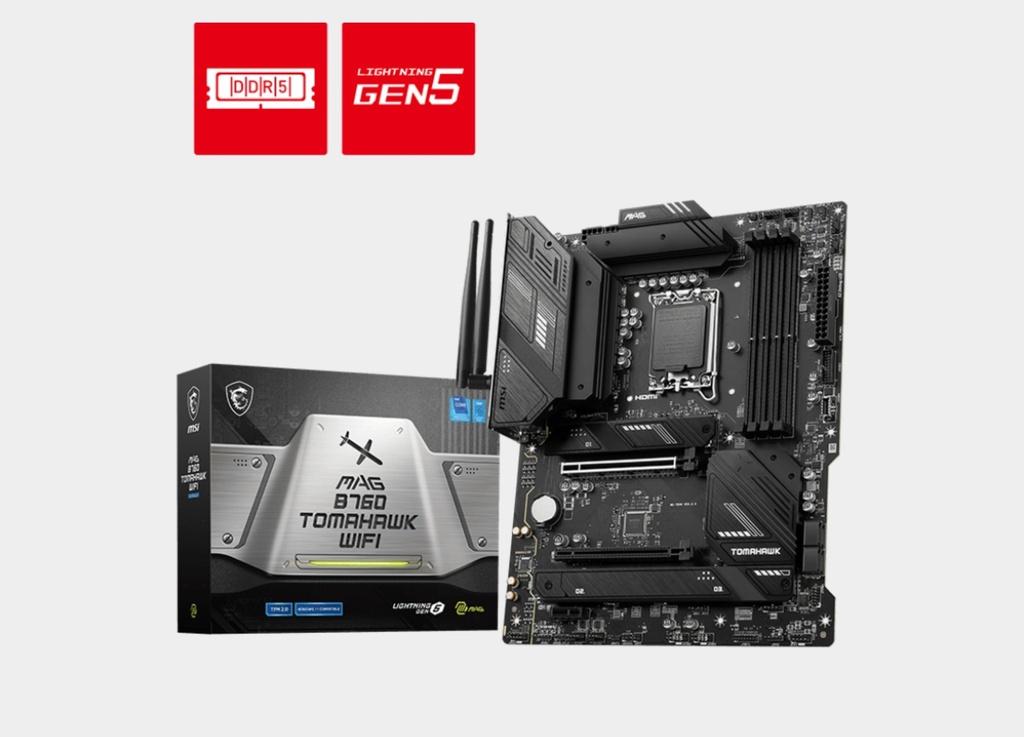

MSI MAG B760 TOMAHAWK WIFI

MSI MAG B760 TOMAHAWK WIFI

Discover the power of performance and stunning design with the MAG B760 TOMAHAWK WIFI motherboard from MSI. Specifically designed for users seeking the best experience in gaming and productivity. This motherboard combines advanced technology and high reliability to deliver unparalleled performance.

Features of the MSI MAG B760 TOMAHAWK WIFI Motherboard

Strong performance and stability:

• Intel B760 Chip:

The MAG B760 TOMAHAWK WIFI motherboard comes equipped with the powerful Intel B760 chipset, allowing you to take advantage of the latest Intel Core processors from the newest generation.

This chip supports Intel Turbo Boost Max 3.0 technology, which automatically increases the performance of the highest core to deliver better performance in gaming and multitasking.

• DDR5 Memory:

The motherboard supports the latest DDR5 memory technologies, which allow for ultra-fast data transfer speeds and a larger capacity of up to 128GB.

It comes with a design that provides stability and high memory performance, allowing you to run multiple applications and high-definition games without any lag.

Fast and stable connection:

• WIFI 6E technology:

The motherboard features integrated WIFI 6E technology, which provides fast and stable wireless connectivity.

This technology allows you to take advantage of the new 6 GHz frequency band, reducing interference and increasing internet connection speed.

• Ethernet network ports at a speed of 2.5Gbps:

To ensure the best wired connection, the motherboard features Ethernet ports with a speed of 2.5Gbps, allowing you to take advantage of ultra-fast internet speeds for gaming, live streaming, and downloading large files.

Advanced Thermal Design:

• Advanced cooling solutions:

The motherboard features an advanced thermal design that includes dense heat sinks and heat pipes to ensure stable performance under load.

These solutions improve heat distribution and cool the main components, ensuring that the system remains at low temperatures even when used for long periods.

• Support for M.2 Shield Frozr technology:

The motherboard supports M.2 Shield Frozr technology, which helps maintain a low temperature for M.2 solid-state drives.

This design works to protect hard drives from overheating, thereby extending their lifespan and improving their performance.

Expansion and customization capabilities:

• Multiple PCIe ports:

The motherboard provides multiple PCIe slots for connecting graphics cards and other expansion cards.

Supports PCIe 4.0, allowing you to take advantage of double data transfer speeds compared to previous versions.

• Wide options for RGB lighting:

The motherboard features extensive options for customizable RGB lighting through the Mystic Light software.

You can customize the lighting to match the style of your personal device and add a unique aesthetic touch to your system.

Audio and Visual Technologies:

• High-quality audio system:

The motherboard features a high-quality audio system that supports Audio Boost technology, providing an immersive and exceptional audio experience in games and movies.

High-quality audio components deliver clear and pure sound without distortion, enhancing the overall listening experience.

• Support for 4K and multiple displays:

The motherboard supports connecting 4K displays via HDMI and DisplayPort ports, allowing you to enjoy superior picture quality.

You can connect multiple screens to enhance your productivity and take advantage of a larger display area.

Security and Reliability:

• Advanced Protection Techniques:

The motherboard features advanced protection technologies such as overvoltage protection and protection against electromagnetic interference.

These technologies work to protect the internal components of the motherboard and ensure long-term performance stability.

• MSI Reliability:

The motherboard comes with MSI's reliable warranty, ensuring you receive excellent technical support and customer service.

The motherboard has been rigorously tested to ensure reliable and consistent performance under all conditions.

The MAG B760 TOMAHAWK WIFI motherboard is not just a technical product; it is an investment in the performance and security of your computer. With its outstanding design and advanced technologies, this motherboard provides you with an exceptional user experience whether you are a professional gamer, working on professional projects, or enjoying multimedia content.

Elevate your computer experience today and enjoy the best performance and advanced technology with MSI.

Specifications of the MSI MAG B760 TOMAHAWK WIFI motherboard

Chipset

•  INTEL B760

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• LGA1700

Memory

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile

Onboard Graphics

• 1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

• 1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

• 2x PCI-E x16 slot
• Supports x16/x4
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Storage

• 3x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Front)
• 4x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

LAN

• Realtek® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

• Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output

Internal IO

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 5x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

LED FEATURE

• 4x EZ Debug LED

BACK PANEL PORTS

• USB 2.0
• DisplayPort 1.4
• USB 3.2 Gen 2 10Gbps Type-A
• 2.5G LAN Port
• Wi-Fi / Bluetooth Antenna
• HD Audio Connectors
• HDMI™ 2.1 Port
• USB 3.2 Gen 2x2 20Gbps Type-C
• Optical S/PDIF OUT

OPERATING SYSTEM

• Support for Windows® 11 64-bit, Windows® 10 64-bit

• SATA Cable
• Quick Installation Guide
• EZ M.2 Clip
• Cable Stickers

• Wi-Fi Anthenna

PCB Info

• ATX

• 243.84mmx304.8mm

Get the MAG B760 TOMAHAWK WIFI motherboard now and enjoy a new world of performance and advanced technology!
