Model
B760M GAMING X GEN5
Socket
LGA 1700
Memory
4x DDR5
M.2 Slots
(2) Slots

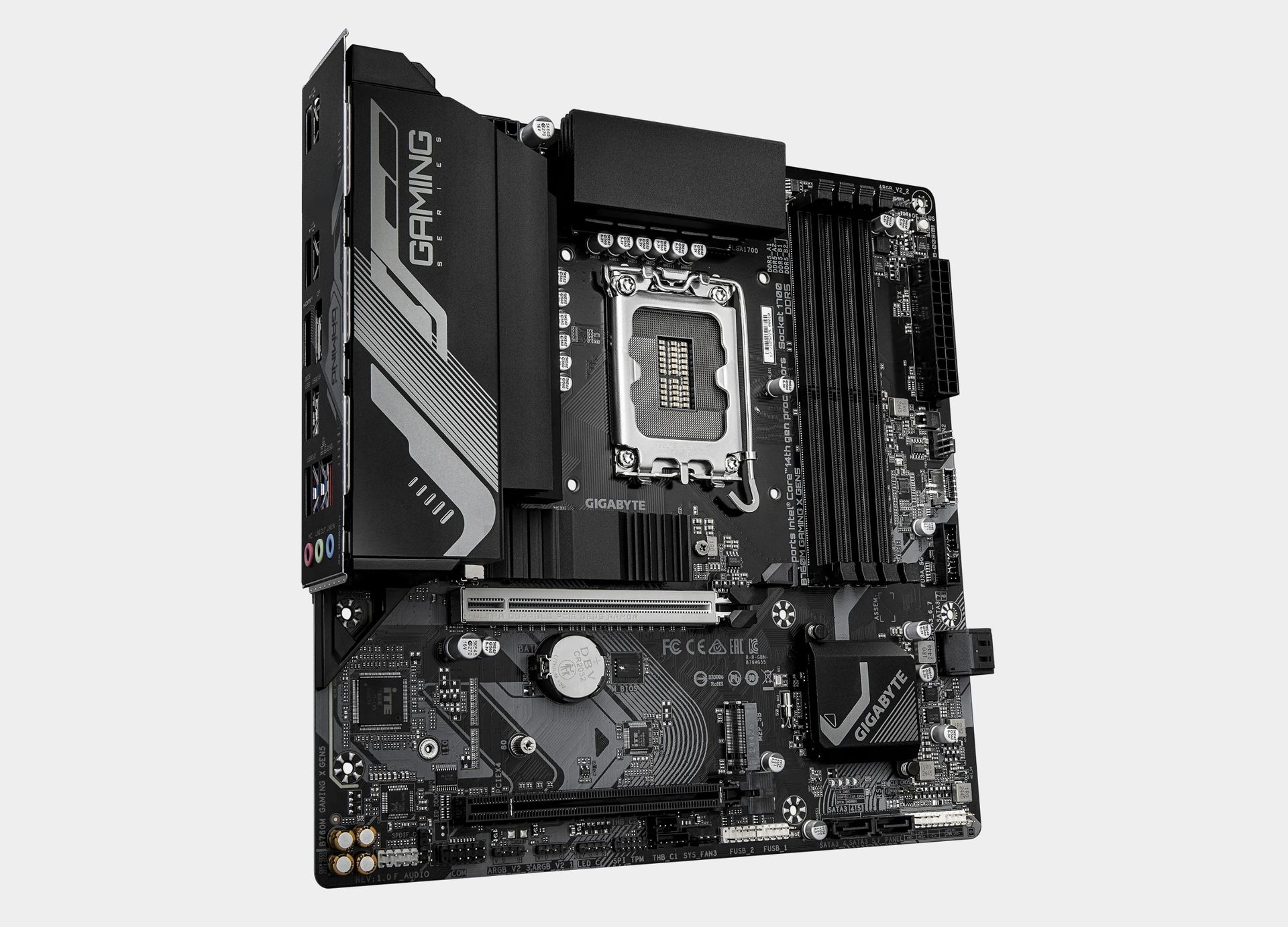

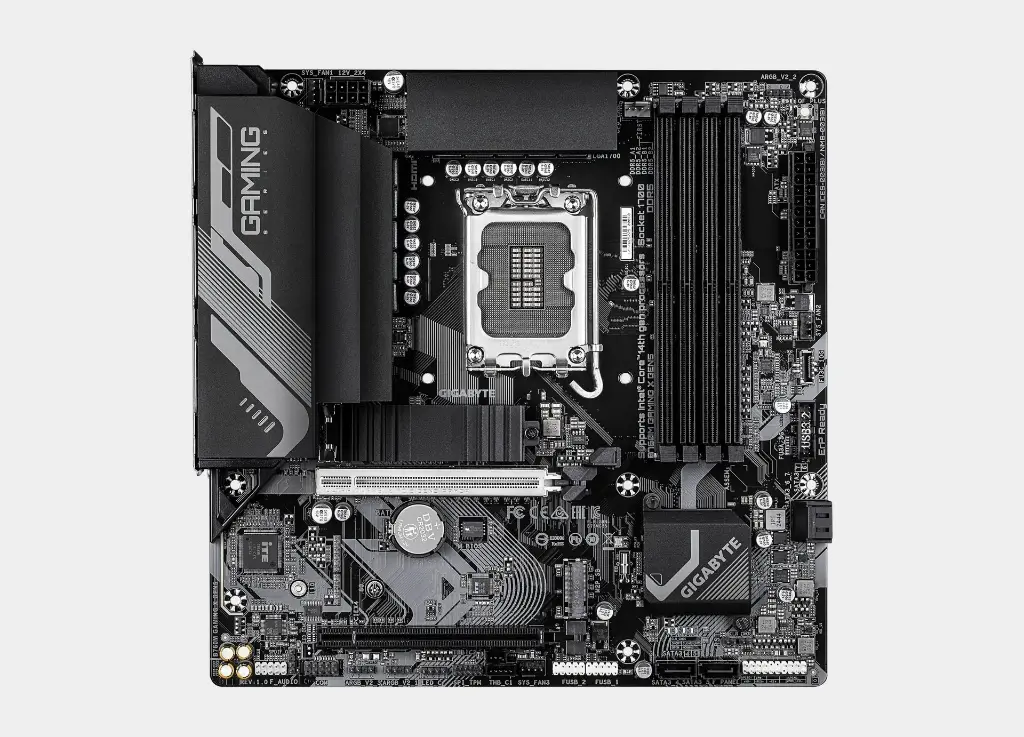

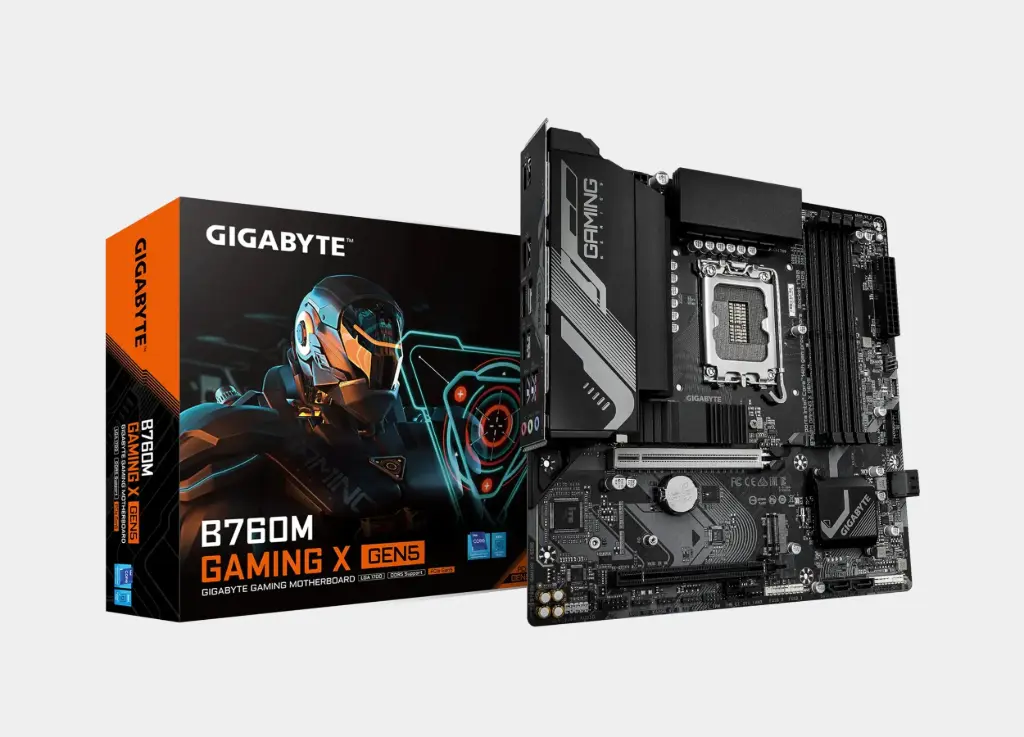

GIGABYTE B760M GAMING X GEN5
Ready for the new generation? The B760M GAMING X GEN5 provides you with the perfect foundation!
Stable performance. Enhanced cooling. Support for DDR5 and PCIe 5.0 for an unparalleled experience. The GIGABYTE B760M GAMING X GEN5 motherboard combines the latest technologies and smart design to provide a powerful platform suitable for gamers and professional users seeking performance stability and support for modern components.
Features of the GIGABYTE B760M GAMING X GEN5 Motherboard
Reliable performance:
- Support for Intel® Core™ processors of the 12th/13th/14th generation with LGA 1700 socket
- Hybrid 8+1+1 Phases DrMOS Power System for stable power delivery even with the most powerful processors
- Support for DDR5 memory with speeds up to 7600MHz (OC) for seamless multitasking
PCIe 5.0 support for graphics cards:
- The PCIe x16 slot supports the PCIe Gen5 standard for an exceptional gaming experience and future readiness.
- Metal design reinforced with PCIe EZ-Latch for easy and secure card installation
Smart and Expanded Cooling:
- Large heat sinks on power circuits to maintain low temperatures
- Smart Fan 6 Technology: Intelligent Control of Fans with 6 Thermal Sensors and Hybrid Connectors
- Support for high-performance water cooling pumps
Ultra-fast storage:
- Two M.2 NVMe slots support PCIe Gen4 x4 for ultra-fast game and software loading
- Support for modern SSDs with RAID 0/1 options
Stable and modern connection:
- Realtek GbE LAN network for fast network performance in gaming and browsing
- Front USB-C interface + multiple USB 3.2 Gen1 ports
- Q-Flash Plus: BIOS update without the need for a processor, memory, or graphics card
Gaming design with a GIGABYTE touch:
- Attractive micro-ATX design in black with red accents
- Support for RGB Fusion 2.0 for installing RGB/ARGB strips and customizing the lighting as you like
- 6-layer PCB for improved signal quality and heat dissipation
Why GIGABYTE B760M GAMING X GEN5?
- A balanced board between performance, cooling, and future support
- Ideal for gaming, heavy use, or upgrading without breaking the budget
- It combines strength, stability, and visual appeal.
Specifications of the GIGABYTE B760M GAMING X GEN5 Motherboard
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
Chipset
- Intel® B760 Express Chipset
Memory
- 14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
- 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
- Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 3 x addressable LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

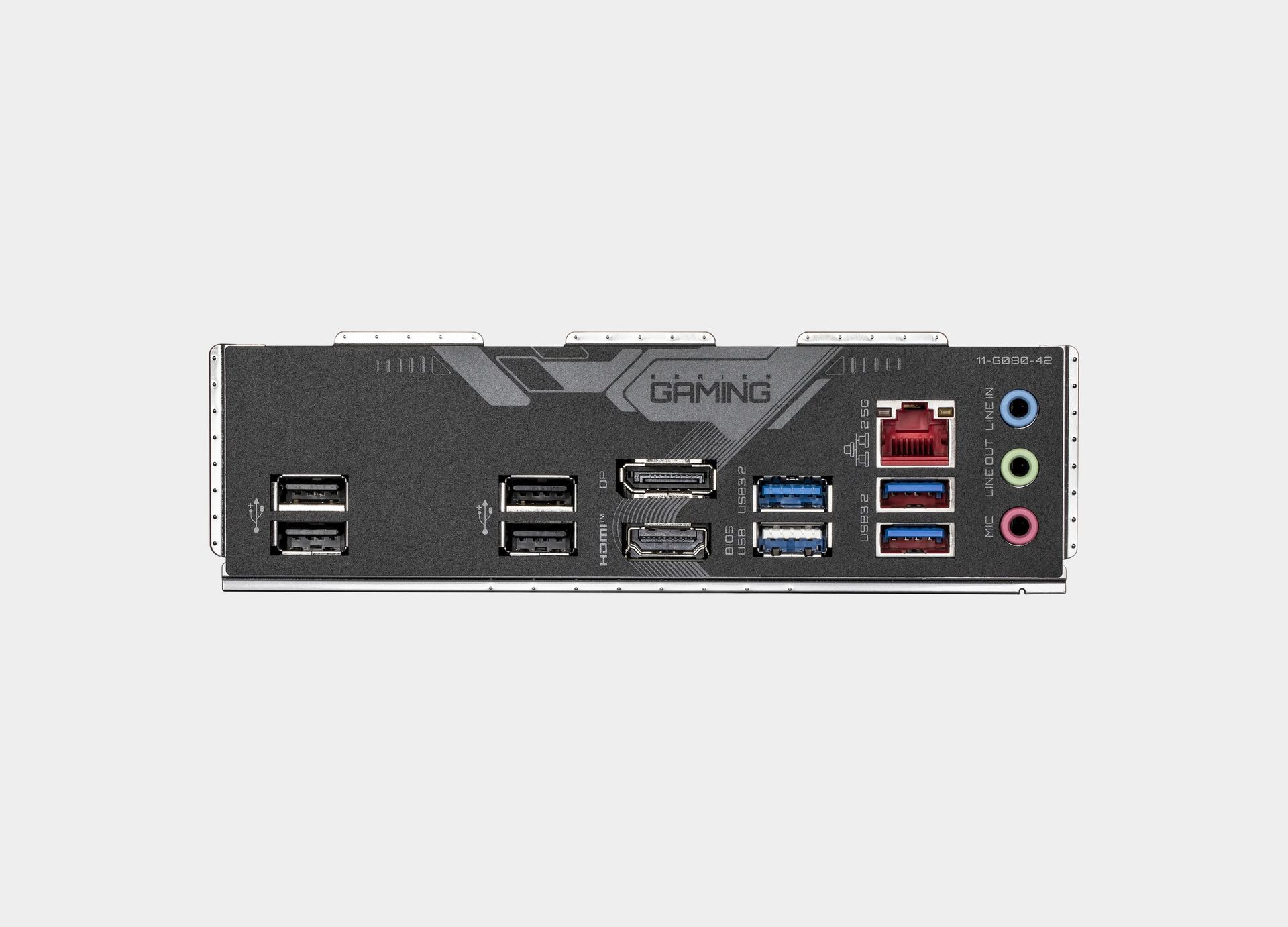

Back Panel Connectors
- 3 x USB 3.2 Gen 1 ports
- 5 x USB 2.0/1.1 ports
- 1 x HDMI port (Note)
- 1 x DisplayPort (Note)
- 1 x RJ-45 port
- 3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
Specifications
| MotherBoard | |
|---|---|
| Socket | LGA 1700 |
| Memory Type | DDR5 |
| Internal I/O Connectors | Micro ATX |
| LAN | Realtek® 2.5GbE |
| LAN Speed | 2.5GbE |
| M.2 Slot1 | PCLe 4.0 |
| M.2 Slot2 | PCLe 4.0 |
| M.2 Slot3 | N/A |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| Brand | Gigabyte |
| Warranty | Three Years |
