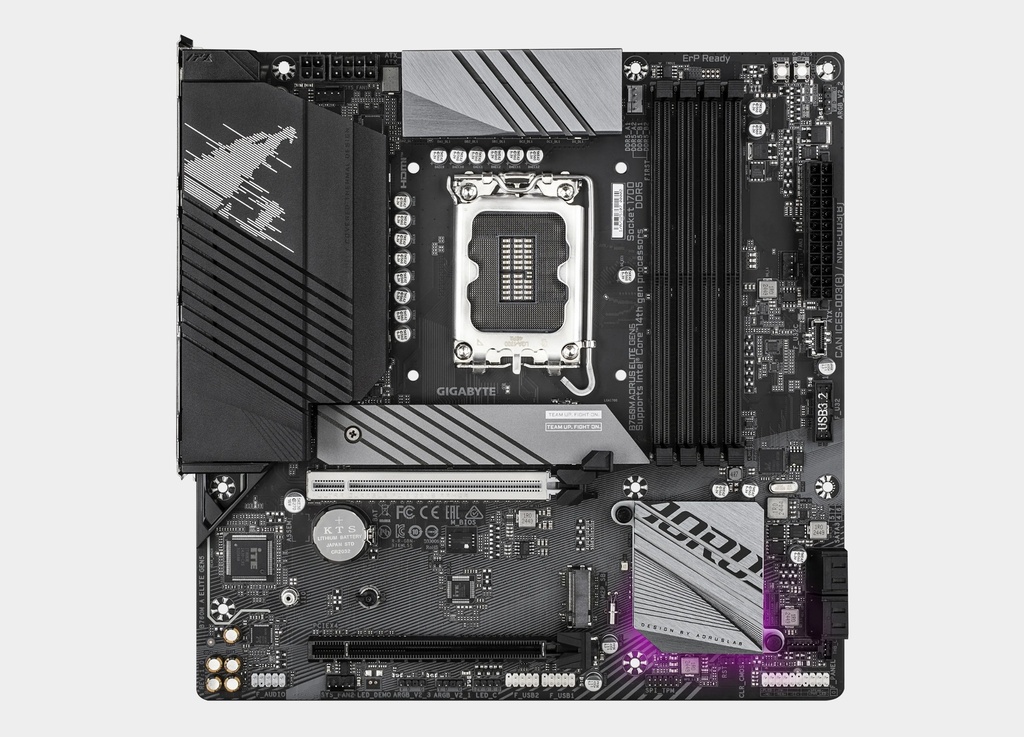

GIGABYTE B760M AORUS ELITE GEN5
If you are looking for an integrated Micro-ATX platform that supports the fifth generation and offers excellent performance, designed to support the latest Intel Core 14th/13th/12th Gen processors, featuring a PCIe 5.0 slot for the graphics card, as well as unleashing overclocked DDR5 memory speeds of up to 7800 MT/s, with guaranteed ultra-fast storage speeds via M.2 PCIe 4.0 and fast network connectivity through 2.5GbE LAN, then the GIGABYTE B760M AORUS ELITE GEN5 motherboard is the perfect choice for both professionals and gamers alike.
Features of the GIGABYTE B760M AORUS ELITE GEN5 Motherboard
Support for processors and chip:
- Processor socket: LGA 1700, supports Intel Core processors of the 14th/13th/12th generation, as well as Pentium Gold and Celeron.
- Chipset: Intel B760 Express Chipset.
- Form Factor: Micro ATX.
Memory (RAM) and Performance:
- Type and number of slots: 4 DIMM slots of DDR5 type (Dual Channel).
- Maximum capacity: supports up to 256 GB (with 64 GB per slot).
- Maximum supported speed: Supports overclocking speeds of up to 7800 MT/s and above, with support for Extreme Memory Profile (XMP).
Storage and expansion slots:
- Main graphics card slot: 1 x PCI Express x16 (supports PCIe 5.0 speed).
- Fast M.2 slots: Two M.2 slots support PCIe 4.0 x4 speed (one connected to the processor and the other to the chipset).
- SATA Ports: 4 x SATA 6Gb/s, with support for RAID technologies.
Communication and Networks:
- Wired Network (LAN): Realtek 2.5GbE LAN chip (2.5 Gigabit Ethernet).
- Advanced USB Ports: Rear USB Type-C® port supports USB 3.2 Gen 2x2 speed (20Gb/s).
- Additional features: Q-Flash Plus technology supports BIOS updates without the need to install the processor or memory.
The GIGABYTE B760M AORUS ELITE GEN5 motherboard is an exceptional Micro-ATX platform, ensuring powerful performance thanks to PCIe 5.0 support and M.2 PCIe 4.0 slots, and it stands out with its support for high-speed DDR5 memory up to 7800 MT/s.
Specifications of the GIGABYTE B760M AORUS ELITE AX Motherboard
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
(Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
Chipset
- Intel® B760 Express Chipset
Memory
- Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
- Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

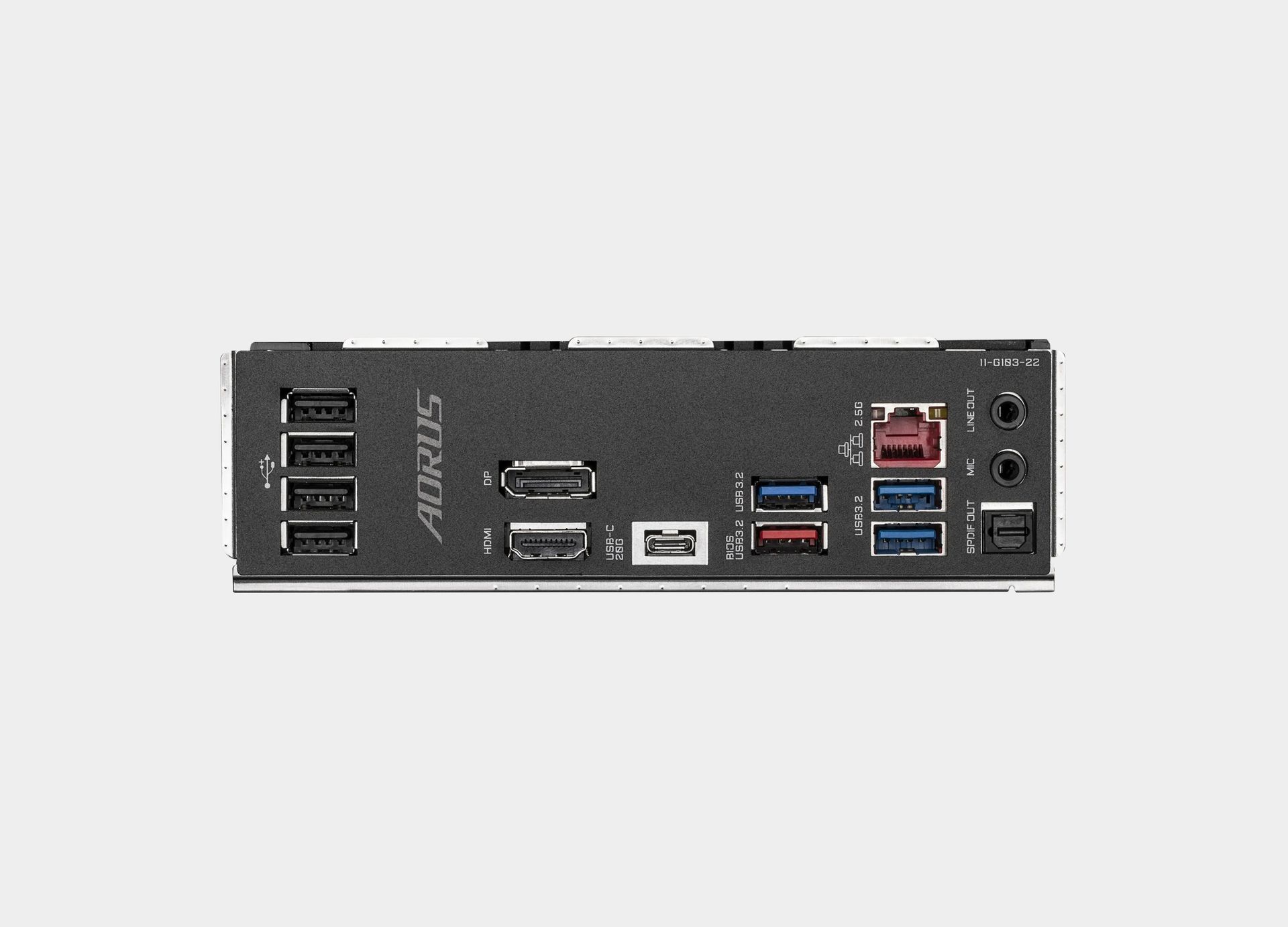

Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port (Note)
- 1 x DisplayPort (Note)
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
Specifications
| MotherBoard | |
|---|---|
| Socket | LGA 1700 |
| Memory Type | DDR5 |
| Internal I/O Connectors | Micro ATX |
| LAN | Realtek® 2.5GbE |
| LAN Speed | 2.5GbE |
| M.2 Slot1 | PCLe 4.0 |
| M.2 Slot2 | PCLe 4.0 |
| M.2 Slot3 | N/A |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| Brand | Gigabyte |
| Warranty | Three Years |
