Model
B760M DS3H GEN5
Socket
LGA 1700
Memory
4x DDR5
M.2 Slots
(2) Slots

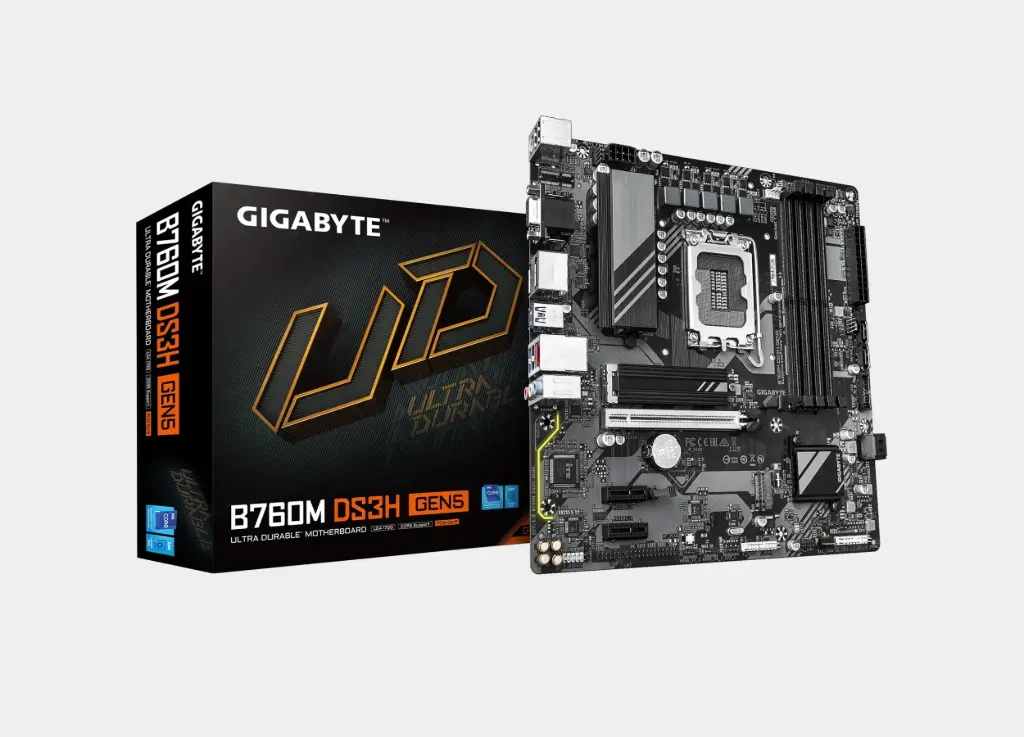

GIGABYTE B760M DS3H GEN5
A powerful platform that supports the latest next-generation technologies, designed for enthusiasts of performance, stability, and speed. Ready for the latest processors. DDR5 support. The future of gaming and heavy tasks starts here.

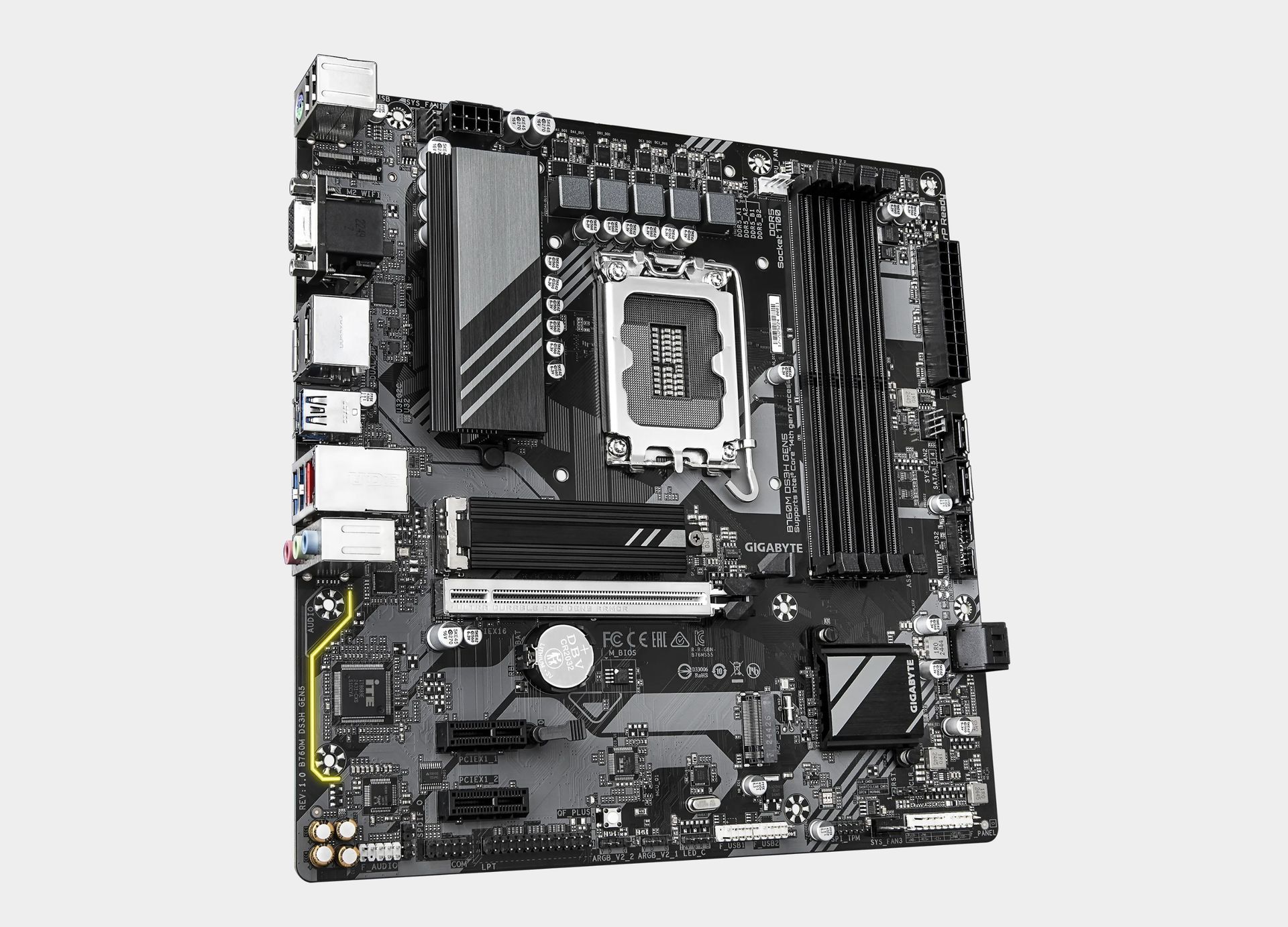

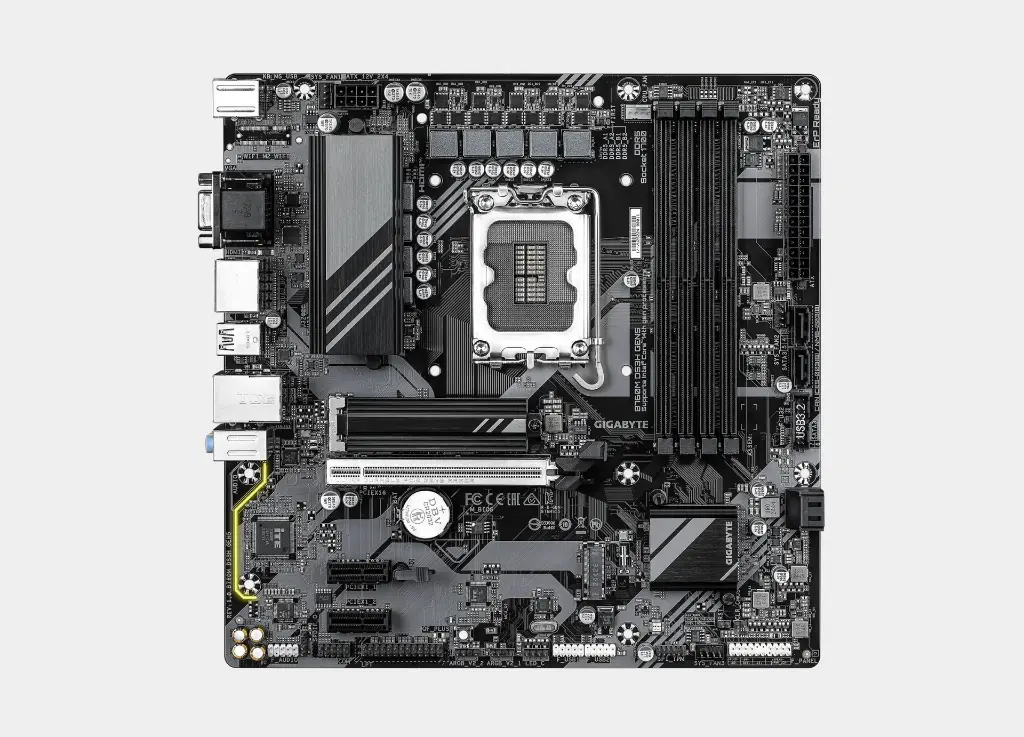

The GIGABYTE B760M DS3H DDR5 (GEN5) motherboard features a smart Micro-ATX design that combines high performance with operational efficiency. It is built to support Intel® Core™ processors from the 12th, 13th, and 14th generations on the LGA1700 socket, providing you with amazing capabilities to handle the new generation of memory and graphics thanks to its support for PCIe 5.0 and DDR5.
Features of the GIGABYTE B760M DS3H GEN5 Motherboard
Key features of performance and technologies:
• Supports DDR5 memory up to 7600MT/s (OC) for improved speed and system responsiveness
• PCIe 5.0 x16 slot for the latest graphics cards with faster data transfer
• Two M.2 NVMe slots with PCIe 4.0 x4 interface for superior storage performance
• 6+2+1 Phase Digital Power System for Voltage Stability with Powerful Processors
• 2.5GbE LAN network for a high-efficiency internet experience
Smart and Reliable Cooling:
• Large heat sinks on the VRM units and M.2 slots
• Silent and efficient cooling design even under load
• Integrated thermal sensors for accurate temperature monitoring
GIGABYTE's professional design:
• Sleek black design with strong metal edges
• Easy installation support thanks to Q-Flash Plus for BIOS updates without a CPU
• Full compatibility with common Micro-ATX cases
Modern delivery outlets:
• HDMI 2.0 + D-Sub for multi-display support
• USB 3.2 Gen 1 and Type-C for faster connectivity
• High-definition audio connectors for a pure listening experience
If you are building a system with next-generation standards, the GIGABYTE B760M DS3H DDR5 GEN5 offers you an exceptional balance of performance, cooling, and modern support at a competitive price for a reliable and lasting experience.
Specifications of the GIGABYTE B760M DS3H GEN5 Motherboard
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
Chipset
- Intel® B760 Express Chipset
Memory
- 14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
- 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
- Support for up to quad-display at the same time
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
- Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
- Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x parallel port header
- 1 x S/PDIF Out header
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper

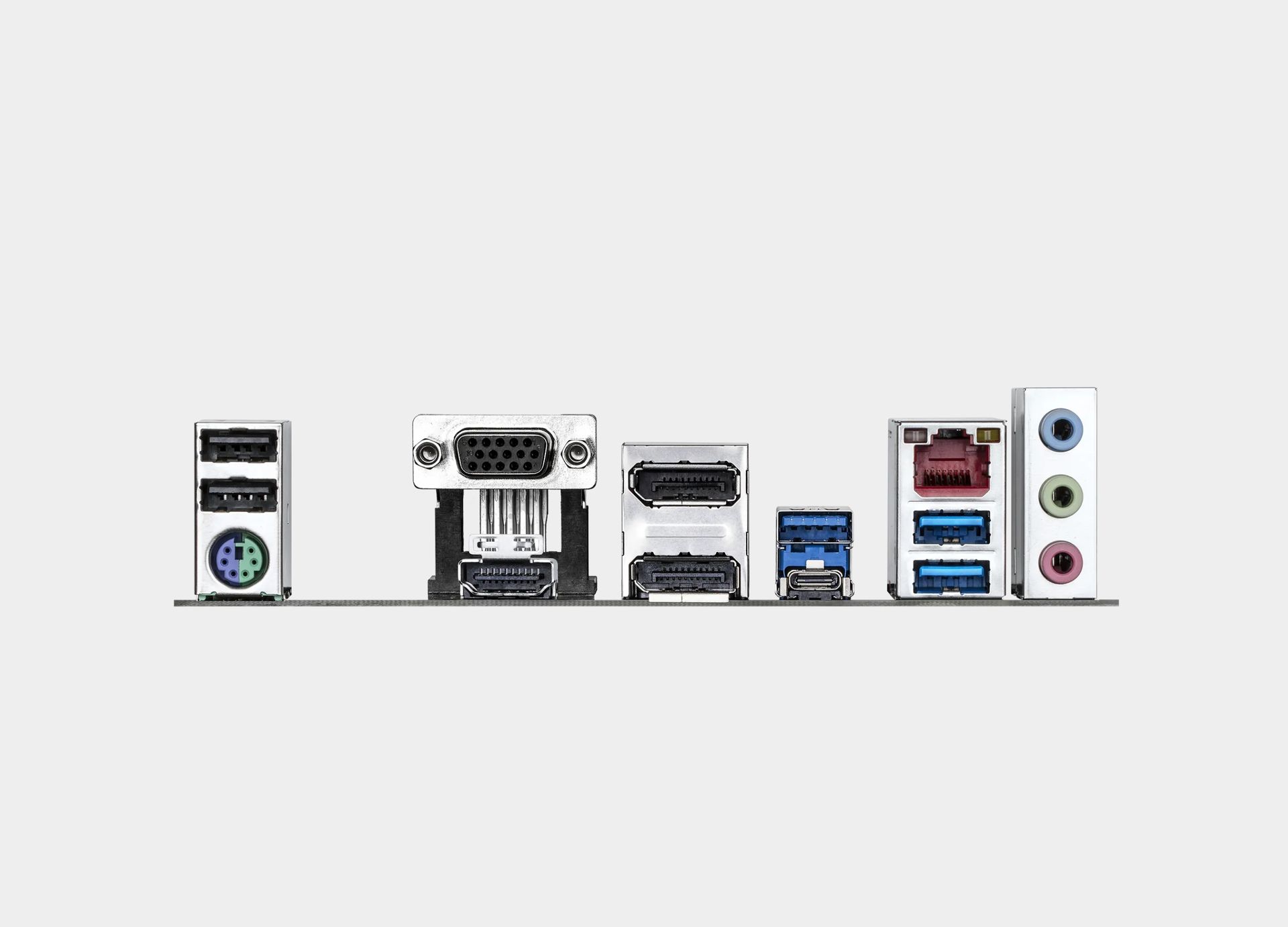

Back Panel Connectors
- 2 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port (Note)
- 1 x HDMI port (Note)
- 2 x DisplayPorts (Note)
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x RJ-45 port
- 3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton® Internet Security (OEM version)
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
Specifications
| MotherBoard | |
|---|---|
| Socket | LGA 1700 |
| Memory Type | DDR5 |
| Internal I/O Connectors | Micro ATX |
| LAN | Realtek® 2.5GbE |
| LAN Speed | 2.5GbE |
| M.2 Slot1 | PCLe 4.0 |
| M.2 Slot2 | PCLe 4.0 |
| M.2 Slot3 | N/A |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| Brand | Gigabyte |
| Warranty | Three Years |
