Model
B550 EAGLE
Socket
AM4
Memory
4x DDR4
M.2 Slots
(2) Slots

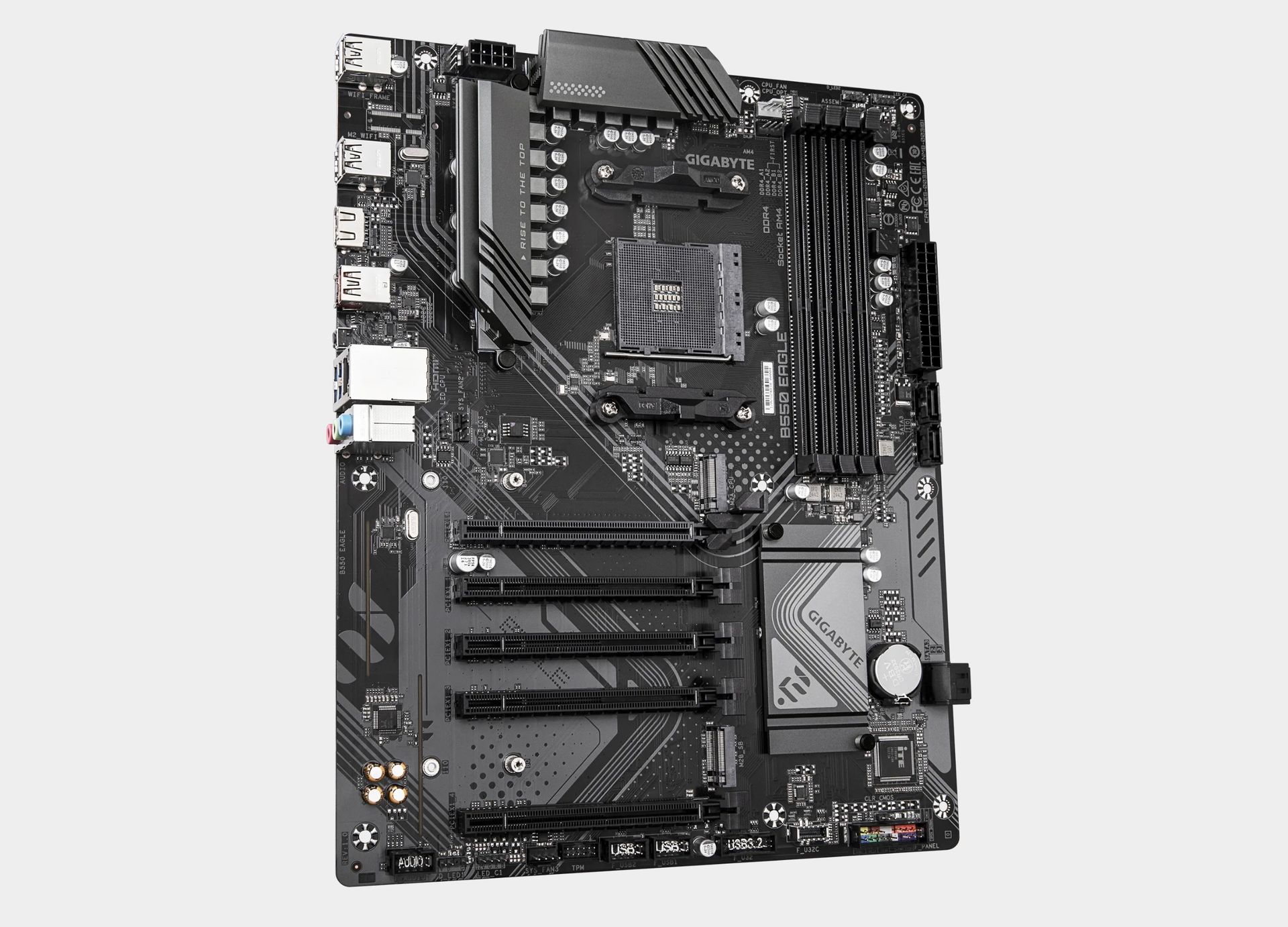

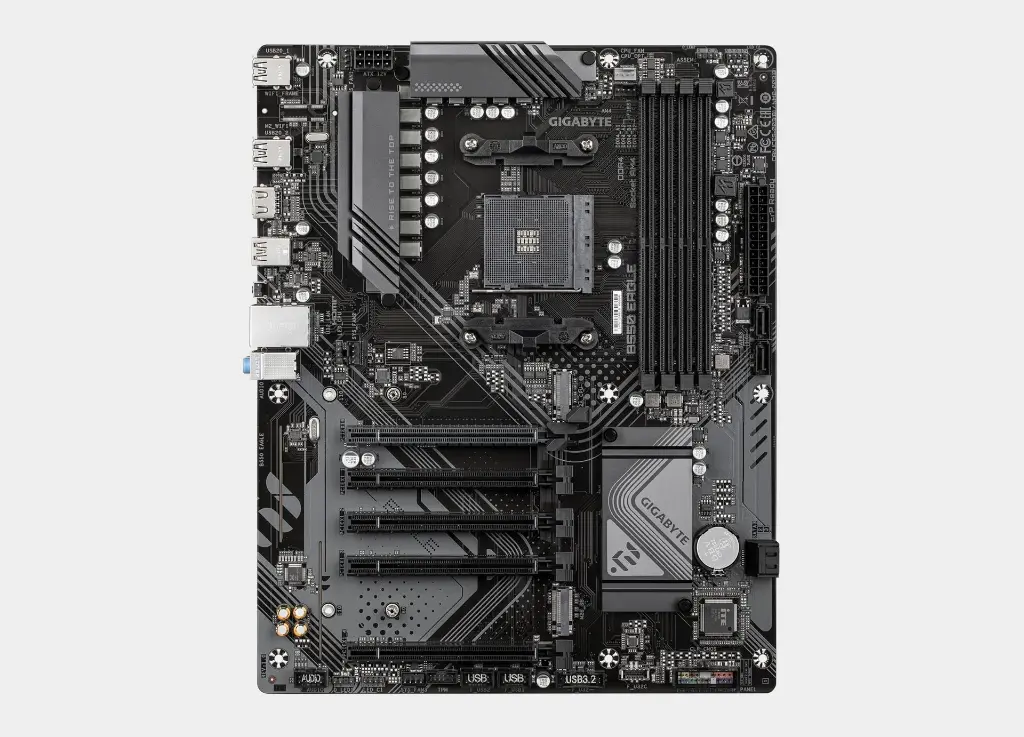

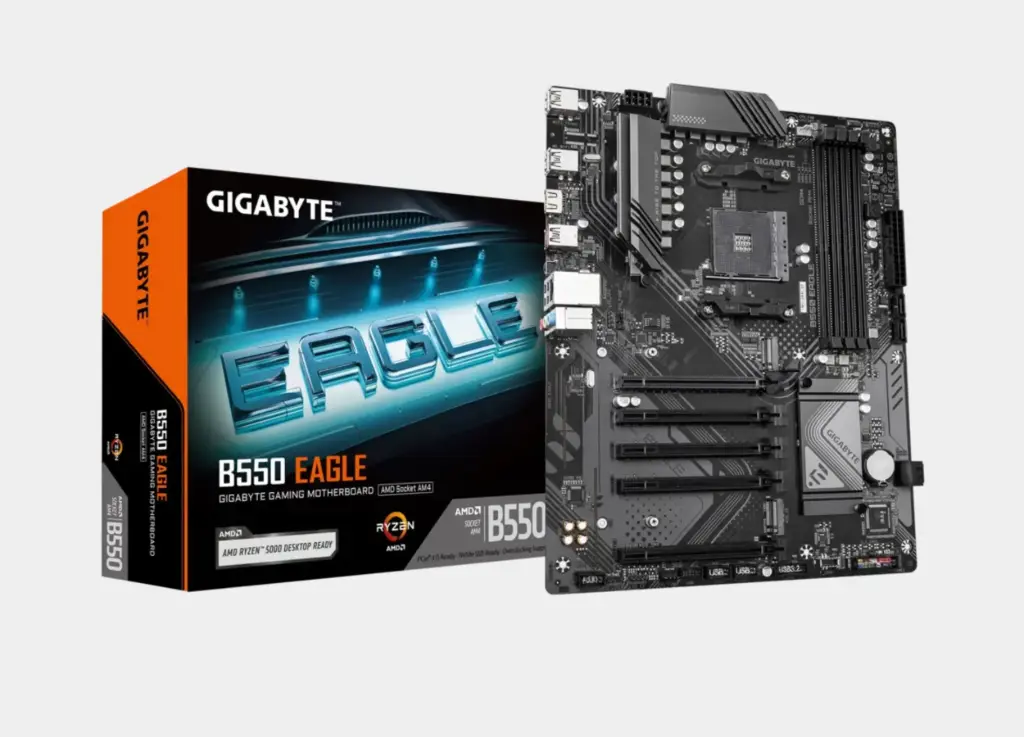

GIGABYTE B550 EAGLE
Ready to take off with Ryzen processors!
The GIGABYTE B550 EAGLE provides you with the performance you can rely on, featuring PCIe 4.0 support, effective cooling, and advanced technologies for a smooth and reliable experience.
Features of the GIGABYTE B550 EAGLE Motherboard
Ready for the new generation:
- Support for AMD Ryzen™ 5000 / 4000G / 3000 processors
- B550 chipset for an excellent balance between performance and price
Enhanced performance with advanced technologies:
- Supports DDR4 memory up to 4733MHz (OC)
- PCIe 4.0 x16 slot for next-generation graphics
- NVMe PCIe 4.0 x4 M.2 slot for ultra-fast storage
Reliable cooling:
- Heat sinks on the VRM to reduce heat in the harshest operating conditions
- Smart Fan 5 technology with thermal sensors and hybrid fan headers
Modern and fast connections:
- 1GbE LAN port from Realtek
- USB 3.2 Gen1 and Gen2 interfaces for fast and efficient connectivity
- HDMI 2.1 and DVI-D for multi-monitor support
Durable design and smart features:
- Q-Flash Plus for updating the BIOS without the need for the processor or RAM
- Protection from overcurrent and electrostatic discharge
- Micro-ATX design suitable for small cases
GIGABYTE B550 EAGLE: A powerful platform that combines performance, cooling, and expandability at a competitive price
Choose it if you are looking for a powerful motherboard that supports future technologies and provides you with long-term stability.
Specifications of the GIGABYTE B550 EAGLE motherboard
CPU
- AMD Socket AM4, support for:
- AMD Ryzen™ 5000 G-Series Processors
- AMD Ryzen™ 5000 Series Processors
- AMD Ryzen™ 4000 G-Series Processors
- AMD Ryzen™ 3000 G-Series Processors
- AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
- AMD B550
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
- Maximum shared memory of 16 GB
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
- Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- CPU:
- AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
- AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 1 ports on the back panel
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper

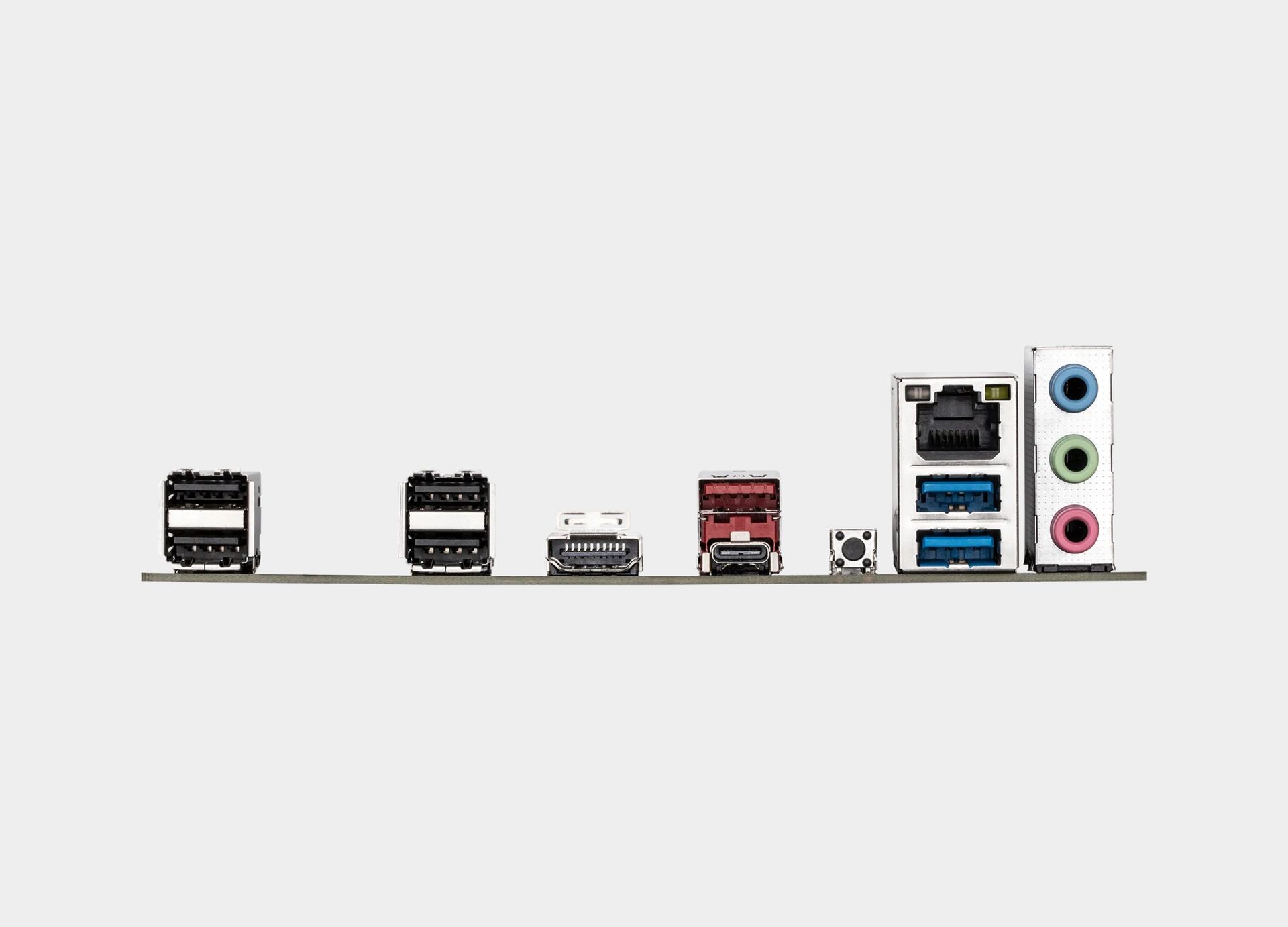

Back Panel Connectors
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port (Note)
- 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 2 x USB 3.2 Gen 1 ports
- 3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- RGB Fusion
- Smart Backup
- System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
Specifications
| MotherBoard | |
|---|---|
| Socket | AM4 |
| Memory Type | DDR4 |
| Internal I/O Connectors | ATX |
| LAN | Realtek® 1GbE |
| LAN Speed | 1GbE |
| M.2 Slot1 | PCLe 4.0 |
| M.2 Slot2 | PCLe 3.0 |
| M.2 Slot3 | N/A |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| Brand | Gigabyte |
| Warranty | Three Years |
