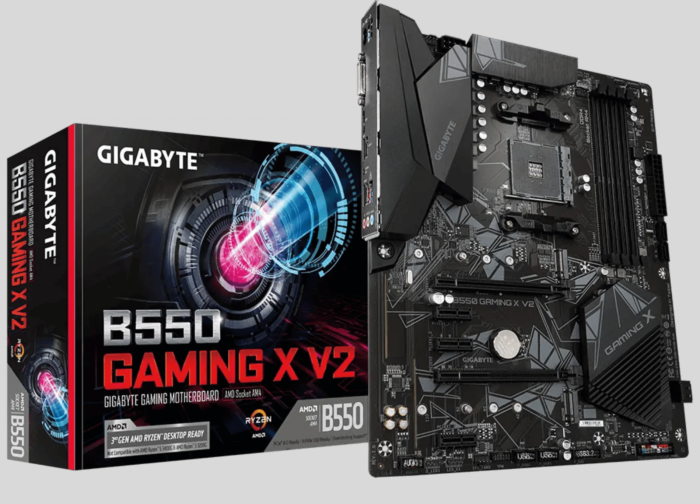

GIGABYTE B550 GAMING X V2

Gigabyte B550 GAMING X V2

The Gigabyte B550 GAMING X V2 motherboards enhance your computer's capabilities using AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and improve the overall user experience.

Features of the Gigabyte B550 GAMING X V2 Motherboard

The AMD B550 motherboard designed for gaming features 10 + 3 dual power design phases, large surface heat sinks, a PCIe 4.0 x16 slot, a PCIe 4.0 / 3.0 x4 M.2 slot, Realtek GbE LAN with bandwidth management, front USB Type-C ™, RGB FUSION 2.0, and supports AMD Ryzen ™ 5000 Series / Ryzen ™ 5000 G-Series / Ryzen ™ 4000 G and Ryzen ™ 3000 Series processors. DDR4 dual-channel memory / non-ECC, and DDR4 4 DIMM
10 + 3 dual power design phases with low RDS (on) MOSFETs
Ultra Durable ™ PCIe 4.0 x16 ready slot
Ultra-fast dual NVMe PCIe 4.0 / 3.0 x4 M.2 connectors
Realtek GbE LAN with bandwidth management
Front USB 3.2 Gen1 Type-C ™ and HDMI and DVI-D for multiple display outputs
High-quality audio capacitors and noise-dampening technology for absolute sound quality
Supports RGB FUSION 2.0 for controllable LED strips and RGB LEDs
Smart Fan 5 features multiple temperature sensors, hybrid fan headers with FAN STOP
Q-Flash Plus allows BIOS updates without the need to install the CPU, memory, and graphics card
Sulfur-resistant capacitor design AMD StoreMI technology
Gigabyte B550 motherboards enhance your PC's capabilities using AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and improve overall user experience. This user-friendly tool combines the speed of solid-state drives with the high capacity of hard drives into a single drive, boosting device read/write speeds to match solid-state drives, enhancing data performance for incredible value, and transforming the everyday PC into a performance-driven system. Advantages of AMD StoreMI:
Makes the computing experience fast, smooth, and easy
Improves computer responsiveness from system boot to application launch
Delivers SSD performance with HDD capacity at an affordable cost for quick access to key files by automatically learning users' computing behaviors. 10 * + 3 dual power design phasesThe B550 motherboard uses a dual power design consisting of 10 + 3 phases with low RDS (on) MOSFETs to support the third generation of AMD Ryzen ™ CPUs by providing stunning precision in power delivery to the most power-hungry and power-sensitive components of the motherboard, as well as delivering improved system performance and exceptional hardware upgrade potential. 5 + 5 parallel power design phases

Benefits of Low RDS (on) MOSFET Modules
Optimized gate charges to reduce switching losses.‧ Lower temperature, smaller size, better thermal characteristics.

Communication

USB Type-C ™ Connector on the Front PanelAORUS Gaming motherboards, equipped with next-generation connectivity, are built for the future. The integrated USB Type-C ™ connector for USB 3.2 Gen1 makes it convenient to access when connecting a USB 3.2 Gen1 device or charging your mobile device.

Dual NVMe PCIe 4.0 * / 3.0 M.2 Connectors
With integrated NVMe PCIe 4.0 * / 3.0 x4 and PCIe 3.0 x4 M.2 connectors, GIGABYTE motherboards provide users with an NVMe mode experience or SATA mode connection for M.2 SSDs. The dual M.2 connector design, which offers data transfer speeds of up to 64 Gb/s, provides an ideal storage solution while also supporting RAID modes.Actual support may vary depending on the CPU.

Realtek GbE LAN Network with Bandwidth ManagementRealtek Gigabit LAN features a network bandwidth management application that helps improve network latency and maintain low ping times to provide better responsiveness in congested local network environments.

HDMI 2.1 to support 4K / 60P / 21:9 / HDCP 2.3

HDMI 2.1, which is backward compatible with HDMI 2.0 / 1.4, offers a bandwidth of up to 48 Gbps – twice that of the previous generation. This unleashes users' potential to transmit multiple video streams, along with the native 21:9 cinematic aspect ratio (which most movies are shot in), and supports Full HDR and HDCP 2.3, providing the best visual experience for viewers.

Cooling

Advanced Thermal Design

Smart Fan 5 With Smart Fan 5 technology, users can ensure that their gaming PCs can maintain performance while staying cool. Smart Fan 5 allows users to swap their fan headers to reflect different thermal sensors located at various points on the motherboard. Not only that, but with Smart Fan 5, more hybrid fan connectors have been introduced that support both PWM and Voltage mode fans, making the motherboard more suitable for liquid cooling.

Temperature sensors

Hybrid fan heads

■ 6 temperature sensors
■ 5 fan pin headers
■ All fan header connectors have been upgraded to hybrid fan headers
■ Interoperable fans and sensors
■ Intuitive user interface for fan control

Fan Connectors / Water Pump
Internal Temperature SensorsDifferent models have a varying number of fan pin connectors and temperature sensors. The functionality of Smart Fan 5 may vary depending on the model.

Fan Silence. Using Fan Stop, you can set any fan to completely stop when temperatures drop below a certain threshold. The fan that stops, based on readings from any sensor, and at any temperature – all of this can be customized to your preference.

Smart design for fan control

Hybrid Fan Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 technology receives the latest information on flow rate and water temperature through Hybrid Fan Pin headers or external thermistor sensors – giving you absolute mastery over your PC.• All hybrid fan headers can automatically detect the type of cooling device, whether it is a fan or a pump with PWM mode or different voltage.

New Smart Fan 5 program
Choose from different modes, from quiet to full speed, to match your system usage preferences.For each fan or pump, you can use the intuitive fan curve to set trigger thresholds and corresponding fan speeds.

Lighting

RGB FUSION 2.0.0 UpdateWith B550 motherboards, RGB Fusion 2.0 is better with addressable LED lights. RGB Fusion 2.0 provides users with the option to control integrated RGB and controllable external RGB/LED lighting strips* for building their PCs. RGB Fusion 2.0 is already packed with colors and patterns, and it has now been upgraded to enhance support for Addressable LED. With addressable external LED strips, where each LED can be processed digitally, users can experience more patterns and lighting effects.

With the B550 motherboards, 5V Addressable LED strips are supported, along with up to 300 LED lights. The RGB Fusion 2.0 software that comes with addressable LED lights features new patterns and different speed settings, with more to come in the future.

External RGB LED strips and controllable LED strips are not included with the purchase of the motherboard.

Thanks to the integrated intuitive user interface, RGB Fusion 2.0 provides you with a better solution for customizing lighting effects across all supported devices. From motherboards and graphics cards to peripherals, you can personalize your gaming setup in your own style and showcase your device by sharing profiles. Additionally, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion AppNot only does it make your computer shine, but it also turns it into a work of art that your friends will envy. With the GIGABYTE RGB Fusion mobile app, users can see what they are controlling in terms of lighting within their computers. This provides users with easy access while trying to adjust colors and speeds for different modes, all of which can be done away from their keyboard and computer screen.

my voice

Advanced Audio Capacitors
Gigabyte motherboards use advanced audio capacitors. These high-quality capacitors help deliver high fidelity and high-resolution sound to provide the most realistic audio effects for gamers.
Audio Noise Guard FeatureGigabyte motherboards feature an audio noise guard that essentially separates the sensitive analog audio components of the motherboard from potential noise pollution at the PCB level.

Always exceptional

Q-Flash PlusEasily update the BIOS without installing the CPU, memory, and graphics card.

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory, or graphics card, nor do you need to enter the BIOS menu to update the BIOS. Just download a new BIOS file and save it (renaming it to gigabyte.bin) on a USB flash drive, then press the dedicated Q-Flash Plus button and you'll be ready to go!

Gigabyte's patented double lock arch

Solid Power ConnectorsThe B550 motherboards feature solid ATX 12V 8-pin power connectors to provide a stable power source during CPU overloading.

Advantages of Solid Power Connectors
Larger contact area for electricity
Greater amount of metal to maintain higher power and generate heatHigh durability and longer lifespan

Start of protection from sulfur

Sulfur compounds present in the air can penetrate the small resistors on the motherboard, leading to a chemical change that causes these resistors to open or short-circuit. If any of the above occurs, the motherboard will fail to function. By providing the resistors with a sulfur-resistant design, Gigabyte gives high-durability motherboards a whole new meaning.

Gigabyte Distinction

BIOS and Gigabyte Applications
BIOS APP CENTER EasyTune @ BIOS System Information Viewer
BIOS UpdateThe BIOS is essential for users during the initial setup to allow for optimal settings. With the new graphical user interface and easier-to-use functions, Gigabyte has managed to

Application CenterGIGABYTE APP CENTER is a useful gateway for all the utilities and drivers for GIGABYTE MB, allowing you to choose any tool you want to install from the APP CENTER and keep you updated with the latest utilities and drivers.

EasyTune ™EasyTune ™ from GIGABYTE is a simple and user-friendly interface that allows users to adjust system settings or tweak system, memory, and voltage clocks in a Windows environment. With Smart Quick Boost, a single click is all it takes to automatically overclock your system, giving you extra performance when you need it most.

BIOSThe GIGABYTE BIOS application allows you to update your system's BIOS from within Windows using a simple and smooth graphical user interface. The BIOS can automatically download the latest version from GIGABYTE servers, or you can update the BIOS from a file located on your computer. The BIOS application also allows you to save the current BIOS to a file, restore a previous BIOS from an image, and create a backup of the BIOS to an image.

System Information ViewerThe System Information Viewer from GIGABYTE is a central location that allows you to access the current system status. Monitor components such as clocks and the processor, adjust your preferred fan speed profile, and create alerts when temperatures rise significantly or log your system's behavior; these are the capabilities of the System Information Viewer.

XSplit Gamecaster + Broadcaster: Stream your game anytime, anywhere. Set up your stage now and share your best gaming moments with XSplit Gamecaster + Broadcaster! The fully enhanced social media integration is ready for real-time conversations – keeping you informed while focusing on the game. It only takes one click to stream your gameplay to Twitch. Host your game like a pro!

14-day free license to use XSplit Gamecaster + Broadcaster.

Specifications of the Gigabyte B550 GAMING X V2 Motherboard

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer “CPU Support List” for more information.)

Chipset

AMD B550

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

USB

CPU:
1 x USB 3.2 Gen 2 Type-A port on the back panel
3 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Back Panel Connectors

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port (red)
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Price of the motherboard Gigabyte B550 GAMING X V2 in Egypt

The price of the Gigabyte B550 GAMING X V2 motherboard globally is around 5000 dollars or its equivalent in local currency.

The price of the Gigabyte B550 GAMING X V2 motherboard in Egypt is currently in the mid-range economic category, which is suitable for most students, employees, and companies.
