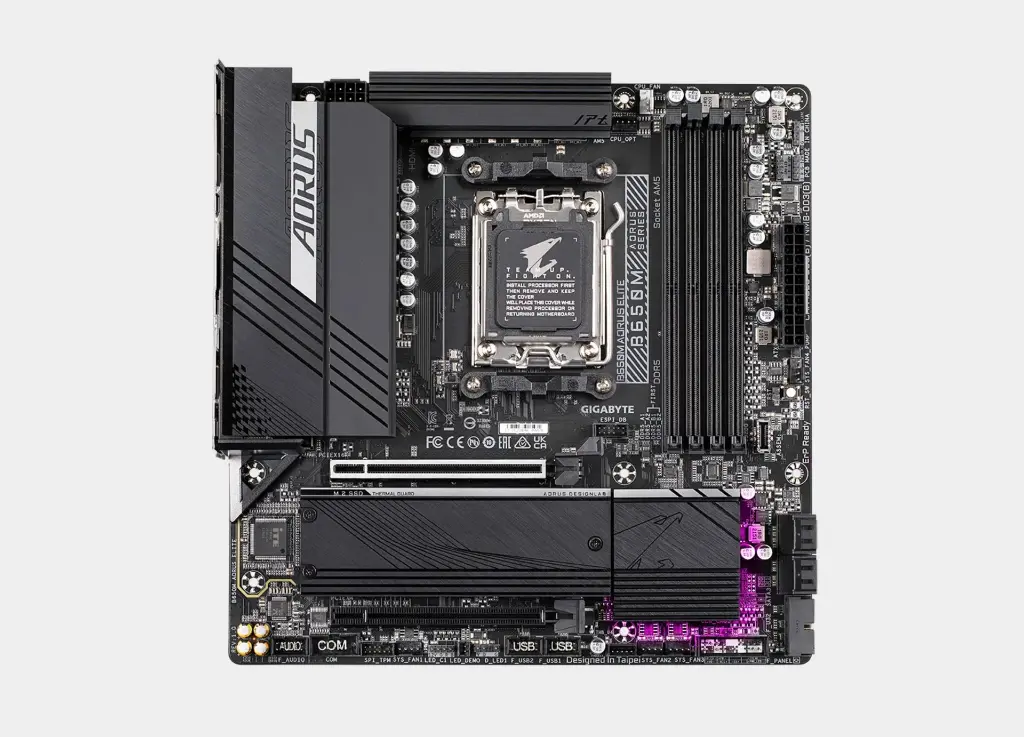

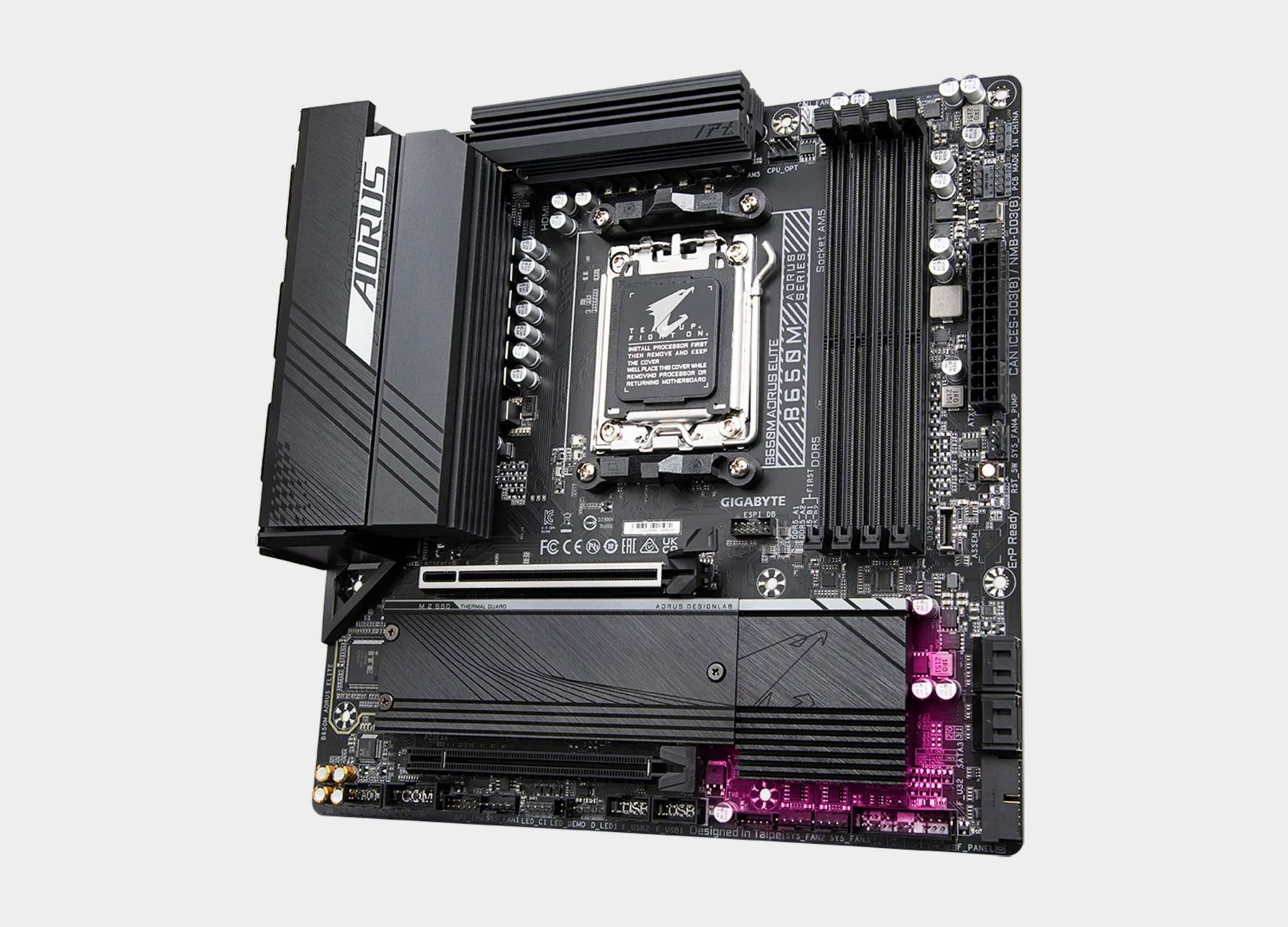

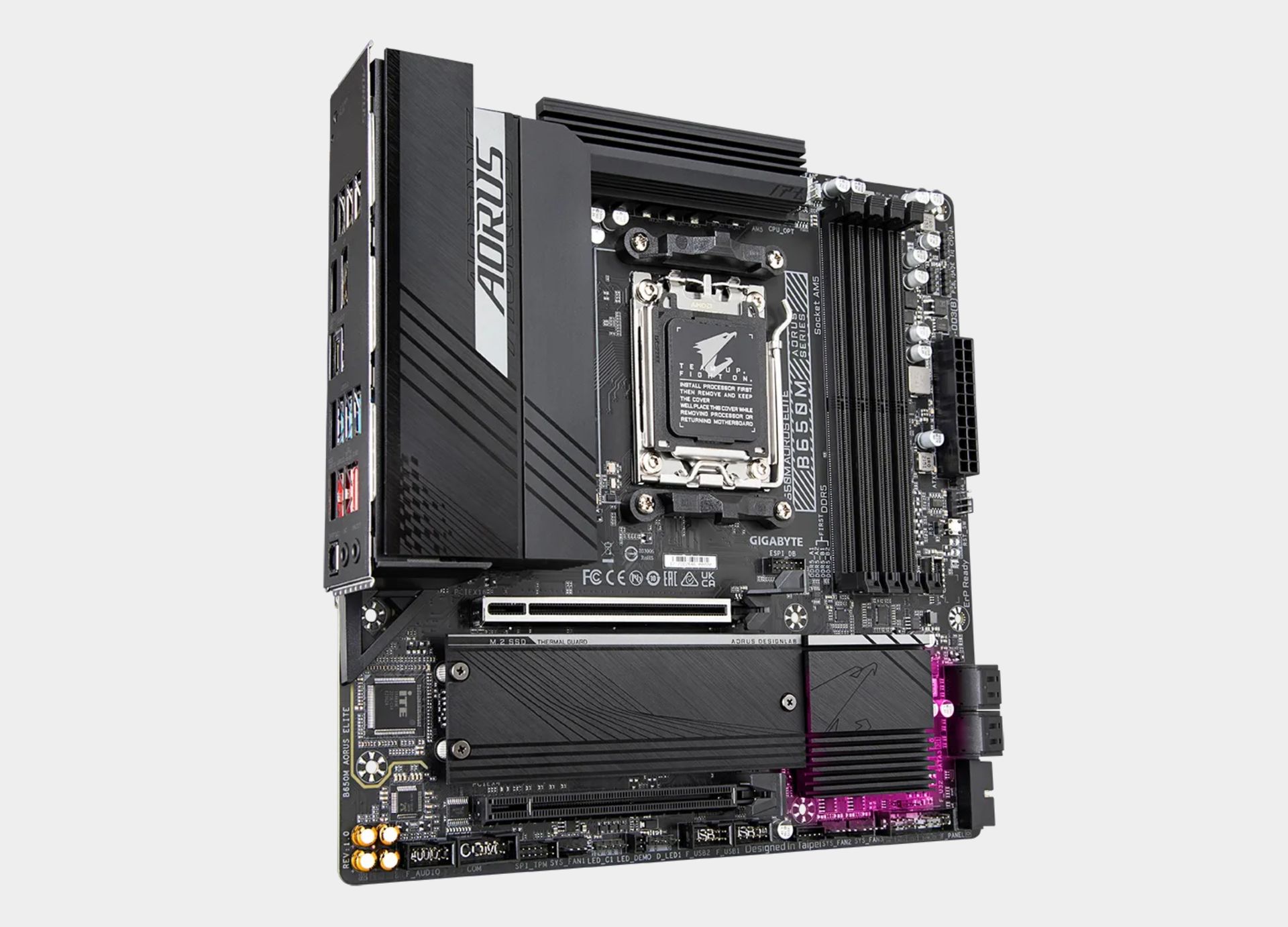

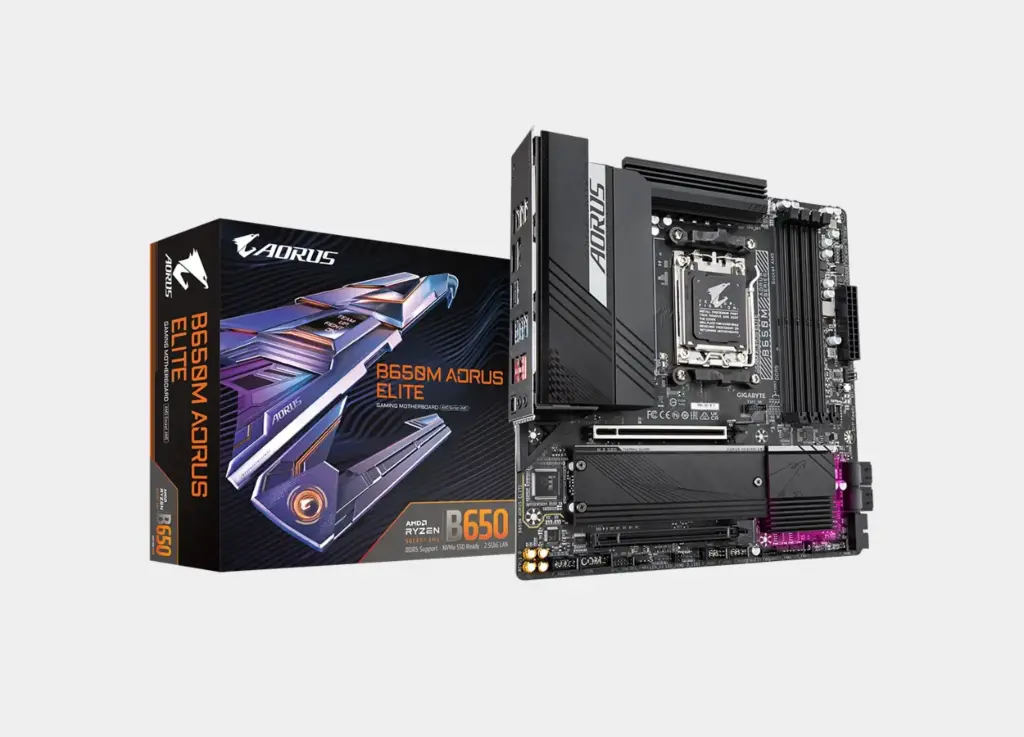

GIGABYTE B650M AORUS ELITE (rev. 1.0)

https://www.abcshop-eg.com/web/image/product.template/5573/image_1920?unique=aafab23
(0 review)

MB-GB-AMD-AR-B650M-A-ELITE-(rev. 1.0)

Get ready to experience the new generation of AMD with the B650M AORUS ELITE – powerful performance, advanced cooling, and support for DDR5 and PCIe 5.0 in a sleek and versatile Micro-ATX design.

9,249.00 LE 9249.0 EGP 9,249.00 LE 9,999.00 LE

Not Available For Sale

  • Brand
  • Warranty
  • Socket
  • Memory Type
  • Internal I/O Connectors
  • LAN
  • LAN Speed
  • M.2 Slot1
  • M.2 Slot2
  • M.2 Slot3
  • M.2 Slot4
  • M.2 Slot5
  • USB

This combination does not exist.

نفدت الكمية
بريد إلكتروني خاطئ
سنقوم بإخطارك عندما يكون المنتج متوفراً مجدداً.
تمت إضافته إلى قائمة الأمنيات
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Model

 B650M AORUS ELITE

socet cpu

Socket

AM5

Memory

4x DDR5

​M.2 Slots

 (2) Slots

GIGABYTE B650M AORUS ELITE (rev. 1.0)

AORUS power in Micro-ATX size, without any compromises!

Ready to dive into the world of the new generation of Ryzen processors? The B650M AORUS ELITE offers you the perfect platform that combines power and efficiency, with support for DDR5 and PCIe 5.0, improved cooling, and a compact design that fits all builds.

GIGABYTE B650M AORUS ELITE (rev. 1.0)

Features of the GIGABYTE B650M AORUS ELITE Motherboard (rev. 1.0)

AORUS Certified Performance:

  • AMD Ryzen 7000 Series processors support the AM5 socket
  • The AMD B650 chipset offers the perfect balance between price and features
  • DDR5 support up to 192GB with speeds of up to 8000MT/s (OC)

Ready for the future:

  • PCIe 5.0 x16 slot for high-performance graphics cards
  • PCIe 4.0 M.2 NVMe support with ultra-efficient heat sink
  • Multiple storage interfaces: 4x SATA 6Gb/s + 2x M.2

Smart cooling for stable performance:

  • Cooling dissipators for power stages and M.2 slots
  • Smart Fan 6 technology with a smart control interface
  • Multiple thermal sensors and hybrid fan ports

Comprehensive connectivity that always keeps up with you:

  • 2.5GbE LAN port from Realtek for professional network performance
  • USB 3.2 Gen2 Type-C and USB 3.2 Gen1 ports
  • HDMI 2.1 and DP 1.4 for easy support of 4K/60Hz displays

Professional design from the inside and outside:

  • 8+2+1 phase DrMOS design with excellent cooling
  • 2X copper layers and 6-layer PCB for heat resistance
  • Protection against electric discharge and thermal rise

Ready for Windows 11 and more:

  • TPM 2.0 support for security and compatibility
  • Q-Flash Plus technology for updating the BIOS without the need for a processor or memory
  • Micro-ATX design fits most modern computer cases

Why B650M AORUS ELITE?

  • Stable performance with DDR5 and PCIe 5.0 support
  • Advanced cooling and a sturdy structure
  • Comprehensive connection and an amazing future experience

Choose it for reliable performance, smart scalability, and an integrated user experience that suits both gamers and creators alike.

GIGABYTE B650M AORUS ELITE (rev. 1.0)

Specifications of the GIGABYTE B650M AORUS ELITE Motherboard (rev. 1.0)

CPU

  • AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Please refer "CPU Support List" for more information.)


Chipset

  • AMD B650


Memory

  • Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)


Onboard Graphics

- Integrated Graphics Processor:

  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)


Audio

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • Support for S/PDIF Out


LAN

  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Expansion Slots

- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  • AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

- Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)


Storage Interface

- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  • AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

  • AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices


USB

- CPU:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- CPU + USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports on the back panel

- Chipset:

  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

- Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports on the back pane


Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x serial port header
  • 1 x THB_U4 add-in card connector
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

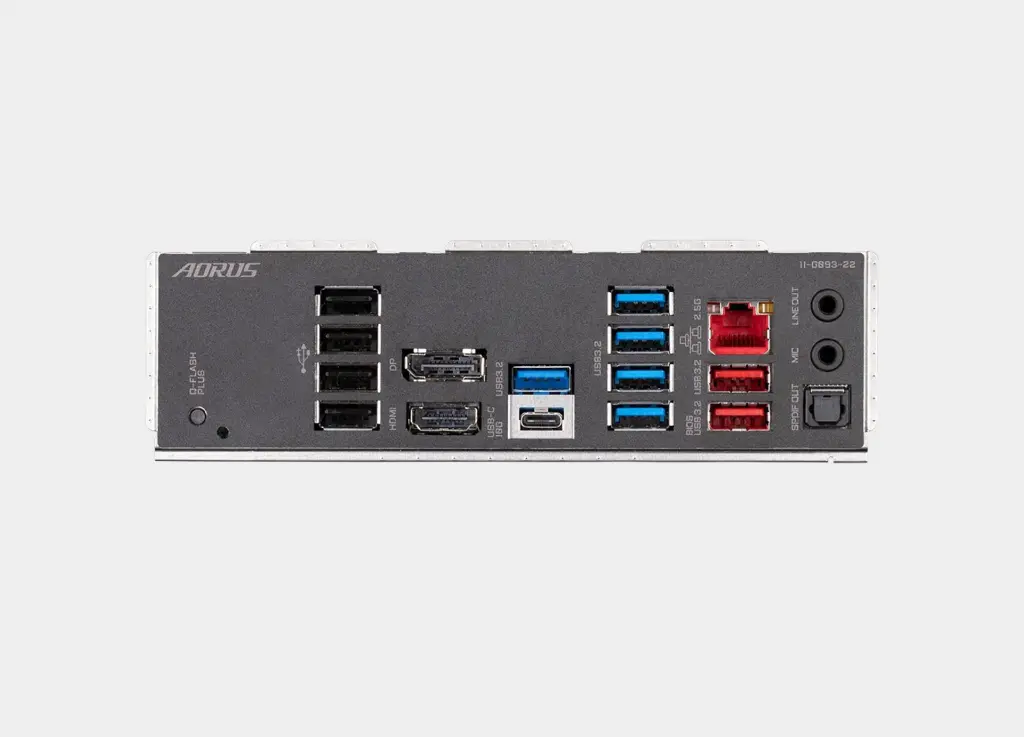

Back Panel Connectors

  • 1 x Q-Flash Plus button
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 5 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks


I/O Controller

  • iTE® I/O Controller Chip


H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.


BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

  • Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • Support for Q-Flash
  • Support for Q-Flash Plus


Bundled Software

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software


Operating System

  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit


Form Factor

  • Micro ATX Form Factor; 24.4cm x 24.4cm

Specifications

MotherBoard
Socket AM5
Memory Type DDR5
Internal I/O Connectors Micro ATX
LAN Realtek® 2.5GbE
LAN Speed 2.5GbE
M.2 Slot1 PCLe 5.0
M.2 Slot2 PCLe 4.0
M.2 Slot3 N/A
M.2 Slot4 N/A
M.2 Slot5 N/A
USB USB 3.2
Information
Brand Gigabyte
Warranty Three Years
