Model
B650M S2H
Socket
AM5
Memory
2x DDR5
M.2 Slots
(2) Slots

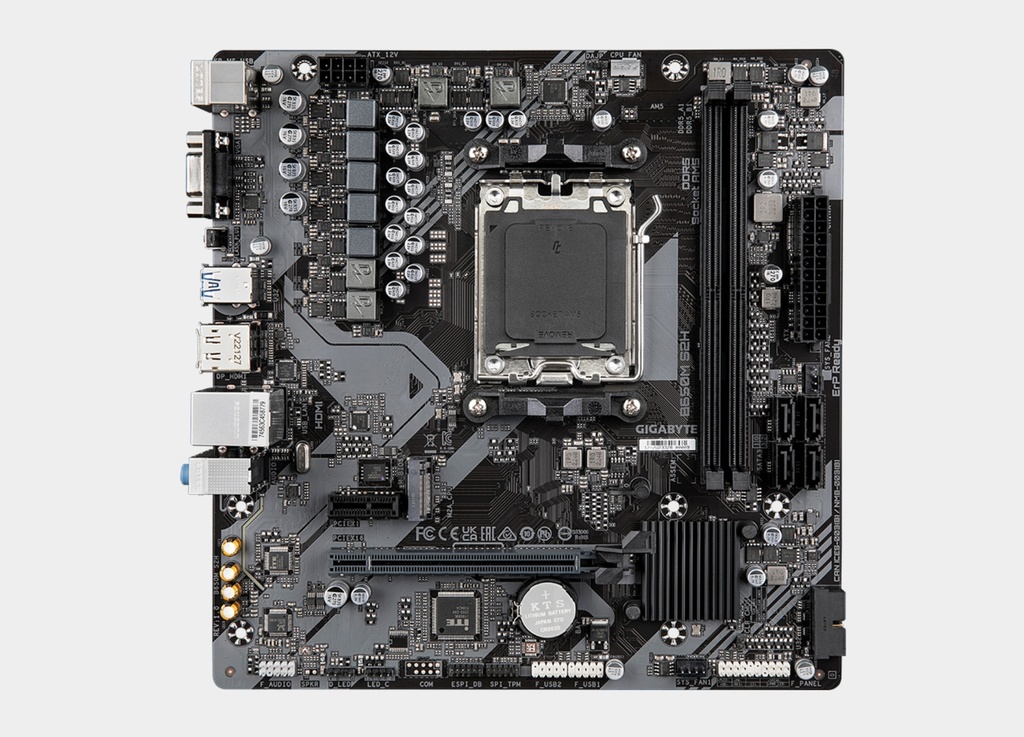

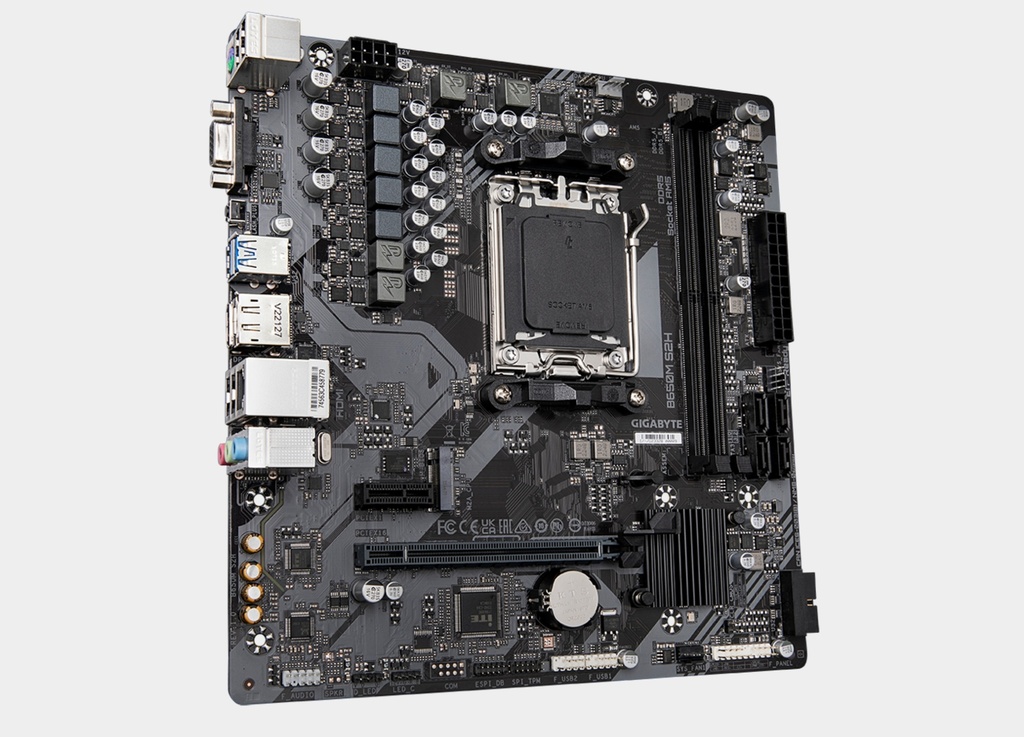

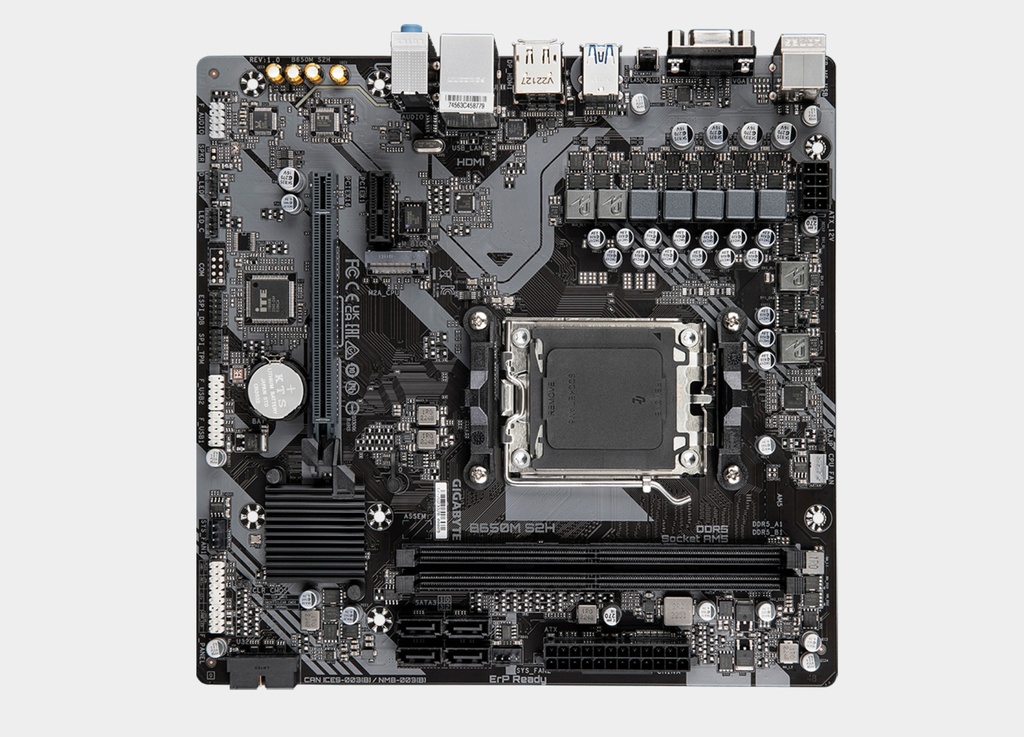

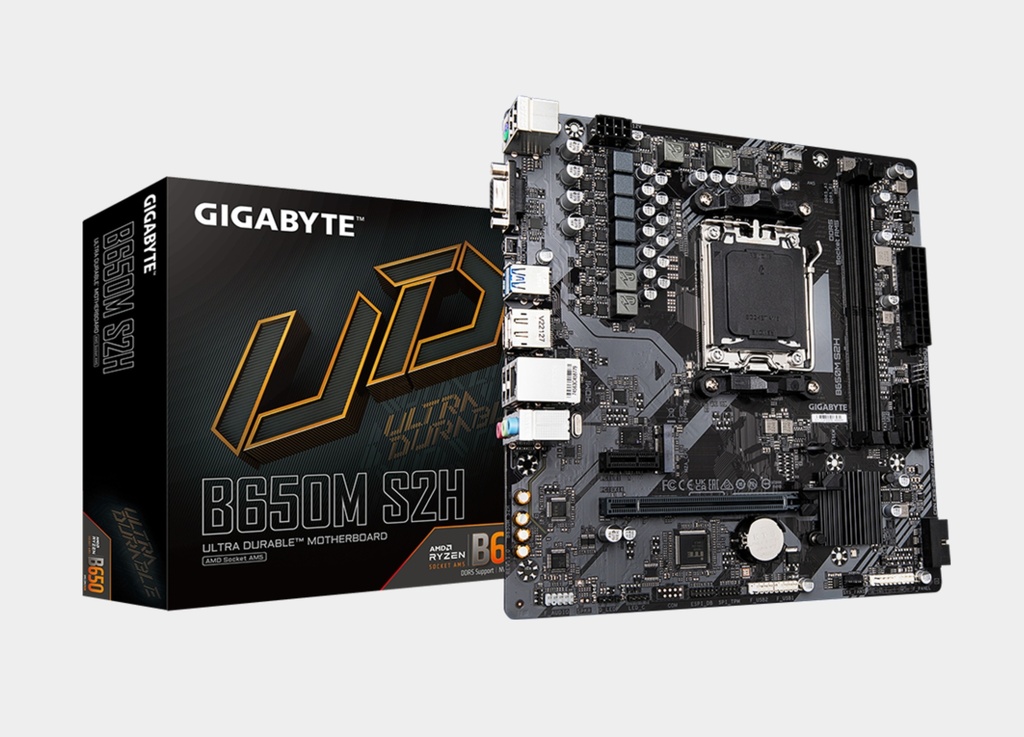

GIGABYTE B650M S2H
Elevate your computing experience with the GIGABYTE B650M S2H motherboard, designed to deliver optimal performance for modern computers. Whether you're a gaming enthusiast or a productivity professional, this motherboard combines powerful performance and high reliability to meet all your needs.
Features of the GIGABYTE B650M S2H Motherboard
Unmatched performance:
- The GIGABYTE B650M S2H comes equipped with AMD's latest B650 chipset, making it an ideal choice for the new generation of Ryzen processors. Enjoy smooth performance and exceptional processing speeds, allowing you to run demanding applications and games with ease.
Dual M.2 slots:
- With two M.2 slots, you can install NVMe SSDs and enjoy data transfer speeds of up to 32 gigabits per second. These ports support high-performance drives, enhancing the loading speed of large games and applications while reducing latency.
Smart design and efficient cooling:
- The motherboard design relies on advanced engineering to ensure efficient cooling of system components. With support for advanced cooling technologies such as Q-Flash Plus and Smart Fan 6, your device's components will remain at optimal temperatures even under full load.
High-speed communications:
- The GIGABYTE B650M S2H offers a wide range of connectivity options, including USB 3.2 ports and a PCIe 4.0 interface that supports the latest generation of graphics cards and ultra-fast storage devices. Additionally, the motherboard comes equipped with a 2.5GbE Ethernet network to enhance network connection speed and improve online gaming experience.
Immersive audio experience:
- The motherboard comes with a high-quality audio system supported by premium audio capacitors, ensuring you have a clear and pure audio experience whether you're watching movies, enjoying music, or playing games.
RGB Fusion Technology:
- The GIGABYTE B650M S2H not only delivers powerful performance but also offers you a stunning visual experience with support for RGB Fusion technology, allowing you to customize your device's lighting to match your personal taste. Get lighting effects that reflect your unique style.
Reliability and Security:
- This motherboard is designed using the best materials and top-grade components to ensure a long lifespan and lasting stability. With support for protection technologies like DualBIOS, you can always be assured that your system is protected from any potential failures.
Compatibility and Expansion:
- Thanks to its support for a wide range of standards and ports, the GIGABYTE B650M S2H allows for easy upgrades and future expansion. Whether you want to add more storage or enhance the memory, this motherboard is ready to accommodate your ambitions.
Choose the GIGABYTE B650M S2H and be assured that you are investing in a motherboard that offers exceptional performance, unparalleled flexibility, and an innovative design that helps you get the most out of your computer. Join the world of the future with GIGABYTE!
Specifications of the GIGABYTE B650M S2H Motherboard
CPU
AMD Socket AM5, support for:
- AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
- AMD B650
Memory
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
- Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
- Support for up to 3 displays at the same time
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
- Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- 1 x Clear CMOS jumper

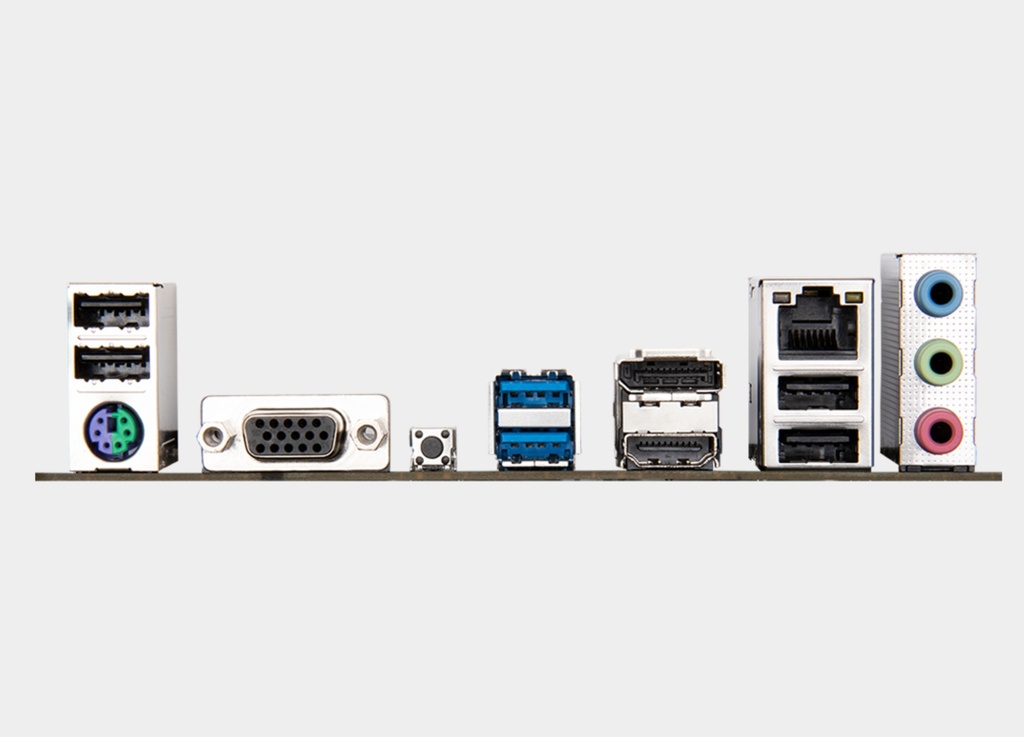

Back Panel Connectors
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x Q-Flash Plus button
- 2 x USB 3.2 Gen 1 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x RJ-45 port
- 3 x audio jacks
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- Micro ATX Form Factor; 23.0cm x 22.5cm
Specifications
| MotherBoard | |
|---|---|
| Socket | AM5 |
| Memory Type | DDR5 |
| Internal I/O Connectors | Micro ATX |
| LAN | Realtek® 2.5GbE |
| LAN Speed | 2.5GbE |
| M.2 Slot1 | PCLe 4.0 |
| M.2 Slot2 | PCLe 4.0 |
| M.2 Slot3 | N/A |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| Warranty | Three Years |
| Brand | Gigabyte |
