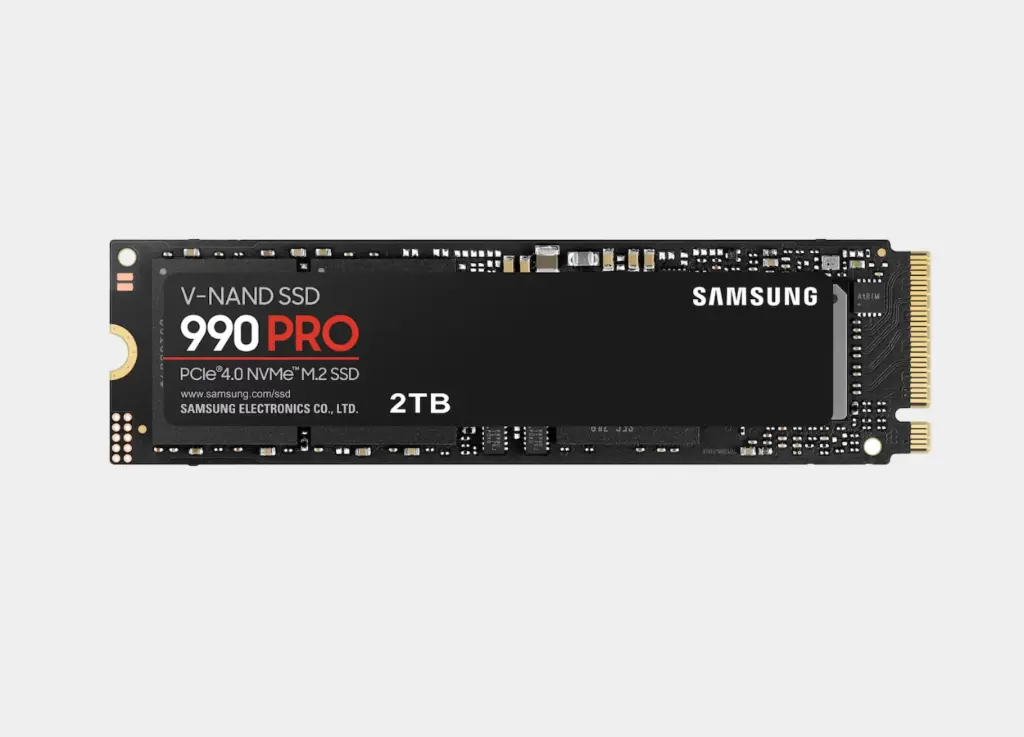

Samsung 990 PRO 2TB PCIe 4.0 NVMe M.2 SSD

Samsung 990 PRO 2TB PCIe 4.0 NVMe M.2 SSD

For users who refuse to compromise on performance, the Samsung 990 PRO NVMe SSD with a capacity of 2 terabytes represents the pinnacle of fourth-generation (Gen 4) storage. It is designed to reach the maximum speed limits of the PCIe 4.0 x4 interface thanks to Samsung's custom and optimized controller, unleashing astonishing sequential read speeds of up to 7,450 MB/s and sequential write speeds of 6,900 MB/s. This ensures near-instant loading times for large games and 3D design applications. It also features significantly improved power efficiency and exceptional random performance, considered the best in its class, to ensure smooth multitasking operations.

Features of the Samsung 990 PRO 2TB PCIe 4.0 NVMe M.2 SSD

Memory and Control Techniques:

• The Samsung 990 PRO unit represents the result of advanced engineering, utilizing the latest generation of Samsung V-NAND TLC memory that provides high storage density and exceptional reliability. The heart of the unit is Samsung's in-house controller, which is coated with nickel to ensure effective heat dissipation, maintaining high and sustained performance even under heavy loads. It is equipped with Intelligent TurboWrite technology that uses a portion of the NAND memory as SLC cache to accelerate instantaneous write operations.

Speed rates (approaching the limits of PCIe 4.0):

• The unit uses an NVMe PCIe Gen 4 x4 interface and features superior speed rates: with sequential read speeds reaching 7,450 MB/s, while sequential write speeds reach 6,900 MB/s. More importantly, this unit excels in random read and write performance (Random Read/Write IOPS), which is the most influential factor on system response speed in daily use and game loading, offering leading numbers in this category.

Tolerance and Form Factor:

• The unit comes with a capacity of 2 terabytes in the standard M.2 2280 form factor, providing exceptional durability for professional users, with a total written terabytes (TBW) of up to 1200 terabytes written, ensuring a long lifespan for the unit even with repeated large data writes. Additionally, the power efficiency of the 990 PRO unit has been significantly improved compared to previous generations, reducing heat generation and making it an excellent choice for laptops and gaming devices like the PlayStation 5.

The Samsung 990 PRO 2TB SSD is the ultimate performance of PCIe 4.0 technology, achieving read speeds of 7,450 MB/s and write speeds of 6,900 MB/s, while providing exceptional random performance with endurance up to 1200 TBW.

Specifications of the Samsung 990 PRO 2TB PCIe 4.0 NVMe M.2 SSD

General Feature

 - MODEL CODE

• MZ-V9P2T0BW

 - APPLICATION

• Client PCs, Game Consoles

 - FORM FACTOR

• M.2 (2280)

 - INTERFACE

• PCIe Gen 4.0 x4, NVMe 2.0

 - DIMENSION (WxHxD)

• 80 x 22 x 2.3 mm

 - WEIGHT

• Max 9.0g Weight

 - STORAGE MEMORY

• Samsung V-NAND 3-bit MLC

 - CONTROLLER

• Samsung in-house Controller

 - CACHE MEMORY

• Samsung 2GB Low Power DDR4 SDRAM(2TB)

Special Feature

 - TRIM Support

• Supported

 - S.M.A.R.T Support

• Supported

 - GC (GARBAGE COLLECTION)

• Auto Garbage Collection Algorithm

 - ENCRYPTION SUPPORT

• AES 256-bit Encryption (Class 0)
• TCG/Opal
• IEEE1667 (Encrypted drive)

 - WWN SUPPORT

• Not supported

 - DEVICE SLEEP MODE SUPPORT

• Yes

Performance

 - SEQUENTIAL READ

• 2TB: Up to 7,450 MB/s

 - SEQUENTIAL WRITE

• 2TB: Up to 6,900 MB/s

 - RANDOM READ (4KB, QD32)

• 2TB: Up to 1,400,000 IOPS

 - RANDOM WRITE (4KB, QD32)

• 2TB: Up to 1,550,000 IOPS

 - RANDOM READ (4KB, QD1)

• 2TB: Up to 22,000 IOPS

 - RANDOM WRITE (4KB, QD1)

• 2TB: Up to 80,000 IOPS

Environment

 - AVERAGE POWER CONSUMPTION (System Level)

• 2TB: Average 5.5 W Maximum 8.5 W (Burst mode)

 - POWER CONSUMPTION (IDLE))

• 2TB: Max. 55 mW

 - POWER CONSUMPTION (DEVICE SLEEP)

• 2TB: Max. 5 mW

 - ALLOWABLE VOLTAGE

• 3.3 V ± 5 % Allowable voltage

 - RELIABILITY (MTBF)

• 1.5 Million Hours Reliability (MTBF)

 - OPERATING TEMPERATURE

• 0 - 70 ℃ Operating Temperature

 - SHOCK

• 1,500 G & 0.5 ms (Half sine)

Accessories

 - INSTALLATION KIT

• Not Available

Software

 - MANAGEMENT SW

• Magician Software for SSD management
