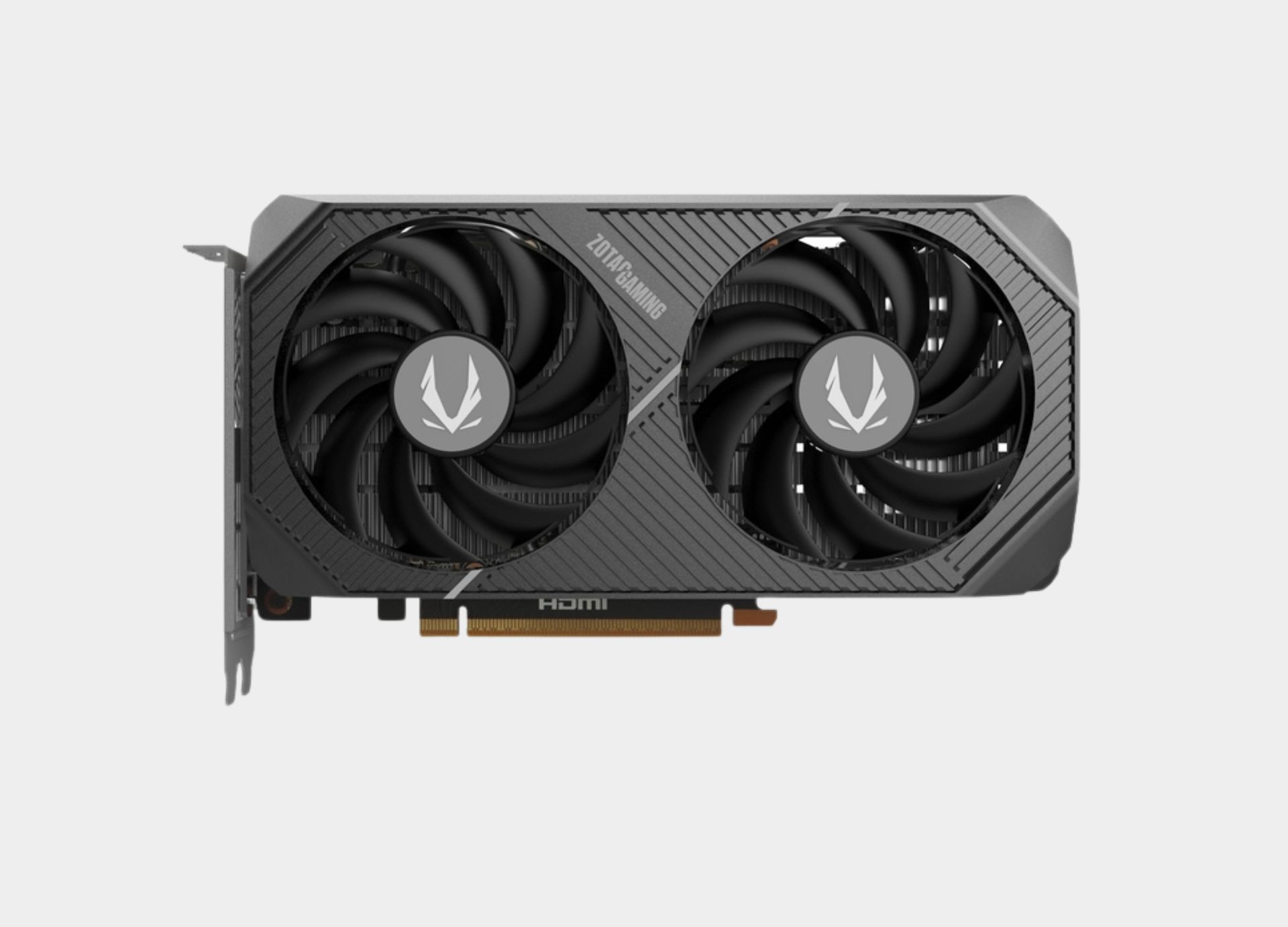

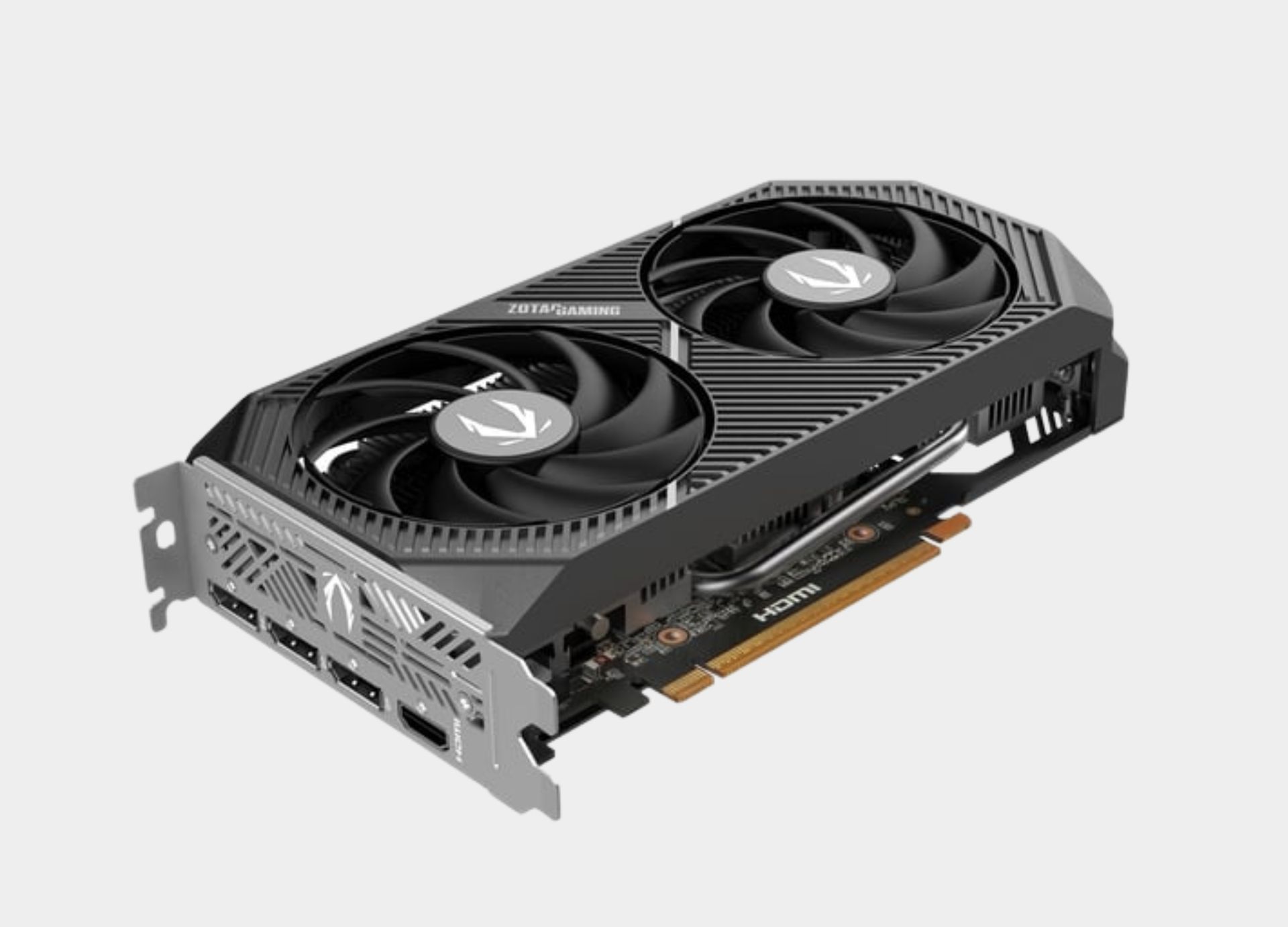

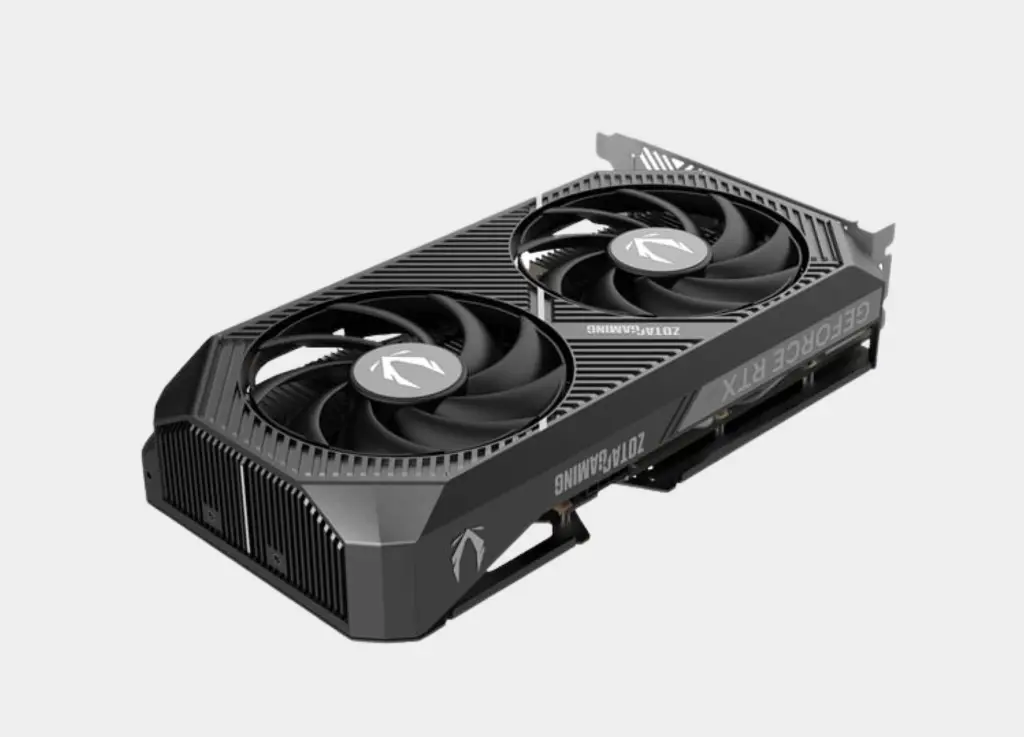

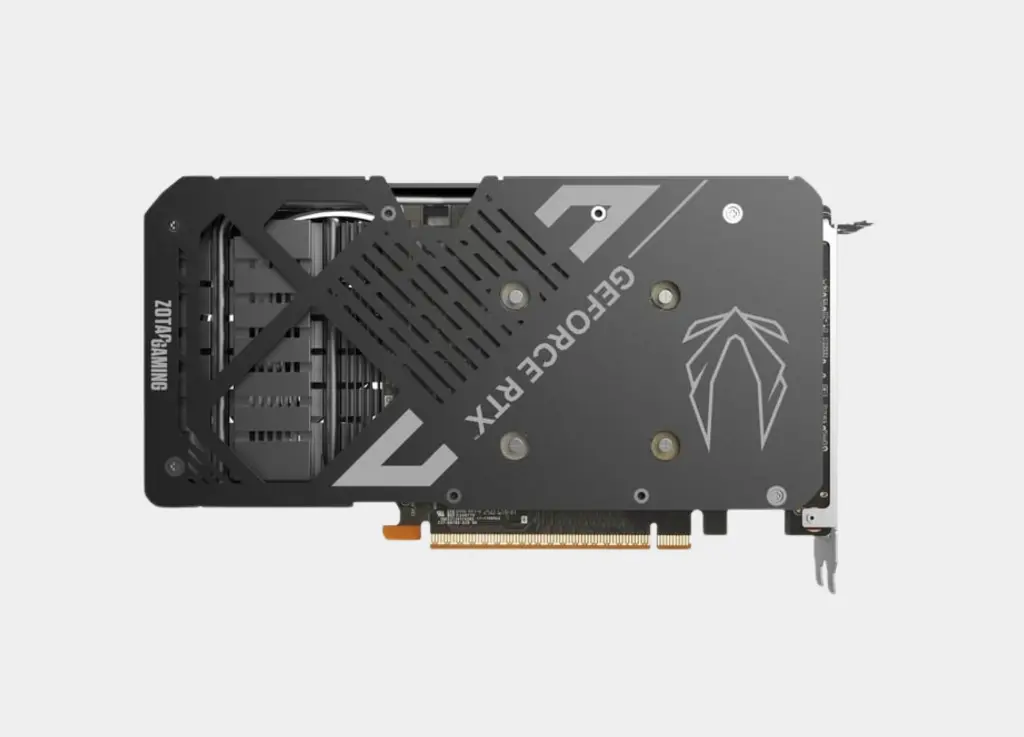

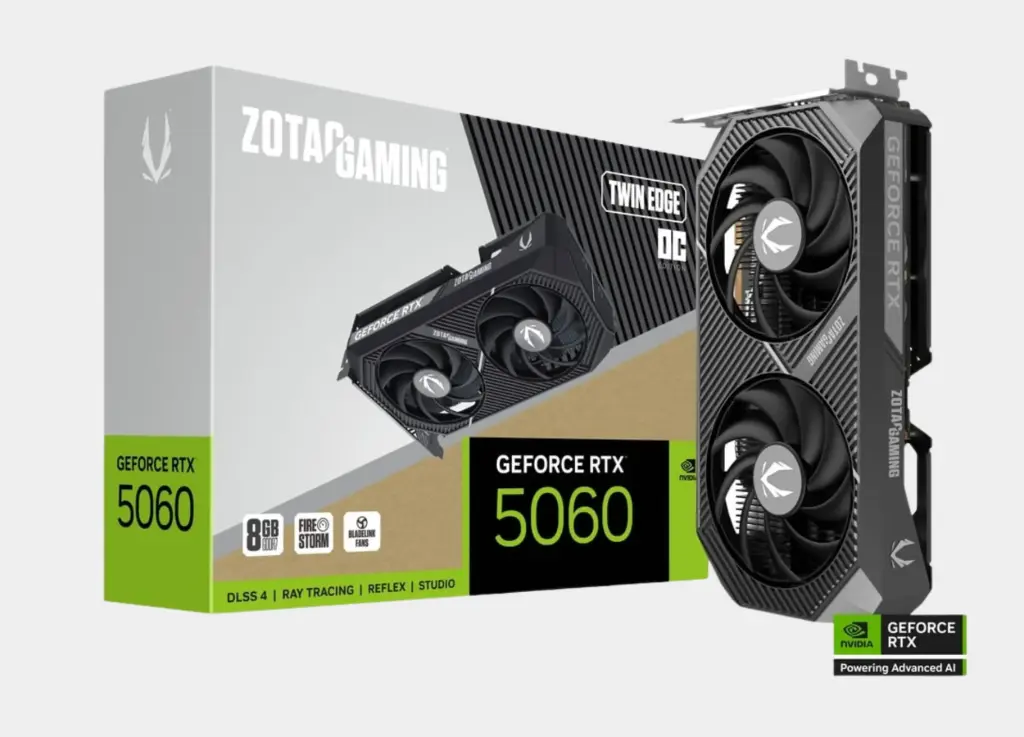

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC

Get ready to elevate your gaming performance to a new level with the ZOTAC GAMING GeForce RTX 5060 Twin Edge OC, which unleashes the power of NVIDIA's revolutionary Blackwell architecture. This card features 3840 CUDA cores for high frame rates and exceptional graphical fidelity, and it boasts innovative GDDR7 memory operating at 28 gigabits per second (Gbps), ensuring lightning-fast data flow and making it the perfect choice for enthusiasts seeking a compact design and strong overclocking (OC) performance in a dual-slot package.

Features of the ZOTAC GAMING GeForce RTX 5060 Twin Edge OC Graphics Card

Processor and Core Performance:

• Graphics Processor: NVIDIA GeForce RTX 5060 (Blackwell Architecture).
• CUDA Cores: 3840 Cores.
• Boost Clock Frequency: 2497 MHz (factory overclocked OC).

Memory (VRAM) and Bus Speed:

• Memory type: 8 GB GDDR7.
• Memory Bus: 128-bit.
• Effective memory speed: up to 28,000 megahertz (28 Gbps).

Cooling and Energy:

• Cooling system: IceStorm 2.0 with Twin Edge dual-fan design.
• Power consumption (TDP): 145 watts.
• Power connectors: require 1 x 8-pin PCIe connector.
• Recommended power supply: 550 watts.

Connection and connection ports:

• Main connection slot: PCI Express 5.0 x8.
• Display outputs: 3 x DisplayPort 2.1b, and 1 x HDMI 2.1b.
• Card size: Dual-slot design (2 Slot).

Take advantage of the powerful performance and compact design, as this card guarantees you an exceptional gaming experience thanks to GDDR7 technology and its memory, which reaches speeds of up to 28 gigabits per second (Gbps), making it an ideal addition to your device.

Specifications of the ZOTAC GAMING GeForce RTX 5060 Twin Edge OC Graphics Card

GPU

• NVIDIA GeForce RTX 5060 GPU

CUDA cores

• 3840

Video Memory

• 8GB GDDR7

Memory Bus

• 128-bit

Engine Clock

• 2527 MHz

Memory Clock

• 28 Gbps

AI TOPS

• 614

PCI Express

• PCI Express 5.0 x8

Display Outputs

• 3 x DisplayPort 2.1b with UHBR20
• (up to 4K 480Hz or 8K 165Hz with DSC)
• 1 x HDMI® Connector

(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP Support

• 2.3

Multi Display Capability

• Quad Display

Recommended Power Supply

• 550W

Power Consumption

• 145W

Power Input

• 1 x 8-pin power input

DirectX

• Microsoft DirectX® 12 Ultimate

OpenGL

• 4.6

Cooling

• Air Cooled

Slot Size

• 2

SLI

• No

Supported OS

• Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length

• 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"

Accessories

• User Manual
