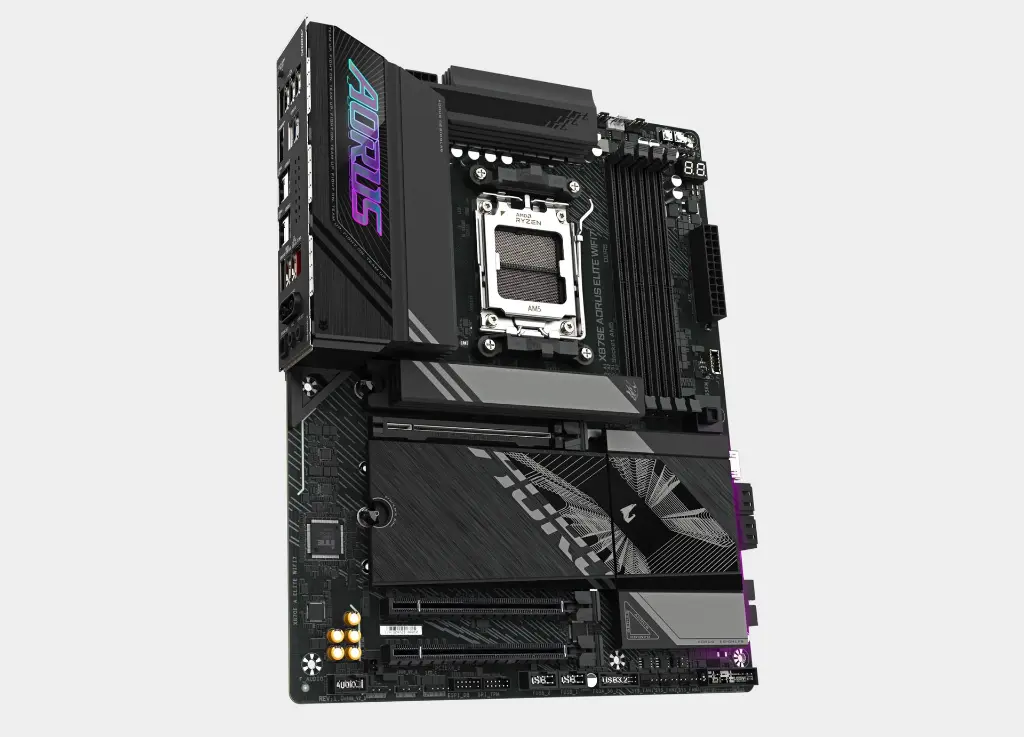

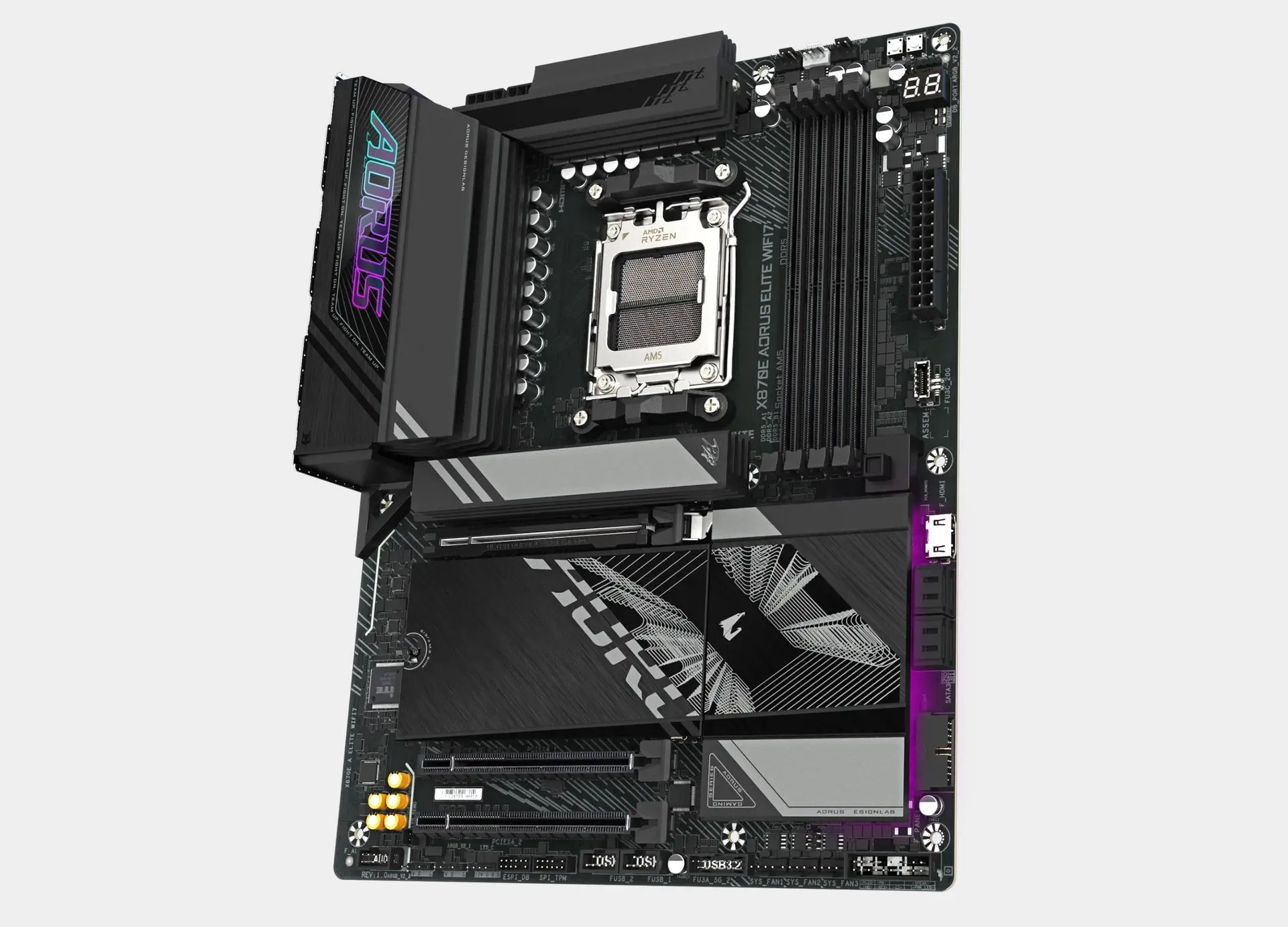

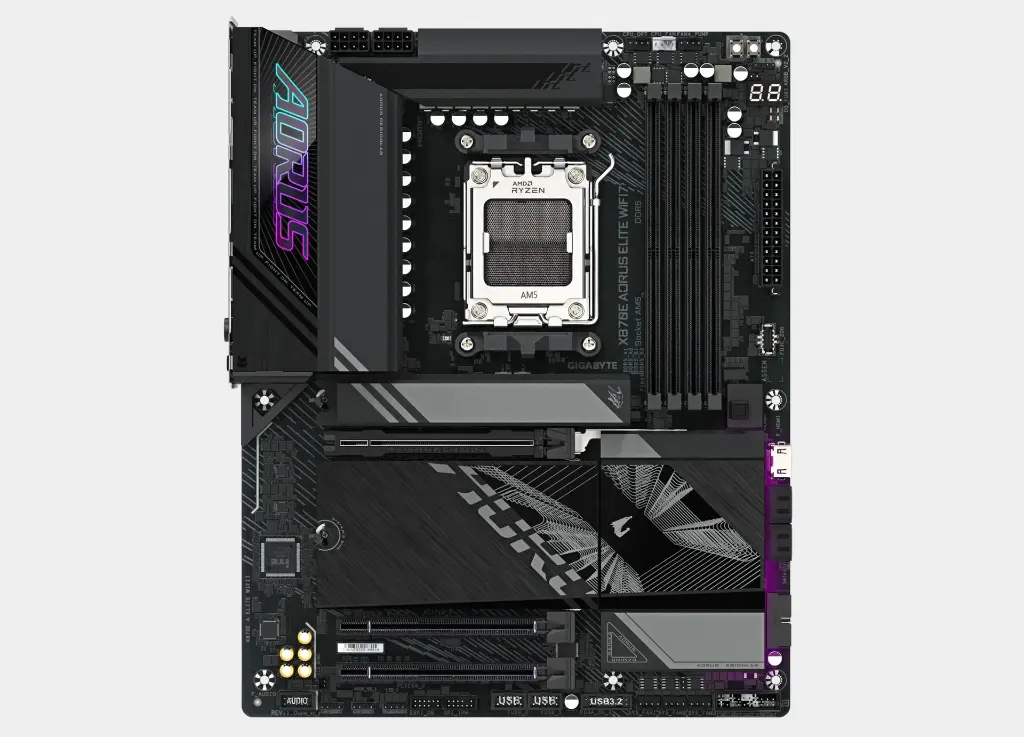

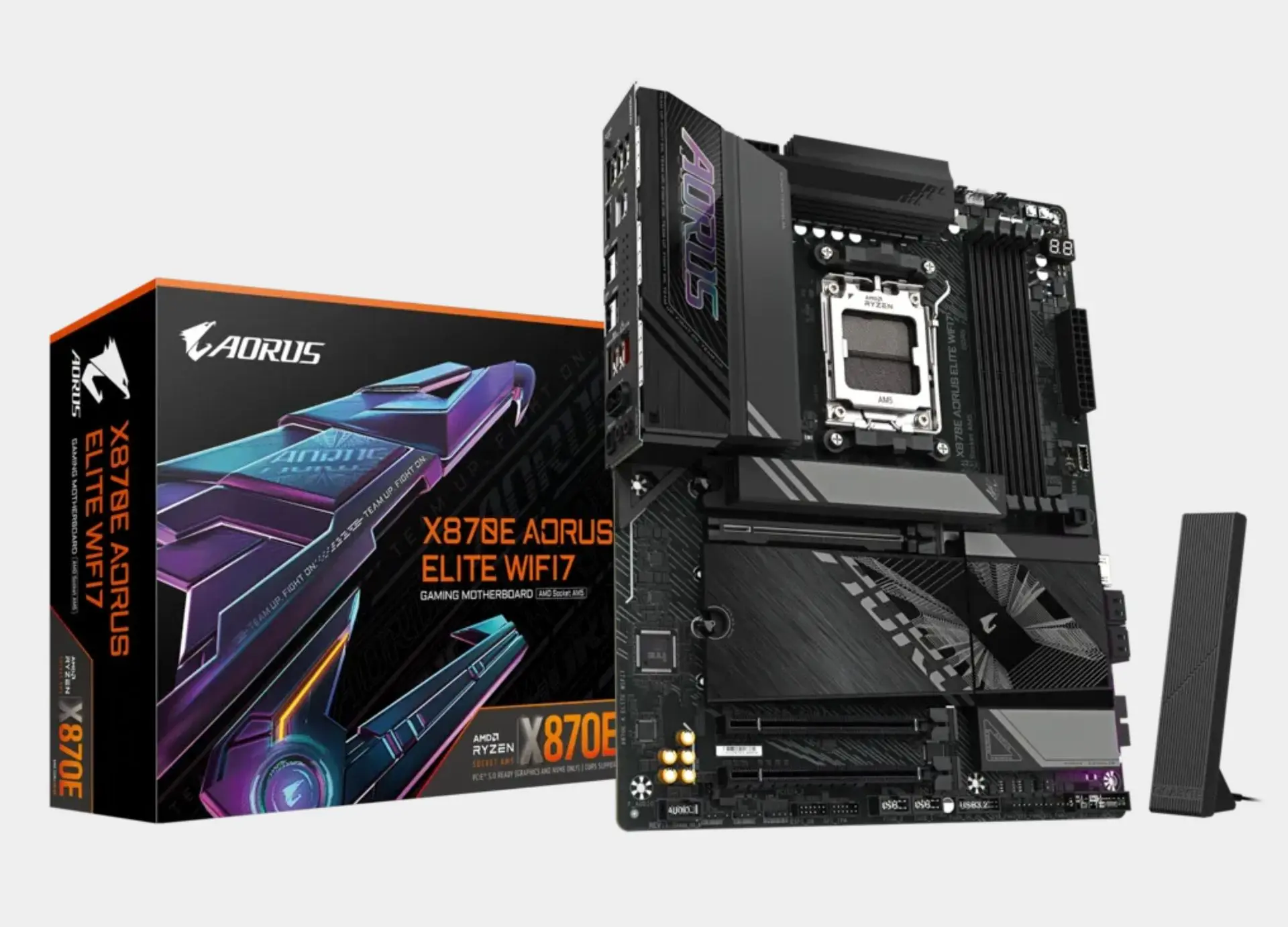

GIGABYTE X870E AORUS ELITE WIFI7 (rev. 1.0/1.1)

Are you ready for the future? The GIGABYTE X870E AORUS ELITE WIFI7 (rev. 1.0/1.1) is here! Enjoy unparalleled performance, ultra-fast WiFi7 speeds, and excellent cooling for an exceptional gaming and work experience. 🚀

Features of the GIGABYTE X870E AORUS ELITE WIFI7 Motherboard (rev. 1.0/1.1)

AORUS X870E Motherboard: Unleash the Ultimate Power of the Next AMD Ryzen Generation

Captivating Introduction: From Perfection. Get ready to experience a revolutionary personal computer build, where cutting-edge engineering meets smart innovations to provide you with a platform to take control of the future.

Amazing Features: Why Choose AORUS X870E?

This is not just a motherboard; it is the command center of your platform. We have translated every part of advanced technology into real benefits that you can feel at every moment.

1. Exceptional Performance and Unmatched Stability (Ultimate Performance & Stability):

• Hybrid digital power system (16+2+2): Provides ultra-pure and stable power for the AMD Ryzen™ processor from the 9000/8000/7000 series, giving you the maximum possible performance and exceptional, safe overclocking capabilities.
• AORUS AI SNATCH Technology: With just one click, unleash the full power of DDR5 memory and automatically boost system performance for unprecedented efficiency in gaming and heavy tasks.
• Support for DDR5 memory with speeds up to 8200MT/s: With AMD EXPO™ technology, enjoy incredible memory speeds that ensure instant responsiveness and ultra-fast loading.

2. Easy and Innovative Assembly Experience (DIY-Friendly):

• EZ-Latch Plus & Click Design: Say goodbye to tiny screws! Install and remove the graphics card and M.2 storage units without any tools, making the assembly and upgrade process a real pleasure.
• WIFI EZ-Plug Outlet: Installing the Wi-Fi antenna has never been easier with a design that combines the plugs into a single adapter for instant and quick installation.
• Sensor Panel Link: Connect your small screen inside the case directly to the motherboard without the hassle of connecting additional cables to the graphics card.

3. Integrated and Efficient Cooling (Advanced Thermal Design):

• Advanced thermal shield for the VRM unit: Massive heat sinks with an advanced design ensure that the power area remains cool even under maximum load, maintaining performance stability.
• M.2 Thermal Guard L Protection: Full coverage for M.2 units prevents thermal throttling and maintains high read and write speeds for extended periods.
• Smart Fan 6: Complete control over your cooling system, with multiple sensors and hybrid heads for fans and water pumps to keep your system cool and quiet.

4. Comprehensive Connectivity for the Future:

• Dual USB4® Type-C ports at 40Gbps: Super-fast data transfer speeds of up to 40 gigabits per second, perfect for transferring large files, editing 8K video, and connecting multiple displays.

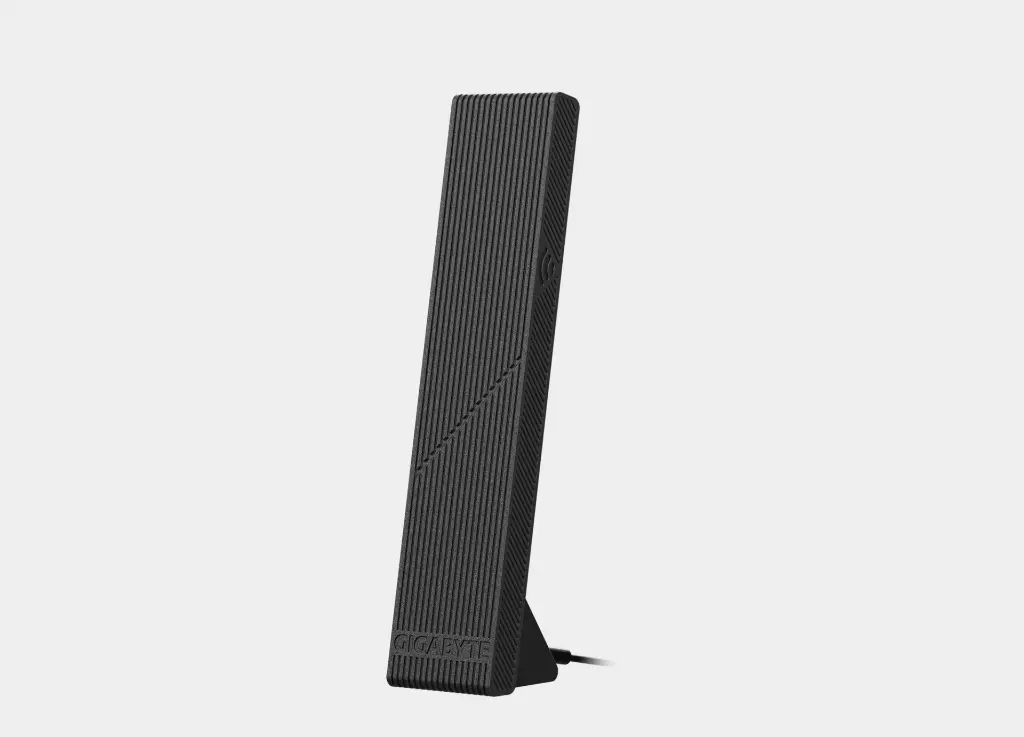

• Wi-Fi 7 Ultra-Fast Network: The latest standard for wireless networks that offers amazing speeds and extremely low latency, with a high-gain antenna for unmatched coverage.
• 2.5GbE LAN network: A high-speed wired connection that ensures you have the advantage in online gaming and data transfer on the local network.

5. Unmatched Durability and Strength (Ultra Durable™):

• PCIe UD Slot X Shield: The main graphics card slot is reinforced with 10 times the structural strength, allowing it to support the heaviest graphics cards without any worries.
• 6-layer PCB board with server standards: high-quality design ensures signal integrity, reduces electromagnetic interference, and enhances energy efficiency.
• UD Solid Pin Power Connectors: Provide better connectivity and improved thermal dissipation to ensure a stable and reliable power supply.

Specifications of the motherboard GIGABYTE X870E AORUS ELITE WIFI7 (rev. 1.0/1.1)

Product Specifications

CPU

• AMD Socket AM5, supporting:
  • AMD Ryzen™ 9000 Series Processors
  • AMD Ryzen™ 8000 Series Processors
  • AMD Ryzen™ 7000 Series Processors
  • (For the latest CPU support list, please visit GIGABYTE's website.)

Chipset

• AMD X870E

Memory

• Support for DDR5 memory modules with speeds up to 8200(OC) MT/s (including 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600, 5200, 4800, and 4400 MT/s).
• 4 x DDR5 DIMM sockets supporting a maximum of 256 GB of system memory (64 GB single DIMM capacity).
• Dual-channel memory architecture.
• Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
• Supports AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
  • (Note: CPU and memory configurations may affect supported memory types, data rates, and the number of DRAM modules. Refer to the "Memory Support List" on GIGABYTE's website for more details.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics (via +ASMedia USB4® Controller)

• 2 x USB4® USB Type-C® ports on the back panel, supporting:
  • USB4 and DisplayPort video outputs.
  • A maximum resolution of 3840x2160@240 Hz.
  • DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics

• 1 x HDMI port on the back panel, supporting:
  • A maximum resolution of 4096x2160@60 Hz.
  • HDMI 2.1 version, HDCP 2.3, and HDR.
  • Native HDMI 2.1 TMDS compatible ports.
• 1 x Front HDMI port, supporting:
  • A maximum resolution of 1920x1080@30 Hz.
  • HDMI 1.4 version.
  • (Graphics specifications may vary depending on CPU support.)
• Support for up to quad-display simultaneously.

Audio

• Realtek® ALC1220 CODEC.
• High Definition Audio.
• Supports 2/4/5.1/7.1-channel audio.
  • (The back panel line out jack supports DSD audio.)
  • (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
• Support for S/PDIF Out.

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps).

Wireless Communication Module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

• Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands.
• Bluetooth 5.4.
• Support for 11be 160MHz wireless standard.

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)

• Wi-Fi a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands.
• Bluetooth 5.4.
• Support for 11be 160MHz wireless standard.
  • (Actual data rate may vary depending on environment and equipment.)
  • (Wi-Fi 7 features require Windows 11 SV3 to function properly. There is no support driver for Windows 10.)
  • (Wi-Fi 7 channels on the 6 GHz band's availability depends on individual country's regulations.)

Expansion Slots

Integrated in the CPU

• 1 x PCI Express x16 slot (PCIEX16):
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode.
  • (The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When M2B_CPU or M2C_CPU is populated, PCIEX16 operates at up to x8 mode.)
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode.
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode.
  • (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, ensure it is in the PCIEX16 slot.)

Chipset

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1).
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2).

Storage Interface

Integrated in the CPU

• 1 x M.2 connector (M2A_CPU), supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs.
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs.
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs.
• 2 x M.2 connectors (M2B_CPU, M2C_CPU), supporting Socket 3, M key, type 22110/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs.
  • (The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.)

Integrated in the Chipset

• 1 x M.2 connector (M2D_SB), supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs.
• 4 x SATA 6Gb/s connectors.
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices. (RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.)
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices.

USB

CPU + ASMedia USB4® Controller

• 2 x USB4® USB Type-C® ports on the back panel.

CPU

• 1 x USB 3.2 Gen 1 port on the back panel.

Chipset

• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available via the internal USB header.
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel.
• 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available via internal USB headers).
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available via internal USB headers).

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For specific GC-TPM2.0 SPI modules only)
• 1 x HDMI port (Note)
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

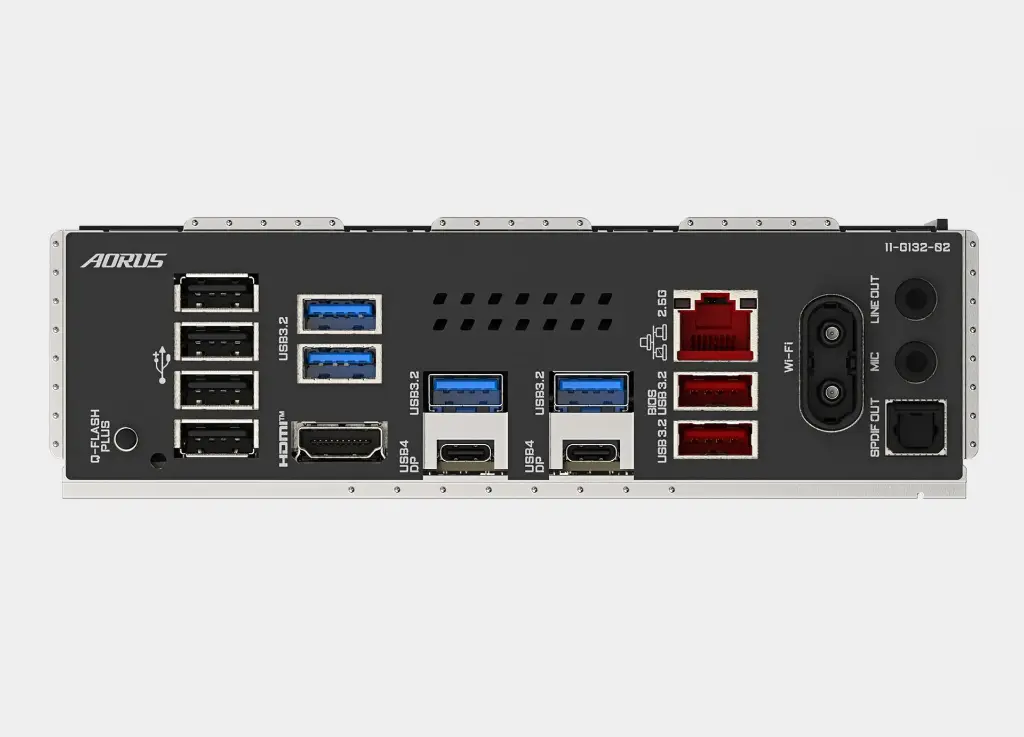

Back Panel Connectors

• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1 ports
• 4 x USB 3.2 Gen 1 ports
• 1 x HDMI port (Note)
• 2 x USB4® USB Type-C® ports (DisplayPort (Note))
• 1 x RJ-45 port
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control (Support depends on the fan/pump installed.)
• Noise detection

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC) (Available applications and supported functions may vary by motherboard model and specifications.)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm

Expected Price and Availability:

Because excellence comes at a price, this painting represents an investment in the future of your platform.

• The expected price in Egypt: ranges between 23,000 - 27,000 Egyptian pounds. (The price is estimated and may vary based on the distributor, taxes, and shipping costs).
• The expected price in global markets: ranges between $650 - $750 USD. (The price is estimated and may vary depending on the region and applicable taxes).

Conclusion and Call to Action: Don't just be a player, be a legend. Don't just be a creator, be innovative. The AORUS X870E motherboard is not just a piece of hardware; it is your key to unlocking limitless possibilities. Elevate your platform today and get ready to dominate the world of high performance!
