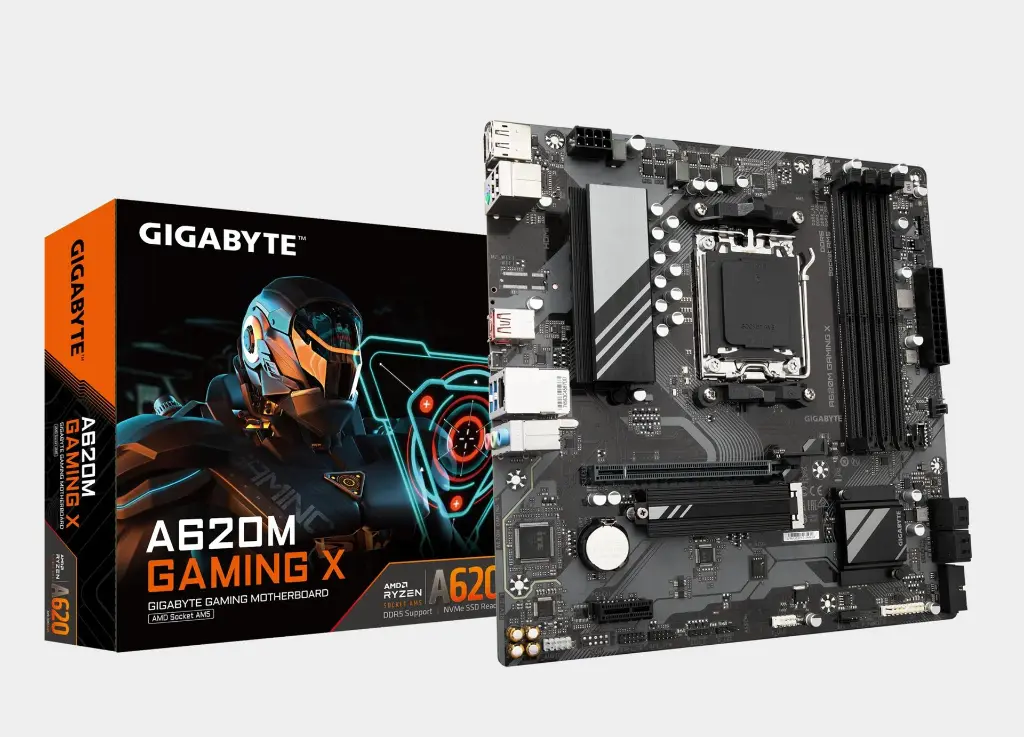

GIGABYTE A620M GAMING X (rev. 1.1)

GIGABYTE A620M GAMING X (rev. 1.1)

**🔥 Experience unmatched performance with the legendary GIGABYTE A620M GAMING X (rev. 1.1) motherboard! Designed to break speed limits and support the latest AMD Ryzen™ 7000/8000/9000 processors, it offers a professional gaming and work experience without any stuttering. Featuring a digital power system with 8+2+1 phases, ultra-fast DDR5 memory, and advanced cooling solutions to ensure absolute stability and optimal performance under the most demanding conditions. Future-ready with PCIe 4.0 technology and EZ-Latch for easy and quick installation.

Features of the GIGABYTE A620M GAMING X Motherboard (rev. 1.1)

🌟 Features of the A620M GAMING X Motherboard (rev. 1.1) - Performance is born here!

🚀 GIGABYTE A620M GAMING X (rev. 1.1) Professional Motherboard - Launch into the Future!

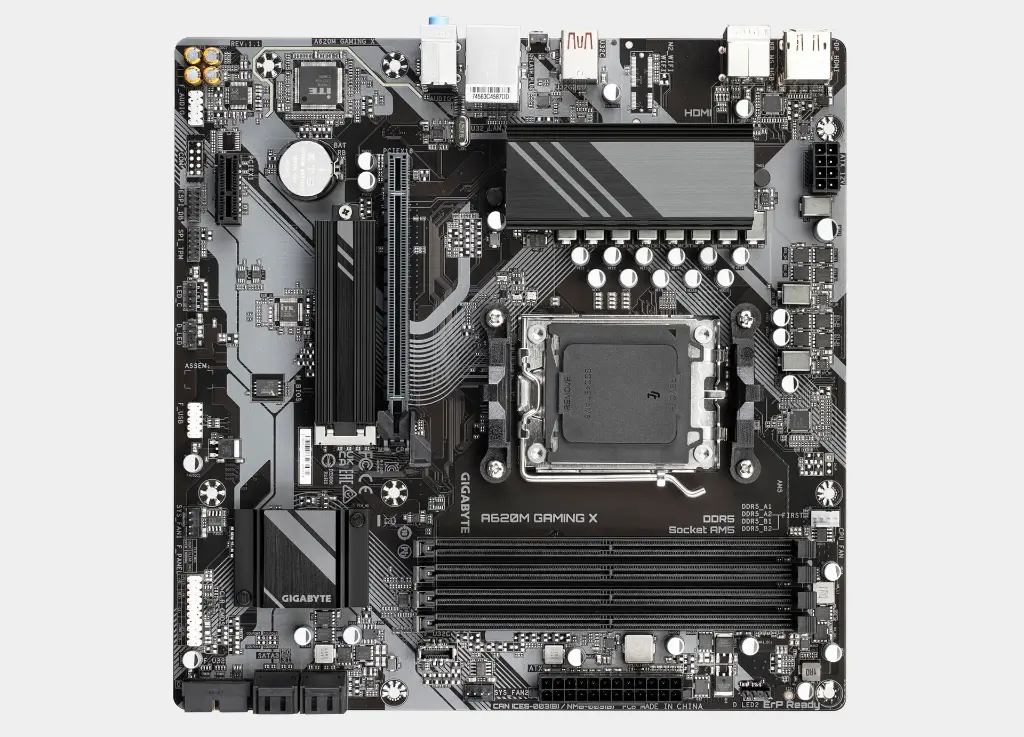

The GIGABYTE A620M GAMING X (rev. 1.1) motherboard is the ideal choice for professionals and gaming enthusiasts looking to build a powerful and future-proof system. This motherboard features an advanced engineering design focused on achieving maximum performance and thermal stability, ensuring that your gaming or professional work experience is smooth and free from any obstacles.

• Unparalleled Performance:
• Powerful digital power system: 8+2+1 phase design (Phases Digital VRM Solution) ensures clean and stable power delivery for the latest AMD Ryzen™ processors (7000 / 8000 / 9000 Series Processors), opening the door to overclocking potential and system stability under heavy loads.
• Support for the new generation of DDR5 memory: The motherboard supports 4 DDR5 DIMM slots with AMD EXPO™ and Intel® XMP technologies, providing ultra-fast memory speeds of up to 8000(OC) MT/s and a total capacity of up to 256 GB, significantly enhancing response speed and multitasking efficiency.
• PCIe 4.0 Ready: The high-speed M.2 connector supports PCIe 4.0 x4, providing amazing data transfer speeds for SSD storage, up to twice the speed of the previous generation, ensuring games and applications load in the blink of an eye.
• Advanced Thermal Design (OUTSTANDING THERMAL DESIGN):
• Advanced Thermal Design: To ensure the stability of VRM power and the performance of M.2 SSD, the motherboard is equipped with enhanced cooling solutions that include M.2 Thermal Guard to maintain low temperatures even during intensive operations.
• Smart Fan 6 technology: It allows precise control of system fans, with multiple temperature sensors and hybrid fan headers that support the FAN STOP feature to completely stop the fans when the temperature drops, enabling quiet and energy-saving operation.
• Ease of installation and durability (DIY FRIENDLY & ULTRA DURABLE):
• EZ-Latch: Features a PCIe x16 slot with a Quick Release Design, making the removal of the graphics card extremely easy, without the need for tools or effort.
• Q-Flash Plus: Allows you to easily update the BIOS without the need to install the processor, memory, or graphics card, providing unparalleled security and flexibility.
• Exceptional durability: The board design consists of a 6-layer PCB with 2X copper and a Solid Pin CPU Power Connector to ensure maximum reliability and a long lifespan.

• Specifications of the motherboard GIGABYTE A620M GAMING X (rev. 1.1)

⚙️ Technical Specifications (Specification)

• CPU:
  • AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.)
• Chipset:
  • AMD A620
• Memory:
  • Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules.
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory.
  • Dual channel memory architecture.
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics:
  • Integrated Graphics Processor with AMD Radeon™ Graphics support:
    • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version).
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (*Support for HDMI 2.1 version and HDCP 2.3. *Support native HDMI 2.1 TMDS compatible ports).
  • (Graphics specifications may vary depending on CPU support.)
• Audio:
  • Realtek® Audio CODEC.
  • High Definition Audio.
  • 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings).
• LAN:
  • Realtek® GbE LAN chip (1 Gbps/100 Mbps).
• Expansion Slots:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    • AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode.
    • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode.
    • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode.
    • (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot).
  • Chipset:
    • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1.
• Storage Interface:
  • 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    • AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs.
    • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs.
    • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs.
  • 4 x SATA 6Gb/s connectors.
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices.
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices.
• USB:
  • CPU:
    • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel.
    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support.
    • 1 x USB 3.2 Gen 1 port on the back panel.
  • Chipset:
    • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header.
    • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header).
    • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header).
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector.
  • 1 x 8-pin ATX 12V power connector.
  • 1 x CPU fan header.
  • 2 x system fan headers.
  • 1 x addressable LED strip header (D_LED1).
  • 1 x addressable LED strip header (D_LED2).
  • 1 x RGB LED strip header.
  • 1 x M.2 Socket 3 connector.
  • 4 x SATA 6Gb/s connectors.
  • 1 x front panel header.
  • 1 x front panel audio header.
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support.
  • 1 x USB 3.2 Gen 1 header.
  • 1 x USB 2.0/1.1 header.
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only).
  • 1 x Clear CMOS jumper.

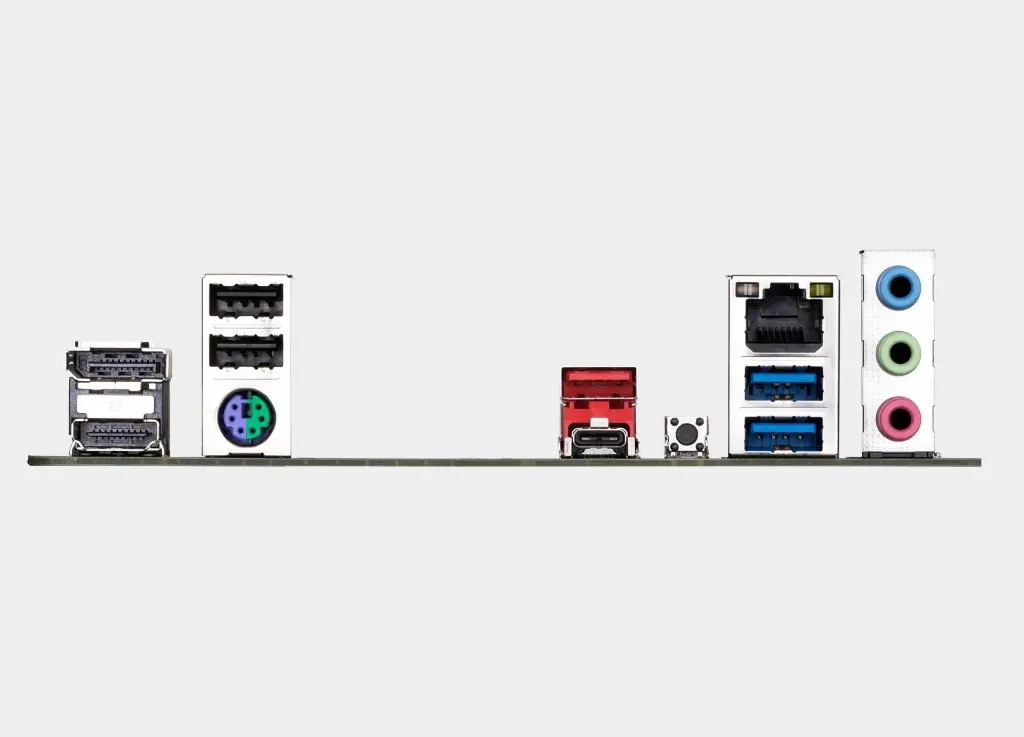

• Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse port.
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support.
  • 1 x USB 3.2 Gen 2 Type-A port (red).
  • 2 x USB 3.2 Gen 1 ports.
  • 2 x USB 2.0/1.1 ports.
  • 1 x HDMI port.
  • 1 x DisplayPort.
  • 1 x Q-Flash Plus button.
  • 1 x RJ-45 port.
  • 3 x audio jacks.
• I/O Controller:
  • iTE® I/O Controller Chip.
• H/W Monitoring:
  • Voltage detection.
  • Temperature detection.
  • Fan speed detection.
  • Water cooling flow rate detection.
  • Fan fail warning.
  • Fan speed control (Whether the fan speed control function is supported will depend on the fan you install).
• BIOS:
  • 1 x 256 Mbit flash.
  • Use of licensed AMI UEFI BIOS.
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
• Unique Features:
  • Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications).
  • Support for Q-Flash.
  • Support for Q-Flash Plus.
• Bundled Software:
  • Norton® Internet Security (OEM version).
  • LAN bandwidth management software.
• Operating System:
  • Support for Windows 11 64-bit.
  • Support for Windows 10 64-bit.
• Form Factor:
  • Micro ATX Form Factor; 24.4cm x 24.4cm.

💰 Promotional Price

To provide the best shopping experience and to optimize for search engines, we present you with price estimates:

• The price in the Arab Republic of Egypt (approximately):
• From 5,500 Egyptian pounds to 7,000 Egyptian pounds. (Subject to changes in exchange rates, shipping costs, and customs duties).
• Global price (outside Egypt - approximate):
• From 100 US dollars to 130 US dollars. (Subject to the retailer and the purchase location).
