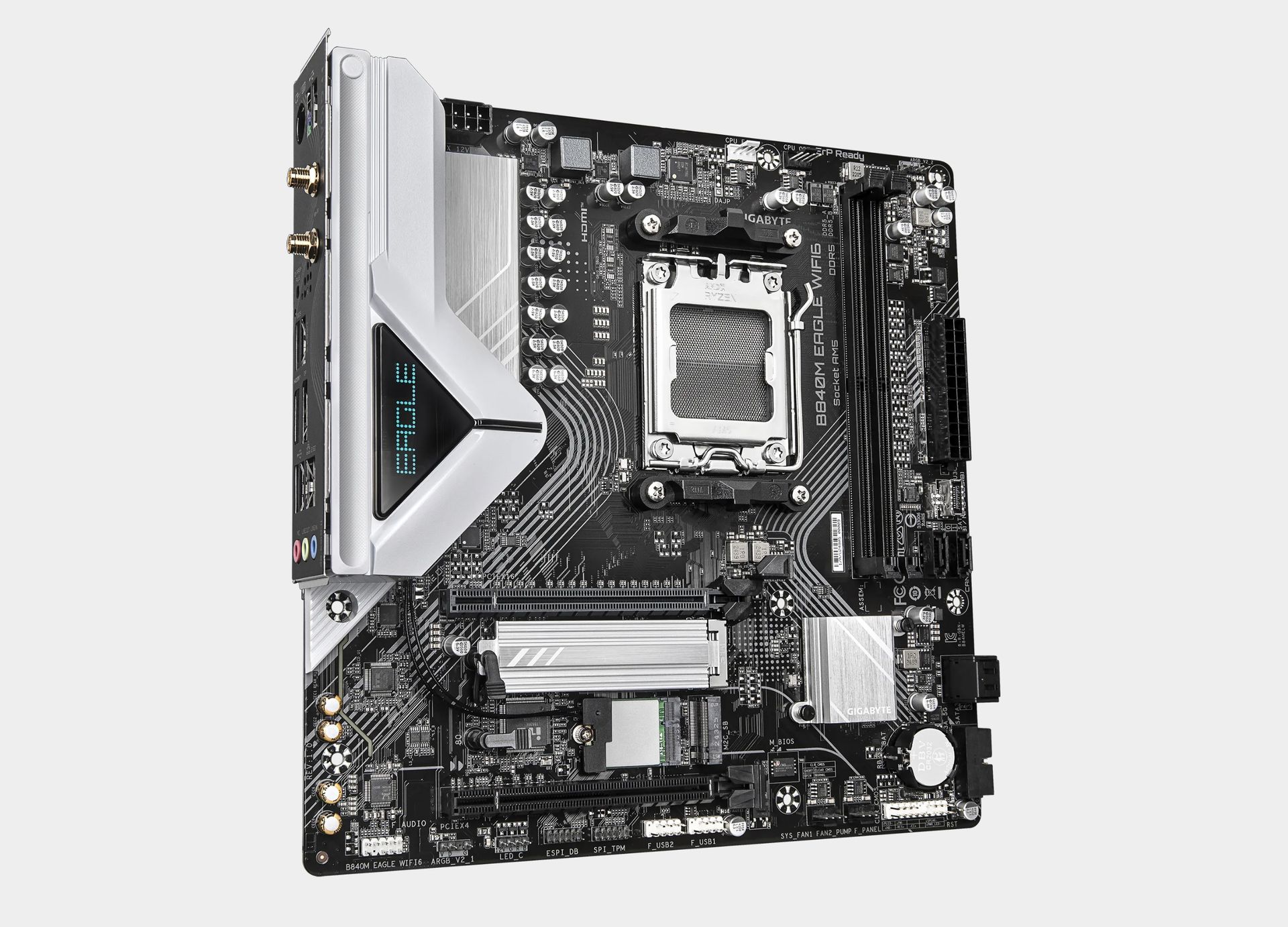

GIGABYTE B840M EAGLE WIFI6

GIGABYTE B840M EAGLE WIFI6

The new generation of GIGABYTE… with a compact Micro-ATX design and unmatched performance

With the B840M EAGLE WIFI6 motherboard, you get full support for the latest Ryzen processors, ultra-fast connectivity with Wi-Fi 6 and 2.5GbE LAN, and advanced expansion that paves the way for strong and stable future performance.

Features of the GIGABYTE B840M EAGLE WIFI6 Motherboard

Performance power that supports all possibilities

• Support for AMD Ryzen™ 8000 and 7000 Series processors on the AM5 socket, ensuring compatibility with the latest processing technologies.
• The all-new B840 chip provides you with exceptional stability and performance improvements compared to previous generations.
• Robust 8+2 phase digital power design with high-quality MOSFETs and durable capacitors for precise and stable power delivery even under high load.

Absolute readiness for expansion and rapid response

• Support for DDR5 memory with speeds of up to 8000MT/s (when overclocked), for a faster experience in gaming and heavy applications.
• PCIe 4.0 x16 slot for efficiently running modern graphics cards.
• The M.2 PCIe 4.0 x4 high-speed storage slot is equipped with a built-in thermal shield that maintains performance even during prolonged use.
• 4 SATA 6Gb/s ports for expanding traditional storage units.

Smart cooling that keeps up with high performance

• Comprehensive cooling on the VRM circuits to ensure power stability during heavy operations.
• The Smart Fan 6 system features 6 hybrid fan headers and multiple thermal sensors for precise cooling control according to each area on the board.

Modern and seamless connection for a delay-free experience

• A built-in Wi-Fi 6 module ensures high wireless speed and stability for gaming and streaming.
• Bluetooth 5.3 for seamless and fast connection to peripheral devices.
• 2.5GbE LAN port for a wired internet experience that is two and a half times faster than traditional speeds.
• USB 3.2 Gen 2 Type-C support on the back for data transfer at speeds of 10Gbps.
• HDMI 2.1 port for display resolution up to 4K@60Hz when using an integrated graphics processor.

Futuristic design with professional tools

• Q-Flash Plus allows you to update the BIOS easily even without a processor or memory.
• Multiple protection circuits for USB, LAN, and PCIe ports against electrical surges and external interference.
• Space-saving Micro-ATX design, ideal for compact builds without sacrificing performance.

GIGABYTE B840M EAGLE WIFI6 is not just a motherboard... but a powerful and advanced platform that combines modernity, performance, and expandability, making it an ideal choice for any build that relies on the latest Ryzen processors and seeks faster connectivity and higher reliability.

Specifications of the GIGABYTE B840M EAGLE WIFI6 Motherboard

CPU

- AMD Socket AM5, support for:

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

• AMD B840

Memory

• Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Realtek® Wi-Fi 6 RTL8851BE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 80MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

• Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:

- 2 x USB 3.2 Gen 1 ports on the back panel

• CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

• Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 2 x USB 3.2 Gen 1 ports available through the internal USB headers

- 4 x USB 2.0/1.1 ports available through the internal USB headers

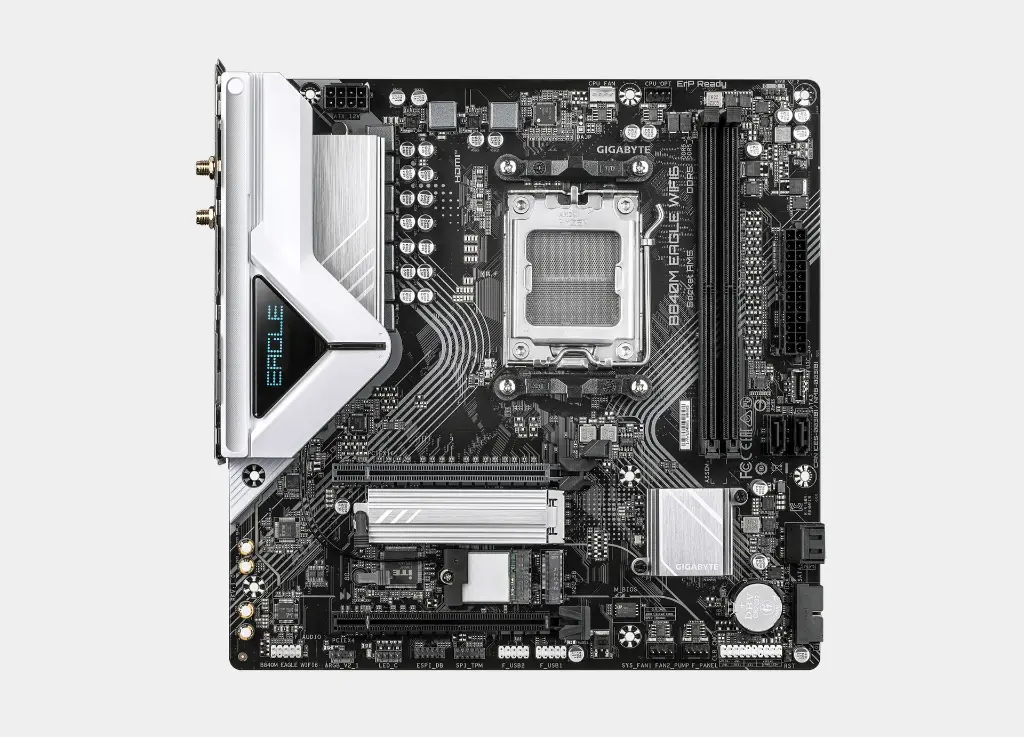

Internal I/O Connectors

• 1x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 2 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x reset jumper
• 1 x Clear CMOS jumper

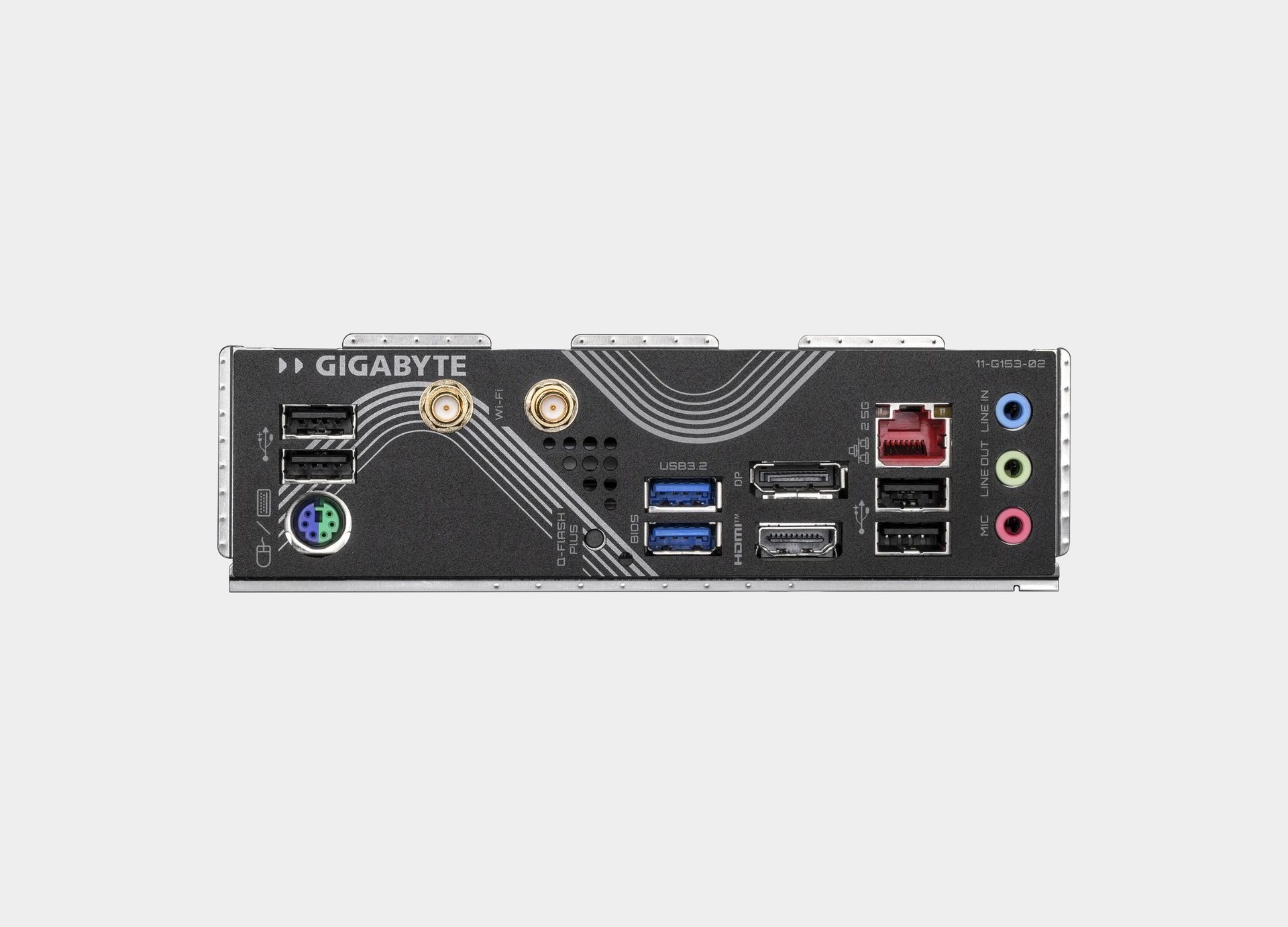

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 4 x USB 2.0/1.1 ports
• 1 x DisplayPort (Note)
• 1 x HDMI port (Note)
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor; 24.4cm x 24.4cm
