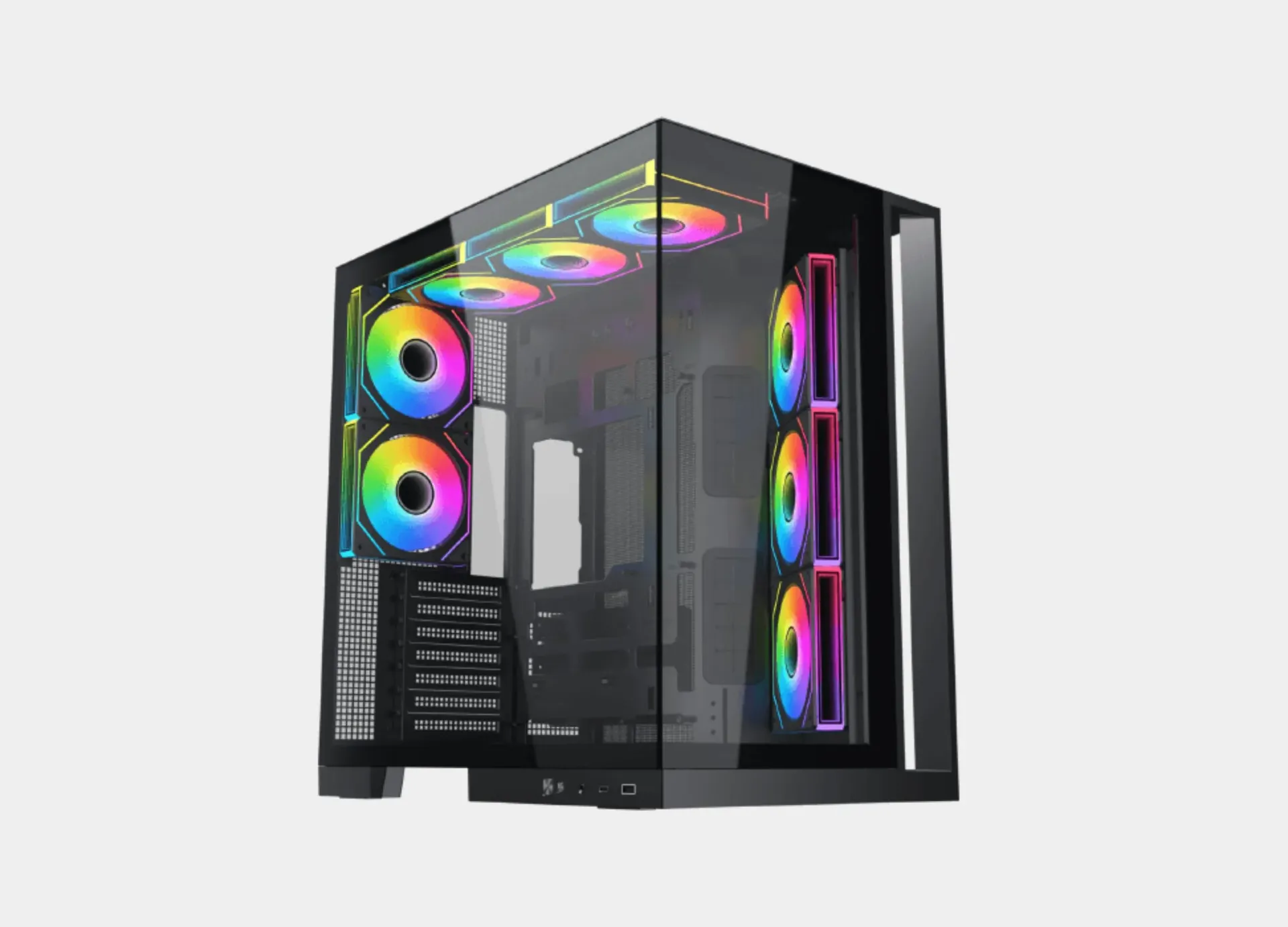

The comprehensive and detailed review of the Xigmatek Aqua 7 ARGB BTF Super Tower case

The Xigmatek Aqua 7 case is an exceptional choice for professionals and enthusiasts of advanced computer builds. It combines a massive internal space (Super Tower), superior cooling capabilities, and full compatibility with the latest motherboard technologies, making it the perfect foundation for building your dream high-performance and visually appealing computer.

Key Features

1. Support for Cable Management Technology (BTF & Back Plug)One of the key features of this case is its support for modern motherboards that come with rear power ports (Back Plug). This design allows for hiding all the annoying cables behind the motherboard, giving the build a professional, clean, and clutter-free appearance, while also improving airflow inside the case. The case supports motherboards in sizesE-ATX, ATX, M-ATX, and Mini-ITX.

2. Exceptional Cooling System and Superior VentilationTo ensure the stability of high-temperature components, the case is designed to support a massive cooling system:

• Fans:It comes equipped with 8 ARGB PWM fans that provide stunning lighting and smart rotation speed that adapts to the device's temperature. The case can accommodate up to 11 120mm fans distributed intelligently (at the top, bottom, side, and back).

• Water cooling:It supports the installation of massive radiators (water coolers) up to360mmin three different locations (top, side, and bottom), providing maximum flexibility for overclocking enthusiasts and open or closed water cooling.

3. Internal space that meets all needs

• Graphics card (GPU):A spacious area that allows for the installation of the largest graphics cards on the market, with a length of up to410mm(or 360mm if a side water cooler is installed).

• CPU cooler:Supports air coolers with a height of up to165mm.

• Power supply (PSU):Dedicated space for standard power supplies with a length of up to180mm.

4. Flexible storage optionsThe case provides strategic locations for installing storage units without affecting the aesthetic appearance:

• A dedicated back support for installing one (3.5" HDD + 2.5" SSD) or two (2.5" SSD) drives.

• A dedicated cage for hard drives that accommodates two (3.5" HDDs).

5. Stylish front I/O panelThe top interface is equipped with the latest connectivity ports to ensure fast data transfer and easy access, including:

• AUSB Type-Csuper speed port.

• AUSB 3.0.

• High-definition audio and microphone jacks (HD Audio).

Specifications of the Xigmatek Aqua 7 Argb BTF 8 Fan ARGB Pwm EATX Type C Super Tower Case

Product NameAQUA 7

Dimensions448x290x467mm (LxWxH)

Motherboard SupportE-ATX ATX (Support Back Plug) M-ATX (Support Back Plug) Mini-ITX

Drive BaysSSD/HDD Mounting Bracket (Rear MB Panel): 3.5″ x1 & 2.5″ x1 or 2.5″ x2 HDD Cage: 3.5″ x2

Fan SupportTop: 120mm x3 or 140mm x2 Side: 120mm x3 Bottom: 120mm x3 Rear: 120mm x2

PSU Length Limitation180mm

CPU Cooler Clearance165mm

MaterialSteel

Power SupplyStandard PS2 ATX PSU

Expansion Slots7 Standard Slots

I/O PanelUSB-C USB3.0 x1 HD Audio

Radiator SupportTop: 240/280/360 Side: 240/360 Bottom: 240/360 Rear: 120

GPU Length Limitation360mm (with Side Liquid Cooler) 410mm (without Side Liquid Cooler)
