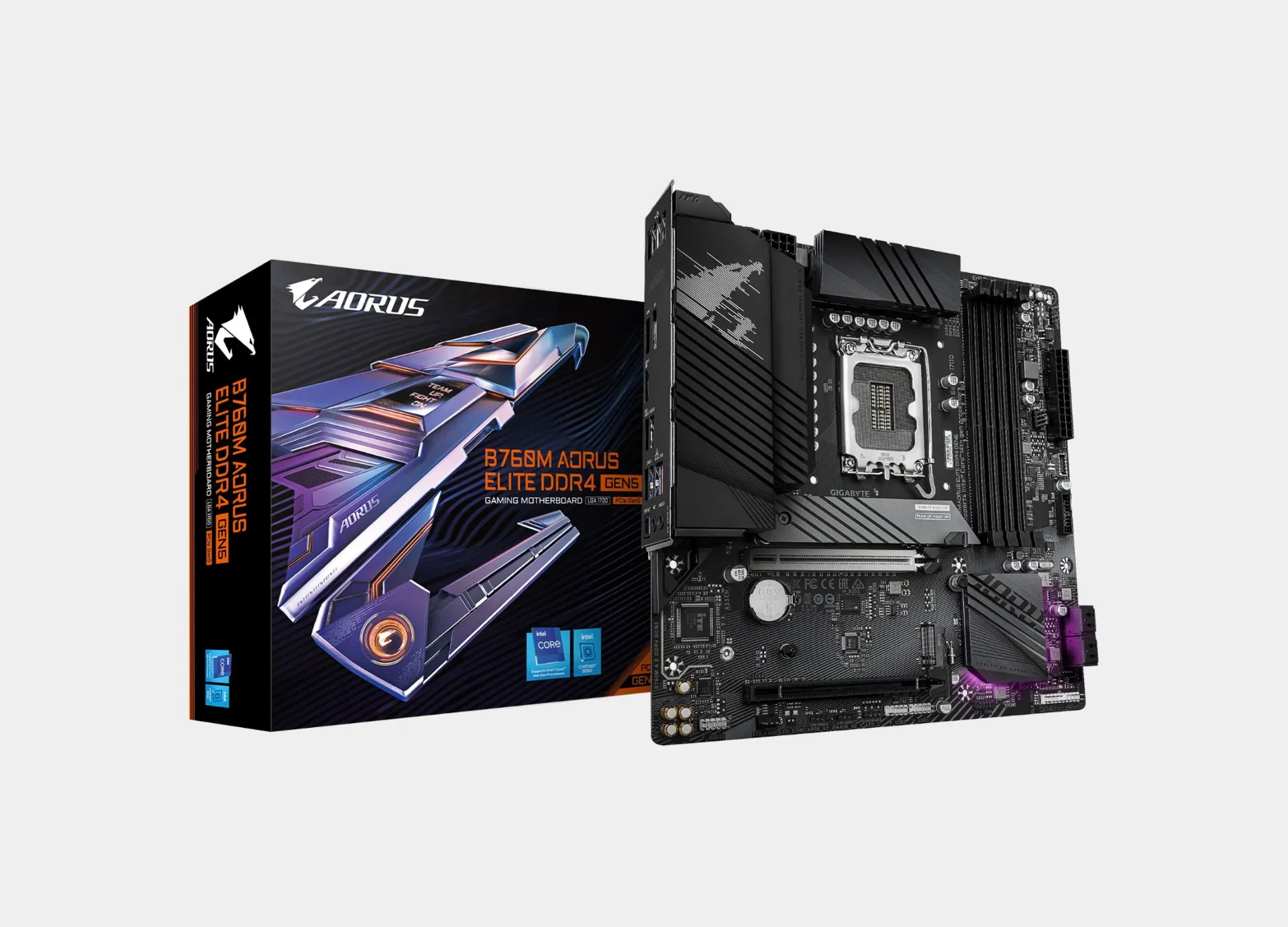

GIGABYTE B760M AORUS ELITE DDR4 GEN5 1.0

GIGABYTE B760M AORUS ELITE DDR4 GEN5 1.0

Unleash the power of your build with the GIGABYTE B760M AORUS ELITE DDR4 GEN5 1.0 motherboard!

Are you looking for outstanding performance, future technologies, and smart pricing all at once? The AORUS ELITE series from Gigabyte offers you a masterpiece designed specifically for gamers and content creators who refuse to settle for anything less. With support for the latest Intel processors and future PCIe 5.0 technology while maintaining support for cost-effective DDR4 memory, this motherboard is the smartest strategic choice for your next build. From Gigabyte, it is a masterpiece designed specifically for gamers and content creators who do not accept half measures. Thanks to its support for the latest Intel processors and future PCIe 5.0 technology while retaining support for cost-effective DDR4 memory, this motherboard is the smartest strategic choice for your next build.

The main features that make it your first choice:

1. Unmatched processing power (Support for multiple Intel generations)Thanks to theLGA1700socket and theIntel® B760, this motherboard opens the doors to maximum performance with full support for 12th, 13th, and 14th generation Intel® Core™ processors, ensuring continuity and a smooth upgrade for your device in the future.

2. Future-proof speed for graphics cards (PCIe 5.0)Get ready for the future with the primary graphics card slot that comes withPCIe 5.0 x16. This powerful technology ensures you make the most of every drop of performance from current and future graphics cards, whether you're gaming at 4K resolution or working on heavy engineering design software.

3. Rocket-fast and cost-effective RAM performanceNo need to change your current RAM! The motherboard supportsDDR4with amazing overclocking capabilities of up to5333 MHz (O.C.). With 4 slots accommodating up to 128GB and support for XMP technology, you'll experience instant responsiveness in all your tasks.

4. Storage that knows no waitingSay goodbye to long loading screens thanks to twoM.2 PCIe 4.0slots (one directly connected to the processor and the other to the chipset), allowing you to enjoy incredible read and write speeds for your files and games, in addition to 4 SATA 6Gb/s ports to support additional storage units and various RAID configurations.

5. Cinematic audio experienceHear the finest details of your enemies' footsteps in games or enjoy the clarity of music thanks to the professional audio chipRealtek® ALC1220 CODEC. It supports high-definition audio and surround sound up to 7.1 channels for a truly immersive experience.

6. Lag-free network connectivityPlay and compete confidently with the network chip.Realtek® 2.5GbE LANWhich provides internet transfer speeds of up to 2.5 gigabits per second, ensuring you the lowest latency (Ping) and fastest response in competitive gaming.

7. Premium ports and connections

• Incredible data transfer speed:PortUSB Type-C® 3.2 Gen 2x2Rear provides massive transfer speeds.

• Display connections:HDMI 2.1 ports (supporting 4K@60Hz) and DisplayPort 1.2 to support multiple high-resolution displays directly from the integrated graphics processor.

8. Control and intelligence in design (Micro ATX)

• Q-Flash Plus:Update the BIOS with a single button press using a flash memory, without the need to install a processor, RAM, or graphics card!

• RGB aesthetics:Full control over your device's lighting through multiple RGB and Addressable RGB ports compatible with the GIGABYTE Control Center (GCC) software.

• Compact design:It comes in Micro ATX size (24.4 cm x 24.4 cm), making it ideal for building a powerful device in a sleek size that saves space on your desk.

MotherboardGIGABYTE B760M AORUS ELITE DDR4 GEN5 1.0Not just a motherboard; it is the solid foundation on which you will build your digital empire, combining the power of the new generation of PCIe, the reliability of DDR4 memory, and the renowned manufacturing quality of AORUS.

Specifications of the GIGABYTE B760M AORUS ELITE DDR4 GEN5 1.0 motherboard

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors.

• (Go to GIGABYTE's website for the latest CPU support list.)

• L3 cache varies with CPU.

Chipset

• Intel® B760 Express Chipset.

Memory

• Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules.

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory.

• Dual channel memory architecture.

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode).

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.

• Support for Extreme Memory Profile (XMP) memory modules.

• (The CPU and memory configuration may affect the supported memory types, data rate, and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website).

Onboard Graphics

• Integrated Graphics Processor - Intel® HD Graphics support.

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Supports HDMI 2.1, HDCP 2.3, and native HDMI 2.1 TMDS compatible ports).

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz (Supports DisplayPort 1.2 and HDCP 2.3).

• (Graphics specifications may vary depending on CPU support).

Audio

• Realtek® ALC1220 CODEC.

• The back panel line out jack supports DSD audio.

• High Definition Audio.

• 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software).

• Support for S/PDIF Out.

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps).

Expansion Slots

• CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16). The PCIEX16 slot can only support a graphics card or an NVMe SSD.

• Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4).

Storage Interface

• CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU).

• Chipset:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB).

• 4 x SATA 6Gb/s connectors.

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices.

USB

• Chipset:1 x USB Type-C® port on the back panel (USB 3.2 Gen 2x2), 1 x USB Type-C® port internal (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 1 x USB 3.2 Gen 1 port on the back panel, 4 x USB 2.0/1.1 ports internal.

• Chipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports (2 on the back panel, 2 internal).

• Chipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panel.

Internal I/O Connectors

• 1 x 24-pin ATX main power connector.

• 1 x 8-pin ATX 12V power connector.

• 1 x 4-pin ATX 12V power connector.

• 1 x CPU fan header.

• 3 x system fan headers.

• 3 x addressable RGB Gen2 LED strip headers.

• 1 x RGB LED strip header.

• 2 x M.2 Socket 3 connectors.

• 4 x SATA 6Gb/s connectors.

• 1 x front panel header & 1 x front panel audio header.

• 1 x USB Type-C® header (USB 3.2 Gen 2 support).

• 1 x USB 3.2 Gen 1 header & 2 x USB 2.0/1.1 headers.

• 2 x Thunderbolt™ add-in card connectors.

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only).

• 1 x Q-Flash Plus button.

• 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper.

Back Panel Connectors

• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support.

• 1 x USB 3.2 Gen 2 Type-A port (red).

• 3 x USB 3.2 Gen 1 ports & 4 x USB 2.0/1.1 ports.

• 1 x HDMI port & 1 x DisplayPort (Actual support may vary by CPU).

• 1 x RJ-45 port.

• 1 x optical S/PDIF Out connector.

• 2 x audio jacks.

I/O Controller

• iTE® I/O Controller Chip.

H/W Monitoring

• Voltage detection.

• Temperature detection.

• Fan speed detection.

• Water cooling flow rate detection.

• Fan fail warning.

• Fan speed control (Depends on the installed fan).

BIOS

• 1 x 256 Mbit flash.

• Use of licensed AMI UEFI BIOS.

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

Unique Features

• Support for GIGABYTE Control Center (GCC).

• Support for Q-Flash & Q-Flash Plus.

• Support for Smart Backup.

Bundled Software

• Norton® Internet Security (OEM version).

• LAN bandwidth management software (Service discontinued).

Operating System

• Support for Windows 11 64-bit & Windows 10 64-bit.

Form Factor

• Micro ATX Form Factor; 24.4cm x 24.4cm.
