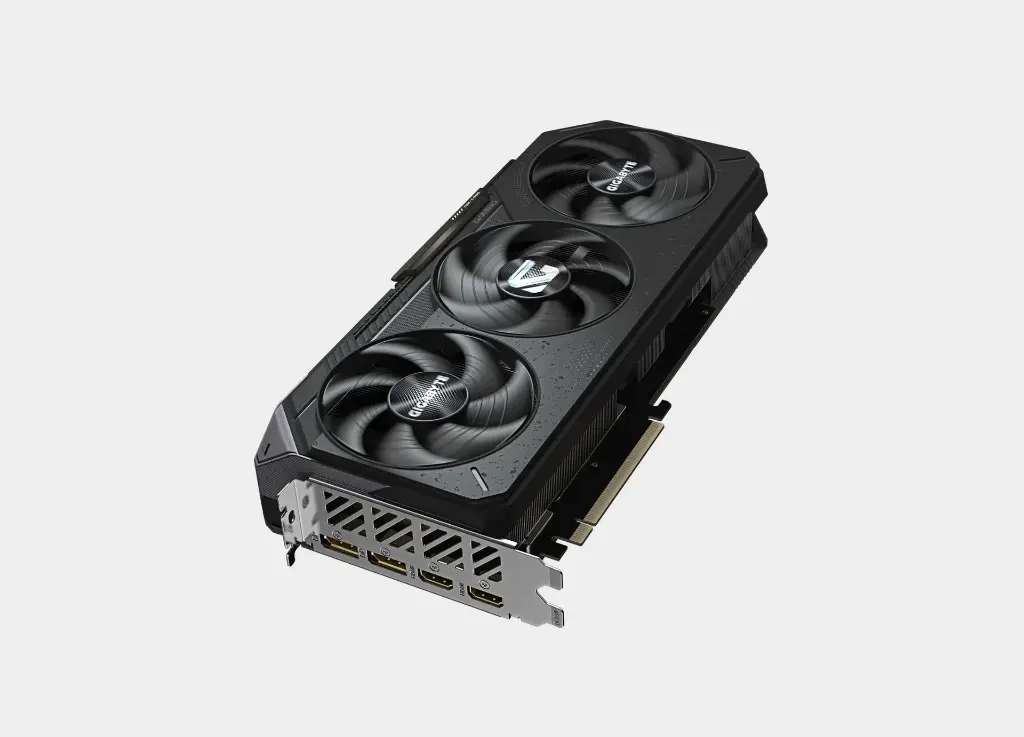

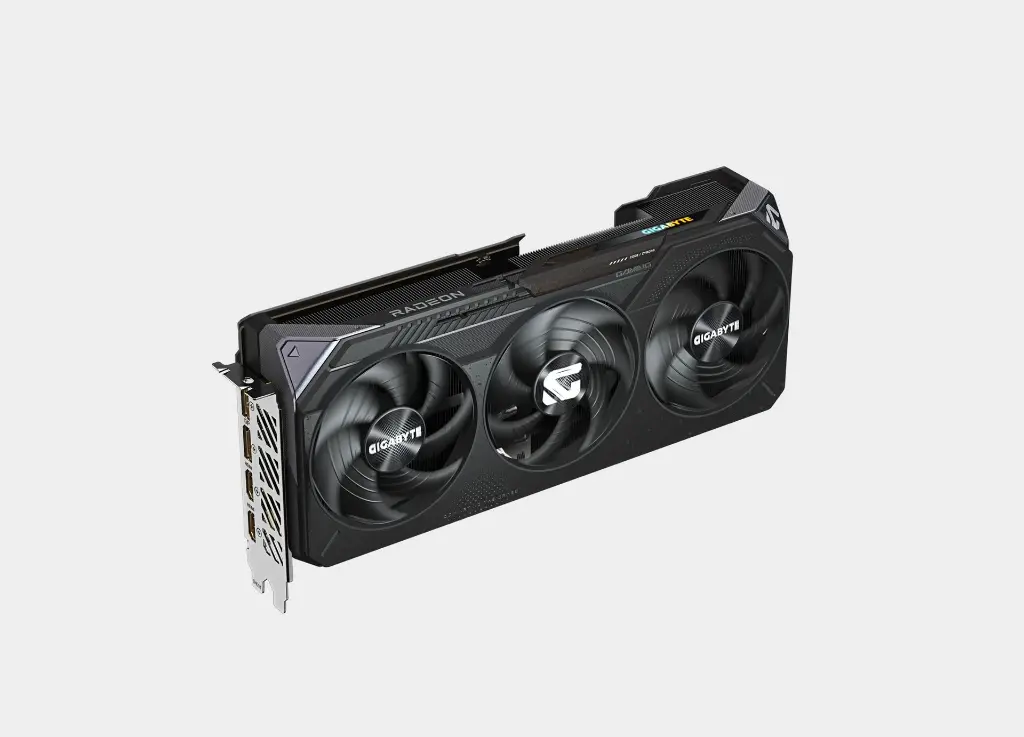

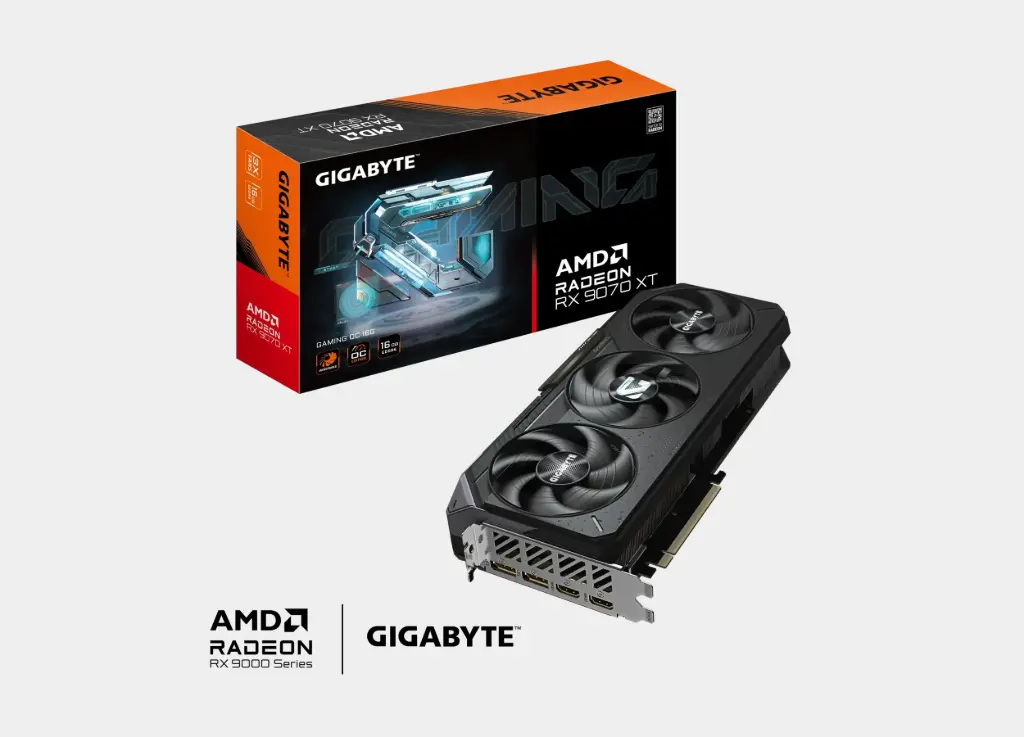

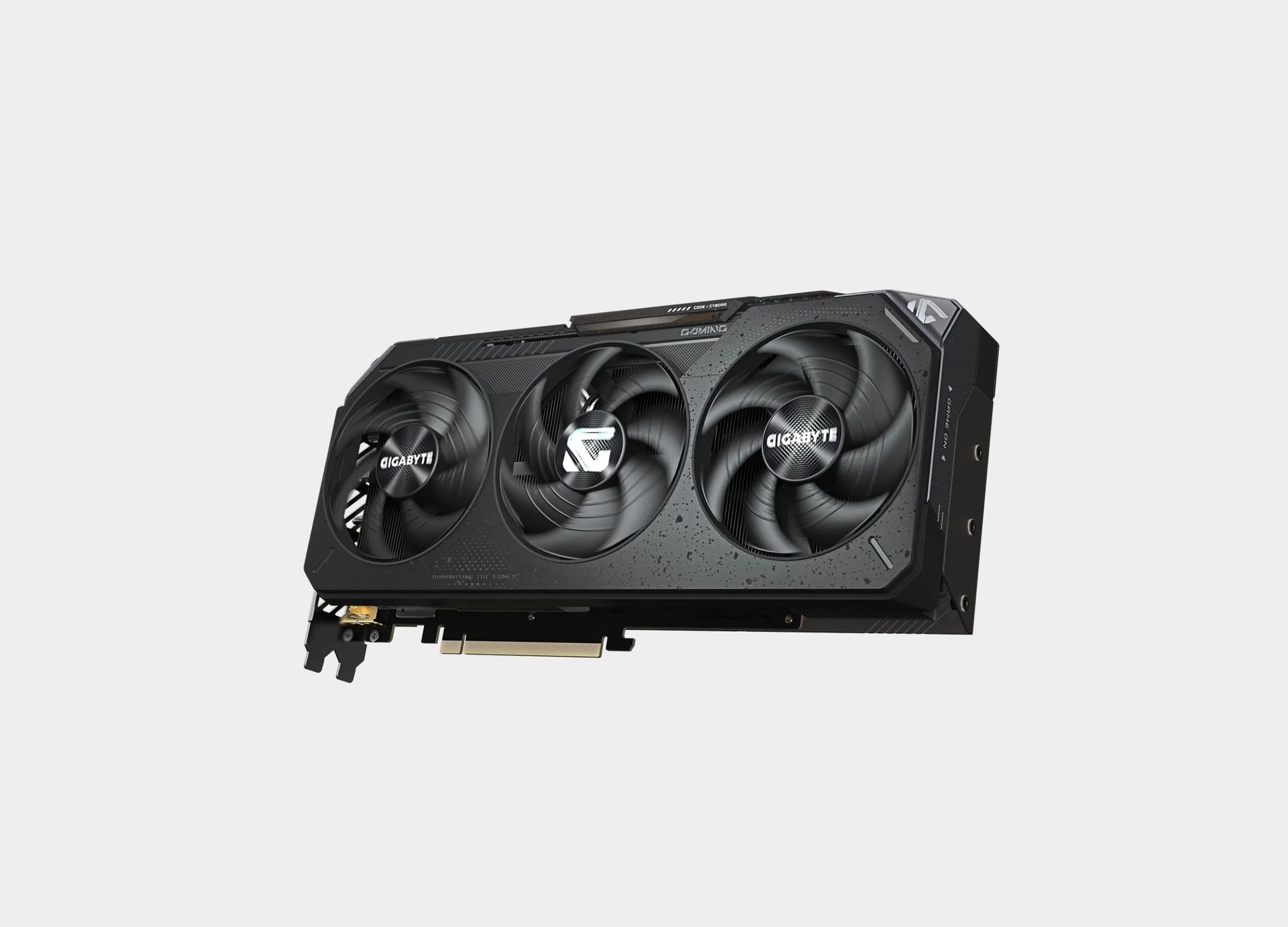

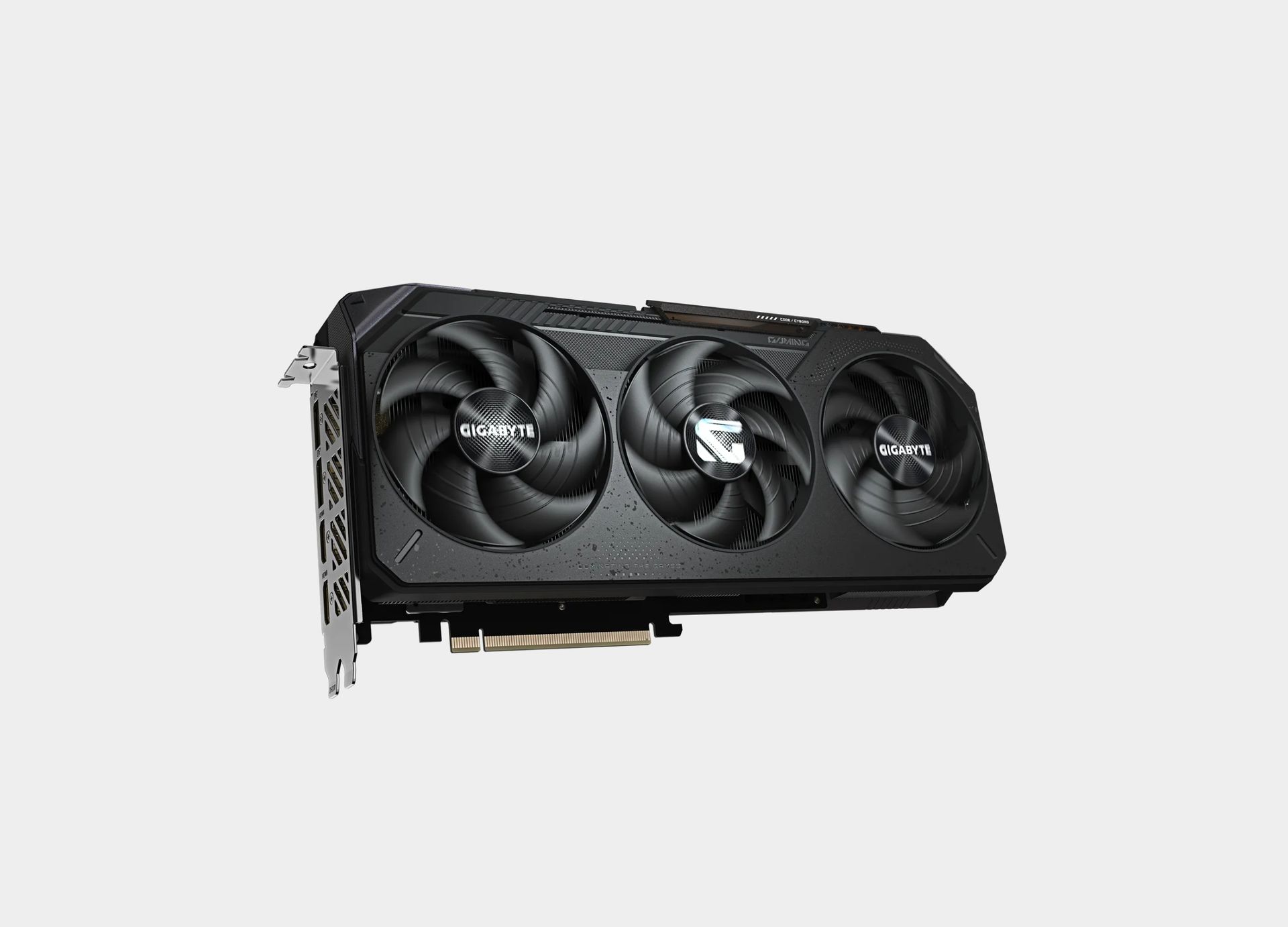

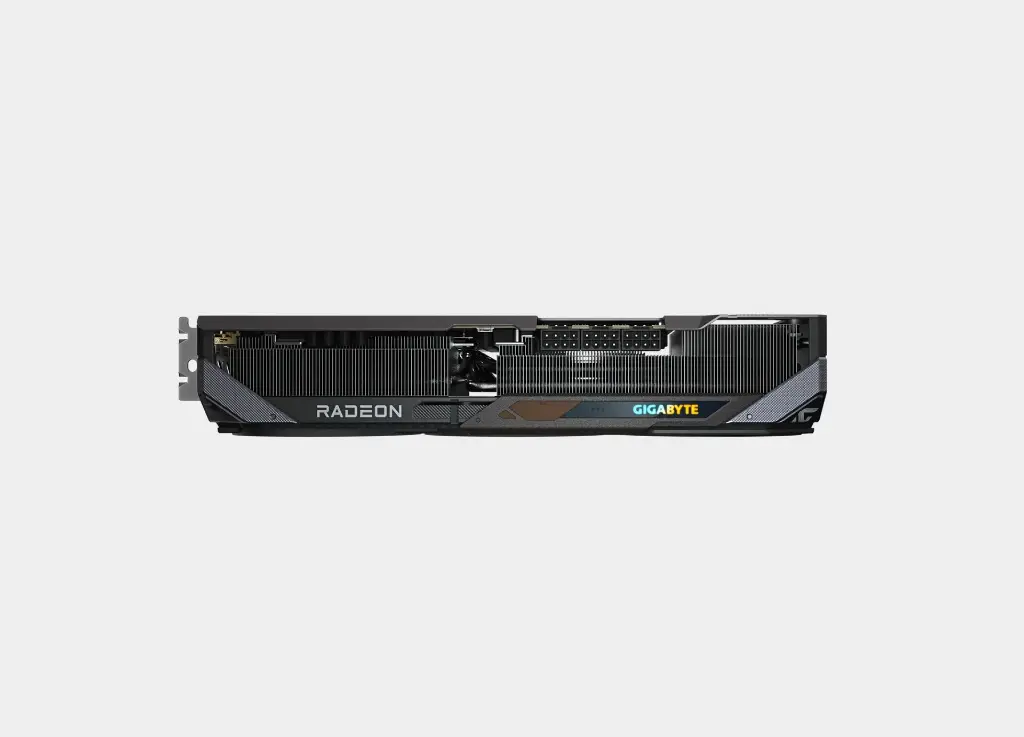

GIGABYTE Radeon™ RX 9070 XT GAMING OC 16G - Exceptional graphics power from AMD RDNA 4 architecture

The RX 9070 XT GAMING OC graphics card from GIGABYTE is designed for 4K gaming and professional production with high efficiency, as it is powered by the latest AMD graphics technologies, providing an excellent balance between performance, cooling, and attractive design!

Features of the GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card

Processing power of AMD RDNA™ 4:

• It is based on AMD's entirely new RDNA 4 architecture
• It delivers amazing performance in games at QHD and 4K resolution.
• High-smooth gameplay experience with rich details in every frame
• Supports AMD FidelityFX™ Super Resolution and Anti-Lag+ technologies

16GB GDDR6 high-speed memory:

• Massive capacity for processing heavy graphic data
• Ideal for high-resolution gaming, editing, 3D design, and VR
• Wide memory bus to ensure fast and stable frame display

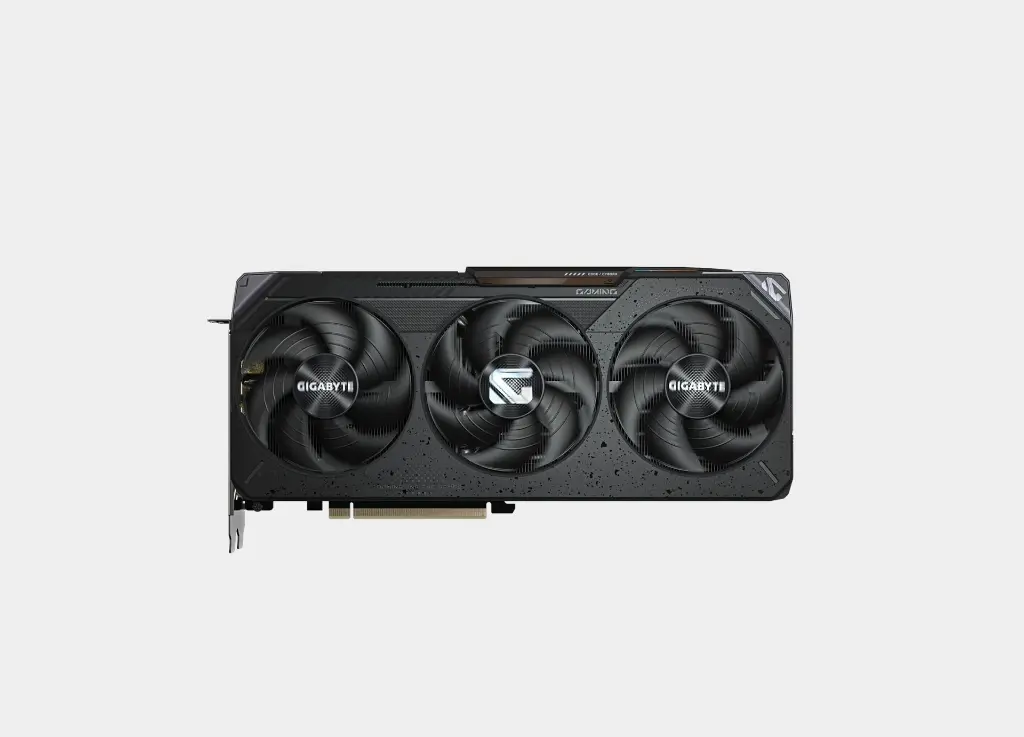

Effective WINDFORCE 3X Cooling:

• 3 cooling fans 80/90mm with Alternate Spinning technology
• Direct copper heat pipes with the GPU surface

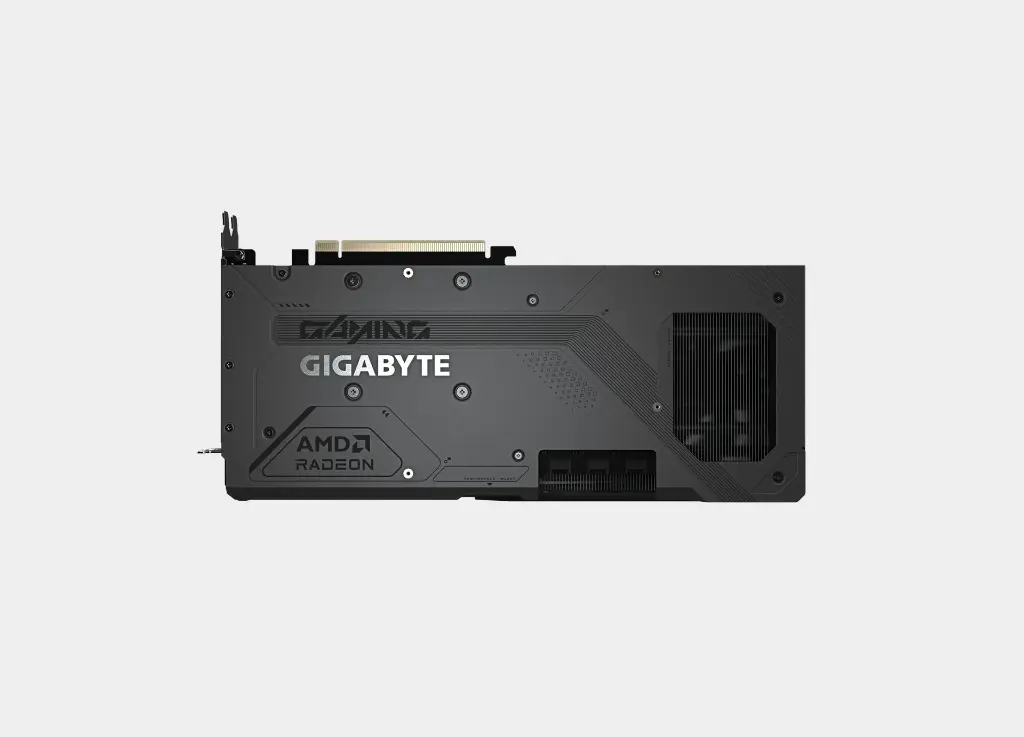

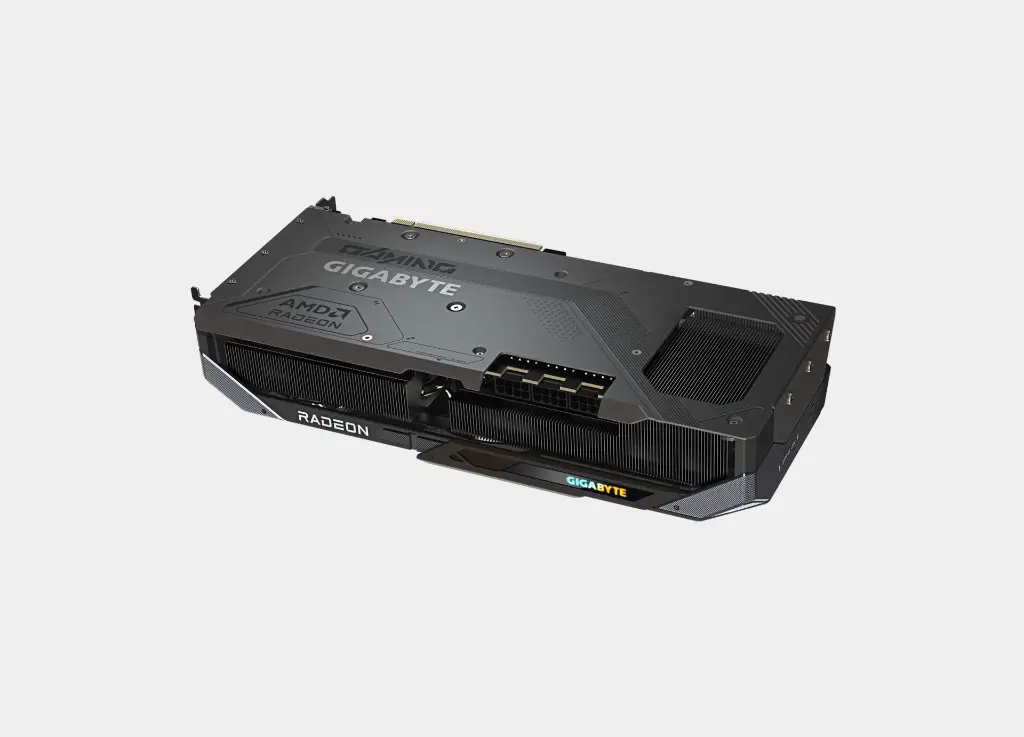

• Metal back panel for heat distribution and structural support
• Quasi-silent operation during light loads thanks to the 3D Active Fan

GIGABYTE GAMING OC Design:

• Modern design with integrated RGB lighting
• A sturdy structure with a professional touch that suits high-end assemblies
• Factory overclocked for better performance than the standard version

Support for modern display technologies:

• Supports HDMI 2.1 and DisplayPort 2.1 – for running modern displays at high resolution and high refresh rates
• Compatible with FreeSync Premium for a tear-free gaming experience
• DisplayHDR support for more realistic contrast and colors

Preparing for the future:

• Compatible with DirectX 12 Ultimate and Vulkan
• Ready to run next-gen games and the latest game engines
• Improved energy efficiency and balanced thermal performance

GIGABYTE RX 9070 XT GAMING OC 16G is the perfect choice for professional gamers and creators looking for a powerful, stable graphics card designed to withstand the most demanding work and performance conditions. Next-generation graphical power in a luxurious design with advanced cooling.

Specifications of the GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card

Graphics Processing

• Radeon™ RX 9070 XT

Core Clock

• Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
• Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Stream Processors

• 4096

Memory Clock

• 20 Gbps

Memory Size

• 16GB

Memory Type

• GDDR6

Memory Bus

• 256 bit

Card Bus

• PCI-E 5.0

Digital max resolution

• 7680x4320

Multi-view

• 4

Card size

• L=288 W=132 H=56 mm

PCB Form

• ATX

DirectX

• DirectX 12 API

OpenGL

• 4.6

Recommended PSU

• 850W

Power Connectors

• 8 pin*3

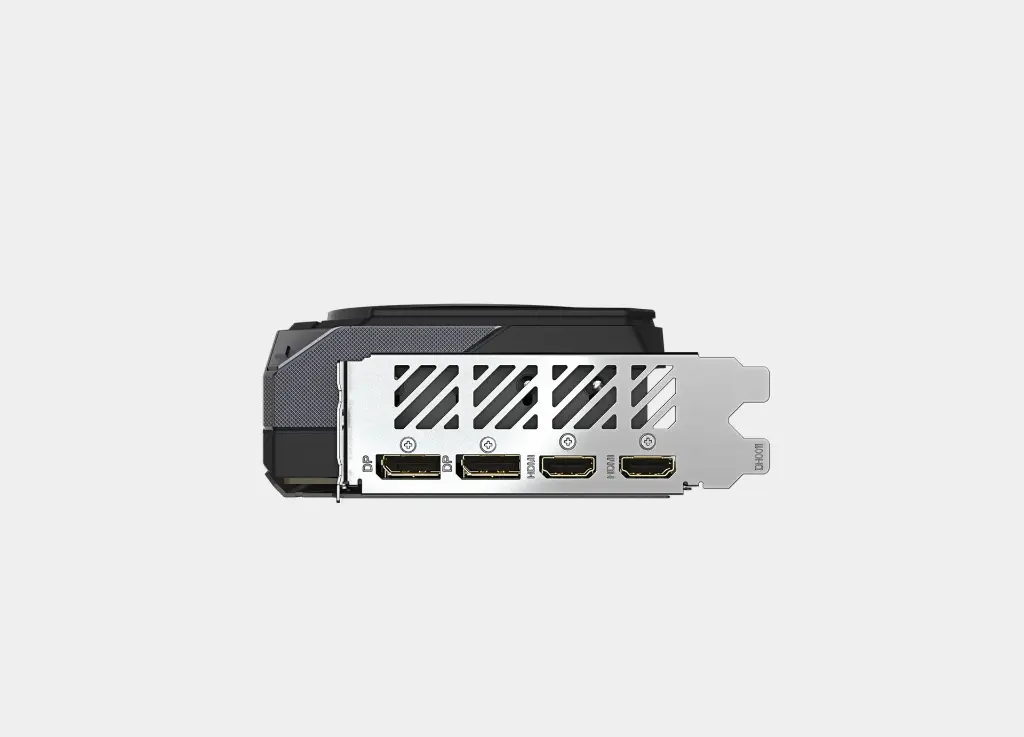

Output

• DisplayPort 2.1a *2
• HDMI 2.1b *2

Accessories

• Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151

* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
