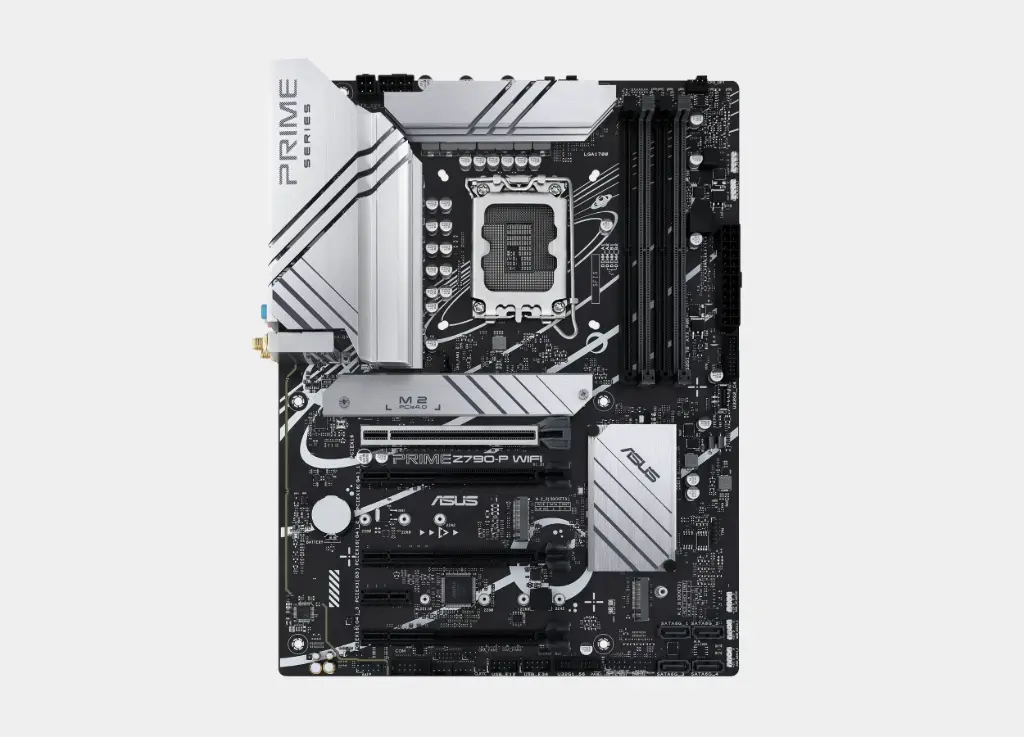

ASUS PRIME Z790-P WIFI

ASUS PRIME Z790-P WIFI

For every computer build that requires unlimited power and exceptional performance, the ASUS Prime Z790-P WIFI motherboard stands out as an unbeatable choice, meticulously designed to be the cornerstone of your system. It combines support for the latest Intel processors with strong memory performance, while providing all the essential features you need to run your system efficiently and stably, all in a sleek and compact ATX package.

Features of the ASUS PRIME Z790-P WIFI Motherboard

Detailed description and features:

The ASUS Prime Z790-P WIFI motherboard is an excellent choice for users looking to build a powerful and reliable computer, taking advantage of the latest available technologies without paying for unnecessary extra features.

1. Support for processors and memory:

• Support for Intel LGA 1700 Processors: The motherboard is equipped with an LGA 1700 socket to support the latest Intel Core processors from the 14th, 13th, and 12th generations, ensuring compatibility with the latest processor releases and providing a future-proof foundation for your system.
• Intel Z790 Chipset: This chipset offers strong and reliable performance for mid-range motherboards, making it ideal for users who demand excellent performance without the need for advanced overclocking features.
• High-speed DDR5 memory: The motherboard features four DIMM slots that support DDR5 memory with a maximum capacity of up to 128GB and speeds of up to 7000MHz (overclocked), allowing you to take advantage of high data transfer speeds without the cost of more expensive DDR5 memory.

2. Multiple storage and expansion options:

• Three ultra-fast M.2 slots: The motherboard features three M.2 slots, providing you with exceptional flexibility to add high-speed SSD drives. These slots support PCIe 4.0 x4 interfaces, ensuring you have massive read and write speeds.
• SATA 6Gb/s Ports: In addition, the motherboard features four SATA ports to support traditional hard drives and SSDs, providing you with a wide and diverse range of storage options.
• Expansion Slots: There is a PCIe 5.0 x16 slot available to support the latest graphics cards, along with two additional PCIe 4.0 slots for other expansions.

3. Reliable wireless and wired connection:

• Wireless Connectivity Wi-Fi 6: The board features support for Wi-Fi 6 (802.11ax), providing ultra-fast wireless speeds, stable connectivity, and a smooth gaming experience. It also supports Bluetooth v5.2 for easy peripheral connections.
• Wired 2.5Gb Ethernet: The Realtek 2.5Gb Ethernet port ensures a fast and reliable wired connection for downloading and gaming.
• Varied I/O ports: It features a rich array of rear ports, including two USB 3.2 Gen 2 Type-A ports, four USB 2.0 ports, and DisplayPort and HDMI ports for connecting multiple displays.

In conclusion, the ASUS Prime Z790-P WIFI motherboard proves to be the solid foundation upon which you can build a powerful and modern system, combining support for the latest Intel processors, ultra-fast DDR5 memory, and integrated storage and connectivity options, all in a sleek ATX package, making it the ideal choice for those seeking balanced and reliable performance in a compact design.

Specifications of the ASUS PRIME Z790-P WIFI motherboard

Model

PRIME Z790-P WIFI

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to  www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI® ports***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI® 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

3 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

USB

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

• Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-5pin System Panel header

1 x Thunderbolt™ (USB4®) Header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

- Q-LED Core

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- ProCool

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- Power Saving

AI Suite 3

-TurboV EVO

- PC Cleaner

- DIGI+ VRM

ASUS CPU-Z

MyASUS

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x I/O Shield

1 x M.2 Rubber Package

2 x Screw package for M.2 SSD

Documentation

1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
