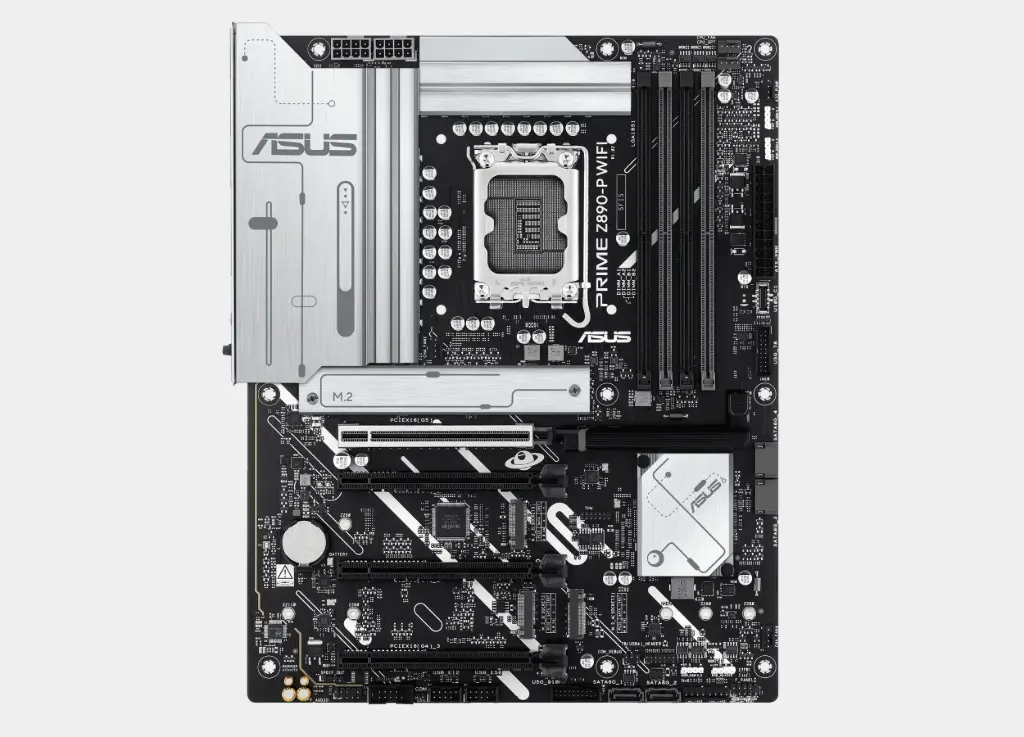

ASUS PRIME Z890-P WIFI

ASUS PRIME Z890-P WIFI

Unleash the power of the next generation! The ASUS PRIME Z890-P WIFI motherboard is your gateway to the world of high-performance computing, enhanced with the latest artificial intelligence technologies, and specifically designed to meet the demands of builders and professionals seeking unparalleled performance.

Features of the ASUS PRIME Z890-P WIFI Motherboard

ASUS PRIME Z890-P WIFI Motherboard

Unprecedented features for superior performance

Are you looking for a motherboard that doesn't settle for ordinary performance? The ASUS PRIME Z890-P WIFI is the answer. This motherboard is designed with extreme engineering precision to unlock the full potential of the latest Intel® Core™ Ultra processors (Series 2). It features a robust power design that ensures unparalleled stability, along with comprehensive cooling solutions that keep your device's temperature under control even during the most demanding tasks. With smart tuning options, you can easily customize your device's performance through intuitive firmware, giving you control over every detail.

This motherboard is fully equipped to support advanced AI-powered PCs, providing you with the power and connectivity needed to run the most demanding AI applications. Whether you're a PC building enthusiast or a professional seeking top performance, the ASUS PRIME Z890-P WIFI offers you a unique blend of flexibility, customization, and robust support. From ultra-fast WiFi 7 technology to PCIe 5.0 ports that double data transfer speeds, to smart DIY tools like Q-Release and M.2 Q-Latch, every feature here is designed to simplify your life and enhance your experience.

Specifications of the ASUS PRIME Z890-P WIFI motherboard

Full specifications

Model PRIME Z890-P WIFI

CPU

• Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• *Refer tohttps://www.asus.com/support/download-center/for CPU support list.
• **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMPIII)
• *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visithttps://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
• *Graphics specifications may vary between CPU types. Please refer towww.intel.comfor any updates.
• **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• ***Supports 4K@60Hz as specified in HDMI 2.1.
• ****In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
• ****In DP alt mode, supports up to UHBR20.
• *****VGA resolution support depends on processors' or graphic cards' resolution.
• ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)*
• 1 x PCIe 5.0 x16 slot
• Intel® Z890 Chipset
• 2 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)
• *Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• • To ensure compatibility of the device installed, please refer tohttps://www.asus.com/support/download-center/for the list of supported peripherals.

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® Core™ Ultra Processors (Series 2)*
• M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel® Z890 Chipset
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• *Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***
• *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• **Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• ***The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 8 ports)
• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)**
• Front USB (Total 9 ports)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
• *USB Type-C® power delivery output: max. 5V/3A
• **USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth.
• **USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• • Supports up to 24-Bit/192 kHz playback
• Audio Features
• • Audio Shielding
• • Premium audio capacitors
• • Dedicated audio PCB layers
• *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 1 x Thunderbolt™ 4 USB Type-C® port
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin Front Panel System header
• 1 x Thunderbolt™ (USB4®) header

Special Features

• ASUS 5X PROTECTION III
• • DIGI+ VRM (- Digital power design with DrMOS)
• • LANGuard
• • Overvoltage Protection
• • SafeSlot
• • Stainless-Steel Back I/O
• ASUS Q-Design
• • M.2 Q-Latch
• • PCIe Slot Q-Release
• • Q-Antenna
• • Q-Dashboard
• • Q-DIMM
• • Q-LED Core
• • Q-Slot
• ASUS Thermal Solution
• • M.2 heatsink
• • VRM heatsink design
• ASUS EZ DIY
• • BIOS FlashBack™ button
• • BIOS FlashBack™ LED
• • ProCool
• • Pre-mounted I/O shield
• Aura Sync
• • Aura RGB header
• • Addressable Gen2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
• • Aura Creator
• • Aura Sync
• • Fan Xpert 4 (with AI Cooling II)
• • Power Saving
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• TurboV Core
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• • ASUS CrashFree BIOS 3
• • ASUS EZ Flash
• • ASUS UEFI BIOS EZ Mode
• • ASUS MyHotkey
• NPU Boost (Intel K-series Processors only)

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber package
• 2 x Screw packages for M.2 SSD
• Documentation
• 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later)

Form Factor

• ATX Form Factor
• 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )

the price

• The price in Egypt: starts from 15,500 Egyptian pounds.
• The global price (outside Egypt): starts from 399 US dollars.

Note: The prices mentioned are approximate and may vary depending on the seller and the offers available in the market.
