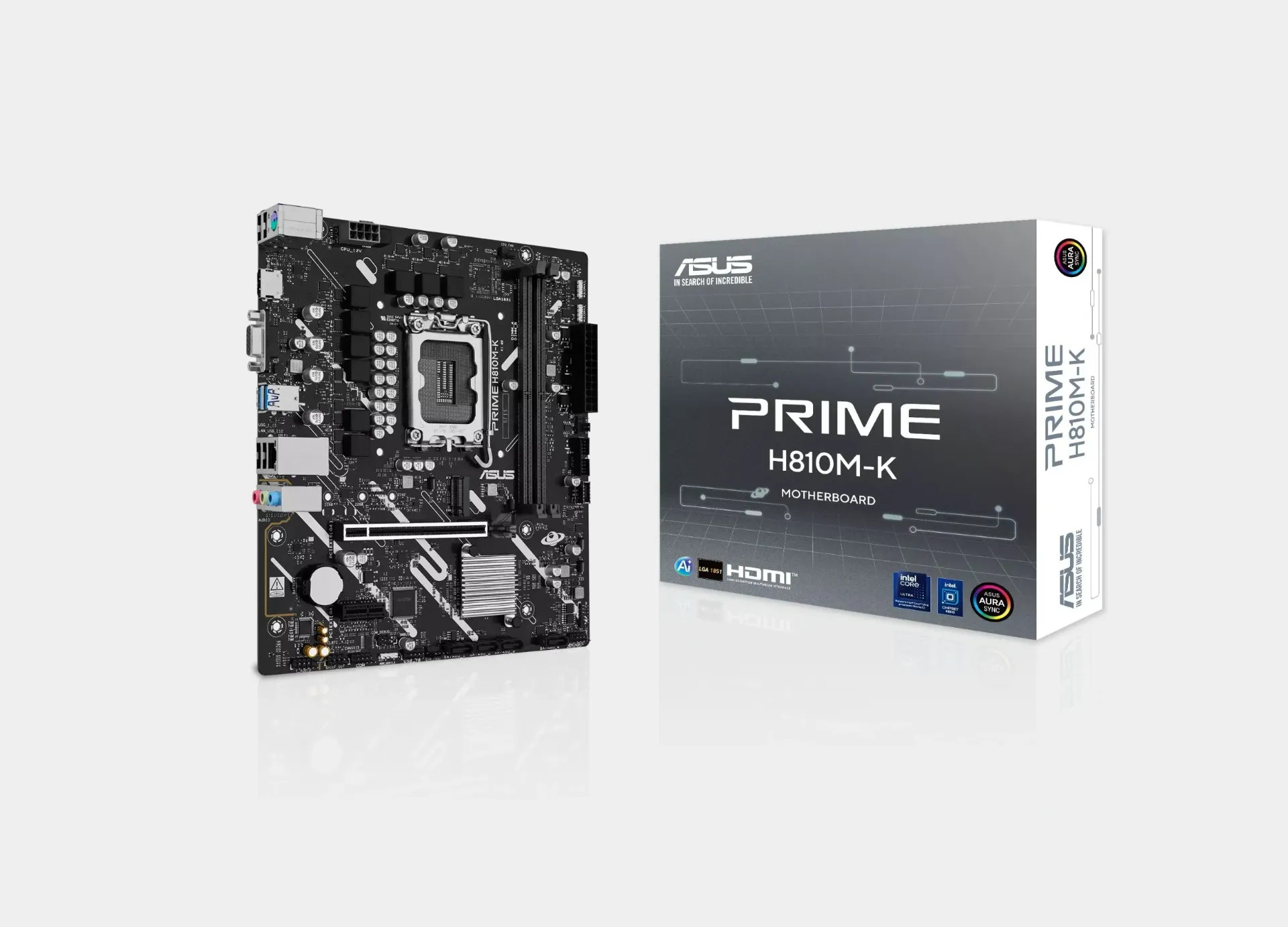

ASUS PRIME H810M-K LGA1851 micro-ATX

ASUS PRIME H810M-K LGA1851 micro-ATX

Prepare for the future of performance with the ASUS PRIME H810M-K (LGA1851) motherboard.

The motherboardASUS PRIME H810M-Kwith its compact (micro-ATX) design is the perfect choice for users looking to build a powerful, stable computer that keeps up with the latest technologies. With support for the new generation of Intel processors, this motherboard offers an ideal balance between high performance and cost-effectiveness, equipped with advanced protection and cooling features to ensure a longer lifespan.

Key features and technical specifications:

1. Support for new generation processors (Intel Core Ultra)

• Socket:The motherboard is based on a socketLGA1851the latest, making it fully compatible withIntel® Core™ Ultra (Series 2).

• Smart performance:Supports Intel® Turbo Boost 2.0 and Max 3.0 technologies for maximum responsiveness when needed.

2. Ultra memory speeds (DDR5)

• Capacity and type:Supports two memory slots (2 x DIMM) of the fifth generationDDR5with a total capacity of up to128 GB.

• Unprecedented speeds:Capable of reaching impressive speeds of up to7200MT/swith Intel Core Ultra 200S Plus processors, and6400MT/swith the 200S series.

• Advanced technologies:Supports XMP and ASUS Enhanced Memory Profile II (AEMP II) for easy memory overclocking and stability, in addition to supporting CUDIMM memory.

3. Expansion options and fast storage

• Expansion slots:Equipped with aPCIe 4.0 x16slot to support the latest graphics cards with maximum efficiency, along with a PCIe 4.0 x1 slot.

• Jet storage:Includes anM.2 (PCIe 4.0 x4)slot for connecting ultra-fast storage drives, along with 4 SATA 6Gb/s ports for traditional drives, providing flexible and ample storage.

4. Multi-connection and stable network

• Rear ports:Include 6 various USB ports (including two at 5Gbps), and a network portRealtek 1Gb Ethernetsupported by ASUS LANGuard technology to protect the connection from electrical interference.

• Front ports:Support connecting a portUSB Type-C®Front with a speed of 5Gbps to facilitate data transfer and charging devices (with a capacity of 5V/3A).

• Display:Supports video output up to4K@60Hzvia HDMI™ 2.1 port, plus a VGA port for older displays.

5. Exceptional cooling and maximum protection (ASUS 5X PROTECTION III)

• Aluminum heatsink:to ensure efficient heat dissipation and maintain system stability.

• Comprehensive protection:Includes advanced overvoltage protection, DIGI+ VRM technology for stable power, and a reinforced metal structure for the rear I/O ports to resist rust.

• Smart control:via Fan Xpert 2+ software for precise fan speed control and to provide a quiet and cool working environment.

6. Immersive audio experience and aesthetic customization

• Audio:High-definition Realtek 7.1 Surround Sound audio chip with advanced sound isolation and excellent Japanese capacitors for a pure listening experience.

• Lighting (Aura Sync):The board comes with 3 Addressable RGB Gen2 headers to connect and fully control lighting strips and RGB fans via Armoury Crate software to match your personal style.

7. Easy installation (ASUS Q-Design)

• Designed to facilitate the DIY assembly process for users with features such asQ-LED Corefor quick troubleshooting, andQ-Slotfor easy installation and removal of the graphics card.

In conclusion:The boardASUS PRIME H810M-KYou have a solid and reliable foundation for building a modern computer capable of meeting all your daily and professional needs. With support for DDR5 and PCIe 4.0 technologies and full compatibility with the latest Intel processors, you will achieve exceptional performance and a long lifespan in a practical and compact design.

Specifications of the ASUS PRIME H810M-K LGA1851 micro-ATX motherboard

CPU

• Support for Intel® Core™ Ultra Processors (Series 2), LGA1851

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® H810 Chipset

Memory

• 2 x DIMM slots, max. 128GB, DDR5

• Supports up to 7200MT/s with Intel® Core™ Ultra 200S Plus Processors

• Supports up to 6400MT/s with Intel® Core™ Ultra 200S Processors

• Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

• Dual channel memory architecture

• Supports DIMM Fit and DIMM Fit Pro

• Supports Intel® Extreme Memory Profile (XMP) memory module

• ASUS Enhanced Memory Profile II (AEMP II)

Graphics

• 1 x VGA port

• 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2):1 x PCIe 4.0 x16 slot

• Intel® H810 Chipset:1 x PCIe 4.0 x1 slot

Storage

• Total supports:1 x M.2 slot and 4 x SATA 6Gb/s ports

• Intel® H810 Chipset:

  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

• ASUS LANGuard

USB

• Rear USB (Total 6 ports):

  • 2 x USB 5Gbps ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 5 ports):

  • 1 x USB 5Gbps connector (supports USB Type-C®)

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • Supports up to 24-Bit/192 kHz playback

• Audio Features:

  • Audio Shielding

  • Premium audio capacitors

  • Dedicated audio PCB layers

Back Panel I/O Ports

• 2 x USB 5Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x VGA port

• 1 x HDMI™ port

• 1 x Realtek 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

• Fan and Cooling Related:

  • 1 x 4-pin CPU Fan header

  • 2 x 4-pin Chassis Fan headers

• Power Related:

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V CPU Power connector

• Storage Related:

  • 1 x M.2 slot (Key M)

  • 4 x SATA 6Gb/s ports

• USB:

  • 1 x USB 5Gbps connector (supports USB Type-C®)

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Miscellaneous:

  • 3 x Addressable RGB Gen2 headers

  • 1 x Clear CMOS header

  • 1 x Chassis Intrusion header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x S/PDIF Out header

  • 1 x SPI TPM header (14-1 pin)

  • 1 x 10-1 pin Front Panel System header

Special Features

• ASUS 5X PROTECTION III:DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O

• ASUS Q-Design:Q-Dashboard, Q-LED Core, Q-Slot

• ASUS Thermal Solution:Aluminum heatsink design

• Aura Sync:Addressable RGB Gen 2 headers

Software Features

• ASUS Exclusive Software:Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub, ASUS CPU-Z

• UEFI BIOS:ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)

BIOS

• 2 x 16MB (2 x 128Mb) Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables:2 x SATA 6Gb/s cables

• Miscellaneous:1 x I/O shield, 1 x M.2 anchor package

• Documentation:1 x Quick start guide

Operating System

• Windows 11 (22H2 & later)

• Windows 10 64-bit (21H2 & later)

Form Factor

• micro-ATX Form Factor

• 9.2 inches x 8.3 inches (23.4 cm x 21.1 cm)
