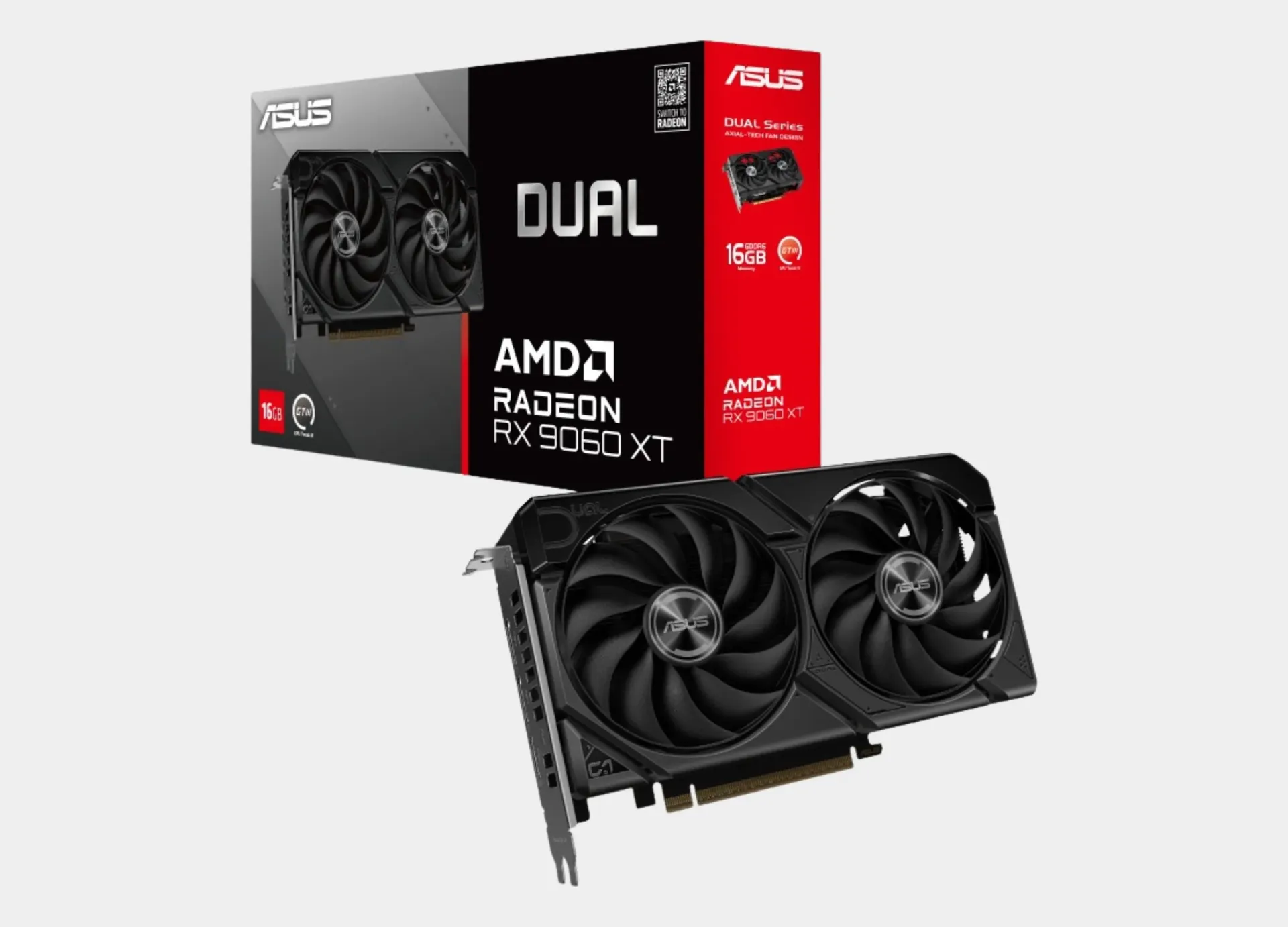

ASUS Dual Radeon™ RX 9060 XT 16GB GDDR6

ASUS Dual Radeon™ RX 9060 XT 16GB GDDR6

Comprehensive review of the ASUS Dual Radeon RX 9060 XT 16GB graphics card: A qualitative leap in the gaming world

The graphics card is the most important element in determining the power of any gaming setup or workstation specialized in design, and choosing the right card ensures you a smooth experience and precise graphical details. The graphics cardASUS Dual Radeon™ RX 9060 XT 16GBoffers an exceptional combination of the latest AMD graphics architectures and the renowned manufacturing quality from ASUS, providing powerful performance that meets the aspirations of gamers looking for the highest frame rates and superior display resolution.

Features of the ASUS Dual Radeon RX 9060 XT graphics card

This version combines advanced technologies and a practical design focused on performance efficiency and cooling, resulting in a graphics card capable of handling the heaviest games and the most complex tasks with complete smoothness, with its features distributed as follows:

Outstanding graphical performance with 16GB GDDR6 memory

To ensure stable performance in modern games that require a large amount of graphics memory, the card comes with a massive RAM of16GBof typeGDDR6, with an enormous memory speed of up to20 Gbps. This means the card's ability to load high-resolution textures at lightning speed, supported by 2048 stream processors, ensuring you a tear-free gaming experience even at high resolutions.

Ultra frequency speeds thanks to OC Mode technology

The card provides exceptional frequency speeds to ensure maximum performance when needed. With the GPU Tweak III software, you can activate the overclocking mode (OC mode) to reach a processor frequency of3250 MHz(Boost Clock) and2640 MHz(Game Clock). These high speeds give you an advantage in competitive gaming and ensure frame rate stability during critical moments.

Compatibility with the latest connectivity standards (PCIe 5.0 & 8K Resolution)

The card keeps up with the new generation of technology with its full support for thePCI Express 5.0, providing massive bandwidth for data transfer between the card and the motherboard. It also supports a maximum display resolution of7680 x 4320 (8K), and is equipped with the latest display ports including anHDMI 2.1band twoDisplayPort 2.1a, making it ready to connect to the latest ultra-high-definition gaming monitors.

Compact design and smart power consumption

Despite its great power, the card comes in a compact design with a thickness of2.5 Slotand dimensions of (202 x 120 x 49mm), making it suitable for installation in most computer cases. Additionally, the card features high energy efficiency, requiring only a550Wpower supply (PSU), and relies on a single 8-pin power connector, making installation and cable management easier.

Specifications of the ASUS TUF Gaming Radeon™ RX 9060 XT 16GB GDDR6

• Graphic EngineAMD Radeon™ RX 9060 XT

• Bus StandardPCI Express 5.0

• OpenGLOpenGL®4.6

• Video Memory16GB GDDR6

• Engine Clock: OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)

• Engine Clock: Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)

• Engine Clock: OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)

• Engine Clock: Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)

• Stream Processors2048

• Memory Speed20 Gbps

• Memory Interface128-bit

• ResolutionDigital Max Resolution 7680 x 4320

• InterfaceYes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1a) HDCP Support Yes (2.3)

• Maximum Display Support3

• NVlink/ Crossfire SupportNo

• Accessories: 1 x Thank you card

• Accessories: 1 x Speedsetup Manual

• Accessories: 1 x Thank you card

• Accessories: 1 x Speedsetup Manual

• SoftwareASUS GPU Tweak III & Drivers: please download all software from the support site.

• Dimensions202 x 120 x 49mm

• Recommended PSU550W

• Power Connectors1 x 8-pin

• Slot2.5 Slot
