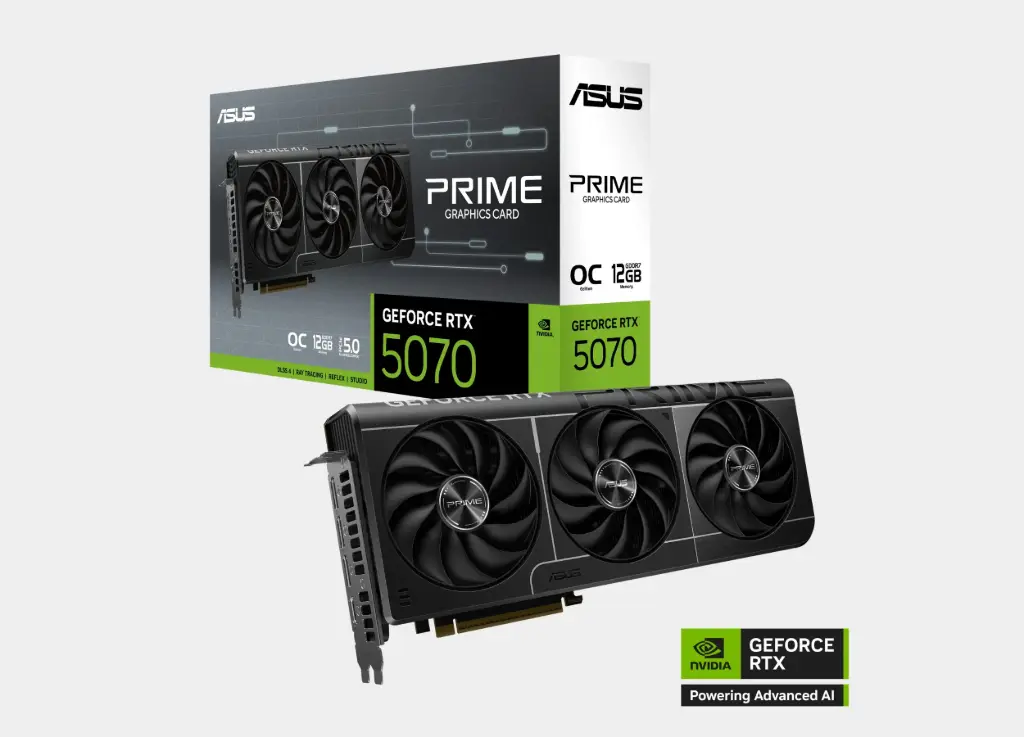

ASUS PRIME GeForce RTX™ 5070 OC 12GB GDDR7

ASUS PRIME GeForce RTX™ 5070 OC 12GB GDDR7

With 12GB of GDDR7 memory at 28 Gbps and NVIDIA Blackwell architecture, this card elevates performance in gaming and creativity through support for DLSS 4 and fifth-generation Tensor Cores.

In addition to the 2.5-slot SFF-Ready design with dual ball Axial-Tech fans and 0dB Cooling technology, it makes it ideal for a compact device that delivers high trading performance and exceptional silence.

Features of the ASUS PRIME GeForce RTX™ 5070 OC 12GB GDDR7 Graphics Card

Graphics Processor and Memory:

• GPU: NVIDIA® GeForce RTX™ 5070
• CUDA Cores: 7168
• Base Clock: 1980 MHz
• Boost Clock:
  • OC mode: up to 2610 MHz
  • Gaming Mode: up to 2580 MHz
• Memory: 12GB GDDR6
• Memory Interface: 192-bit
• Memory speed: 21 Gbps
• Memory Bandwidth: up to 504 GB/s

Cooling System and Design:

• Axial-tech fans optimized for higher airflow and static pressure
• Triple fan design to ensure effective cooling even under pressure
• 0dB technology for quiet operation under light loads
• Dual-Slot Design for Optimal Compatibility Inside the Case
• Elegant cover in a calm white color from the premium PRIME series

Advanced Technologies:

• NVIDIA DLSS 3.5 for enhanced performance with superior image quality
• Ray Tracing Techniques for Realistic Graphics
• NVIDIA Reflex and G-SYNC for the lowest latency and ultra-smoothness
• AV1 Encoding support for a faster and more efficient streaming experience

Ports and Support:

• Ports:
  • 3x DisplayPort 1.4a
  • 1x HDMI 2.1a
• Maximum supported resolution: 7680x4320 (8K)
• Connection Interface: PCIe 4.0
• Operating System Support: Windows 10/11 64-bit
• Support for NVENC and AV1 Encoder for high-quality streaming and recording

Operational efficiency and reliability:

• Military-grade components: MIL-STD-810H manufacturing quality
• Smart fan control via GPU Tweak III
• 1x 16-pin power connector (12VHPWR)
• Proposed Power Supply: 750W

The ASUS PRIME RTX 5070 OC card combines exceptional performance, silent cooling, and precise design to provide you with a complete graphical experience, whether you are a professional gamer or a designer seeking stability and accuracy. The perfect choice for anyone who wants power in an elegant package.

Specifications of the ASUS PRIME GeForce RTX™ 5070 OC 12GB GDDR7 graphics card

Model

• PRIME-RTX5070-O12G

Graphic Engine

• NVIDIA® GeForce RTX™ 5070

AI Performance

• 1005 TOPs

Bus Standard

• PCI Express 5.0

OpenGL

• OpenGL®4.6

Video Memory

• 12GB GDDR7

Engine Clock

• OC mode: 2587MHz
• Default mode: 2557MHz (Boost Clock)

CUDA Core

• 6144

Memory Speed

• 28 Gbps

Memory Interface

• 192-bit

Resolution

• Digital Max Resolution 7680 x 4320

Interface

• Yes x 1 (Native HDMI 2.1b)
• Yes x 3 (Native DisplayPort 2.1b)
• HDCP Support Yes (2.3)

Maximum Display Support

• 4

NVlink/ Crossfire Support

• No

Accessories

• 1 x Speedsetup Manual
• 1 x ASUS Velcro Hook & Loop
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 2)

Software

• ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

• 304 x 126 x 50 mm
• 12 x 5 x 2 inch

Recommended PSU

• 750W

Power Connectors

• 1 x 16-pin

Slot

• 2.5 Slot

SFF Ready

• Compatible
