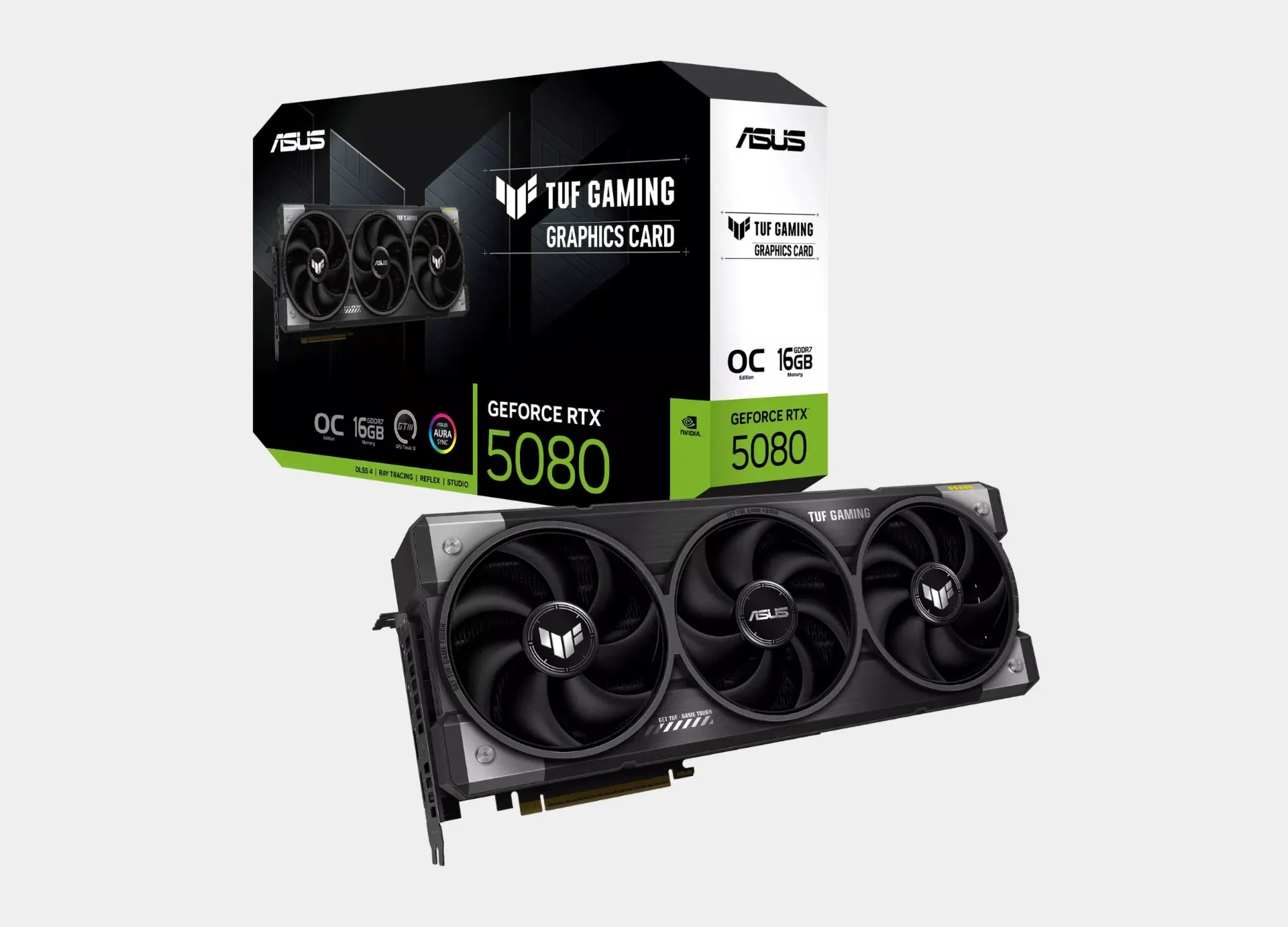

ASUS TUF Gaming GeForce RTX 5080 16GB GDDR7 OC Edition

Overview: Power and durability come together in the ASUS TUF Gaming RTX 5080 OC
The graphics cardASUS TUF Gaming GeForce RTX™ 5080 (OC Edition)represents a significant leap in gaming and content creation. With advanced NVIDIA architecture and next-gen GDDR7 memory, this card is designed to deliver unmatched performance while maintaining the legendary durability of the TUF military series. It is the perfect choice for professional gamers and content creators looking for exceptional stability and performance at 4K and 8K resolutions.
Key technological features and performance:
1. A massive leap in AI performanceThe card comes equipped with terrifying AI capabilities reaching up to1801 TOPs, which means exceptional performance in ray tracing (Ray Tracing) and frame generation (DLSS), as well as accelerating productivity tasks, editing, and data processing faster than any previous generation.
2. Next-gen ultra-fast GDDR7 memoryEquipped with a memory size of16GBof typeGDDR7, which operates at an astonishing speed of30 Gbpsvia interface256-bit. This massive bandwidth ensures that high-resolution assets (Textures) load in seconds, providing a completely stutter-free gaming experience at the highest settings.
3. Factory Overclocked Speeds (OC Edition)The card features10,752 CUDA cores, with processing frequencies of up to2730 MHzin overclocking mode (OC Mode), and2700 MHzin default mode. This high frequency ensures you the maximum frames per second (FPS) in the most demanding competitive games.
4. Connectivity Interface and Future PortsThe card supports the latest connectivity standardsPCI Express 5.0to ensure data flow at the highest possible speed with modern motherboards. It also allows you to connect up to 4 simultaneous displays with a resolution of up to8K (7680 x 4320)via two HDMI 2.1b ports and three DisplayPort 2.1b ports.
5. Exceptional Cooling and Durable TUF DesignThe card comes in a massive size occupying3.6 slotsin the computer case, with dimensions of (348 × 146 × 72 mm), providing ample space for the metal heatsink and fans to dissipate heat efficiently. It also supportsAURA SYNC ARGBto customize the look of your device to match your style.

Specifications of the ASUS TUF Gaming GeForce RTX 5080 16GB GDDR7 OC Edition
Graphic EngineNVIDIA® GeForce RTX™ 5080
AI Performance1801 TOPs
Bus StandardPCI Express 5.0
OpenGLOpenGL®4.6
Video Memory16GB GDDR7
Engine ClockOC mode: 2730 MHz Default mode: 2700 MHz (Boost Clock)
CUDA Core10752
Memory Speed30 Gbps
Memory Interface256-bit
ResolutionDigital Max Resolution 7680 x 4320
InterfaceYes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3)
Maximum Display Support4
NVlink/ Crossfire SupportNo
Accessories1 x Speedsetup Manual 1 x TUF Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x TUF Magnet 1 x TUF Gaming Certificate 1 x Thank You Card 1 x Adapter Cable (1 to 3)
SoftwareASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions348 x 146 x 72 mm 13.7 x 5.7 x 2.8 inch
Recommended PSU850W
Power Connectors1 x 16-pin
Slot3.6 Slot
AURA SYNCARGB
Specifications
| VGA | |
|---|---|
| Graphic Card | ASUS TUF Gaming GeForce RTX™ 5080 16GB GDDR7 OC Edition |
| Information | |
|---|---|
| Brand | Asus |
| Warranty | Three Years |
