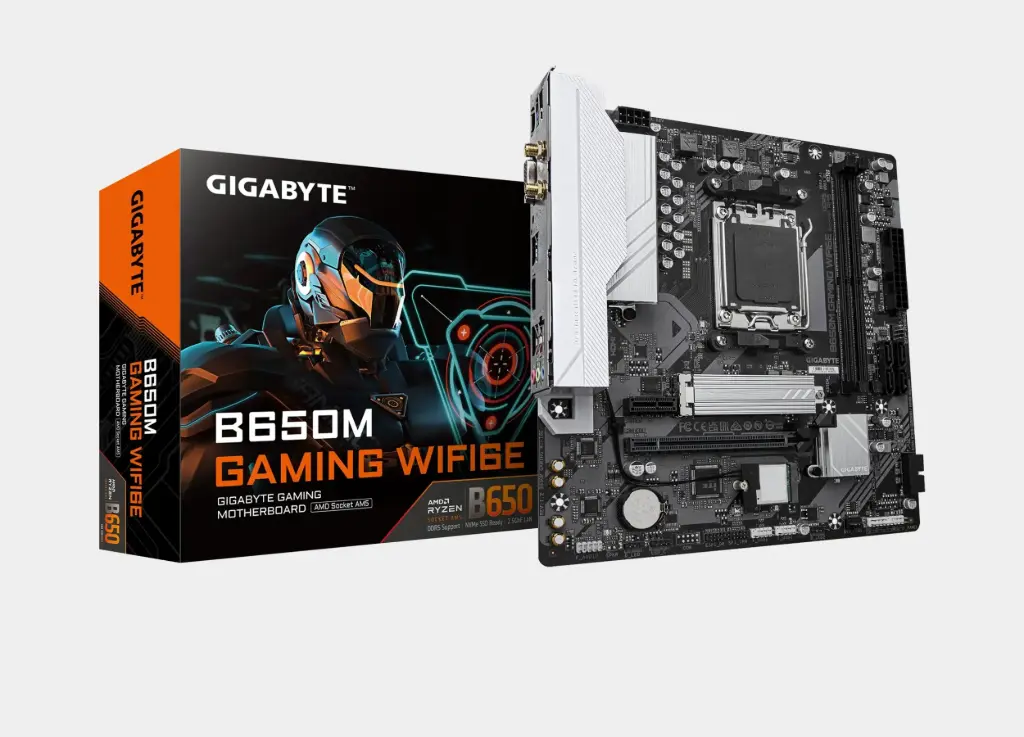

GIGABYTE B650M GAMING WIFI6E

GIGABYTE B650M GAMING WIFI6E

In the world of gaming that knows no compromises, where every fraction of a second and every connection has a critical impact, the GIGABYTE B650M GAMING WIFI6E motherboard is the perfect choice for anyone striving for excellence. It is not just a motherboard; it is the battlefield from which victory is born, designed with the highest standards of quality and performance to provide you with the speed and power you need to dominate games and compete fiercely, with the fastest wireless connection possible.

Features of the GIGABYTE B650M GAMING WIFI6E Motherboard

Detailed description and features:

The GIGABYTE B650M GAMING WIFI6E motherboard represents an excellent choice for users looking to build a powerful, gaming-specific machine, as it offers a range of advanced features thanks to the B650 chipset.

1. Effective performance for games:

• Support for AMD Ryzen™ Processors: The motherboard supports AMD Ryzen™ processors from the seventh generation (7000 Series) with the new AM5 socket, providing you with the latest technologies and the strongest performance.
• Support for ultra-fast DDR5 memory: It features 4 DIMM slots that support DDR5 memory with a capacity of up to 128GB, with speeds of up to 6400+ MHz (OC), ensuring exceptional performance and system responsiveness across all tasks.
• PCIe 5.0 Interface: Features support for PCIe 5.0 on the main graphics card slot, providing you with double data transfer speeds compared to the previous generation and making it ready for the latest graphics cards.

2. Advanced Connectivity and Storage Solutions:

• High-speed wireless connectivity: The board comes equipped with an integrated Wi-Fi 6E (802.11ax) and Bluetooth 5.3 module, ensuring you have a fast and reliable wireless connection, with higher speeds and better responsiveness in gaming.
• Super wired network: Equipped with a Realtek 2.5 GbE LAN port to ensure a wired internet connection that is 2.5 times faster than traditional 1 Gigabit/second ports, giving you an advantage in multiplayer gaming.
• Multiple storage options: The board provides one M.2 slot that supports PCIe 4.0 x4 storage drives, along with 4 SATA 6Gb/s ports, giving you tremendous flexibility in building your storage system.

3. Durable design and custom features for gaming:

• Powerful power system: It features a robust digital power system with 8+2+1 phases and large heat sinks to ensure stable power delivery to the processor even under load.
• Smart Cooling System: The Smart Fan 6 technology supports precise control of the cooling fans, ensuring an optimal temperature for the device with minimal noise.
• RGB Lighting: Thanks to RGB FUSION technology, you can customize the lighting of the motherboard and compatible accessories to create a unique gaming atmosphere that reflects your personality.
• Comprehensive ports: It offers a variety of rear ports, including HDMI, DisplayPort, and USB 3.2 Gen 2 Type-C ports, making it compatible with a wide range of devices.

In conclusion, the GIGABYTE B650M GAMING WIFI6E motherboard is the perfect choice for every serious gamer. It brilliantly combines powerful performance thanks to support for DDR5 and PCIe 5.0, flexibility in storage options, along with a robust design that ensures unparalleled stability, and ultra-fast wireless connectivity that gives you greater freedom, making it the solid foundation for your next adventure in the world of computing and gaming.

Specifications of the GIGABYTE B650M GAMING WIFI6E Motherboard

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B650

Memory

Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme

Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 2 x USB 3.2 Gen 1 ports on the back panel

- 1 x USB 2.0/1.1 port on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

- 2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Clear CMOS jumper

Back Panel Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port*

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x HDMI port*

1 x RJ-45 port

3 x audio jacks

* Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.0cm x 22.5cm
