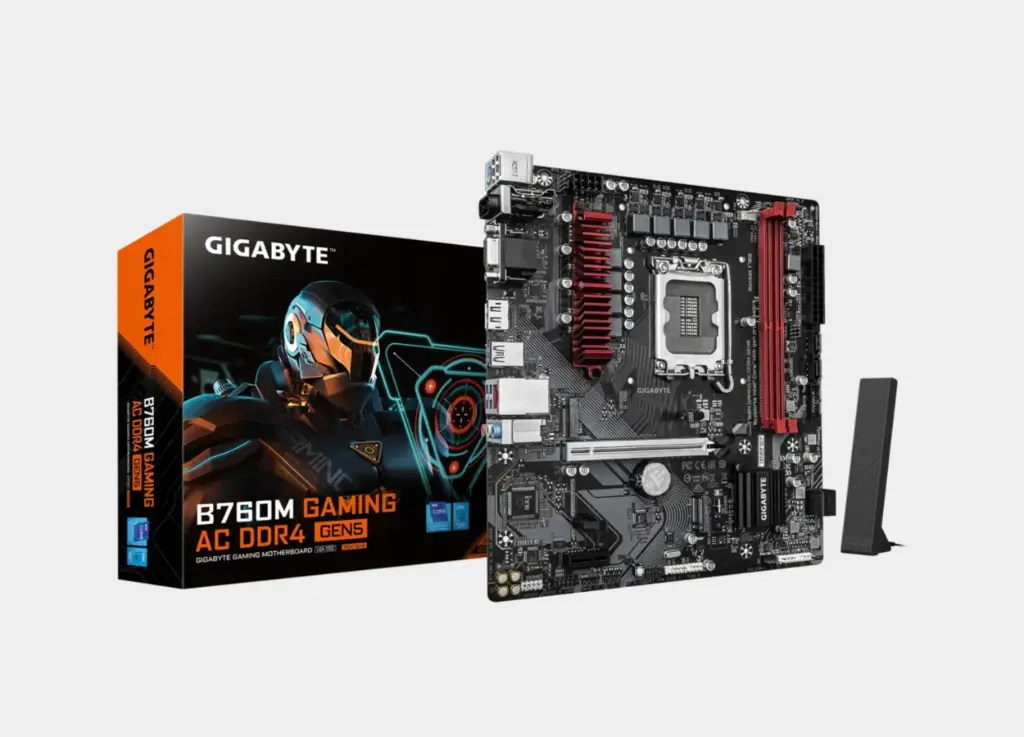

GIGABYTE B760M GAMING AC DDR4 GEN5

GIGABYTE B760M GAMING AC DDR4 GEN5

In the gaming world that demands speed and precision, where every update and every connection gives you a critical advantage, the GIGABYTE B760M GAMING AC DDR4 GEN5 motherboard comes to be the beating heart of your system. It is not just a motherboard; it is a strong foundation designed to meet the needs of gaming enthusiasts, combining superior performance and durability to provide you with a stable and reliable gaming experience, free from any limitations.

Features of the GIGABYTE B760M GAMING AC DDR4 GEN5 Motherboard

Detailed description and features:

The GIGABYTE B760M GAMING AC DDR4 GEN5 motherboard represents an excellent choice for users looking to build a powerful and customized gaming rig, as it offers a range of advanced features thanks to the B760 chipset.

1. Effective performance for games:

• Support for Intel Core™ Processors: The motherboard supports Intel Core™ processors from the 14th, 13th, and 12th generations with the LGA 1700 socket, providing you with the latest technology and the strongest performance.
• Support for ultra-fast DDR4 memory: It features two DIMM slots that support DDR4 memory thanks to the dual-channel design, with speeds of up to 5333 MHz (OC), ensuring superior performance and system responsiveness across all tasks.
• PCIe 5.0 Interface: Features PCIe 5.0 support on the main graphics card slot with Ultra Durable™ SMD PCIe 5.0 Armor design, providing you with ultra-fast data transfer speeds and making it ready for the latest graphics cards.

2. Advanced Connectivity and Storage Solutions:

• High-speed wireless connectivity: The board comes equipped with an integrated Wi-Fi 802.11ac module and Bluetooth, ensuring you have a fast and reliable wireless connection.
• Super Wired Network: Equipped with a 2.5 Gigabit/second LAN port to ensure a wired internet connection that is 2.5 times faster than traditional ports, giving you an advantage in multiplayer gaming.
• Multiple storage options: The motherboard offers two M.2 slots that support PCIe 4.0 x4 storage drives, along with 4 SATA 6Gb/s ports, providing you with tremendous flexibility in building your storage system.

3. Durable design and custom features for gaming:

• Powerful power system: It features a powerful 6+2+1 phase power system with heat sinks to ensure stable power delivery to the processor even under load.
• Smart Cooling System: The Smart Fan 6 technology supports precise control of the cooling fans, ensuring an optimal temperature for the device with minimal noise.
• Ease of use: It includes features such as PCIe EZ-Latch, WIFI EZ-Plug, and Q-Flash Plus to simplify the assembly process and BIOS updates.

In conclusion, the GIGABYTE B760M GAMING AC DDR4 GEN5 motherboard is the perfect choice for every serious gamer. It brilliantly combines powerful performance thanks to support for fast DDR4 and PCIe 5.0, flexibility in storage options, along with a sturdy design that ensures unparalleled stability, and wireless connectivity that gives you greater freedom, making it the solid foundation for your next adventure in the world of computing and gaming.

Specifications of the GIGABYTE B760M GAMING AC DDR4 GEN5 Motherboard

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi RTL8821CE

- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

- BLUETOOTH 5.0

- Support for 11ac wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x antenna connectors (1T1R)

1 x D-Sub port (Note)

1 x HDMI port (Note)

1 x DisplayPort (Note)

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x RJ-45 port

3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 22.5cm
