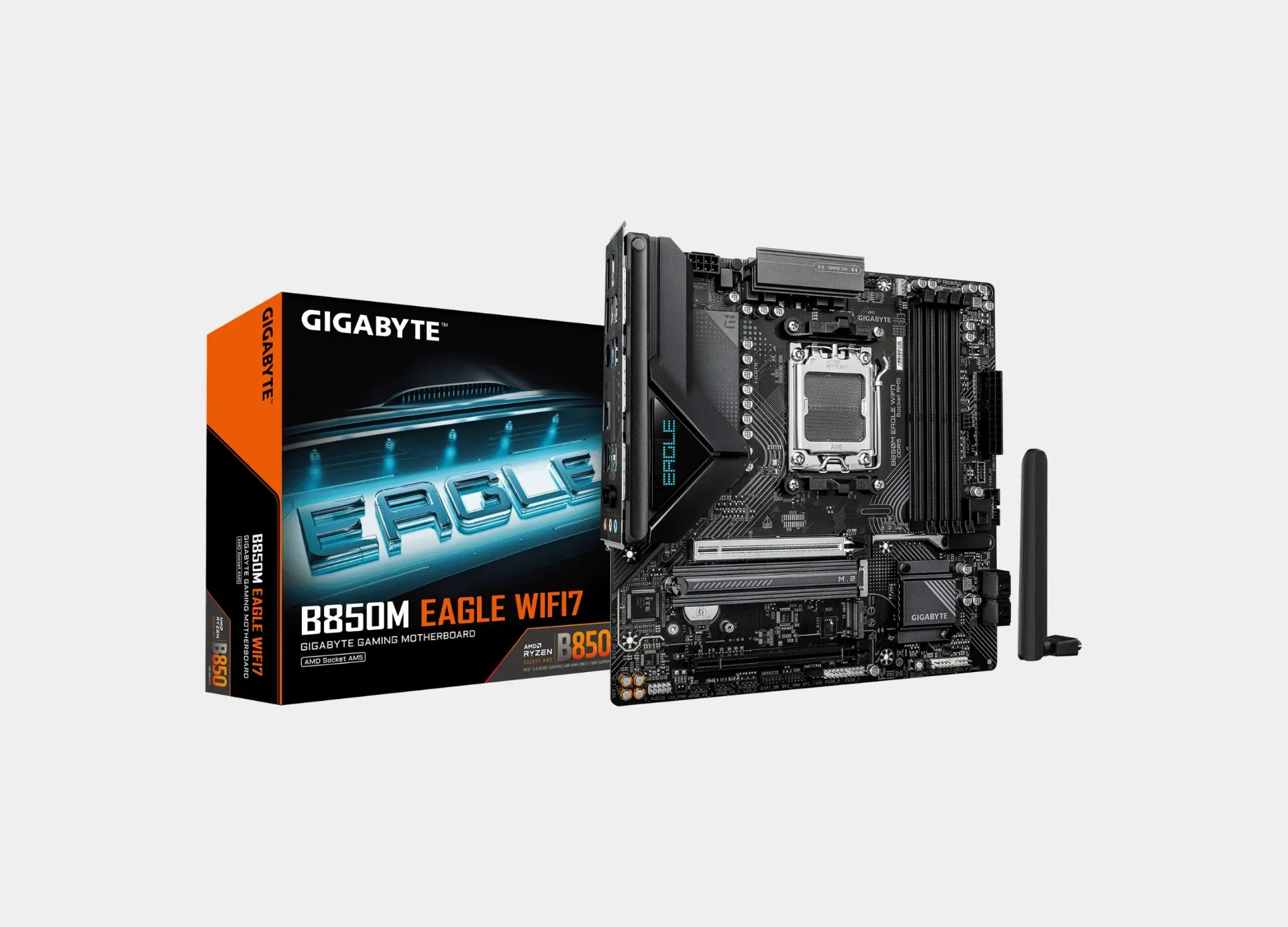

GIGABYTE B850M EAGLE WIFI7 Motherboard

GIGABYTE B850M EAGLE WIFI7 Motherboard

Comprehensive review of the GIGABYTE B850M EAGLE WIFI7 motherboard | Future performance in a compact size

The B850 chip from AMD is the sweet spot for users looking for high-end performance at a reasonable cost. The B850M EAGLE WIFI7 motherboard from GIGABYTE is designed to make the most of this chip, offering a Micro ATX motherboard packed with the latest technologies that make it fully ready for Ryzen 9000 processors and future gaming challenges.

Features of the GIGABYTE B850M

This motherboard offers a great mix of modern specifications and excellent value, with features distributed as follows:

Comprehensive support for AMD processors and high memory speeds

The motherboard relies on the AM5 socket to support the latest AMD Ryzen processors from the 9000, 8000, and 7000 series. Despite its compact size, the motherboard provides 4 slots for memory DDR5 supports massive capacities of up to 256 GB. More importantly, it has excellent capabilities for overclocking RAM to reach high frequencies of up to 8200 MT/s, with full support for ready-made overclocking profiles (AMD EXPO and XMP).

Fully ready for fifth-generation hardware (PCIe 5.0)

GIGABYTE has not skimped on providing future technologies here; the primary slot for the graphics card (PCIEX16) comes with full support for the standard PCIe 5.0 x16 to extract maximum power from upcoming graphics cards. There is also a storage port M.2 that also operates on the ultra-fast PCIe 5.0 standard, along with another M.2 port on the PCIe 4.0 standard, allowing for incredible loading speeds for gaming and data transfer.

Network connectivity for the future (Wi-Fi 7 & 2.5GbE)

You will experience completely lag-free gaming thanks to the board being equipped with the latest wireless network chip Wi-Fi 7 (with frequencies of 2.4/5/6 GHz) and Bluetooth 5.4 technology. For stability enthusiasts, the board provides a wired network (LAN) port with a speed of 2.5 Gigabits per second to meet the demands of live streaming and competitive gaming.

Compact size (Micro ATX) and multiple connectivity

The board comes in size Micro ATX (24.4 cm × 24.4 cm), making it ideal for building small to medium-sized builds. Nevertheless, it offers excellent connectivity options including Type-C (Gen 2) ports, and supports connecting up to three displays simultaneously thanks to the presence of an HDMI 2.1 port and two DisplayPort 1.4 ports on the back.

Who is this board for?

For gamers and content creators with a medium budget who want to build a compact (Micro ATX) computer setup that doesn't take up much space, without compromising on future technologies. This motherboard is an excellent investment for those looking for full readiness for next-generation hardware (graphics cards, PCIe 5.0 storage, and Wi-Fi 7 networks) while relying on Ryzen 9000 or 7000 processors, without the need to pay the extra cost for high-end motherboards (X870).

Specifications of the GIGABYTE B850M EAGLE WIFI7 motherboard

CPU & Chipset

• CPU Socket: AMD Socket AM5

• Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

• Chipset: AMD B850

Memory

• Capacity: 4 x DDR5 DIMM sockets (Max 256 GB, up to 64 GB single DIMM capacity)

• Speed: Support for DDR5 8200(O.C) down to 5600 MT/s

• Architecture: Dual channel memory architecture

• Features: Support for non-ECC Un-buffered DIMM, AMD EXPO™, and XMP modules

Expansion Slots

• PCIe 5.0 (CPU): 1 x PCI Express x16 slot (PCIEX16), running at x16 (Ryzen 9000/7000)

• PCIe 3.0 (Chipset): 1 x PCI Express x16 slot (PCIEX4), running at x4

Storage Interface

• M.2 (CPU - M2A_CPU): 1 x M.2 connector supporting PCIe 5.0 x4/x2 SSDs (Ryzen 9000/7000)

• M.2 (CPU - M2B_CPU): 1 x M.2 connector supporting PCIe 4.0 x4/x2 SSDs

• SATA: 4 x SATA 6Gb/s connectors

• RAID: RAID 0, 1, 5, 10 for NVMe (RAID 5 on Ryzen 9000 only) / RAID 0, 1, 10 for SATA

Network & Communication

• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless: Realtek® Wi-Fi 7 RTL8922AE (802.11a/b/g/n/ac/ax/be), 2.4/5/6 GHz

• Bluetooth: BLUETOOTH 5.4

Audio

• Codec: Realtek® Audio CODEC

• Channels: 2/4/5.1/7.1-channel High Definition Audio

Onboard Graphics & Display

• HDMI: 1 x HDMI port (Max 4096x2160@60 Hz, HDMI 2.1, HDR)

• DisplayPort: 2 x DisplayPorts (Max 3840x2160@144 Hz, DP 1.4)

• Multi-Display: Support for up to triple-display at the same time

Back Panel Connectors

• 1 x USB Type-C® port, with USB 3.2 Gen 2 support

• 1 x USB 3.2 Gen 2 Type-A port (red)

• 2 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x HDMI port

• 2 x DisplayPorts

• 1 x RJ-45 port (2.5GbE)

• 2 x antenna connectors (2T2R)

• 3 x audio jacks

• 1 x PS/2 keyboard/mouse port

• 1 x Q-Flash Plus button

Internal I/O Connectors (Highlights)

• Power & Cooling: 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU pump, 1 x system fan, 1 x system pump

• USB (Internal): 1 x USB Type-C® header (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers

• Lighting: 3 x ARGB Gen2 LED headers, 1 x RGB LED header

• Other: 1 x TPM header, 1 x reset button, 1 x Clear CMOS jumper

Form Factor & OS

• Operating System: Support for Windows 11 64-bit

• Form Factor: Micro ATX Form Factor (24.4cm x 24.4cm)
