A detailed review of the features of the Antec AX65 case bundle and Atom B750 Bronze power supply

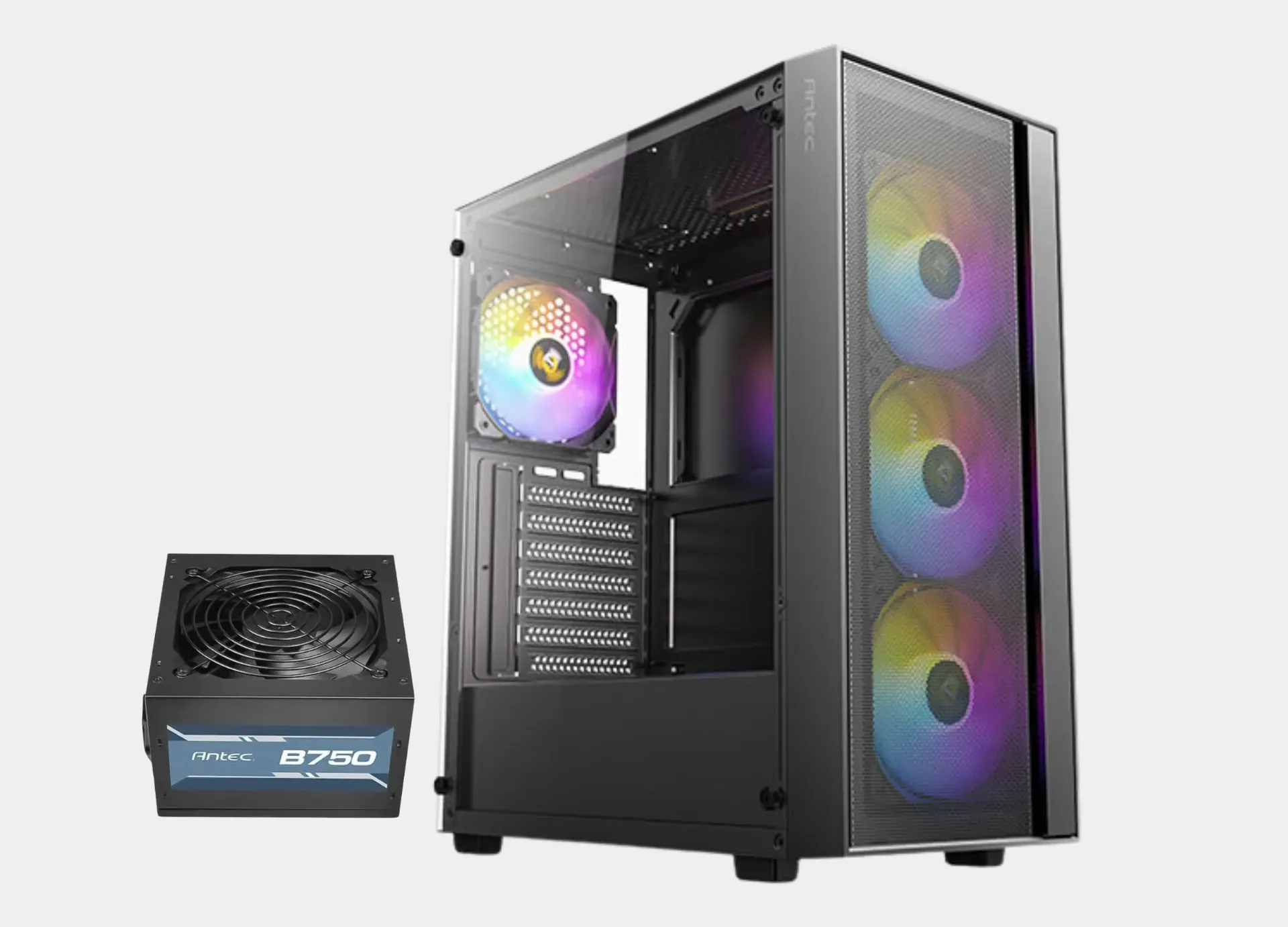

Antec Atom B750 power supply with 750W and 80 PLUS Bronze certification

The strongest point of this bundle is the presence of the power supply Antec Atom B750 with continuous power of 750 watts (Continuous Power) and certified with 80 PLUS Bronze with Active PFC, ensuring high energy conversion efficiency that reduces thermal loss and electricity consumption. The power supply features:

• Full support for powerful motherboards and processors: includes two power cables for the CPU 2x 8(4+4)-Pin CPU to power Z790, B760, B650, and X670 motherboards and Core i7/i9 and Ryzen 7/9 processors with complete stability.

• 4 PCI-E connectors for graphics cards: equipped with 4x 8(6+2)-Pin PCI-E to easily run powerful graphics cards, with Flat Black Cables that facilitate cable management behind the motherboard.

• Comprehensive industrial protection and a silent fan: includes a silent cooling fan measuring 120 mm and comprehensive protection circuits (OPP / OVP / UVP / SCP) to protect your components from current fluctuations and low or high voltage.

Professional air and water cooling with 4 integrated ARGB fans

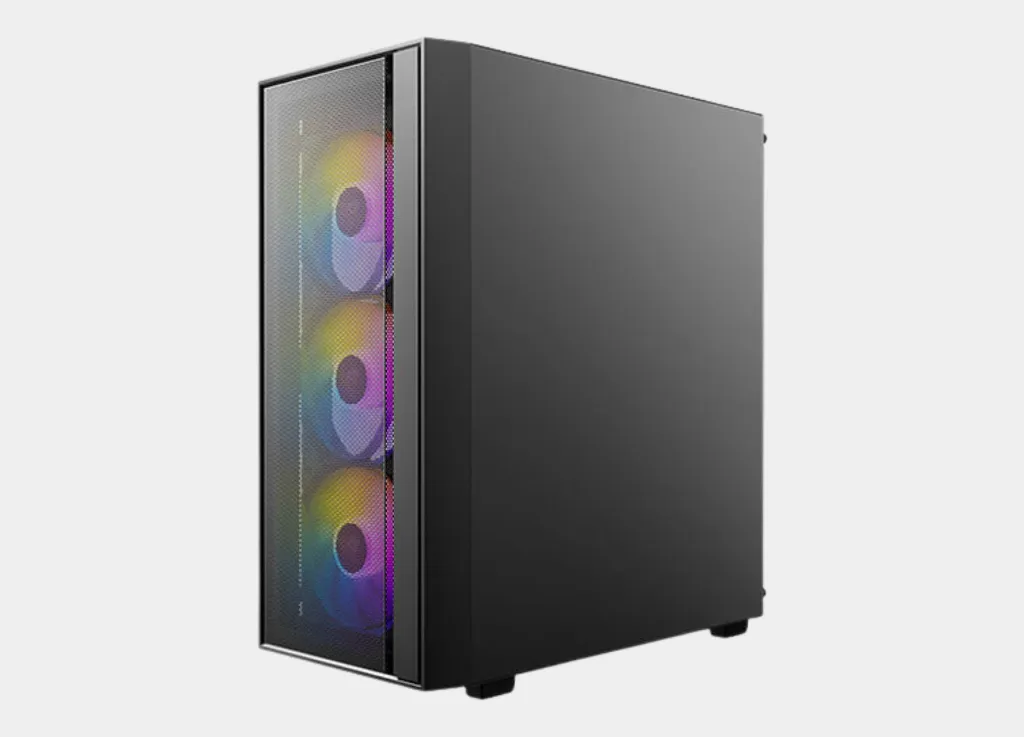

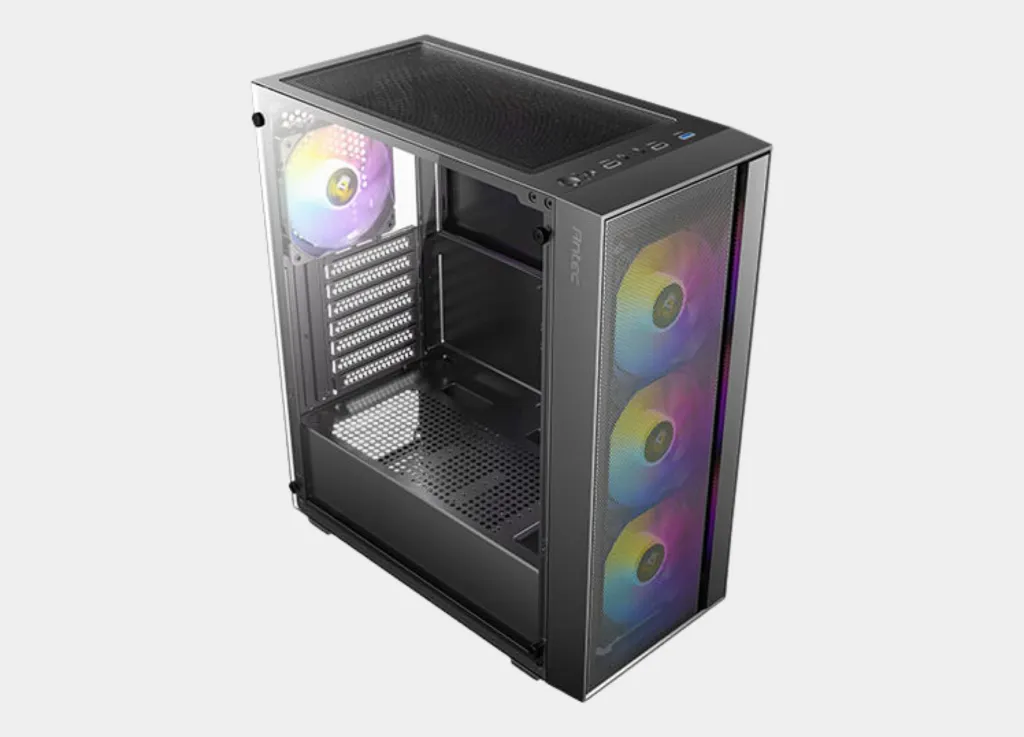

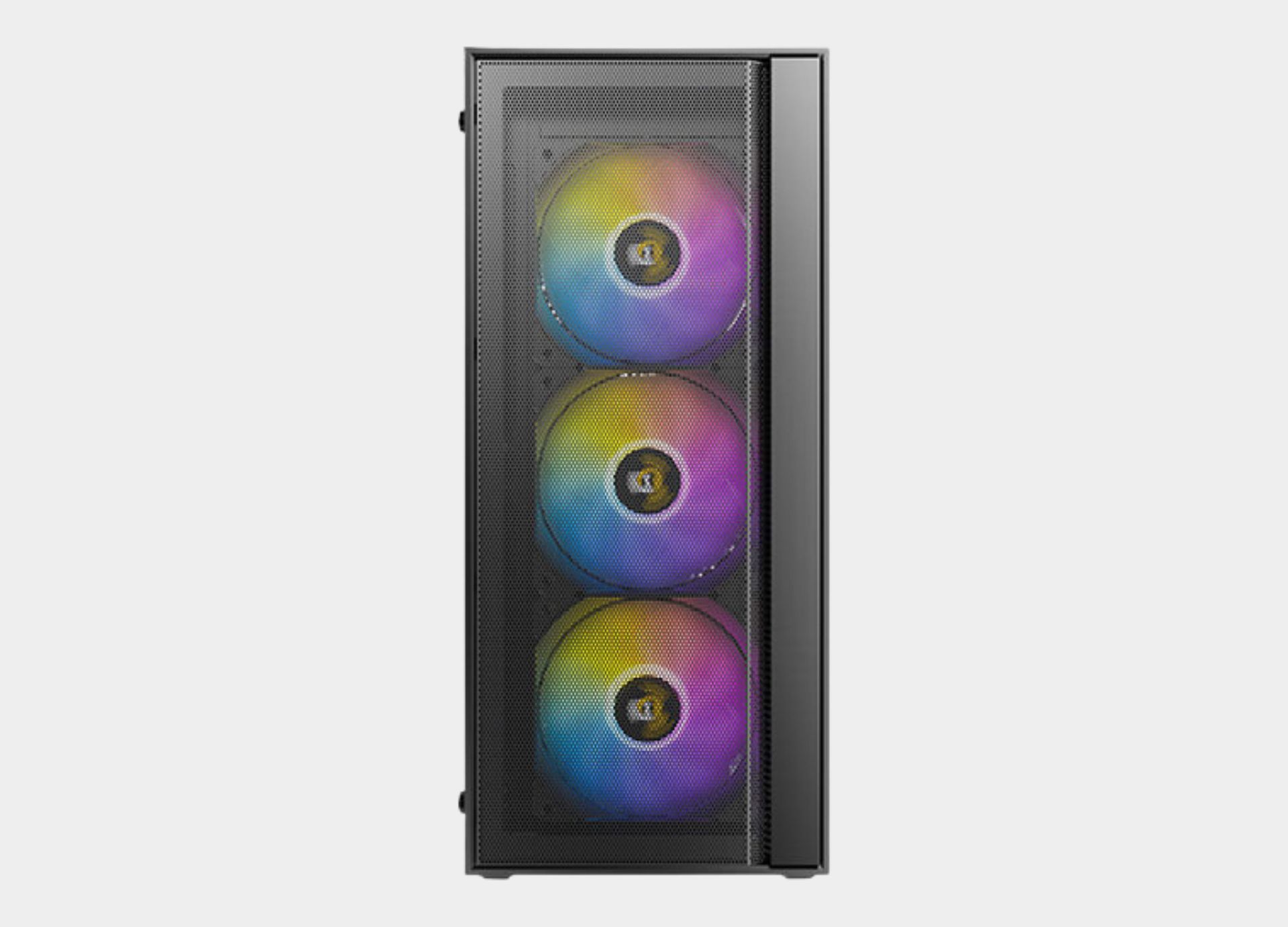

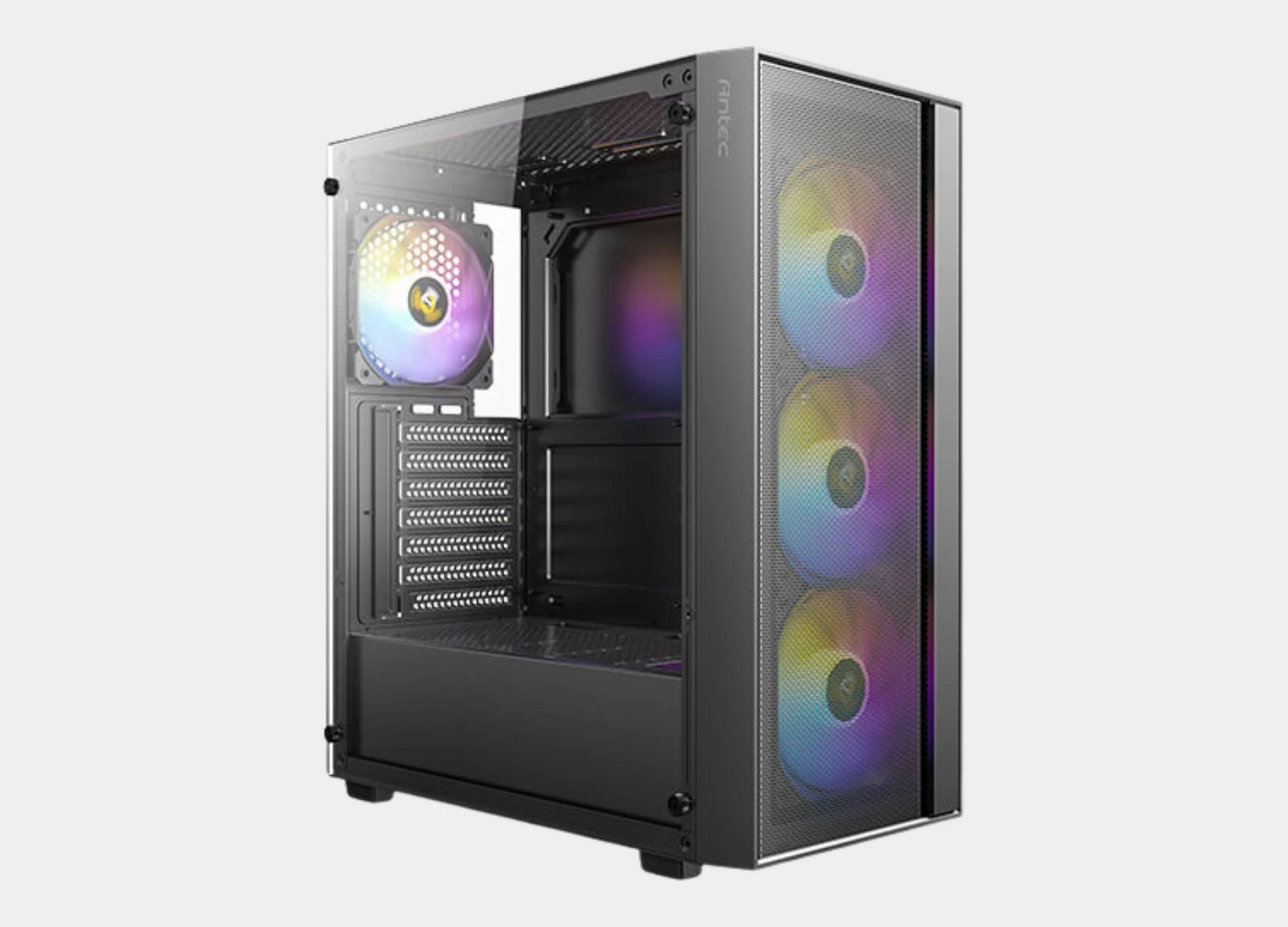

The case Antec AX65 features a mesh front panel with a geometric design that ensures cold air flows directly to the processor and graphics card, and comes pre-equipped with 4 120mm ARGB 3-Pin fans (3 front + 1 rear) connected to an LED control button in the top panel. The case can accommodate up to 8 120 mm fans (adding two fans on top and two on the power cover) and supports the installation of a front water cooling radiator in sizes of 120 / 240 / 360 mm.

Compatibility matrix and internal dimensions (Component Clearances)

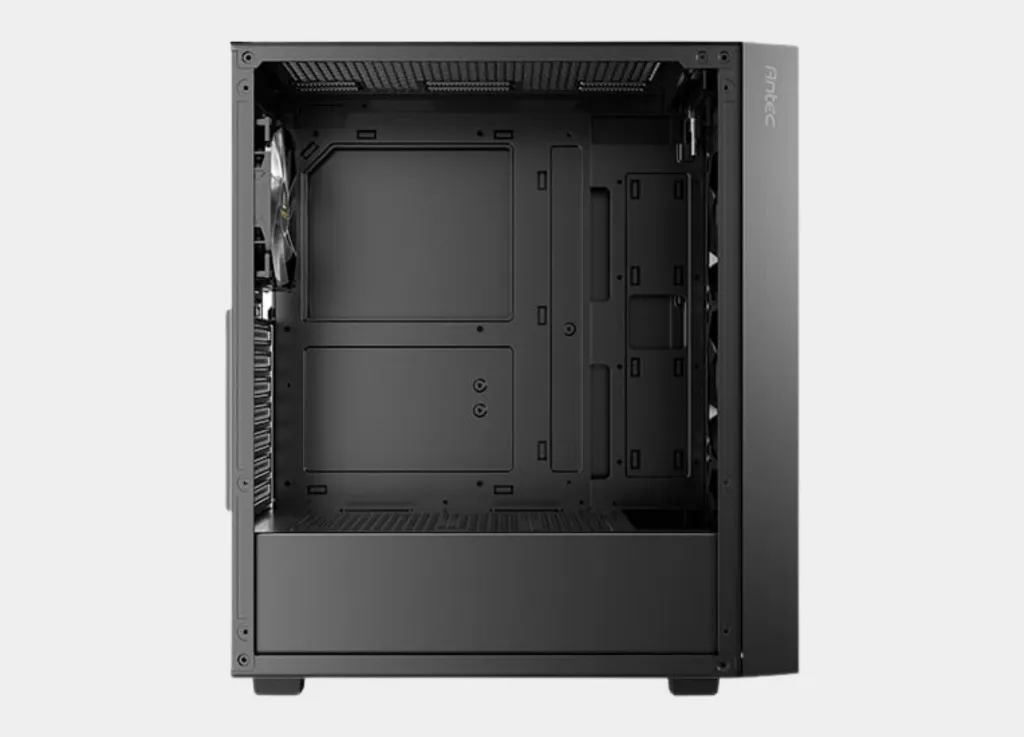

The internal compartment is designed with dimensions of 400 × 200 × 449 mm to give you wide flexibility when choosing components:

• Supported motherboards: compatible with ATX, Micro-ATX, and Mini-ITX with 7 PCIe expansion slots.

• Max GPU Length: Professional graphics cards support a length of up to 345 mm (when installing fans in the front), and up to 320 mm (with the rear fan), and up to 290 mm (when installing a 360 mm water cooling radiator in the front).

• Height of the air CPU cooler: Air coolers support a height of up to 160 mm.

4 mm tempered glass, dust filters, and integrated front ports

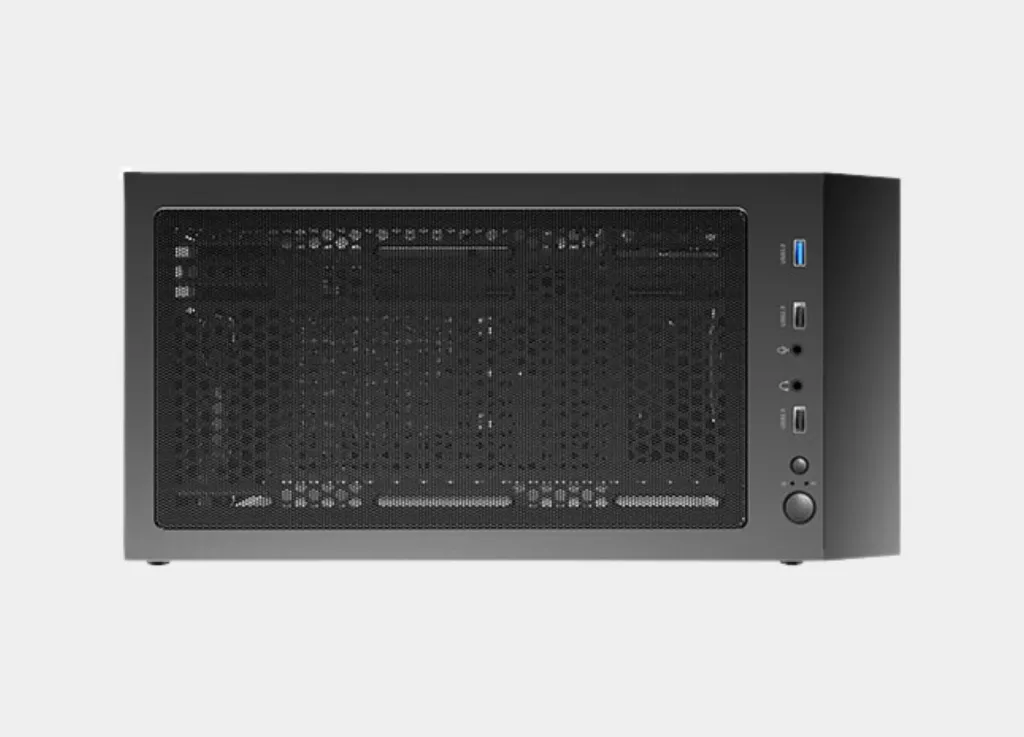

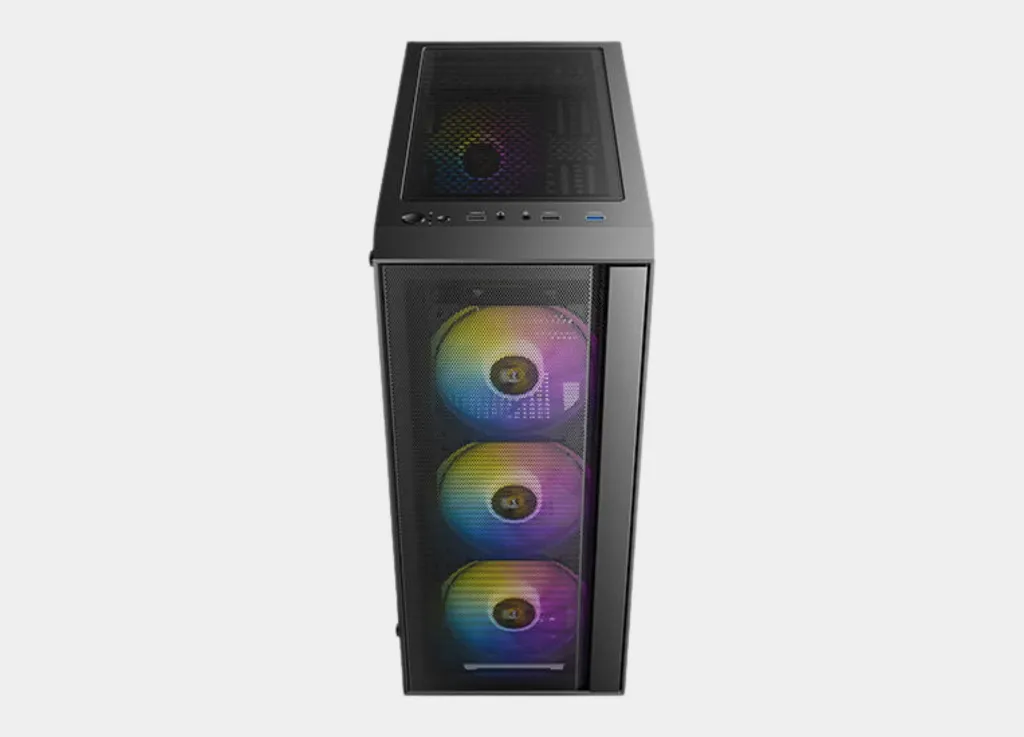

The elegance of the case is completed with a side window made of tempered glass (Tempered Glass) with a thickness of 4 mm that highlights the ARGB lighting and the neatness of the flat power cables, along with top and bottom dust filters that are easy to clean, and a front port panel that includes 1x USB 3.0 and2x USB 2.0 and an HD-Audio input and a lighting control button.

Who is this bundle suitable for? And technical notes that matter to you before assembly

• Target audience: Ideal for users building a mid to high-end gaming or editing system that requires a power capacity of 750W 80+ Bronze real (such as builds that include RTX 4060 Ti or RTX 4070 / 4070 Super or RTX 5060 Ti / 5070 or Radeon RX 7700 XT / RX 7800 XT with Core i5/i7 or Ryzen 5/7 processors).

• Transparent technical notes (make sure to check before installation):

  1. The essential difference from the Atom V650 version: This bundle (Atom B750) excels with a higher capacity (750W compared to 650W), an official efficiency certification of 80 PLUS Bronze, additional protection against undervoltage (UVP), and the presence of 2x 8-Pin CPU power cables and4x 8-Pin PCI-E graphics card connectors with flat cables.

  2. The available space for the card with 360mm water cooling: when installing a water cooler 360mm AIO at the front of the case, the maximum length available for the graphics card is 290mm (compared to 345mm without a front radiator).

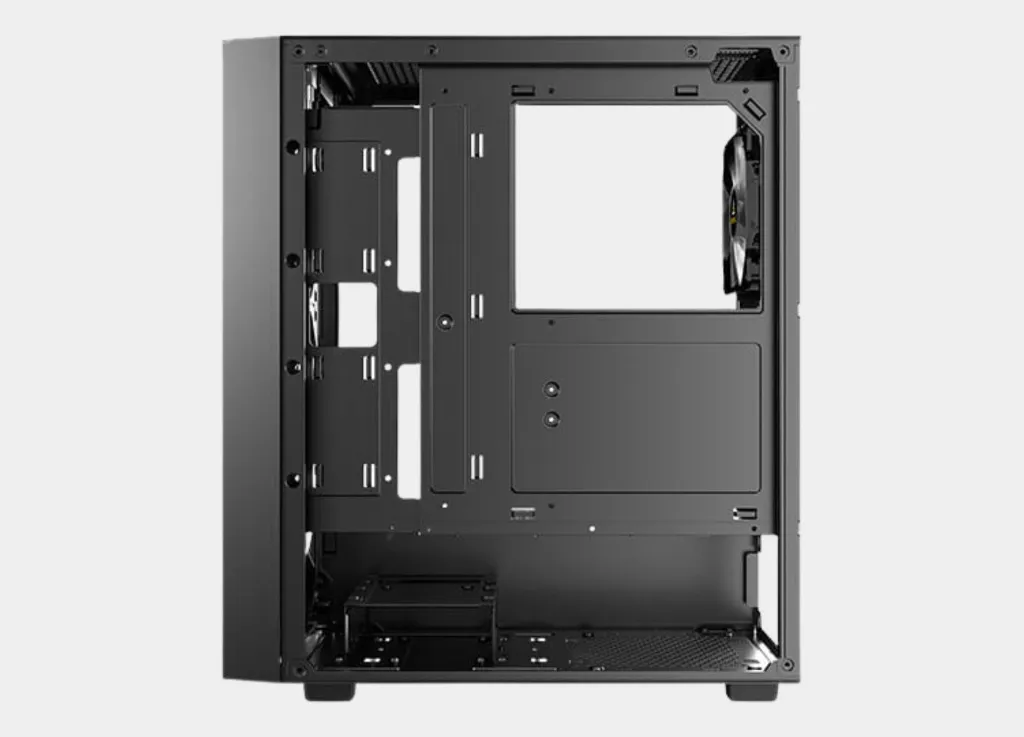

  3. Managing hard drive and power supply space: the case provides spaces for installing 2x 3.5" HDD (or 1x 3.5" + 1x 2.5") in addition to 2x 2.5" SSD, and allows moving the hard drive cage to the left to increase cable space behind the power supply from 165mm to 205mm (or even 345mm when removing the cage).

Specifications and features of the Antec AX65 Mid-Tower Gaming Case + PSU Antec Atom B750 Bronze

General & Dimensions

• Model: Antec AX65

• Form Factor: Mid Tower

• Dimensions (DWH): 400 x 200 x 449 mm

• Materials: Steel + Plastic

• Side Panel: 4mm Tempered glass

• Net Weight: 4.59 Kg

• Gross Weight: 5.43 Kg

Compatibility & Clearance

• Mainboard Support: ATX, Micro-ATX, ITX

• Max GPU Length:

  • ≤ 345mm (When standard fans are installed in the front)

  • ≤ 320mm (When fan is installed at the rear)

  • ≤ 290mm (When a 360mm radiator is installed in the front)

• Max CPU Cooler Height: ≤ 160mm

• Max PSU Length (Include cable):

  • ≤ 165mm (with HDD)

  • ≤ 205mm (with HDD moved to the left)

  • ≤ 345mm (without HDD)

Expansion & Storage

• Expansion Slots: 7

• Drive Bays:

  • 3.5" / 2.5" Combo: 2 / 1

  • 2.5" Dedicated: 2

Cooling System (Fan Support)

• Front: 3 x 120mm

• Top: 2 x 120mm

• Power supply Shroud: 2 x 120mm

• Rear: 1 x 120mm

• Included Fan(s): 3 x 120mm ARGB 3-Pin fans in the front + 1 x 120mm ARGB 3-Pin fan at the rear

Cooling System (Radiator Support)

• Front: 120 / 240 / 360mm

Included Power Supply

• Model: Antec Atom B750

• Wattage: 750W

I/O Ports & Miscellaneous

• Front Access & Controls: Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO

• Dust Filter: Top / Bottom

• Warranty: 1 Year
