Antec AX65 Mid-Tower Gaming Case + PSU Antec Atom V650

Antec AX65 Mid-Tower Gaming Case + PSU Antec Atom V650

A detailed review of the features of the Antec AX65 case bundle and Atom V650 power supply

Superior cooling ready out of the box (4 ARGB fans + support for up to 8 fans)

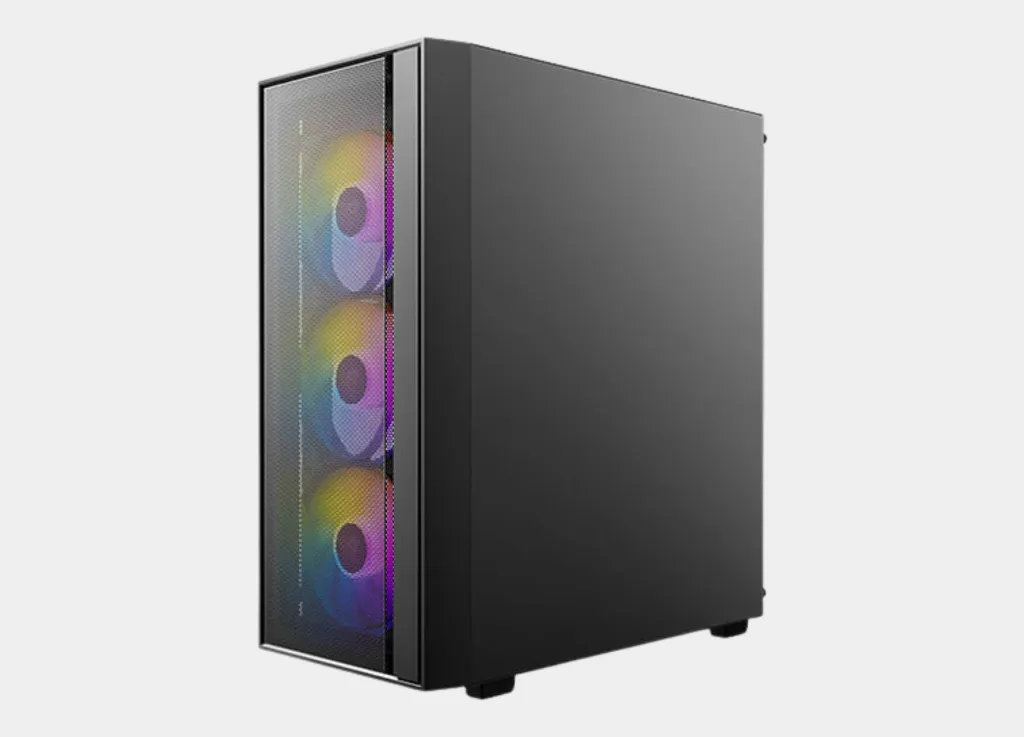

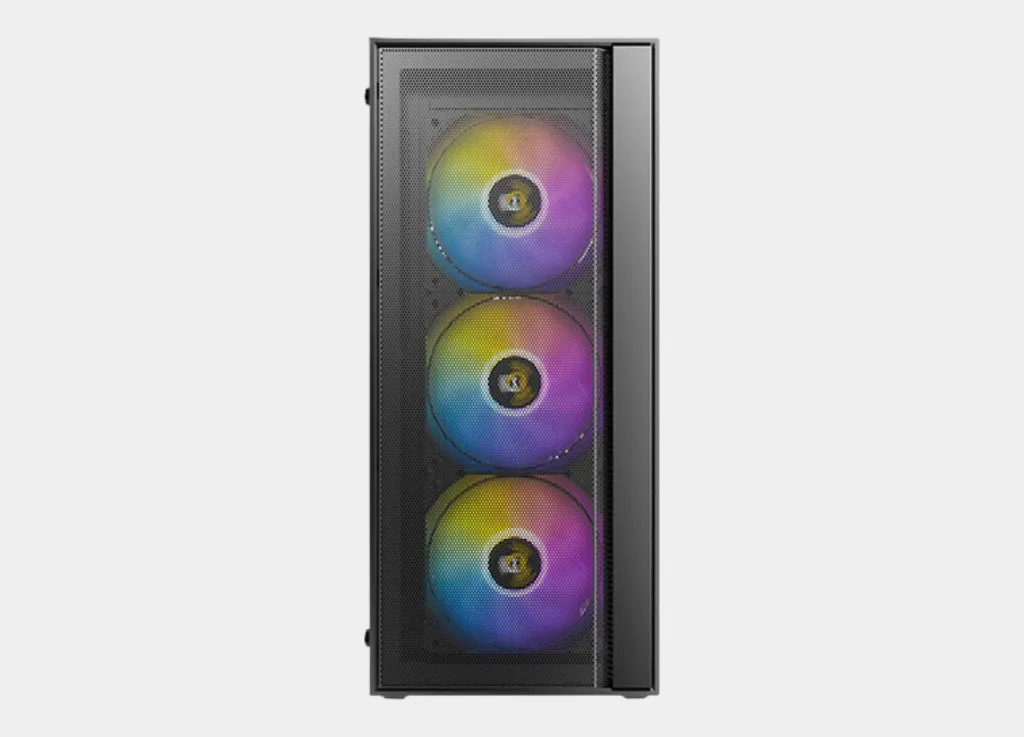

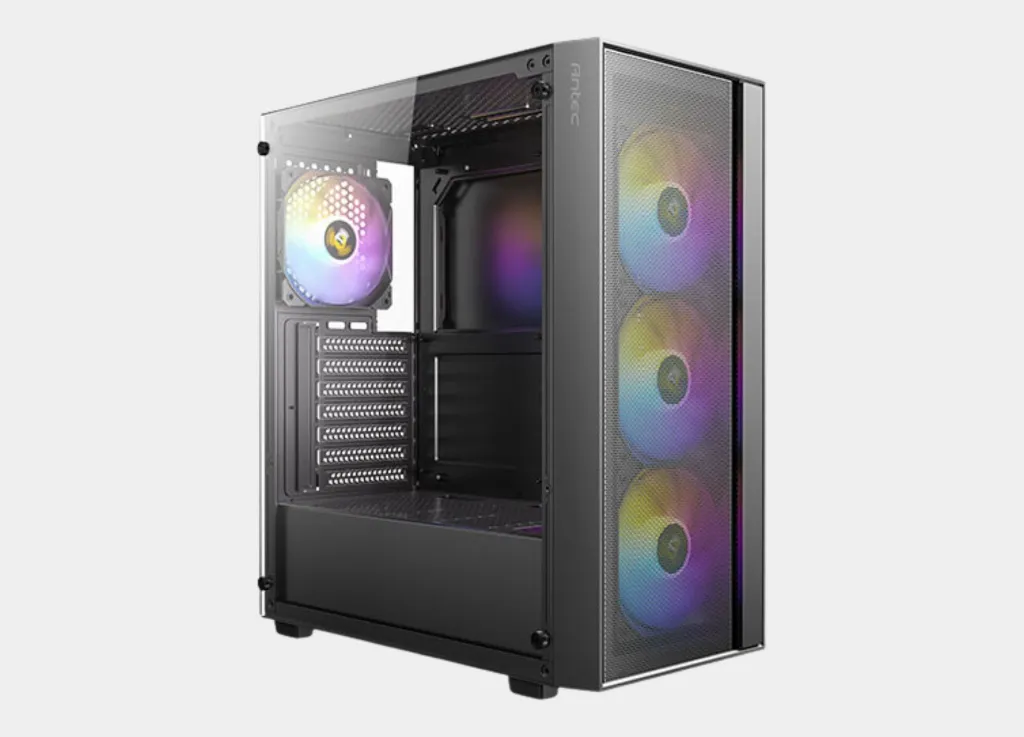

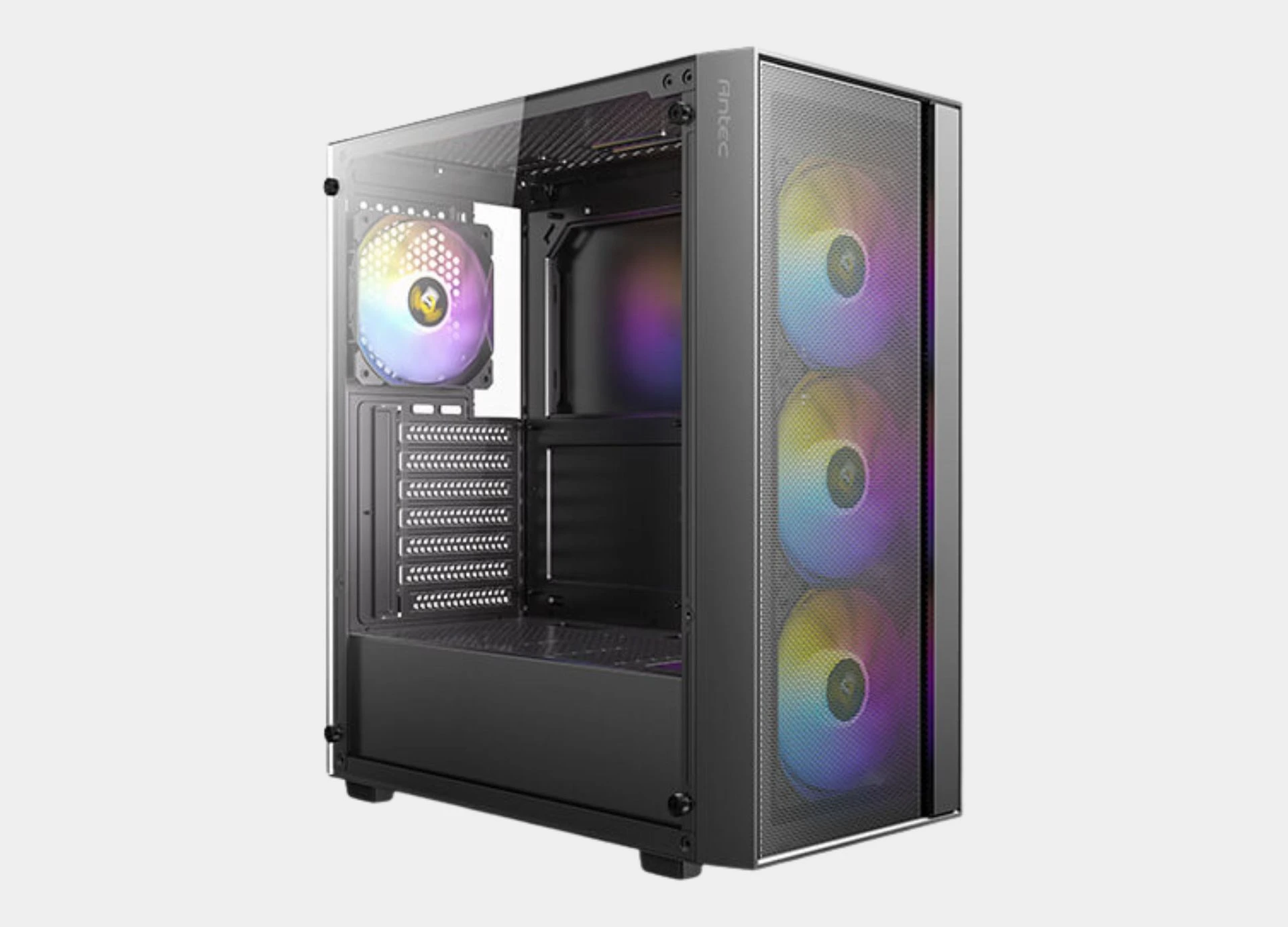

The case Antec AX65 is designed with a geometric front panel that allows for efficient cold air intake directly towards the graphics card and processor. The case comes pre-equipped with 4 120mm ARGB 3-Pin cooling fans (3 fans in the front + 1 fan in the back) with a lighting control button (LED Control Button) on top of the case, in addition to the ability to install a total of 8 120 mm fans (adding two fans on top and two fans above the power supply cover) or install a front water cooling radiator with sizes of 120 / 240 / 360 mm.

Wide compatibility with professional components and Clearance Matrix

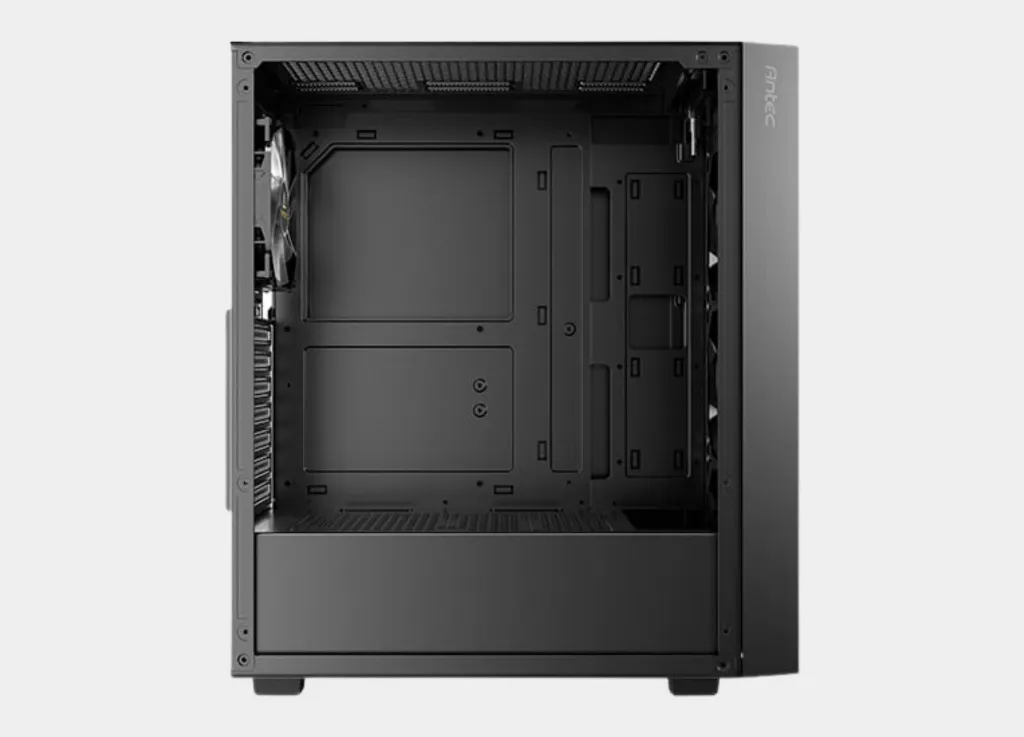

Despite its compact and elegant dimensions (400 × 200 × 449 mm) the case provides a carefully considered internal space to accommodate the latest hardware components:

• Motherboards: Supports all standard sizes ATX, Micro-ATX, and Mini-ITX.

• Graphics Cards: Accommodates triple-fan graphics cards up to 345 mm (if fans are installed at the front), and up to 320 mm (with the rear fan), and up to 290 mm (when installing a 360 mm water cooling radiator at the front).

• CPU Cooler: Supports professional air coolers with a height of up to 160 mm.

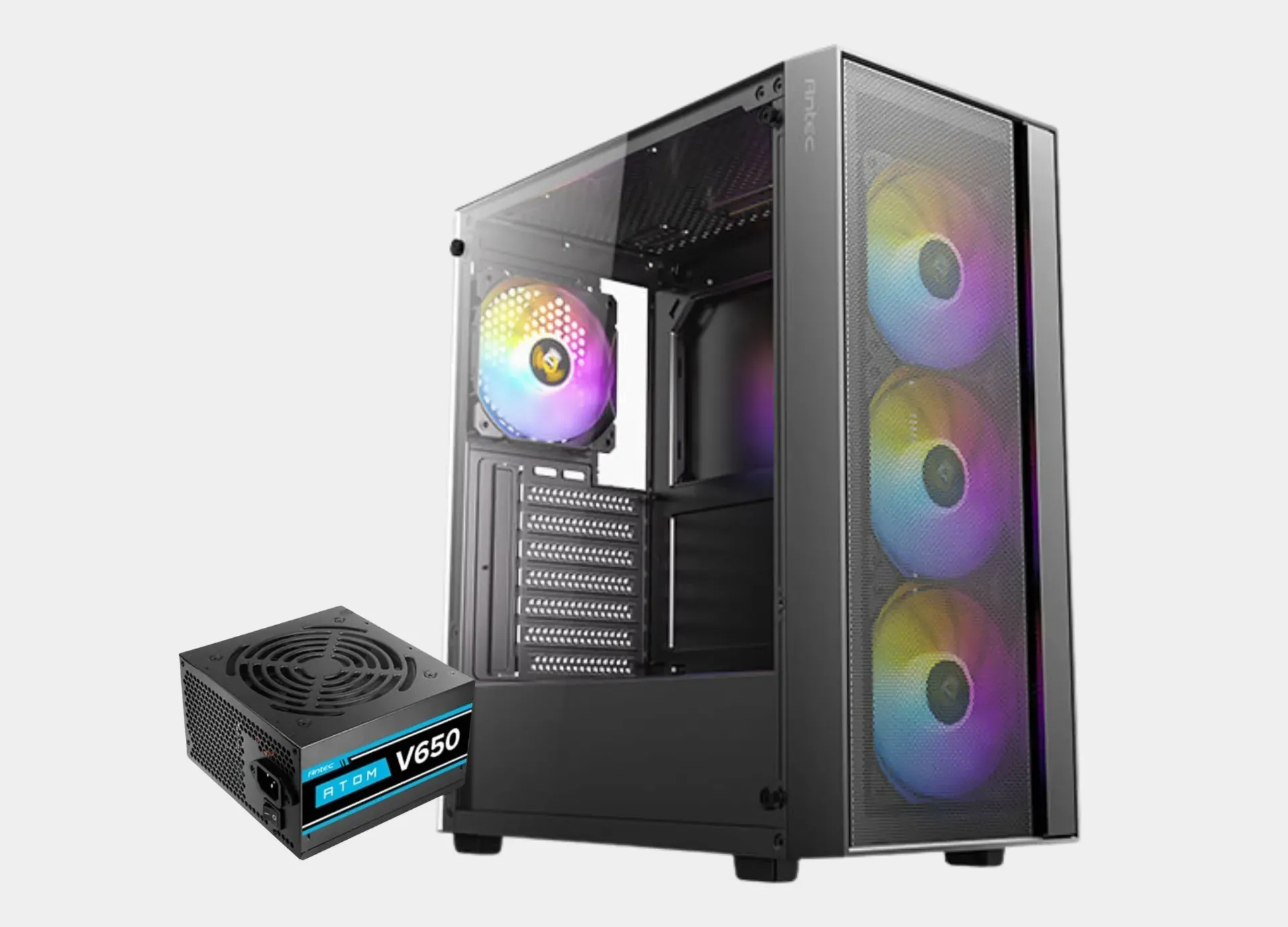

Antec Atom V650 power supply with 650W and CircuitShield™ protection circuits

The bundle comes with the reliable power supply Antec Atom V650 with a maximum power of 650 watts compliant with ATX 12V 2.31, equipped with a silent 120 mm fan supported by Thermal Manager for intelligent fan speed control based on temperature. The power supply includes a suite of industrial protections (CircuitShield™) including over-voltage protection (OVP), over-power protection (OPP), short circuit protection (SCP), no-load operation (NLO), with complete cables including )، مع كابلات كاملة تشمل 8(6+2)-Pin PCI-E connectors for modern graphics cards and 5 SATA connectors.

4 mm tempered glass, dual dust filters, and practical front ports

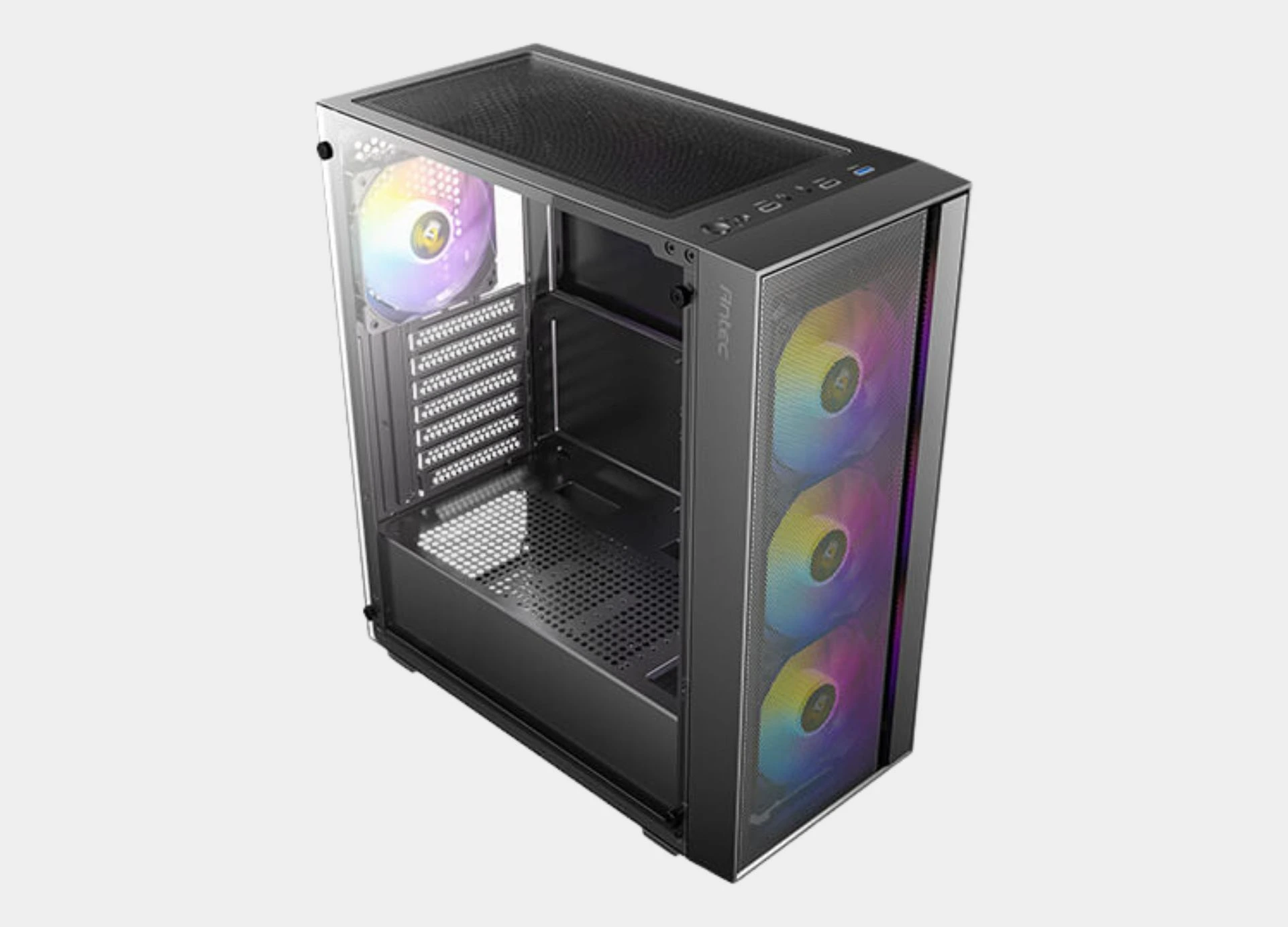

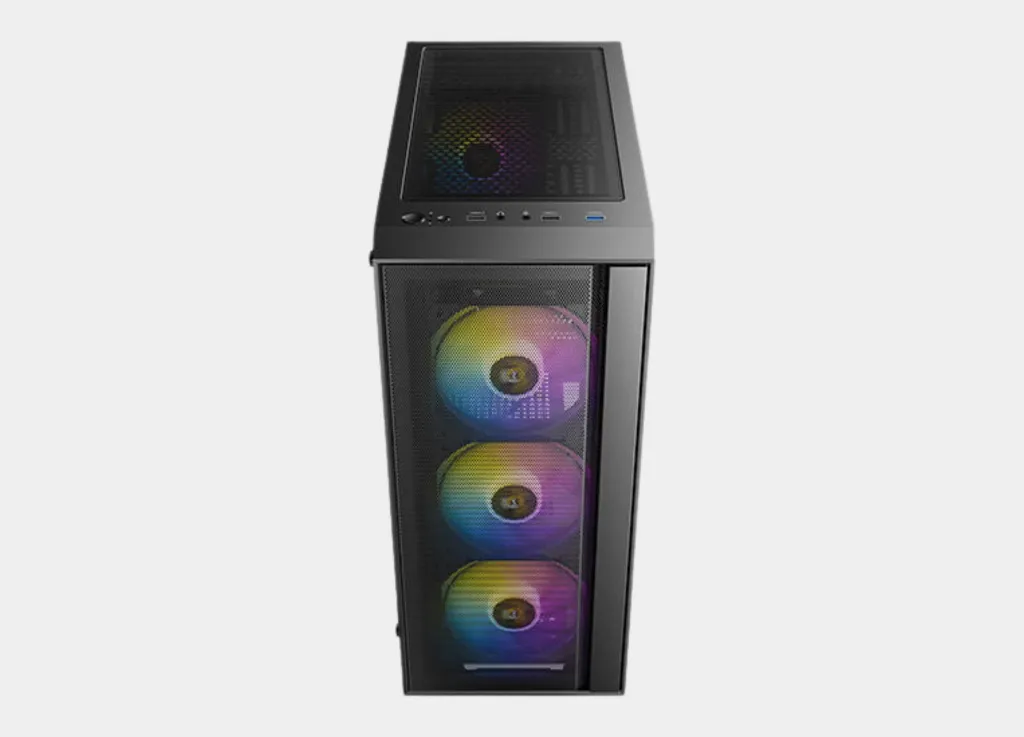

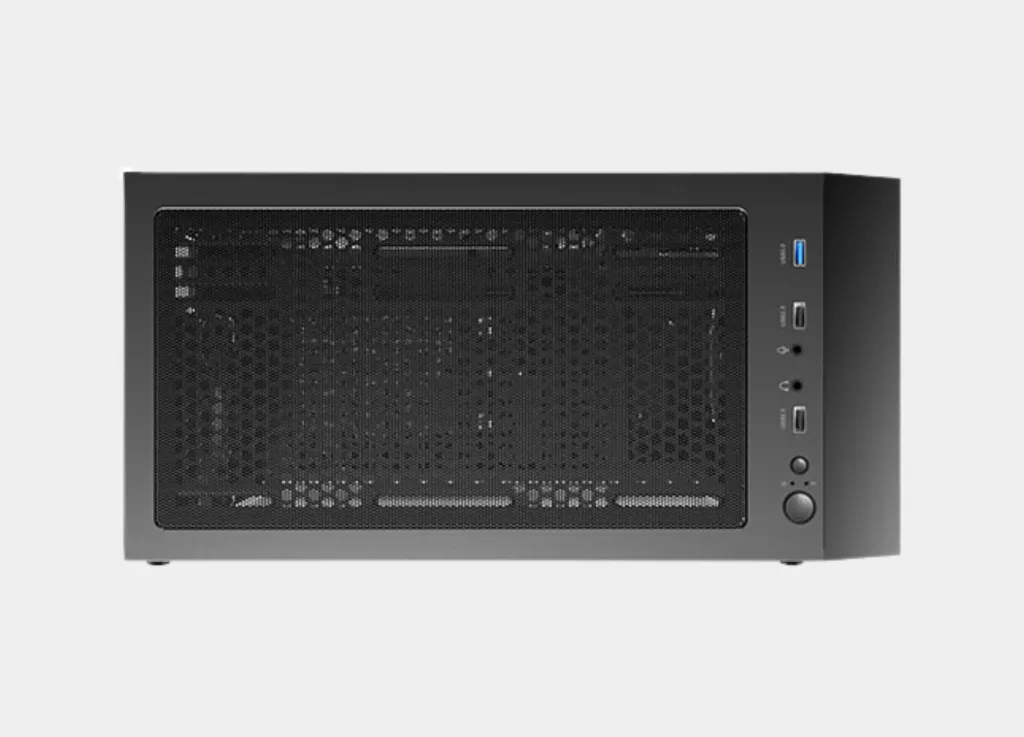

Highlight the aesthetics of your build and the ARGB lighting through a side window made of tempered glass (Tempered Glass) with a thickness of 4 mm, with dust filters at the top and bottom to protect internal components and ease of cleaning. The top control panel includes a USB 3.0 high-speed port, two USB 2.0 ports, and HD-Audio inputs, along with a power button and a fan lighting control button.

Who is this bundle suitable for? And technical notes that matter to you before assembly

• Target audience: The ideal choice for those building a new gaming or editing PC in the budget and mid-range category (such as builds with Intel Core i5 / i7 or AMD Ryzen 5 / 7 processors with graphics cards like RTX 3060 or RTX 4060 or RTX 4060 Ti or RTX 5060 or RX 7600) who want to save on the budget for purchasing a case, power supply, and ARGB fans separately.

• Transparent technical notes (check before installation):

  1. Card length with water cooling 360 mm: If you plan to install a triple water cooler (360mm AIO Radiator) in the front of the case, the maximum length available for the graphics card becomes 290 mm; with air cooling or front fans, the space reaches 345 mm.

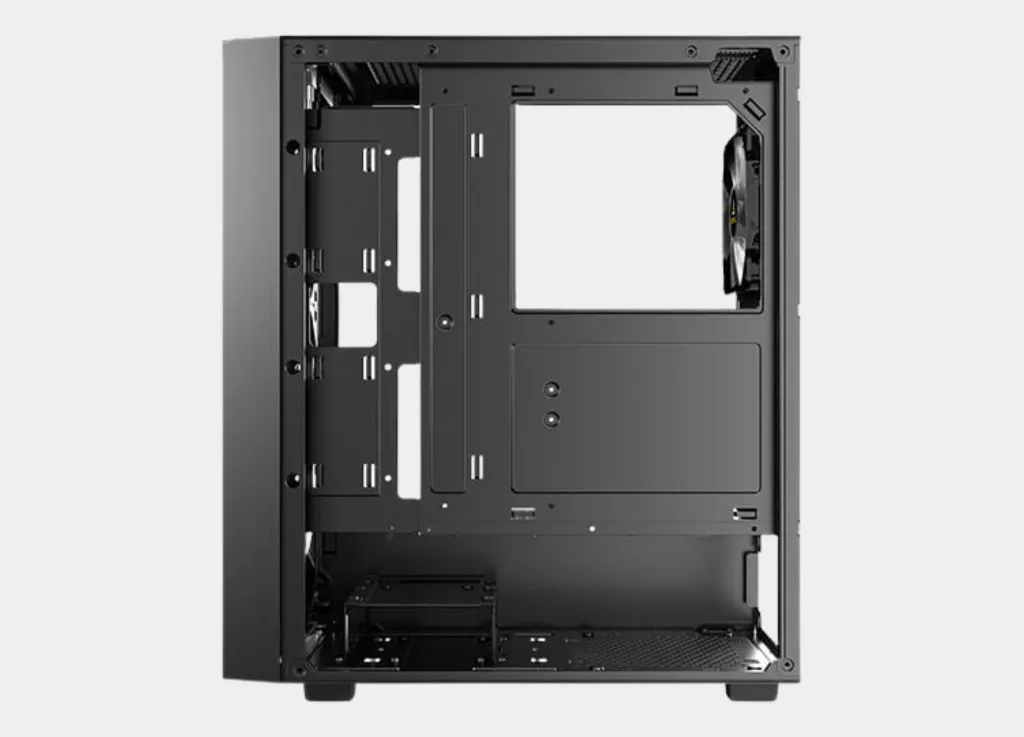

  2. Power supply space and HDD storage units: The case supports the installation of 2 x 3.5" HDD (or 1 x 3.5" + 1 x 2.5") in addition to 2 x 2.5" SSD; and the space allocated for the power supply with cables reaches 165 mm (in the standard position of the hard drive cage), and increases to 205 mm when moving the hard drive cage to the left, reaching 345 mm when removing the HDD cage.

  3. Type of included fans: the four included fans are of type 120mm ARGB 3-Pin and the lighting effects are controlled directly from the LED button integrated into the case interface.

Specifications of the Antec AX65 Mid-Tower Gaming Case + PSU Antec Atom V650

General & Dimensions

• Model: Antec AX65

• Form Factor: Mid Tower

• Dimensions (DWH): 400 x 200 x 449 mm

• Materials: Steel + Plastic

• Side Panel: 4mm Tempered glass

• Net Weight: 4.59 Kg

• Gross Weight: 5.43 Kg

Compatibility & Clearance

• Mainboard Support: ATX, Micro-ATX, ITX

• Max GPU Length:

  • ≤ 345mm (When standard fans are installed in the front)

  • ≤ 320mm (When fan is installed at the rear)

  • ≤ 290mm (When a 360mm radiator is installed in the front)

• Max CPU Cooler Height: ≤ 160mm

• Max PSU Length (Include cable):

  • ≤ 165mm (with HDD)

  • ≤ 205mm (with HDD moved to the left)

  • ≤ 345mm (without HDD)

Expansion & Storage

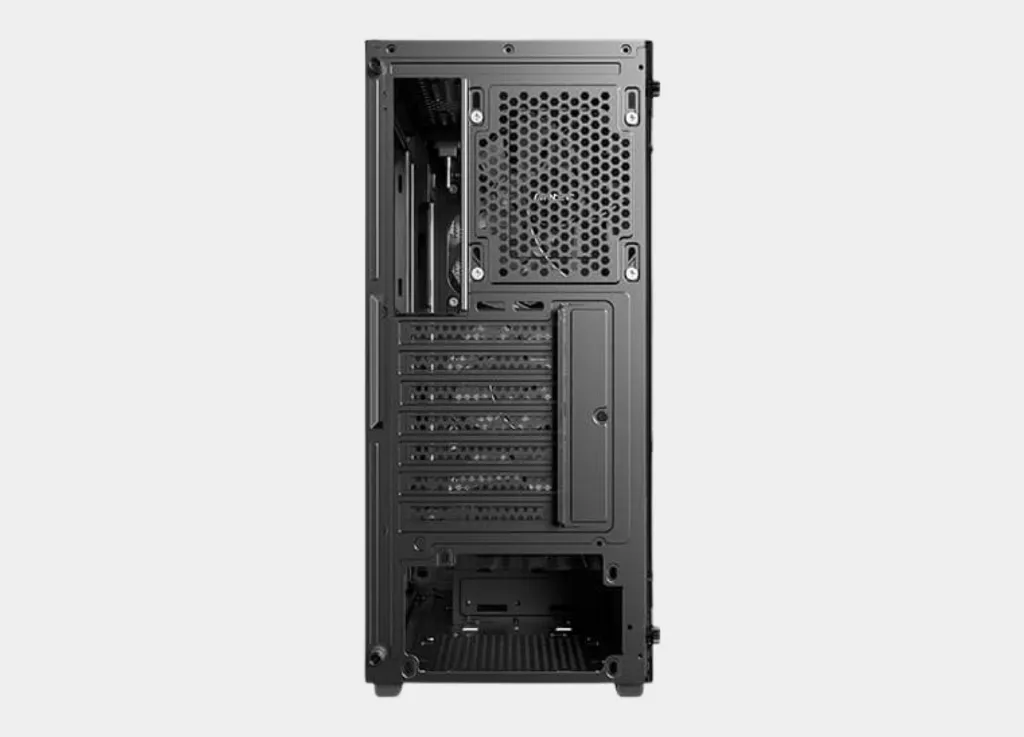

• Expansion Slots: 7

• Drive Bays:

  • 3.5" / 2.5" Combo: 2 / 1

  • 2.5" Dedicated: 2

Cooling System (Fan Support)

• Front: 3 x 120mm

• Top: 2 x 120mm

• Power supply Shroud: 2 x 120mm

• Rear: 1 x 120mm

• Included Fan(s): 3 x 120mm ARGB 3-Pin fans in the front + 1 x 120mm ARGB 3-Pin fan at the rear

Cooling System (Radiator Support)

• Front: 120 / 240 / 360mm

Included Power Supply

• Model: Antec Atom V650

• Wattage: 650W

I/O Ports & Miscellaneous

• Front Access & Controls: Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO

• Dust Filter: Top / Bottom

• Warranty: 1 Year
