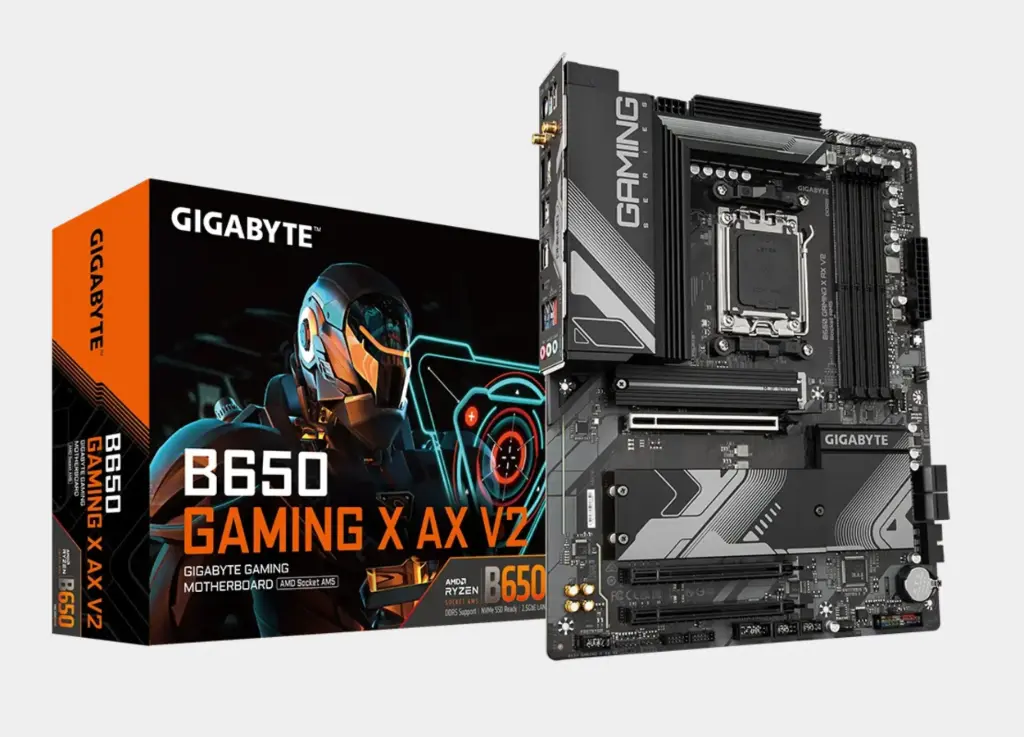

GIGABYTE B650 GAMING X AX V2 (rev. 1.x)

GIGABYTE B650 GAMING X AX V2 (rev. 1.x)

🔥 Unleash the power of the next generation with the GIGABYTE B650 GAMING X AX V2 (rev. 1.x) motherboard! Full support for AMD Ryzen™ 9000 processors, Direct 8+2+2 digital power, ultra-fast DDR5 memory, and PCIe 5.0 for an unparalleled gaming experience and ultra-fast Wi-Fi 6E connectivity!

Features of the GIGABYTE B650 GAMING X AX V2 (rev. 1.x) motherboard

⭐ Motherboard Features: Lasting Performance and Future Connectivity

🚀 GIGABYTE B650 GAMING X AX V2 Motherboard (rev. 1.x) - The future is in your hands!

The GIGABYTE B650 GAMING X AX V2 motherboard is designed to be the beating heart of any advanced computer system, especially for gamers and content creators looking to build a powerful and future-proof platform. This motherboard combines ultra durability and innovative technology to deliver exceptional performance and unprecedented stability.

• Unmatched performance and thermal stability:
• It features a Direct 8+2+2 Phases Digital VRM Solution with DrMOS rated at 60 amps, providing precise and stable power delivery even for the most demanding processors in the AMD Ryzen™ 9000/8000/7000 series.
• Advanced Thermal Design ensures high efficiency in heat dissipation with fully covered heat sinks for MOSFET units and a six-layer PCB made of double copper (2X Copper PCB), maintaining system stability under maximum operating conditions.
• The M.2 Thermal Guard design includes preventing storage media (SSD Throttling) from overheating and maintaining its high speeds.
• Future Connectivity and Ultra High Speeds:
• It provides full support for DDR5 Dual Channel technology with 4 DIMM slots, and supports AMD EXPO™ & Intel® XMP profiles for memory overclocking up to 8000 MT/s and beyond, opening new horizons for performance.
• For storage, it features one high-speed 1*PCIe 5.0 x4 connector and two 2*PCIe 4.0 x4 M.2 connectors, ensuring the fastest possible loading and data transfer times.
• Unmatched network connectivity with 2.5GbE LAN and Wi-Fi 6E 802.11ax chip for a fast and stable wireless network on the new 6GHz frequency, along with Bluetooth 5.3.
• It includes expanded connectivity ports such as Front USB-C® 20Gb/s and Rear USB-C® 10Gb/s for ultra-fast peripheral connections.
• Ease of use and assembly:
• EZ-Latch feature for easy removal and installation of the graphics card from the PCIe x16 slot with the push of a button.
• The innovative Q-Flash Plus feature that allows for BIOS updates without the need to install the processor, memory, or graphics card.
• Smart Fan 6 system for precise cooling control, with multiple temperature sensors and hybrid fan ports featuring FAN STOP functionality.

Specifications of the motherboard GIGABYTE B650 GAMING X AX V2 (rev. 1.x)

• ⚙️ Full Technical Specifications

• CPU:
  • AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors.
• Chipset:
  • AMD B650
• Memory:
  • 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory.
  • Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules.
  • Dual Channel Memory Architecture.
  • Support for AMD EXPO™ and Intel® XMP memory modules.
• Onboard Graphics:
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version and HDR).
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3).
• Audio:
  • Realtek® Audio CODEC.
  • High Definition Audio (2/4/5.1/7.1-channel).
• LAN:
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps).
• Wireless Communication Module:
  • Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) / AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1) / Intel® Wi-Fi 6E AX210 (PCB rev. 1.2).
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands.
  • BLUETOOTH 5.3 (or 5.2 depending on module).
  • Support for 11ax 160MHz wireless standard.
• Expansion Slots:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (Supports PCIe 4.0 x16 mode for Ryzen™ 7000/9000, PCIe 4.0 x8/x4 for Ryzen™ 8000 Series).
  • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2), integrated in the Chipset.
• Storage Interface:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting PCIe 5.0 x4/x2 SSDs (for Ryzen™ 7000/9000) or PCIe 4.0 x4/x2 SSDs (for Ryzen™ 8000).
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting PCIe 4.0 x4/x2 SSDs.
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting PCIe 4.0 x4/x2 SSDs.
  • 4 x SATA 6Gb/s connectors.
  • RAID 0, RAID 1, and RAID 10 support for both NVMe SSD and SATA storage devices.
• USB (Rear Panel Connectors):
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support (from CPU).
  • 1 x USB 3.2 Gen 2 Type-A port (red) (from CPU).
  • 3 x USB 3.2 Gen 1 ports (1 from CPU, 2 from Chipset).
  • 3 x USB 2.0/1.1 ports (from CPU + USB 2.0 Hub).
• USB (Internal I/O Connectors):
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support (from Chipset).
  • 1 x USB 3.2 Gen 1 header (2 ports) (from Chipset).
  • 2 x USB 2.0/1.1 headers (4 ports) (from Chipset).
• Internal I/O Connectors (Additional):
  • 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector.
  • Multiple Fan/Pump Headers (1 x CPU, 1 x CPU/Water Cooling Pump, 2 x System Fan, 1 x System Fan/Water Cooling Pump).
  • 2 x Addressable LED Strip Headers, 2 x RGB LED Strip Headers.
  • 1 x Front panel header, 1 x Front panel audio header.
  • 1 x Reset Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper.
• Back Panel Connectors (Additional):
  • 2 x SMA antenna connectors (2T2R).
  • 1 x Q-Flash Plus button.
  • 1 x RJ-45 port.
  • 3 x audio jacks.
• Form Factor:
  • ATX Form Factor (30.5cm x 24.4cm).

💰 promotional price

• The price in Egypt:
• The price of the GIGABYTE B650 GAMING X AX V2 motherboard in the Egyptian market ranges approximately between 9,600 Egyptian pounds and 13,400 Egyptian pounds (the price may vary depending on the store, shipping availability, and taxes, and it is always recommended to check the current price with authorized distributors).
• Price globally:
• The global price of the motherboard is approximately 175 to 200 US dollars (this price may vary based on exchange rates, local taxes, and international shipping costs).
