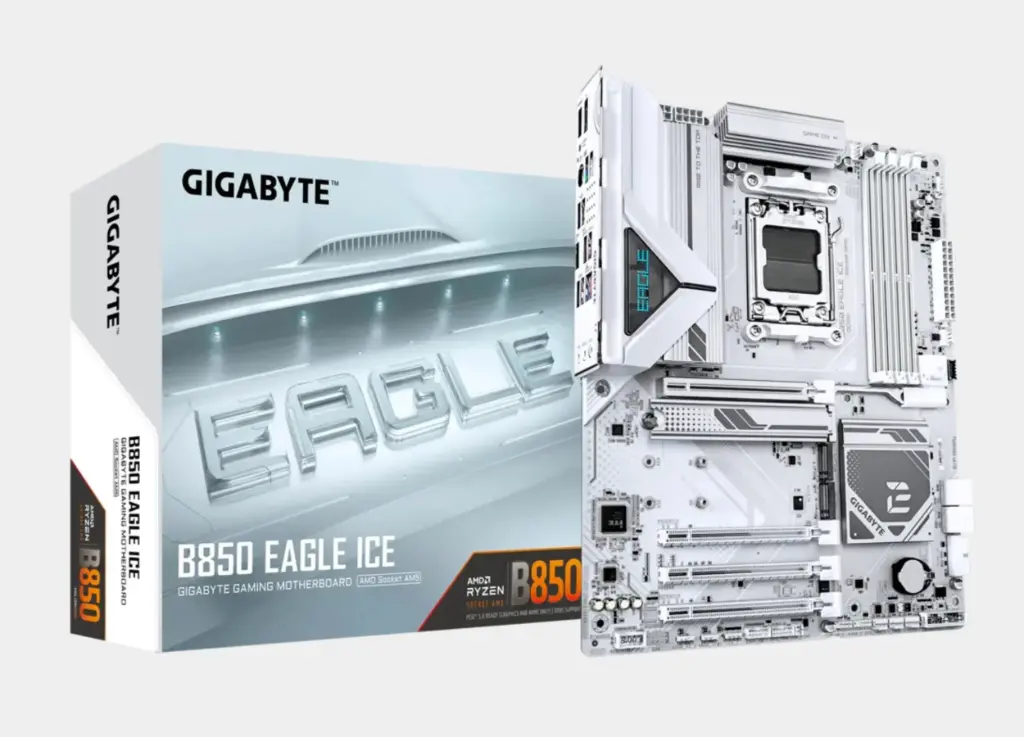

GIGABYTE B850 EAGLE ICE

GIGABYTE B850 EAGLE ICE

In the world of gaming that demands speed and precision, where victory hinges on every millimeter of performance and every pulse of speed, the GIGABYTE B850 EAGLE ICE  motherboard emerges as a new force on the scene. It is not just a motherboard; it is the next generation of power, designed to accommodate the latest Ryzen processors, integrating cutting-edge memory, storage, and connectivity technologies to provide you with an unparalleled gaming experience and ensure your dominance in every battle. It also features a unique "ICE" icy white design that gives your setup a modern and sleek appearance that stands out from the ordinary.

Features of the GIGABYTE B850 EAGLE ICE  Motherboard

Detailed description and features:

The GIGABYTE B850 EAGLE ICE  motherboard represents an excellent choice for users looking to build a complete gaming system with a distinctive design, as it offers a range of advanced features thanks to the new B850 chipset.

1. Superior gaming performance:

• Support for AMD Ryzen™ Processors: The motherboard supports AMD Ryzen™ processors from the 9000, 8000, and 7000 series with the new AM5 socket.
• Support for ultra-fast DDR5 memory: It features 4 DIMM slots that support DDR5 memory with a capacity of up to 256GB, with speeds of up to 8200MHz (OC), ensuring exceptional performance.
• Powerful Power System: It features a robust digital power system with 8+2+2 phases (Twin Digital VRM) to ensure stable power delivery to the processor even under load.
• Comprehensive thermal design: It features an integrated thermal design with large heat sinks to ensure effective cooling for all components, including the VRM and M.2 slots.

2. Advanced Connectivity and Storage Solutions:

• High-speed wireless connectivity: The board comes equipped with an integrated Wi-Fi 6E (802.11ax) and Bluetooth 5.3 module, ensuring you have fast and reliable wireless connectivity in the 6 GHz range.
• Strong wired network: Equipped with a 2.5 Gigabit/second LAN port.
• Multiple storage options: The board offers two M.2 slots, one supporting PCIe 5.0 x4 speeds, and the other supporting PCIe 4.0 x4 speeds, in addition to 4 SATA 6Gb/s ports.
• PCIe 5.0 Interface: Features PCIe 5.0 x16 support on the main graphics card slot with a metal shield, providing you with ultra-fast data transfer speeds and making it ready for the latest graphics cards.

3. Unique design and custom features:

• Aesthetic Appearance: The panel comes in an ICE design in white, giving it a distinctive and unique aesthetic look.
• Ease of assembly: Features such as PCIe EZ-Latch and M.2 EZ-Latch are included to facilitate the installation and removal of components without the need for tools.
• RGB Lighting: Thanks to RGB FUSION technology, you can customize the lighting of the motherboard and compatible accessories to create a unique gaming atmosphere.

In conclusion, the GIGABYTE B850 EAGLE ICE  motherboard is the perfect choice for every serious gamer looking for unparalleled performance and a unique design. It skillfully combines powerful performance thanks to support for DDR5 and PCIe 5.0, flexibility in multiple storage options, along with a sturdy design and elegant white color that ensures unmatched stability, making it the solid foundation for your next adventure in the world of computing and gaming.

Specifications of the GIGABYTE B850 EAGLE ICE  Motherboard

GIGABYTE B850 EAGLE ICE Specifications

• 📝 B850 EAGLE ICE - Key Specifications
• • Product Overview:
    • Model: B850 EAGLE ICE
    • Key Features: Specification, Support, News & Awards, Gallery, Buy
    • Form Factor: ATX Form Factor; 30.5cm x 24.4cm.

    • Operating System Support: Support for Windows 11 64-bit.
  • CPU & Chipset:
    • CPU Socket: AMD Socket AM5.

    • Supported Processors: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors.
    • Chipset: AMD B850
  • Memory (RAM):
    • Type & Speed: Support for DDR5 memory modules up to 8200(O.C) MT/s (and down to 4400 MT/s).
    • Capacity: 4 x DDR5 DIMM sockets, supporting up to 256 GB (64 GB single DIMM capacity).

    • Architecture: Dual channel memory architecture.
    • Features: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, AMD EXtended Profiles for Overclocking (AMD EXPO™), and Extreme Memory Profile (XMP).

  • Onboard Graphics (Integrated):
    • Processor: Integrated Graphics Processor with AMD Radeon™ Graphics support.
    • DisplayPort: 1 x DisplayPort (1.4, HDR) supporting max resolution of 3840x2160@144 Hz.

    • HDMI: 1 x HDMI port (2.1, HDCP 2.3, HDR) supporting max resolution of 4096x2160@60 Hz.

  • Audio & Networking (LAN):
    • Audio: Realtek® Audio CODEC, High Definition Audio, supporting 2/4/5.1/7.1-channel configuration.

    • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    • CPU Integrated: 1 x PCI Express x16 slot (PCIEX16).
      • Supports PCIe 5.0 x16 (Ryzen™ 9000/7000), PCIe 4.0 x8 (Ryzen™ 8000-Phoenix 1), or PCIe 4.0 x4 (Ryzen™ 8000-Phoenix 2).

    • Chipset Integrated:
      • 1 x PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4).

      • 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2).
      • Note: PCIEX1_1 and PCIEX1_2 share bandwidth with SATA3 0/1.
  • Storage Interface
    • M.2 Connectors (CPU):
      • 1 x M2A_CPU (Socket 3, type 22110/2280): Supports PCIe 5.0 x4/x2 (Ryzen™ 9000/7000) or PCIe 4.0 x4/x2 (Ryzen™ 8000).
      • 1 x M2B_CPU (Socket 3, type 22110/2280): Supports PCIe 4.0 x4/x2 (Ryzen™ 9000/7000/8000-Phoenix 1) or PCIe 4.0 x2 (Ryzen™ 8000-Phoenix 2).
    • M.2 Connector (Chipset):
      • 1 x M2C_SB (Socket 3, type 22110/2280): Supports PCIe 4.0 x2 SSDs.
    • SATA: 4 x SATA 6Gb/s connectors.
    • RAID Support: RAID 0, 1, 5 (for NVMe with Ryzen™ 9000 only), 10 for NVMe; RAID 0, 1, 10 for SATA.

  • USB Ports:
    • CPU:
      • 1 x USB Type-C® on back panel (USB 3.2 Gen 1).

      • 2 x USB 3.2 Gen 2 Type-A ports (red) on back panel.

    • Chipset:
      • 1 x USB Type-C® via internal header (USB 3.2 Gen 1).

      • 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header).

      • 4 x USB 2.0/1.1 ports on back panel.

    • Chipset + USB 2.0 Hub:
      • 4 x USB 2.0/1.1 ports via internal headers.

  • Internal I/O Connectors (Highlights):
    • Power: 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V.
    • Fans/Cooling: 1 x CPU fan, 1 x CPU fan/water cooling pump, 1 x system fan, 1 x system fan/water cooling pump.
    • Lighting: 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header.
    • Storage: 3 x M.2 Socket 3, 4 x SATA 6Gb/s.

    • USB Headers: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1.

    • Others: Front panel header, Front panel audio, Trusted Platform Module header, Reset button/jumper, Clear CMOS jumper.

  • Back Panel Connectors
    • 1 x DisplayPort, 1 x HDMI port.

    • 1 x Q-Flash Plus button.

    • 1 x PS/2 keyboard/mouse port.

    • LAN: 1 x RJ-45 port.

    • USB: 4 x USB 2.0/1.1, 2 x USB 3.2 Gen 2 Type-A (red), 1 x USB Type-C® (USB 3.2 Gen 1), 2 x USB 3.2 Gen 1.

    • Audio: 3 x audio jacks.
  • Monitoring, BIOS & Unique Features:
    • I/O Controller: iTE® I/O Controller Chip.
    • H/W Monitoring: Voltage, temperature, fan speed/fail, water cooling flow rate detection, and fan speed control.
    • BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
    • Unique Features: Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup.

    • Bundled Software: Norton® Internet Security (OEM version), LAN bandwidth management software.
