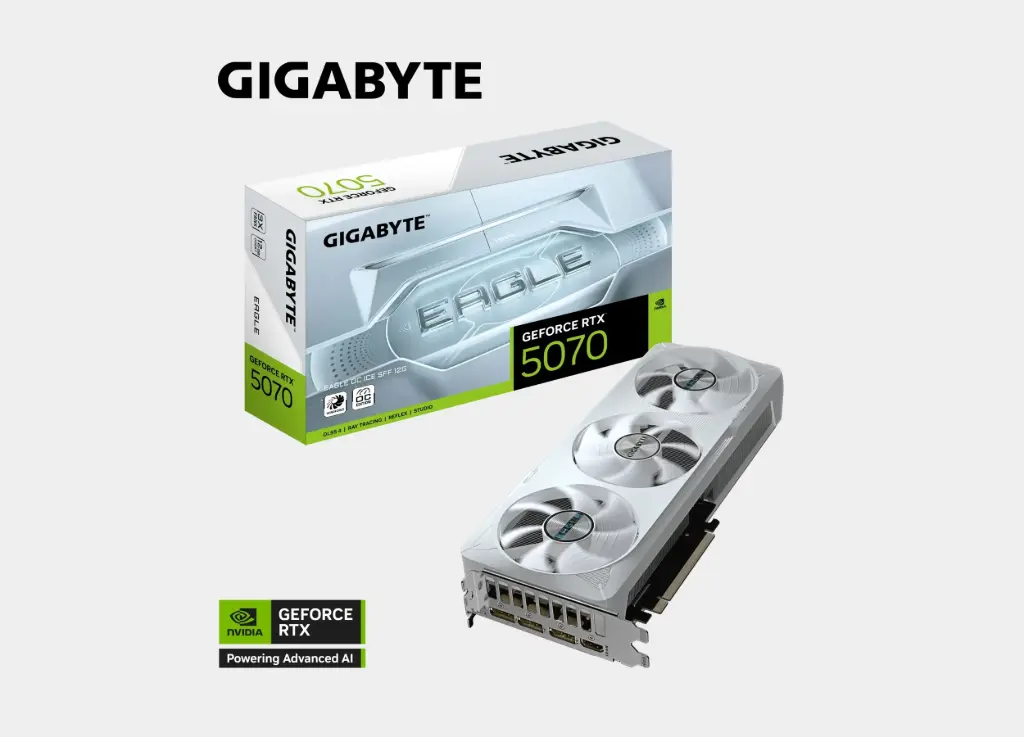

GIGABYTE GeForce RTX™ 5070 EAGLE OC ICE SFF 12G

GIGABYTE GeForce RTX™ 5070 EAGLE OC ICE SFF 12G

GIGABYTE RTX 5070 EAGLE OC ICE SFF 12G - High performance in a small form factor - Custom design for maximum space utilization.

In the world of graphics performance, size is no longer a measure! The RTX 5070 EAGLE OC ICE SFF 12G gives you everything you need in terms of power, cooling, and visual harmony within a compact design that fits small cases without sacrificing efficiency or beauty.

Features of the GIGABYTE GeForce RTX™ 5070 EAGLE OC ICE SFF 12G Graphics Card

Ada Lovelace Architecture – Smart Efficiency, Enhanced Power:

• 7680 CUDA cores deliver high performance in gaming, design, and heavy applications
• 12GB GDDR6X memory on a 192-Bit bus
• Support for DLSS 3.5 for AI frame generation and performance enhancement without sacrificing accuracy
• Ray Tracing technology for realistic graphics and an amazing visual experience
• Ideal for 1440p and 4K resolutions, with high energy efficiency

WINDFORCE dual cooling in SFF size:

• Dual fan design with reverse rotation for effective airflow
• Direct contact copper heat pipes with the graphics processor
• Fan Stop feature to reduce noise during idle
• Improved cooling system for consistent performance in tight spaces

White ICE design – elegant, pure, functional:

• Shiny white cover that reflects a clean and modern appearance
• Transparent details signed by EAGLE give the assembly a special visual touch
• Metal back panel to enhance rigidity and improve heat distribution
• Ideal for white SFF builds or minimalist-themed systems

Modern specifications, comprehensive compatibility:

• PCIe 4.0 x16 interface
• 3 DisplayPort 1.4a ports + 1 HDMI 2.1a port
• Support for up to 8K resolution and high refresh rates
• 16-Pin Power Connector (12VHPWR)
• Power consumption of up to 245 watts
• Recommended power supply: 750 watts

GIGABYTE RTX 5070 EAGLE OC ICE SFF 12G is the perfect card for those looking for powerful performance in a compact design, with a clean aesthetic and professional cooling.

Whether you're a gamer or a content creator, this card delivers everything you need with silent efficiency and an unforgettable look!

Specifications of the GIGABYTE GeForce RTX™ 5070 EAGLE OC ICE SFF 12G Graphics Card

Graphics Processing

• GeForce RTX™ 5070

Core Clock

• 2587 MHz (Reference card : 2512 MHz)

CUDA® Cores

• 6144

Memory Clock

• 28 Gbps

Memory Size

• 12 GB

Memory Type

• GDDR7

Memory Bus

• 192 bit

Card Bus

• PCI-E 5.0

Digital max resolution

• 7680x4320

Multi-view

• 4

Card size

• L=290 W=120 H=50 mm

PCB Form

• ATX

DirectX

• DirectX 12 API

OpenGL

• 4.6

Recommended PSU

• 750W

Power Connectors

• 16 Pin*1

Output

• DisplayPort 2.1b *3
• HDMI 2.1b *1

Accessories

• Quick guide

• 1x 12V-2x6 to 2x PCIe 8pin adapter
