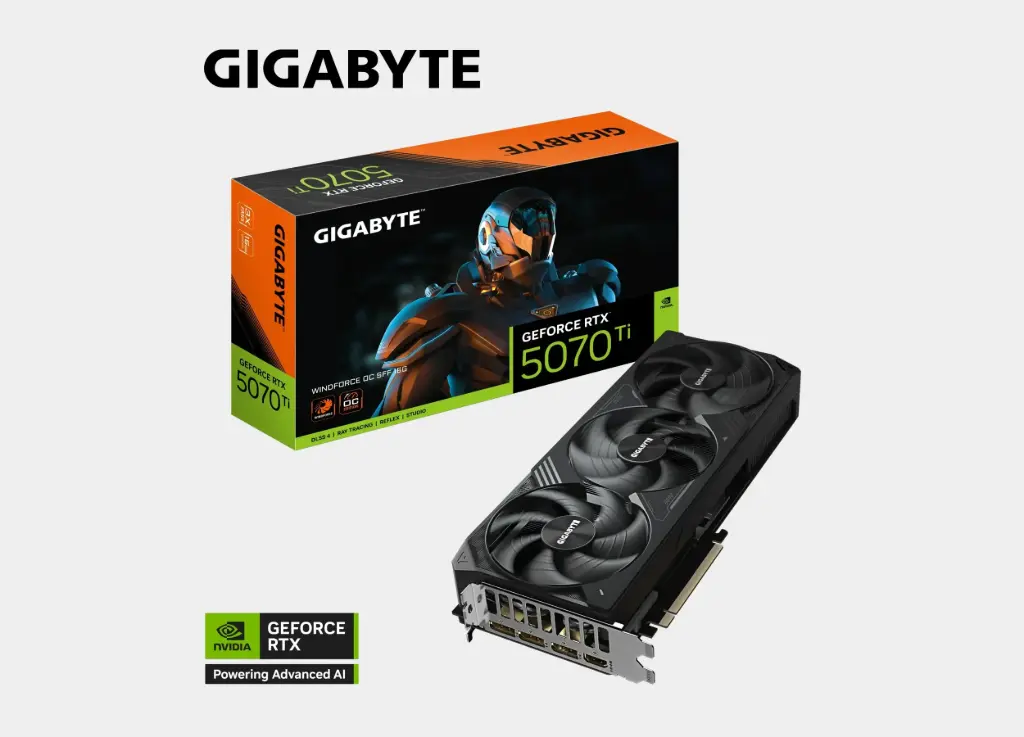

GIGABYTE GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G

GIGABYTE GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G

GIGABYTE RTX 5070 Ti WINDFORCE OC SFF 16G - High-end performance... in the smallest space.

A graphics card designed for those who demand powerful graphical performance, but in a compact design that fits into integrated SFF cases. The GIGABYTE RTX 5070 Ti WINDFORCE OC SFF 16G gives you the power of the new generation of NVIDIA without sacrificing space, cooling, or stability.

Features of the GIGABYTE GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G Graphics Card

Ada Lovelace's performance without compromises:

• 8448 CUDA cores for ultra graphics processing
• 16GB GDDR6X memory with high speed and 256-Bit bus
• Support for DLSS 3.5 for AI frame acceleration
• Enhanced Ray Tracing for Realistic Lighting and Detailed Visuals
• Optimal performance at 2K and 4K resolutions with full stability under pressure

WINDFORCE cooling in an integrated mold:

• Dual-fan cooling system with reverse rotation technology
• Heat pipes in direct contact with the graphics processor core
• Fan Stop feature for silent operation during idle
• Effective design ensures stable temperatures under all conditions

Custom design for SFF cases:

• Compact in size, but it delivers the same power as high-end cards.
• Designed to fit small cases without compromising cooling efficiency or performance quality

Advanced technologies, comprehensive support:

• PCIe 4.0 x16 slot
• 3x DisplayPort 1.4a + 1x HDMI 2.1a
• Support for resolutions up to 8K
• 16-Pin Power Connector (12VHPWR)
• Power consumption of up to 285 watts
• Recommended power supply: 750 watts

GIGABYTE RTX 5070 Ti WINDFORCE OC SFF 16G is the perfect choice for high-performance builds in small cases because it is the card that will provide you with power, efficiency, and smart cooling in a design that doesn't require space... but gives you everything you need to be a PRO!

Specifications of the GIGABYTE GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G Graphics Card

Graphics Processing

• GeForce RTX™ 5070 Ti

Core Clock

• 2497 MHz (Reference: 2452 MHz)

CUDA® Cores

• 8960

Memory Clock

• 28 Gbps

Memory Size

• 16GB

Memory Type

• GDDR7

Memory Bus

• 256 bit

Card Bus

• PCI-E 5.0

Digital max resolution

• 7680 x 4320

Multi-view

• 4

Card size

• L=304 W=126 H=50 mm

PCB Form

• ATX

DirectX

• DirectX 12 API

OpenGL

• 4.6

Recommended PSU

• 750W

Power Connectors

• 16 pin*1

Output

• DisplayPort 2.1b x3
• HDMI 2.1b x1

Accessories

• VGA manual
• 1x 12V-2x6 to 2x PCIe 8pin adapter
• Versatile VGA holder

• Versatile VGA holder manual
