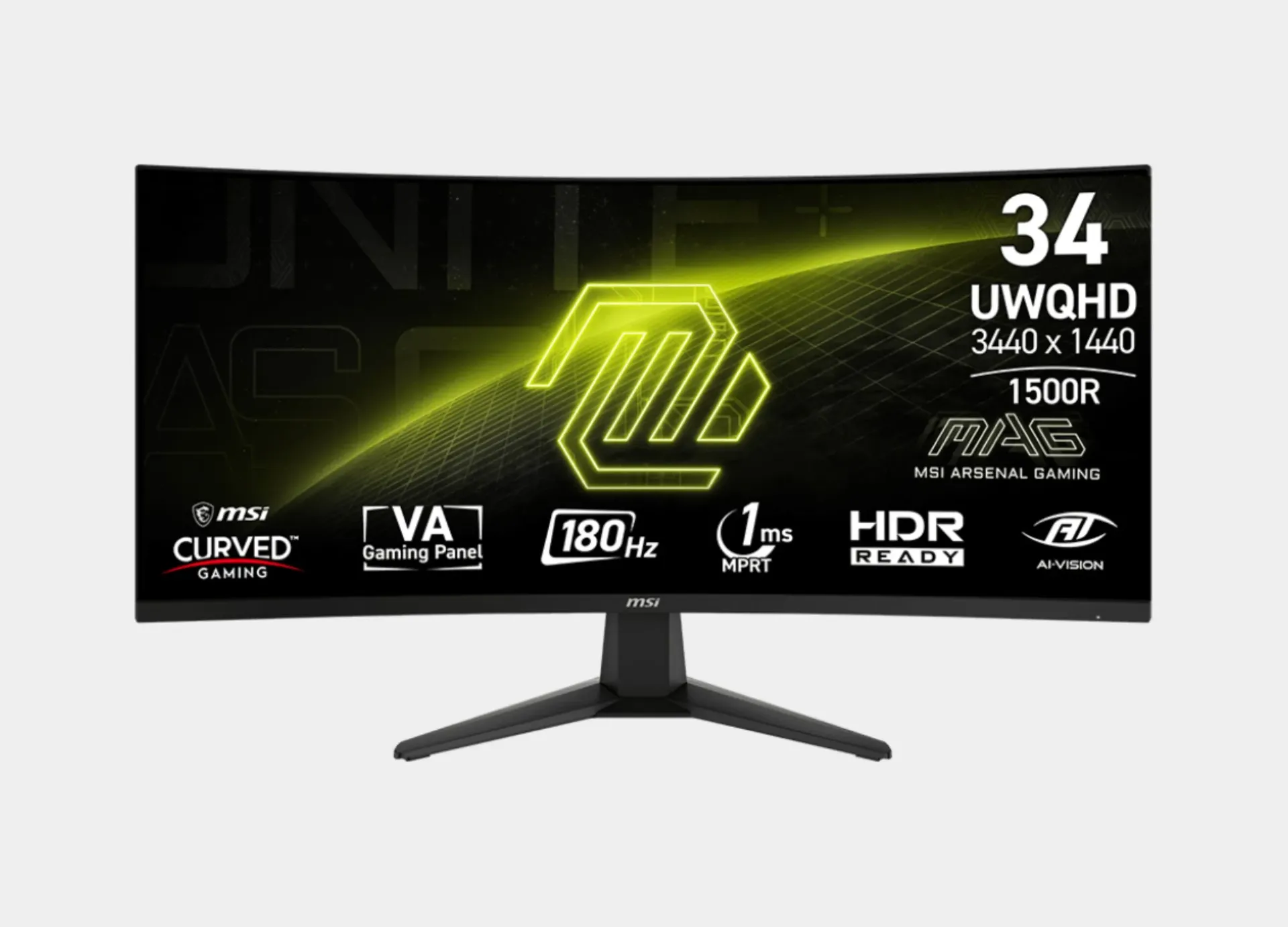

MSI MAG 346CQ " UWQHD 34-inch 180Hz Gaming Monitor

MSI MAG 346CQ " UWQHD 34-inch 180Hz Gaming Monitor

Comprehensive review and specifications of the MSI MAG 346CQ: panoramic immersion and unmatched speed

TheMSI MAG 346CQis designed to meet the ambitions of gamers and content creators seeking an immersive visual experience. With its ultra-wide design and advanced technologies, this monitor is a powerful choice that combines detail precision and performance speed. Here’s a detailed overview of everything this monitor offers:

1. Visual immersion and panoramic design

• Ultra-Wide design: measuring 34 inches with dimensions of 21:9, this monitor provides you with a significantly wider field of view compared to traditional screens, giving you an advantage in gaming and multitasking.

• 1500R Curvature: The screen is designed with a curvature that matches the human eye's field of view, reducing eye strain and enhancing the feeling of immersion in games or content.

• Ultra UWQHD Precision: With a resolution of 3440 × 1440, you will get extremely detailed visuals and sharp images thanks to the pixel density, making it ideal for open-world gaming and movie watching.

2. Performance dedicated to competitive gaming

• 180Hz refresh rate: Enjoy exceptional motion smoothness. The high refresh rate eliminates tearing and gives you an edge in shooting and racing games (Note: a DisplayPort cable is required to achieve 180Hz).

• Response time 1ms (MPRT): Eliminate motion blur (Ghosting) and ensure instant response to every command, which is a key standard for professional gamers.

• AMD FreeSync™ Premium technology: This technology ensures that the screen's refresh rate is synchronized with the graphics card to prevent screen tearing and maintain smooth performance even when frame rates fluctuate.

3. Stunning Color Quality and Contrast

• VA panel with high contrast: VA panels are known for their ability to produce deep black colors, and this screen has a contrast ratio of 4000:1, which clearly displays details in dark scenes (Shadows).

• Rich colors: The screen supports 1.07 billion colors (10 bits), with excellent color coverage (100% sRGB and 75% DCI-P3), making it suitable for design work and content creation.

• HDR Ready Support: To enhance the dynamic range of the image and highlight details in bright and dark areas.

4. Additional Features and Compatibility

• Console Mode:The screen supports 1440p resolution and refresh rates up to 120Hz for consoles, with VRR support for PS5 and Xbox.

• Multitasking (PIP/PBP):Thanks to the wide space, you can display content from two different sources at the same time (Picture-in-Picture or Picture-by-Picture).

• Eye Protection:It comes with anAnti-glarecoating to reduce reflections for eye comfort during long gaming sessions.

Important Note: To achieve the maximum performance of the screen (3440 × 1440 resolution at180Hz), aDisplayPortcable must be used. When using anHDMIcable, the maximum refresh rate will be100Hzat the same resolution.

Specifications of the MSI MAG 346CQ " UWQHD 34-inch 180Hz Gaming Monitor

Panel Size34"

Active Display Area (mm)797.22 (H) x 333.72 (V)

CurvatureCurve 1500R

Panel TypeVA

Panel Resolution3440 x 1440 (UWQHD)

Pixel Pitch (H x V)0.23175 (H) x 0.23175 (V)

Aspect Ratio21:9

Brightness (nits)SDR: 300 cd/m²

Contrast Ratio4000:1

DCR100000000:1

Signal Frequency71.040~268.200 KHz (H) / 48~180 Hz (V)

ACTIVATED RANGE48~180Hz

Refresh Rate180Hz

Response time1ms (MPRT)

DYNAMIC REFRESH RATE TECHNOLOGYAMD FreeSync™ Premium

HDR SupportHDR Ready

Video ports2x HDMI™ 2.0b (UWQHD@180Hz) 1x DisplayPort 1.4a (HBR3)

Audio ports1x Headphone-out

Viewing Angle178° (H) / 178° (V)

Adobe RGB / DCI-P3 / sRGB80% / 75% / 100% (CIE1976 Standard)

Surface TreatmentAnti-glare

Display Colors1.07b, 10 bits (8 bits + FRC)

Console ModeSupported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz 1440p: 60Hz and 120Hz HDMI™ CEC: Supported VRR: PS5 and Xbox Supported

Frameless DesignYes

Power TypeInternal Power Board

Power Input100~240V, 50/60Hz

Adjustment (Tilt)-5°~20°

Kensington LockYes

VESA Mounting100 x 100 mm

Dimension with Stand (W x D x H)808 x 269.49 x 458.82 mm (31.8 x 10.6 x 18 inch)

Dimension without Stand (W x D x H)808 x 111.93 x 363.92 mm (31.8 x 4.4 x 14.3 inch)

Weight (NW / GW)6.3 kg (13.8 lbs) / 8.52 kg (18.7 lbs)

Carton Dimension (W X D X H)920 x 170 x 463 mm (36.2 x 6.69 x 18.2 inch)

Accessories1x DP Cable (1.4a) 1x Power Cord (C13) 1x Quick Guide

NoteHDMI™: 3440 x 1440 (Up to 100Hz) DisplayPort: 3440 x 1440 (Up to 180Hz) Support: HDMI™ CEC, PIP/PBP; Not Supported: KVM
