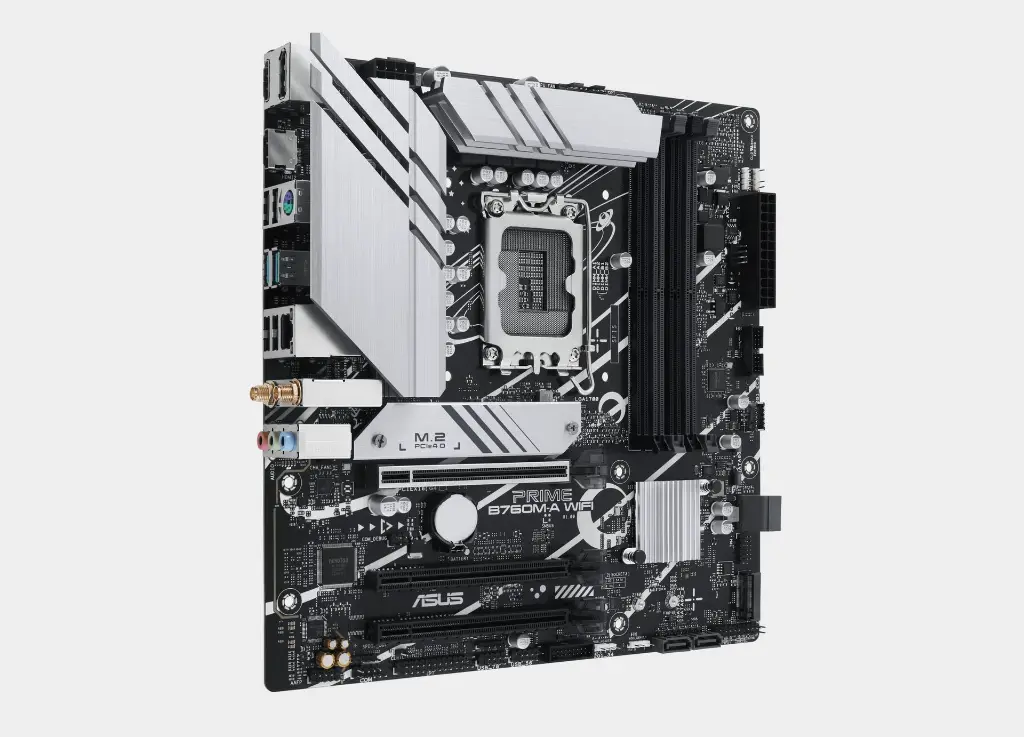

Asus PRIME B760M-A WIFI

ASUS PRIME B760M-A WIFI

Get ready for the future of performance with the ASUS PRIME B760M-A WIFI motherboard, specifically designed to meet the demands of AI-powered computers.

Features of the motherboard Asus PRIME B760M-A WIFI

Unleash the power of the 14th generation Intel® processors!

This motherboard is the perfect solution for professionals and enthusiasts looking for unparalleled performance and absolute stability. With a robust power design, comprehensive cooling solutions, and smart tuning options, the PRIME B760M-A WIFI gives you everything you need to unleash the potential of Intel® Core™ processors from the fourteenth, thirteenth, and twelfth generations. Whether you're building a new system or upgrading your current one, this motherboard is your gateway to a high-speed computing experience, thanks to its superior connectivity, support for advanced memory technologies, and customizable Aura Sync RGB lighting.

Key Features:

• AI-Ready: Specifically designed for the future of AI computing, with the capability and connectivity required for applications that demand high performance.
• LGA 1700 sockets from Intel®: ready to support Intel® processors from the fourteenth, thirteenth, and twelfth generations.
• High-speed connectivity: supports PCIe 4.0, features two M.2 slots, a Realtek 2.5Gb Ethernet port, Wi-Fi 6, a rear USB 3.2 Gen 2 port, and a front USB 3.2 Gen 1 Type-C® port.
• Comprehensive cooling: Equipped with heat sinks for VRM units, a heat sink for M.2 slots, a heat sink for the PCH chip, hybrid fan headers, and Fan Xpert 2+ technology to maintain optimal temperatures.
• Exclusive Memory Technology: Features ASUS Enhanced Memory Profile II and ASUS OptiMem II to ensure optimal memory performance.
• Aura Sync RGB Lighting: Second-generation addressable headers and Aura RGB headers for connecting LED light strips, which can be easily synchronized with any device that supports Aura Sync.

Specifications of the motherboard Asus PRIME B760M-A WIFI

Full specifications:

Model PRIME B760M-A WIFI

CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer towww.asus.comfor CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel® B760 Chipset

Memory 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visithttps://www.asus.com/support/
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics 1 x DisplayPort** 2 x HDMI™ ports*** * Graphics specifications may vary between CPU types. Please refer towww.intel.comfor any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI™ 2.1.

Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) Note: To ensure compatibility of the device installed, please refer tohttps://www.asus.com/support/for the list of supported peripherals.

Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2

• The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

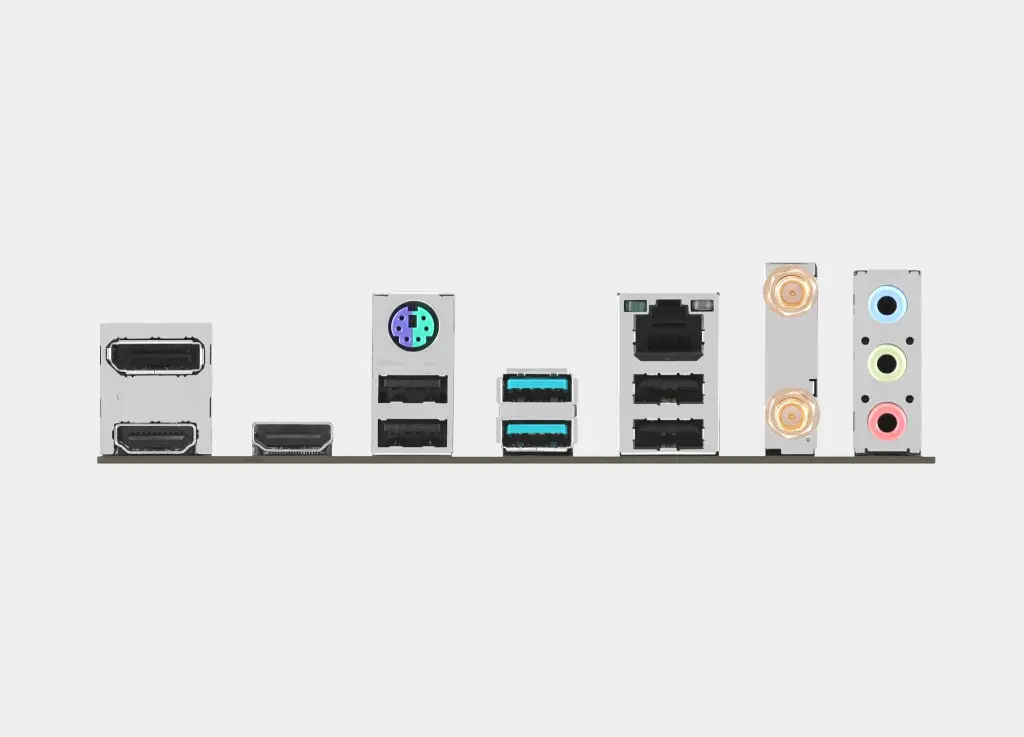

Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI™ ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design ASUS EZ DIY
• ProCool Aura Sync
• Aura RGB header
• Addressable Gen 2 headers

Software Features ASUS Exclusive Software

• Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving)
• AI Suite 3 (Digi+ VRM, PC Cleaner)
• ASUS CPU-Z
• MyAsus
• Norton Deluxe (60 Days Free Trial)
• WinRAR UEFI BIOS
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL by PME, PXE

Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide

Operating System Windows® 11, Windows® 10 64-bit

Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Price:

• The price in Egypt: starts from 6,500 Egyptian pounds.
• The price abroad: starts from 180 US dollars.
