Model
Z890M GAMING X
Socket
LGA 1851
Memory
4x DDR5
M.2 Slots
(3) Slots

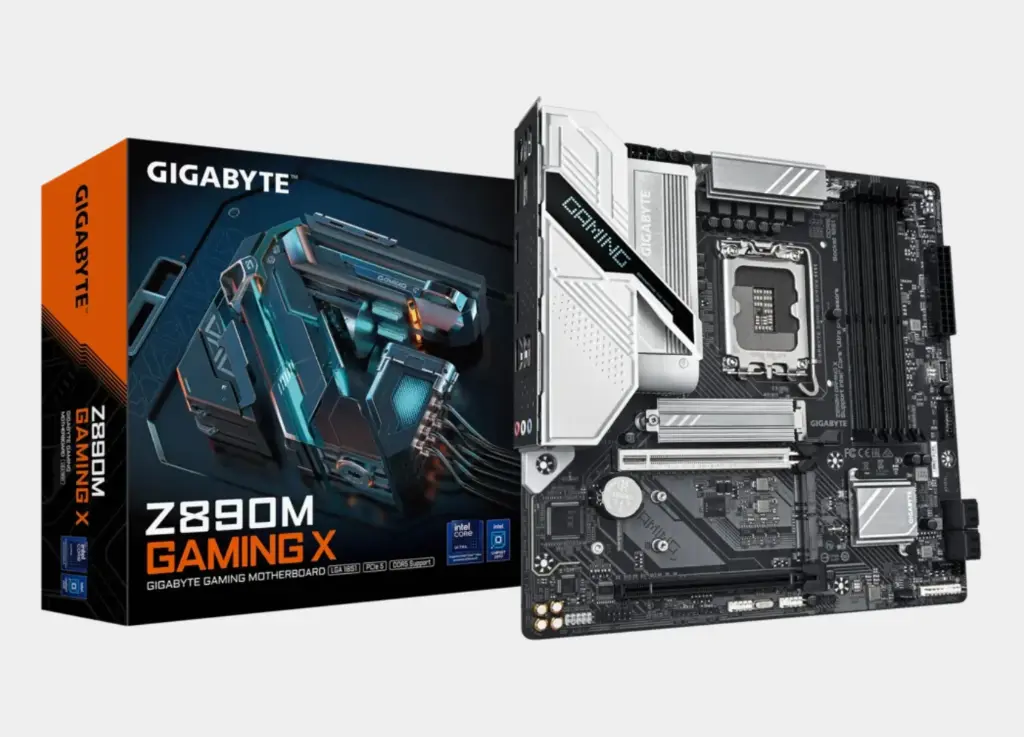

GIGABYTE Z890M GAMING X 1.0
If you're looking for unmatched power in a compact form factor, the GIGABYTE Z890M GAMING X motherboard features a Micro ATX design that provides you with the Intel Z890 chipset capable of overclocking Intel Core Ultra (Series 2) processors and reaching insane DDR5 memory speeds of up to 9066 MT/s. It is fully equipped to meet the demands of the next generation of gaming, thanks to PCIe 5.0 x16 support and ultra-fast storage slots, ensuring top-tier performance even in the smallest systems.
Features of the GIGABYTE Z890M GAMING X 1.0 Motherboard
Design and Performance: The GIGABYTE Z890M GAMING X motherboard comes in a compact Micro ATX form factor, making it ideal for building powerful and space-saving gaming systems. It is designed to work with Intel Core Ultra processors (Series 2) on the LGA 1851 socket and utilizes the advanced Intel Z890 chipset, which provides extensive overclocking capabilities thanks to its hybrid digital power design (8+1+2 phases).
Super Memory (RAM Speed): The motherboard has 4 DIMM slots of DDR5 type and supports dual-channel technology, with a maximum capacity of up to 256 GB. As specified, this motherboard opens new horizons for memory overclocking, supporting frequencies of up to 9066 MT/s (via overclocking) to ensure the fastest response and best performance in gaming and data-intensive applications.
Storage and Expansion: The board is distinguished by its full support for the latest expansion standards:
- Main graphics slot: 1 × PCIe 5.0 x16 to run the latest graphics cards at maximum speed.
- Storage: 3 × M.2 connectors, including one ultra-fast connector that supports PCIe 5.0 x4, and two connectors that support PCIe 4.0 x4/x2. In addition to 4 standard SATA ports.
Connection and Ports:
- Wired Network: Realtek 2.5GbE LAN chip for a fast and reliable Ethernet connection.
- Video outputs: High-definition video outputs include 1 x HDMI 2.1 and 2 x DisplayPort 2.1.
- Additional ports: The board supports connectors for adding optional Thunderbolt cards.
The GIGABYTE Z890M GAMING X motherboard is the perfect choice for compact gaming system builders, offering the overclocking power of the Z890 chip, PCIe 5.0 capabilities, and DDR5 memory at a speed of 9066 MT/s in a space-saving design.
Specifications of the GIGABYTE Z890M GAMING X 1.0 Motherboard
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
Intel® Z890 Express Chipset
Memory
Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Supports HDMI 2.1 version and HDCP 2.3.
Supports native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
Supports DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
- Chipset + 2 USB 2.0 Hubs
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
1 x 256 Mbit flash
Uses licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Specifications
| MotherBoard | |
|---|---|
| Socket | LGA1851 |
| Memory Type | DDR5 |
| Internal I/O Connectors | Micro ATX |
| LAN | Realtek® 2.5GbE |
| LAN Speed | 2.5GbE |
| M.2 Slot1 | PCLe 5.0 |
| M.2 Slot2 | PCLe 4.0 |
| M.2 Slot3 | PCLe 4.0 |
| M.2 Slot4 | N/A |
| M.2 Slot5 | N/A |
| USB | USB 3.2 |
| Information | |
|---|---|
| Brand | Gigabyte |
| Warranty | Three Years |
