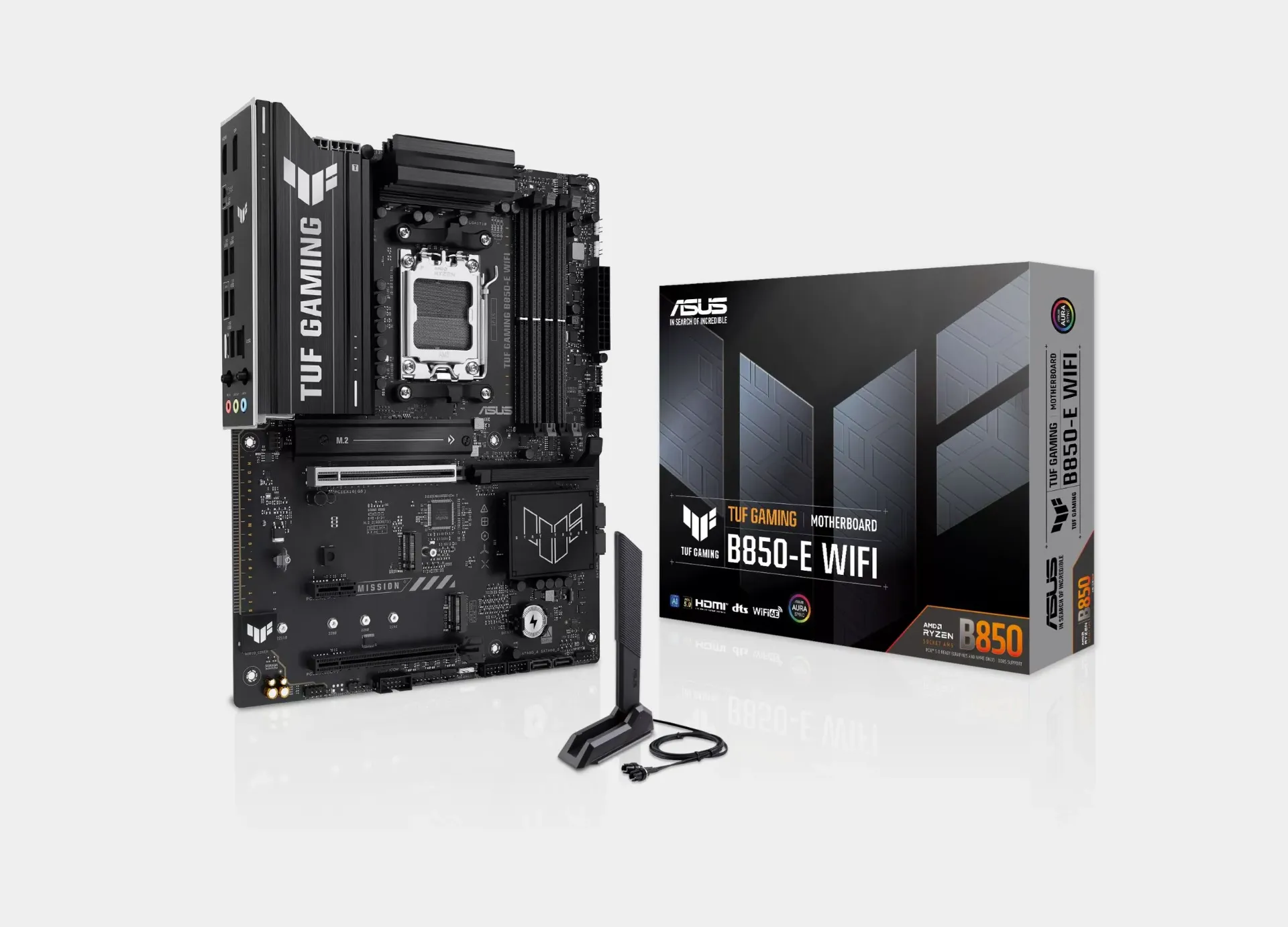

Asus TUF GAMING B850-E WIFI

Asus TUF GAMING B850-E WIFI

A detailed review of the features of the Asus TUF GAMING B850-E WIFI motherboard

This motherboard is an advanced choice for building high-performance systems, combining the latest technologies with military-grade durability. Here are the details of its features organized by components:

Processors and Chipset

• Socket:AMD Socket AM5.

• Supported processors:Supports the latest AMD Ryzen™ desktop processors from the 9000, 8000, and 7000 series.

• Chipset:Based on the high-performance AMD B850 chipset.

Random Access Memory (RAM)

• Type and capacity:4 DDR5 slots, supporting a massive total capacity of up to 256GB.

• Speed:Supports extreme overclocking (OC) speeds of up to 8000+ MT/s (with 7000/8000/9000 series processors).

• Supported technologies:

  • Dual Channel memory architecture.

  • Supports AMD EXPO™ technology for overclocking.

  • Supports ASUS Enhanced Memory Profiles (AEMP).

  • Supports both ECC and Non-ECC memory (with On-Die ECC technology).

Graphics and Display Ports

• DisplayPort:Version 1.4, supports resolutions up to 8K at 30Hz.

• HDMI™ Port:Version 2.1, supports 4K resolution at 60Hz.

Expansion Slots

• Primary graphics card slot:PCIe 5.0 x16 slot provides maximum data transfer speed for modern cards (operates in x16 mode with 9000 and 7000 processors, and in x8/x4 mode with 8000 series).

• Additional slots:PCIe 4.0 x16 slot (operates in x1 mode) and PCIe 4.0 x1 slot for connecting additional expansion cards.

Storage Solutions

• Fast M.2 slots (3 slots):

  • First slot (M.2_1):Ultra-fast supporting PCIe 5.0 x4 (for 9000 and 7000 processors).

  • Second slot (M.2_2):Supports PCIe 4.0 x4.

  • Third slot (M.2_3):Connected to the chipset and supports PCIe 4.0 x4 with compatibility for various sizes (up to 22110).

• SATA Ports:4 SATA 6Gb/s ports for traditional hard drives.

• Storage array technology:Support for AMD RAIDXpert2 for (RAID 0/1/5/10) configurations to ensure data speed and security.

Networking and Wireless Connectivity

• Wired Network:Realtek 2.5Gb Ethernet port equipped with TUF LANGuard protection technology.

• Wireless Network:Fast and stable Wi-Fi 6E (802.11ax) card, supporting 2.4, 5, and 6 GHz frequencies.

• Bluetooth:Latest Bluetooth® v5.3 version for efficient peripheral connectivity.

USB Ports and Connections

• Rear Panel (8 ports):

  • Two 10Gbps ports (one Type-A and one Type-C®).

  • 3 ports at 5Gbps (Type-A).

  • 3 USB 2.0 ports (Type-A).

• Front Connections (supports 7 additional ports):

  • SuperSpeed 20Gbps port (supports Type-C®) for power up to 5V/3A.

  • Additional connections to support 5Gbps and 2.0 ports for the computer case interface.

Audio

• Audio Processor:High-definition Realtek 7.1 Surround Sound.

• Quality:Supports playback at 24-Bit/192 kHz.

• Additional Features:Advanced audio shielding, premium audio capacitors, and dedicated PCB layers to ensure sound purity and channel distribution.

Durability and Protection Features (TUF Protection)

• Precise digital power design (DIGI+ VRM with DrMOS).

• Protection from electrostatic discharge (ESD Guards) and overvoltage.

• Reinforcement of critical ports (SafeSlot and SafeDIMM).

• I/O shield made of stainless steel and pre-mounted.

Assembly facilitation technologies (ASUS Q-Design & EZ DIY)

• PCIe Slot Q-Release:Dedicated button for easy graphics card removal.

• M.2 Q-Latch:Installation and mounting of M.2 drives without the need for screws.

• Q-LED:Integrated LED indicators (in different colors) for diagnosing CPU, memory, graphics card, or boot drive failures quickly.

• BIOS FlashBack™:Button for easily and securely updating the BIOS via a flash memory.

• Cooling hobbies (Q-Antenna):Unique antenna design to improve Wi-Fi network reception.

Cooling and aesthetics

• Comprehensive heat sinks:Includes a massive heat sink for power circuits (VRM) and a flexible heat sink for M.2 slots to maintain low temperatures.

• Lighting:Supports Aura Sync lighting system with 3 dedicated ports for lighting strips (Addressable RGB Gen 2).

Dimensions

• Size:The board comes in standard ATX size (30.5 cm x 24.4 cm), making it compatible with most mid and full tower cases.

Specifications of the Asus TUF GAMING B850-E WIFI motherboard

Model

• TUF GAMING B850-E WIFI

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

  • Refer tohttps://www.asus.com/support/download-center/for CPU support list.

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

• Dual channel memory architecture

• Supports AMD Extended Profiles for Overclocking (EXPO™)

• ASUS Enhanced Memory Profile (AEMP)

  • Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit.https://www.asus.com/support/download-center/Adjustments will be made based on the specifications of mass-produced memory products available on the market.

  • Non-ECC, unbuffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort

• 1 x HDMI™ port***

  • Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• Supports max. 8K@30Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

  • 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen™ 8000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

• AMD B850 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x1 mode)

  • 1 x PCIe 4.0 x1 slot

  • Please check the PCIe bifurcation table on the support site.https://www.asus.com/support/FAQ/1037507/).

• Specifications vary by CPU types.

  • To ensure compatibility of the installed device, please refer to.https://www.asus.com/support/download-center/for the list of supported peripherals.

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports.

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors.

  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode).

  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode).

• AMD Ryzen™ 8000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*

• AMD B850 Chipset

  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

  • Specifications vary by CPU types.

• AMD RAIDXpert2 Technology

  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10

  • Ryzen™ 8000 Series Processors: RAID 0/1

  • Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

• 1 x Realtek 2.5Gb Ethernet

• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6E

• 2x2 Wi-Fi 6E (802.11ax)

• Supports 2.4/5/6GHz frequency band*

• Bluetooth® v5.3

  • WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.

• The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 8 ports)

  • 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

  • 3 x USB 5Gbps ports (3 x Type-A)

  • 3 x USB 2.0 ports (3 x Type-A)

• Front USB (Total 7 ports)

  • 1 x USB 20Gbps connector (supports USB Type-C®)

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  • USB Type-C® power delivery output: max. 5V/3A.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

  • Supports: Jack detection, Multi-streaming, Front Panel Jack retasking

  • Supports up to 24-Bit/192 kHz playback

• Audio Features

  • Audio Shielding

  • Premium audio capacitors

  • Dedicated audio PCB layers

  • Audio cover

  • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

• 3 x USB 5Gbps ports (3 x Type-A)

• 3 x USB 2.0 ports (3 x Type-A)

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling Related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 4 x 4-pin Chassis Fan headers

• Power Related

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V CPU Power connector

  • 1 x 4-pin +12V CPU Power connector

• Storage Related

  • 3 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

• USB

  • 1 x USB 20Gbps connector (supports USB Type-C® )

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

  • 3 x Addressable RGB Gen 2 headers

  • 1 x Clear CMOS header

  • 1 x Chassis Intrusion header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x 10-1 pin Front Panel System header

Special Features

• ASUS TUF PROTECTION

  • DIGI+ VRM (- Digital power design with DrMOS)

  • ESD Guards

  • TUF LANGuard

  • Overvoltage protection

  • SafeSlot

  • Stainless-steel back I/O

• ASUS Q-Design

  • M.2 Q-Latch

  • PCIe Slot Q-Release

  • Q-Antenna

  • Q-Dashboard

  • Q-DIMM

  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  • Q-Slot

• ASUS Thermal Solution

  • Flexible M.2 heatsink

  • VRM heatsink design

• ASUS EZ DIY

  • BIOS FlashBack™ button

  • BIOS FlashBack™ LED

  • ProCool

  • Pre-mounted I/O shield

  • SafeDIMM

• Aura Sync

  • Addressable RGB Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

  • Aura Creator

  • Aura Sync

  • Fan Xpert 4

  • Power Saving

• ASUS AI Advisor

• ASUS DriverHub

• ASUS GlideX

• TurboV Core

• TUF GAMING CPU-Z

• DTS Audio Processing

• Adobe Creative Cloud (Free Trial)

• Norton 360 for Gamers (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash 3

  • ASUS UEFI BIOS EZ Mode

  • ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

  • 2 x SATA 6Gb/s cables

• Miscellaneous

  • 1 x ASUS WiFi Q-Antenna

  • 1 x TUF Gaming sticker

  • 1 x M.2 rubber package

  • 2 x Screw packages for M.2 SSD

• Documentation

  • 1 x Quick start guide

Operating System

• Windows 11, Windows 10 64-bit

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
